Description

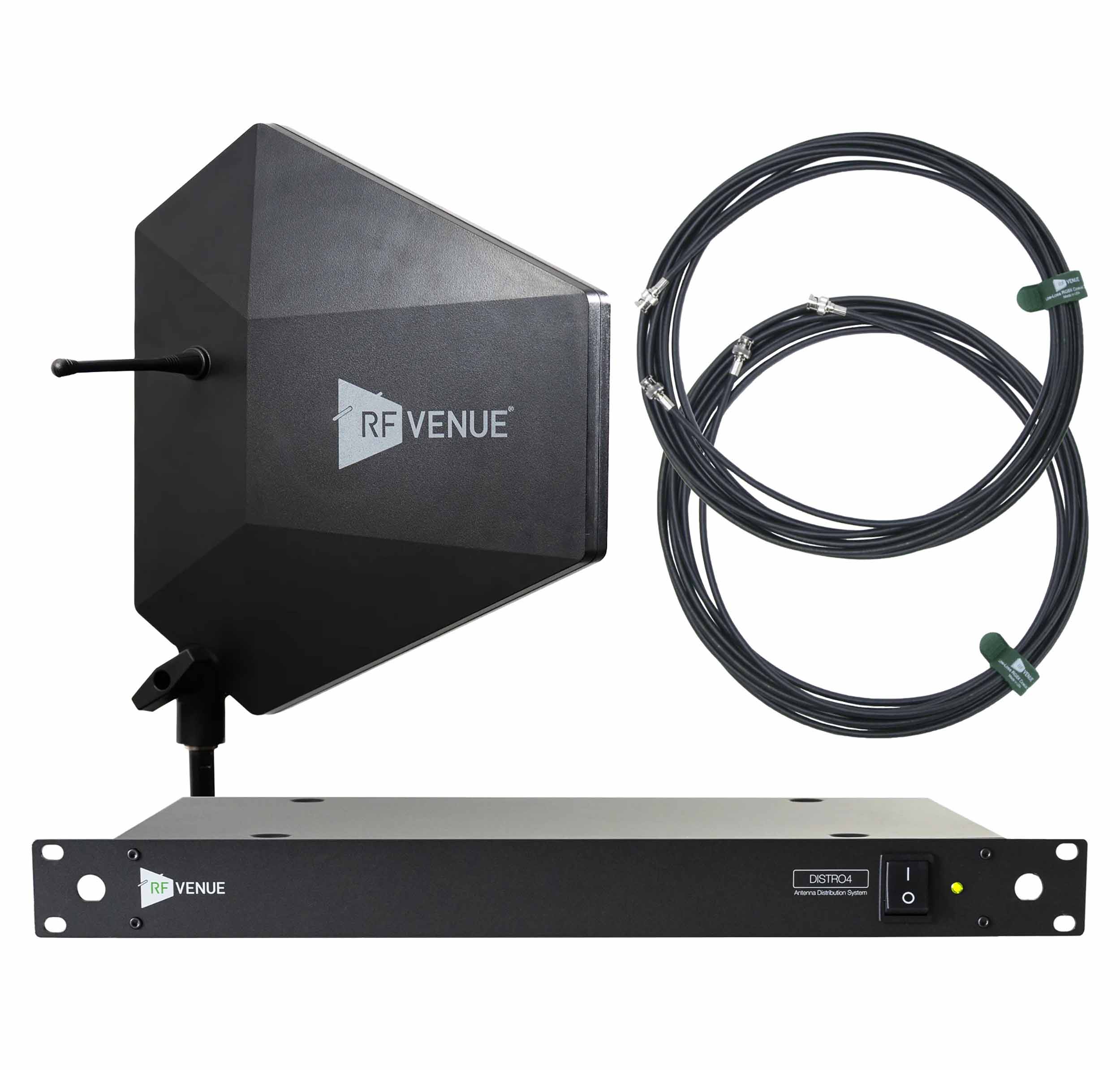

The RF Venue DFIN-IPXDISTRO4 is a complete RF upgrade solution designed to deliver reliable wireless microphone performance in professional audio environments. This all-in-one package includes the RF Venue Diversity Fin IPX Antenna, the DISTRO4 Antenna Distribution System, and two 25 ft low-loss RG8X coaxial cables, providing centralized RF distribution for up to four wireless receivers.
The Diversity Fin IPX Antenna features patented cross-polarized technology that captures both vertical and horizontal RF signals to reduce dropouts and multipath interference, regardless of transmitter orientation. Its IP44-rated weather-resistant design makes it ideal for touring, outdoor events, broadcast, houses of worship, and permanent installations.
By replacing multiple whip antennas and individual power adapters with a single, streamlined RF distribution system, the RF Venue DFIN-IPXDISTRO4 helps reduce rack clutter while improving system organization and reliability. Expandable RF cascade ports also allow the system to grow with your wireless setup, making it a flexible solution for professional wireless audio systems.
What's Included in the Box:
RF Venue Diversity Fin IPX Antenna (Black, 470 to 928 MHz)
2 x Dipole Antenna
2 x Spare Dipole Antenna
Threaded EU Microphone Stand Adapter
10 x Coaxial RF Cables
4 x DC Power Jumpers
AC Power Cord
Product Specifications:
Operating Frequency: 470 MHz - 928 MHz (Antenna)
Distribution Frequency Range: 470 MHz - 952 MHz
Supports: Up to 4 Wireless Receivers
Antenna Polarization: Cross-Linear (Vertical & Horizontal)
Antenna Type: Passive
Weather Rating: IP44 Weather-Resistant
RF Gain: +3 dB (±2 dB)
Impedance: 50 Ohms
AC Input Voltage: 100V - 240V Switching
DC Output Voltage: 12V DC (1A x 4 Outputs)
Antenna Connector: Downward-Facing BNC-F (50Ω)
Antenna Mount: 5/8"-27 Threaded (EU Adapter Included)
Antenna Finish: Matte Black
Dimensions: Antenna: 16.75" × 14.88" × 3"; DISTRO4: 2" × 19" × 10"
