Description
The RF Venue DFINBD9 delivers a complete professional RF distribution solution with the DISTRO9 HDR 9-Channel Antenna Distributor Bundle, engineered to provide reliable signal distribution for up to nine diversity wireless microphones. The bundle includes the DISTRO9 HDR multi-zone antenna distributor, a black Diversity Fin antenna with a wall-mount bracket for permanent installations, premium low-loss double-shielded coaxial cables, and a DC power cable kit. Designed for live sound, broadcast, film and television production, schools, houses of worship, and commercial installations, it is compatible with diversity wireless microphone systems from virtually any brand.
The included Black Diversity Fin antenna features a proprietary cross-polarized hybrid design that combines an LPDA and dipole antenna to receive both vertical and horizontal RF signals. This innovative configuration helps reduce signal dropouts while delivering stronger, more consistent RF and audio performance than traditional dual shark-fin antenna setups. Its included wall-mount bracket makes it an ideal choice for fixed installations where dependable wireless coverage is essential.
At the core of the system, the DISTRO9 HDR uses advanced divide-by-three circuitry and low-noise amplifiers to provide high dynamic range RF distribution without conventional internal splitters. Dual-zone antenna inputs enable coverage across multiple rooms or large venues, while cascade capability allows expansion to support up to 17 wireless microphone channels with a second DISTRO9 HDR. The built-in power supply can power up to nine wireless receivers using the included DC cable kit and also supports battery-powered operation for mobile sound applications. Designed and assembled in the USA, the DISTRO9 HDR is ETL listed and built to meet the demands of professional wireless audio systems.

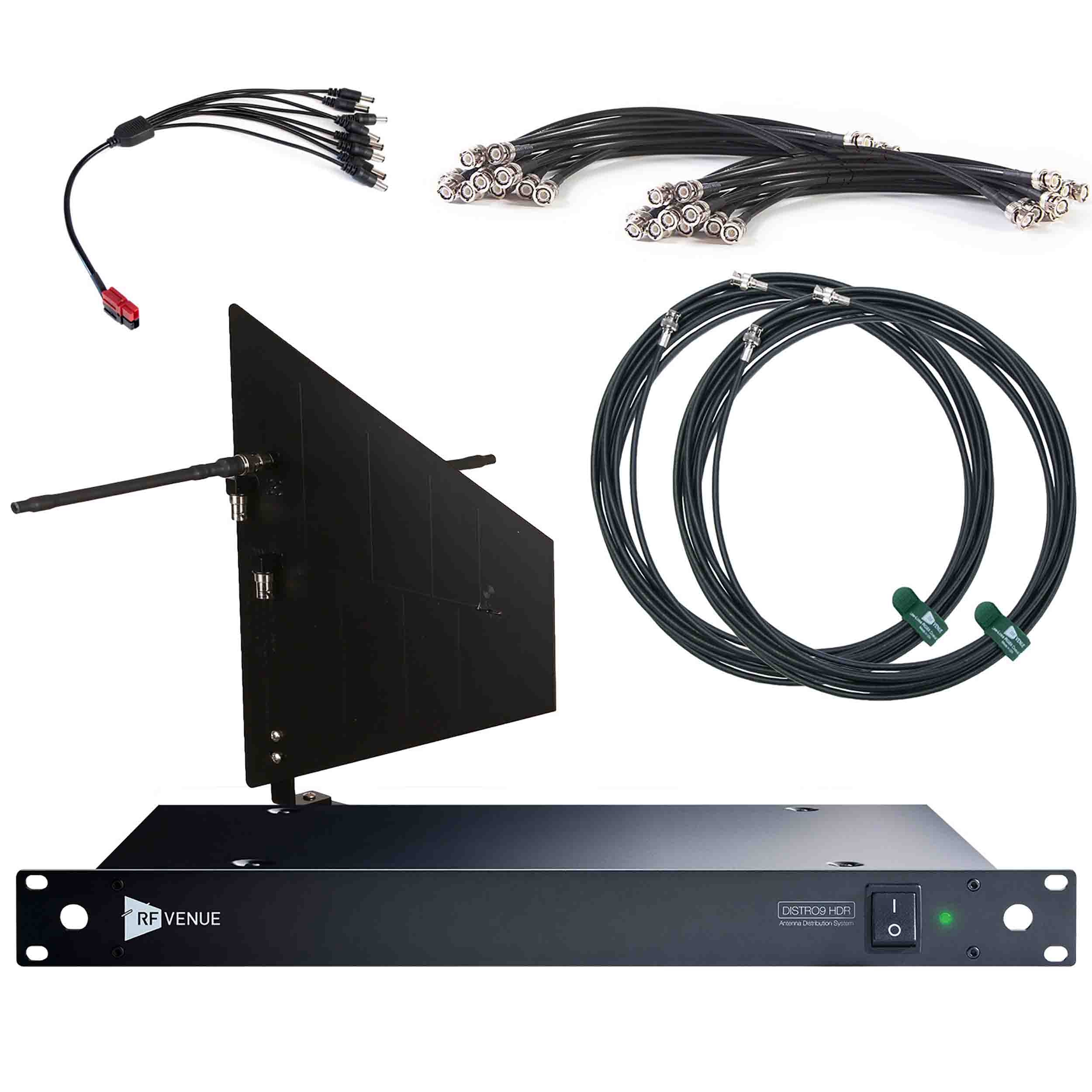

What's Included in the Box:
RF Venue DISTRO9 HDR 9-Channel Antenna Distributor Bundle (Black Wall-Mount Diversity Fin)
RF Venue Diversity Fin Antenna with Wall-Mount Bracket for Wireless Microphone Systems (Black, 470 to 698 MHz)
RF Venue Distro9 HDR Multi-Zone Antenna Distribution System
2 x RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 25')
RG8X1.5-10 (10-Pack Interconnects) - 1.5'
RG8X2-10 (10-Pack Interconnects) - 2'
DC-KIT-D9 DC Power Distribution Kit
Product Specifications:
Antenna Distributor: RF Venue DISTRO9 HDR
Antenna: Black Wallmount Diversity Fin
Wireless Channels: Up to 9
Expandable Channels: Up to 17 (with second DISTRO9 HDR)
Antenna Inputs: Dual Zone
RF Technology: Divide-by-Three Circuitry
Signal Performance: Low Noise, High Dynamic Range
Receiver Power: Powers up to 9 Receivers
Power Source: AC or DC Battery
Coaxial Cables: Premium Low-Loss Double-Shielded
Mounting: Wall-Mount Bracket Included
Compatibility: Diversity Wireless Microphone Systems
Applications: Live Sound, Broadcast, Film, TV, Worship, Education, Installations
Certification: ETL Listed (USA & Canada)
Country of Assembly: USA
Included Accessories: Wallmount Diversity Fin Antenna, Coaxial Cables, DC Power Cable Kit
Weight (Approx.): 15.7 lb (7.1 kg)
Dimensions (Approx.): 22.5 × 14.4 × 8.6 in
