Description

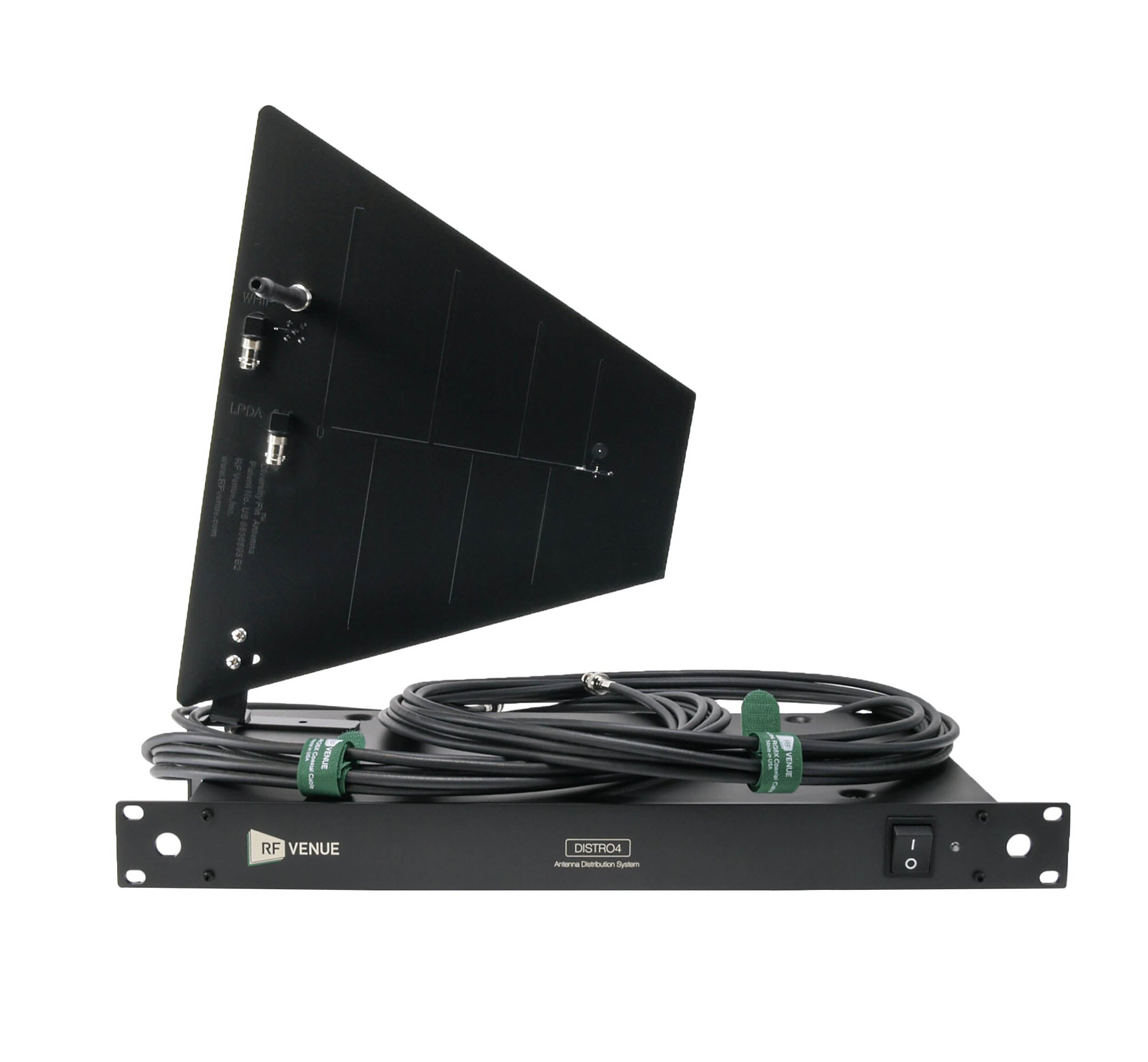

The RF Venue DFINBDISTRO4 is a complete 4-channel wireless microphone upgrade pack that combines the DISTRO4 antenna distributor with the Black Diversity Fin wall-mount antenna. Designed for professional wireless microphone systems, this bundle provides reliable RF distribution, DC power management, and improved signal performance for live events, installations, and production environments.
The Black Diversity Fin features RF Venue’s patented cross-polarized hybrid design, combining LPDA and dipole elements in a single compact antenna. This design captures both vertical and horizontal polarized signals to provide true A/B diversity reception, helping reduce dropouts and improve wireless audio reliability. Its wall-mount design makes it ideal for clean, space-efficient installations in venues such as theaters, schools, houses of worship, and broadcast facilities.
The DISTRO4 active antenna distributor distributes diversity RF signals and DC power across four wireless microphone receivers while amplifying signals for improved system performance. Featuring an internal 2000 mA power supply, cascade output for system expansion, and included RF/DC cables, the DFINBDISTRO4 provides a complete solution that can support expansion up to 16 receivers per antenna pair.
What's Included in the Box:
DISTRO4 4 Channel Antenna Distribution System
Diversity Fin Black Wallmount Antenna
2x 25’ RG8X Coaxial Cables
10x BNC Jumpers
4x DC Cables
1 AC Cable
Product Specifications:
Product Type: 4-Channel Wireless Microphone Antenna Distribution Pack
Included Components: DISTRO4 Distributor and Black Diversity Fin Antenna
Receiver Capacity: Up to 4 Wireless Microphone Receivers
System Expansion: Cascade Support for Up to 16 Receivers
Antenna Type: Cross-Polarized Diversity Fin Antenna
Antenna Design: LPDA and Dipole Hybrid Configuration
Mounting: Wall-Mount Installation
RF Distribution: Active Diversity Signal Distribution
Power Supply: Built-In 2000 mA Internal Power Supply
DC Power Output: Provides Power to Connected Receivers
Compatibility: Works with All Major Wireless Microphone Brands
RF Inputs: Dual Antenna Inputs (A/B)
Outputs: Multiple Receiver Distribution Outputs
Included Accessories: RF Cables and DC Power Cables
Application: Live Sound, Broadcast, Touring, and Permanent Installations
Signal Improvement: Reduces Dropouts and Improves RF Reliability
