Description

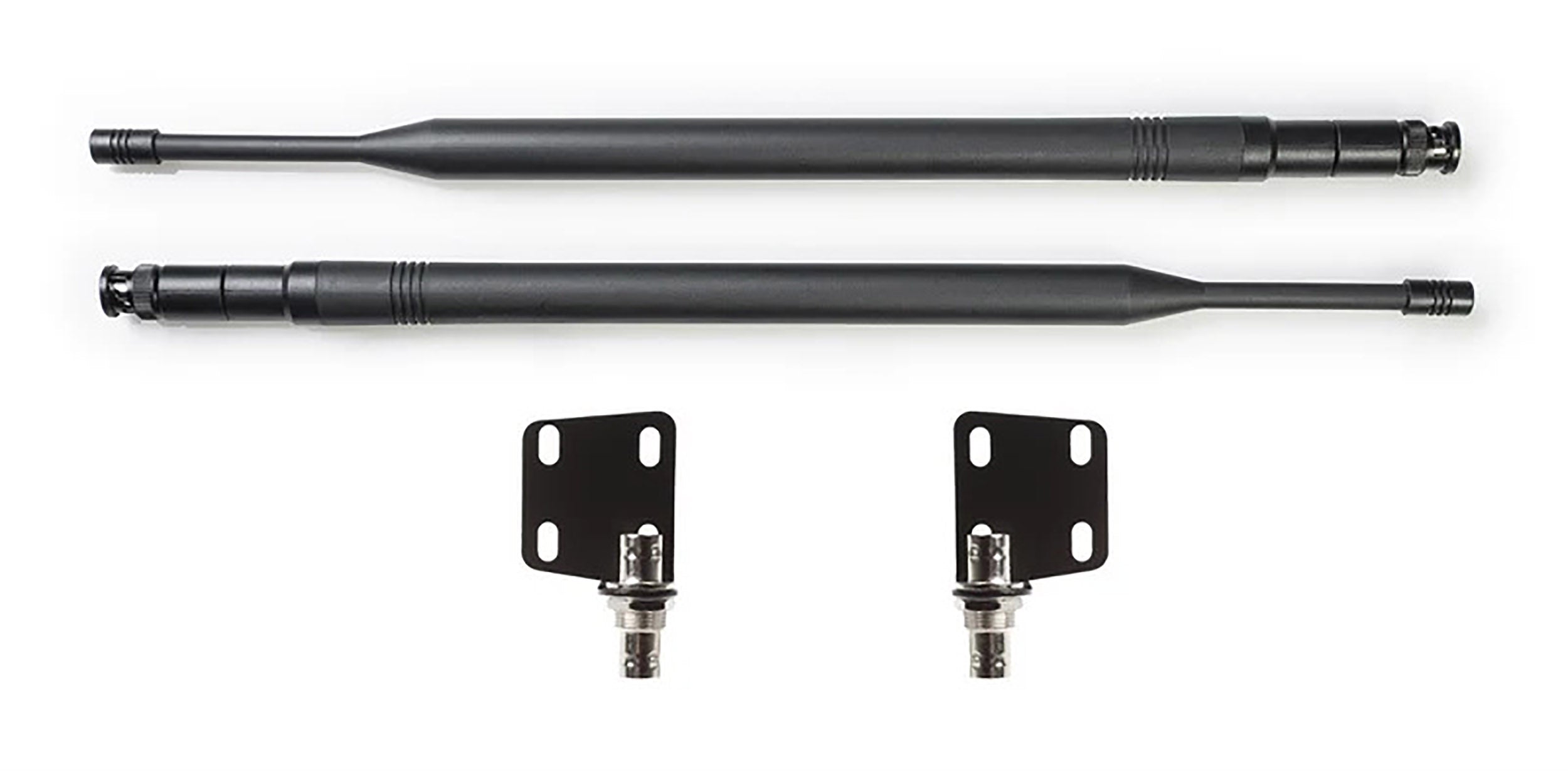

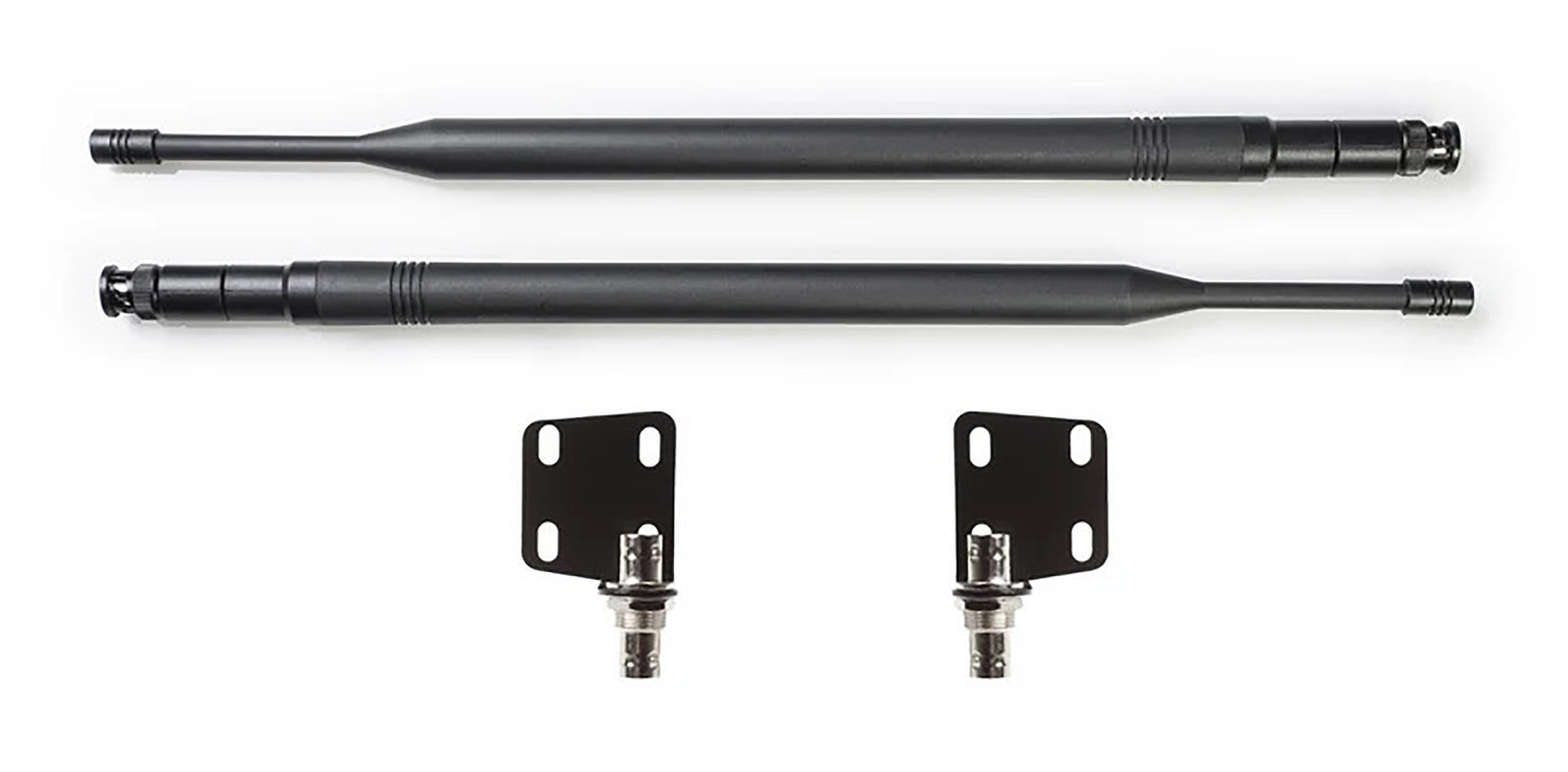

The RF Venue Half-Wave Remote Antenna Kit is designed to enhance the performance of UHF wireless microphone systems by upgrading standard receiver antennas to high-performance 1/2-wave antennas. Available in multiple frequency ranges, this kit improves reception, extends wireless range, and provides more reliable signal performance for professional audio environments.
Each kit includes two 1/2-wave antennas along with essential installation accessories, including BNC pass-through connectors and mounting hardware. The flexible front or remote mounting options allow users to optimize antenna placement for better coverage, reduced interference, and improved wireless stability.
The RF Venue Half-Wave Remote Antenna Kit is an ideal solution for presentations, live performances, classrooms, businesses, theaters, and public venues where dependable wireless microphone performance is required. With easy installation and enhanced RF performance, it provides a practical upgrade for compatible UHF wireless receiver systems.
Product Specifications:
Product Type: Half-Wave Remote Antenna Kit
Antenna Type: 1/2-Wave Antenna
Frequency Options: 470–530 MHz / 500–570 MHz / 530–608 MHz
Quantity: 2 Antennas
Mounting Options: Front or Remote Mount
Connector Type: BNC
Includes: BNC Pass-Through Connectors, Mounting Hardware
Compatibility: UHF Wireless Microphone Systems
Performance: Improved Range and Reception
Half-Wave Antenna Kit (470–530 MHz)
Antenna Type: 1/2-Wave Antenna
Frequency Range: 470–530 MHz
Quantity: 2 Antennas
Mounting Options: Front or Remote Mount
Connector: BNC
Includes: BNC Pass-Through Connectors, Mounting Hardware
Compatibility: UHF Wireless Microphone Systems
Performance: Improved Range and Reception
Benefits: Reduced Interference and Dropouts
Applications: Classrooms, Businesses, Theaters, Public Venues
Weight: Approx. 1 lb (0.45 kg)
Dimensions (L × W × H): Approx. 6.5 × 0.75 × 0.75 in
Half-Wave Antenna Kit (500–570 MHz)
Antenna Type: 1/2-Wave Antenna
Frequency Range: 500–570 MHz
Quantity: 2 Antennas
Mounting Options: Front or Remote Mount
Connector: BNC
Includes: BNC Pass-Through Connectors, Mounting Hardware
Compatibility: UHF Wireless Microphone Systems
Performance: Improved Range and Reception
Benefits: Reduced Interference and Dropouts
Applications: Classrooms, Businesses, Theaters, Public Venues
Weight: Approx. 1 lb (0.45 kg)
Dimensions (L × W × H): Approx. 6.5 × 0.75 × 0.75 in
Half-Wave Antenna Kit (530–608 MHz)
Antenna Type: 1/2-Wave Antenna
Frequency Range: 530–608 MHz
Quantity: 2 Antennas
Mounting Options: Front or Remote Mount
Connector: BNC
Includes: BNC Pass-Through Connectors, Mounting Hardware
Compatibility: UHF Wireless Microphone Systems
Performance: Improved Range and Reception
Benefits: Reduced Interference and Dropouts
Applications: Classrooms, Businesses, Theaters, Presentations, Public Venues
Weight: Approx. 1 lb (0.45 kg)
