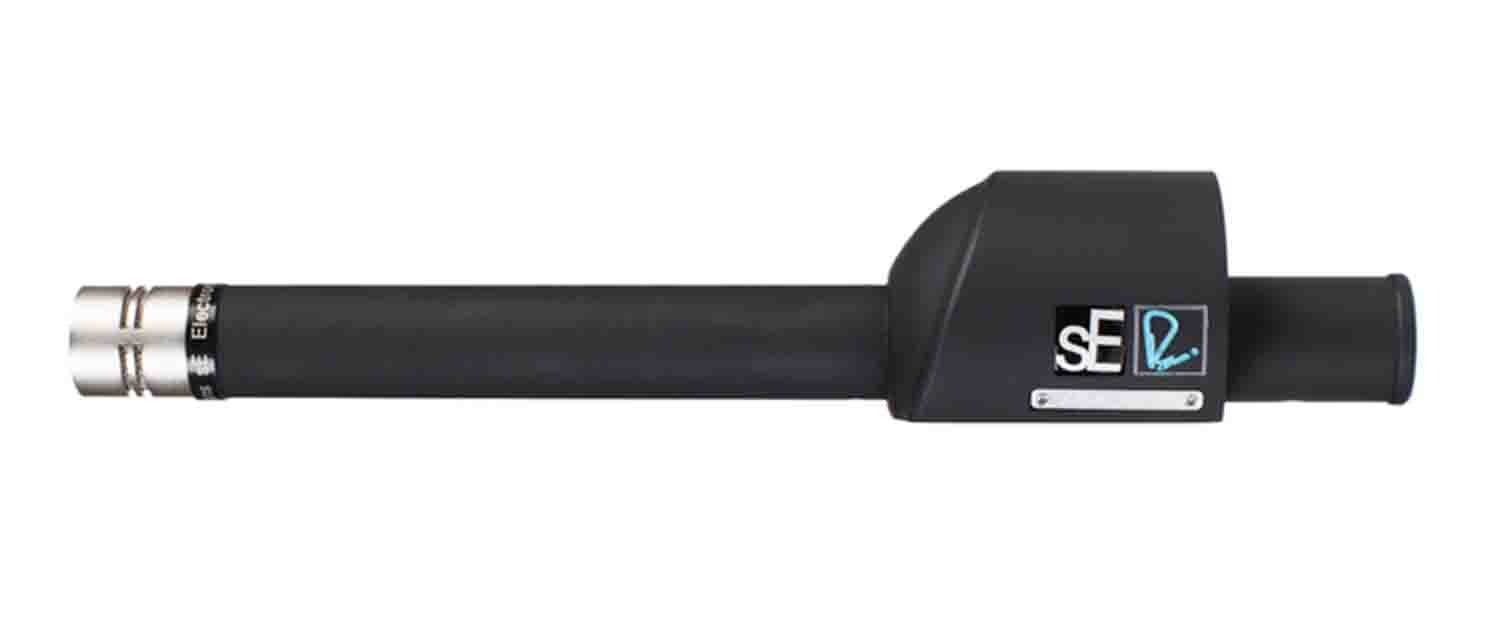

sE Electronics RN17 Small Diaphragm Microphone with Changeable Capsule

The sE Electronics RN17 is a Small Diaphragm Microphone with Changeable Capsule. This is the world's first pencil microphone with a large-scale, hand-wound, ultra high performance transformer. The SPL is high, but the sound is very cold, not like with a large diaphragm. The quality of the transformer can make the sound much, much better but with a small transformer, nobody can do it.

The Small Diaphragm

With a 15mm diaphragm the world's smallest production gold-sputtered diaphragm, the transient response of the RN17 is unparalleled. Such a small capsule reacts extremely quickly, and is therefore adept at picking up the most delicate of high-frequency content.

The Massive Transformer

Made obvious by the unusual chassis shape, the RN17's transformer is substantially larger than the norm. This full-scale transformer was custom-designed by Rupert Neve specifically for this microphone - and nobody has been designing audio transformers longer (or better) than Rupert Neve. With an audio transformer of this magnitude, the RN17 is able to put out astonishing clarity across ALL frequencies - not just the highs. The midrange is detailed and forward, the lows are full and accurate, and the whole microphone has a balance and headroom never before achieved with a small-capsule microphone.

Matte Black Finish

The matte black finish minimizes the level of visual attention drawn to the microphone when used on stage or in the studio, allowing it to blend into the background.

Additional Capsules

The RN17 ships standard with a cardioid capsule, but an omnidirectional capsule is also available for purchase separately.

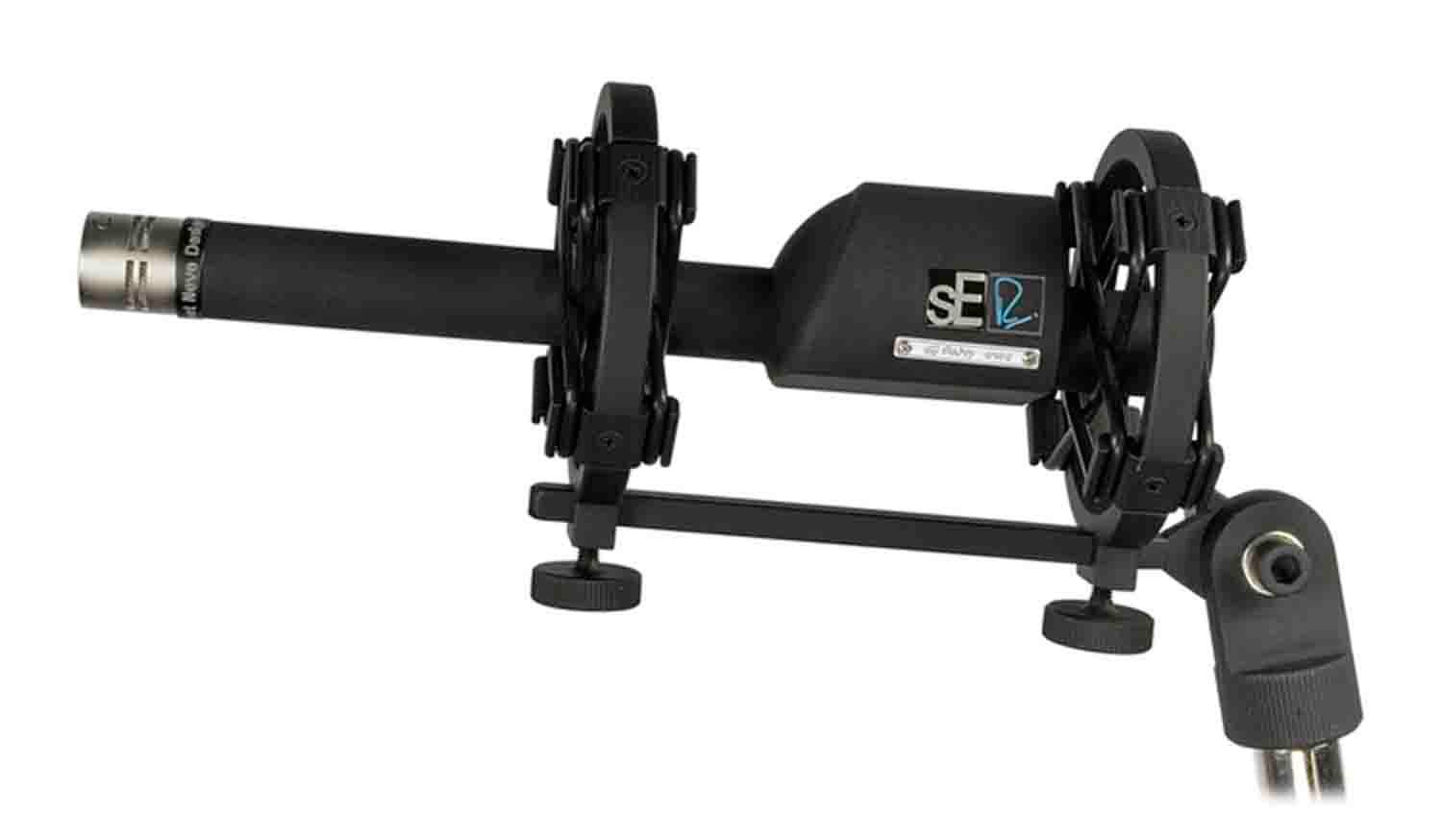

Custom Shock Mount

Every RN17 includes a custom-designed, sturdy, protective, and easy-to-use shock mount, which is essential to reducing the unwanted effects of vibration or knocks to the supporting microphone stand.

Product Specifications:

Capsule Type: Hand-Crafted True Condenser

Diaphragm: 17.2mm Gold/Mylar

Directional Pattern: Cardioid (omnidirectional capsule available separately)

Frequency Range: 20 Hz - 20 kHz

Impedance: 200 Ohms

Sensitivity: 5.96 mV/Pa (-44.5dB)

Sensitivity (Figure-8): 2.51 mV/Pa (-52dB)

Max SPL: 131 dB (0.5% THD @ 1kHz)

Signal to Noise Ratio: 76 dB

Self Noise: 18 dB(A) (cardioid), 15 dB(A) (omni)

Matching Connectors: XLR3F

Power Requirement: 48V phantom

Weight: 320g / 11.32oz

Diameter: 44 mm (transformer), 17mm (capsule)

Length: 200 mm
