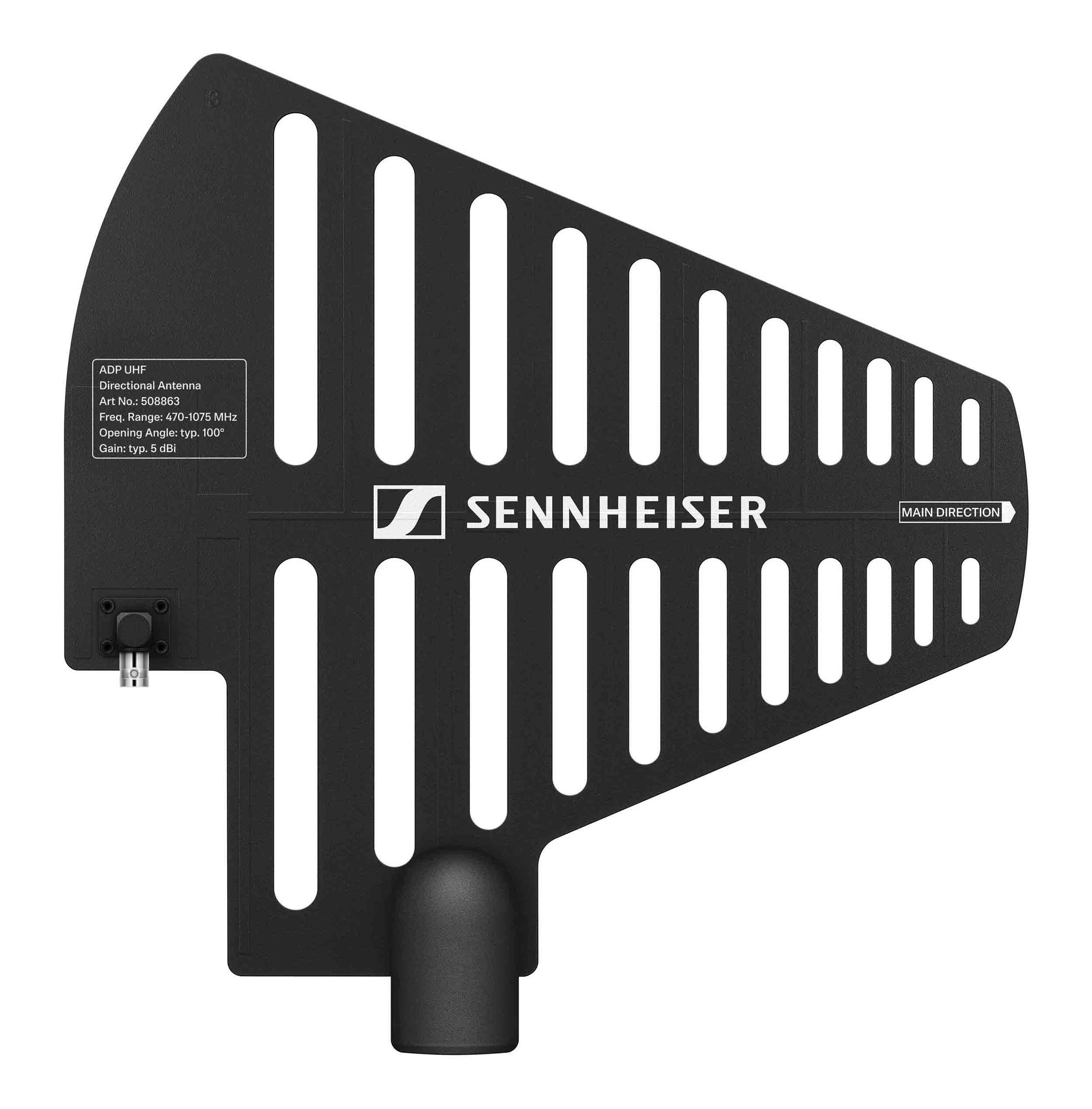

Sennheiser ADP UHF 470 -1075MHZ Passive Directional Antenna for EW-D

The Sennheiser ADP UHF 470 -1075MHZ Passive Directional Antenna is an essential component for maximizing the wireless performance of your EW-D series wireless microphone system. Positioning the antenna close to your transmitters on stage and orienting it in their direction enables you to achieve maximum coverage for professional-quality RF signal reliability with low risk of interference and virtually no dropouts. The ADP UHF is equipped with 3/8"-16 and 5/8"-27 threads for easy mounting on a mic stand. It features a 50-ohm BNC connector for connection to either an EW-D receiver, EW-D AB antenna booster, or the EW-D ASA antenna splitter via a coaxial cable (all available separately). The unit is designed for indoor and outdoor use.

Product Specification:

Frequency Range: 470 to 1075 MHz

Apex Angle: Approx. 100° (-3 dB)

Front-to-Back Ratio: > 14 dB

Gain: 5 dBi (Typical)

Impedance: 50 Ohms

Connection: BNC Female, No DC Path

Threads: 3/8"-16 and and 5/8"-27

Relative Humidity: 5 to 95%

Temperature: Operating Temperature Range: 14 to 131°F / -10 to 55°C

Storage Temperature Range: -4 to 185°F / -20 to 85°C

Dimensions: 12.5 x 12.2" / 319 x 310 mm

Weight: 11.2 oz / 320 g
