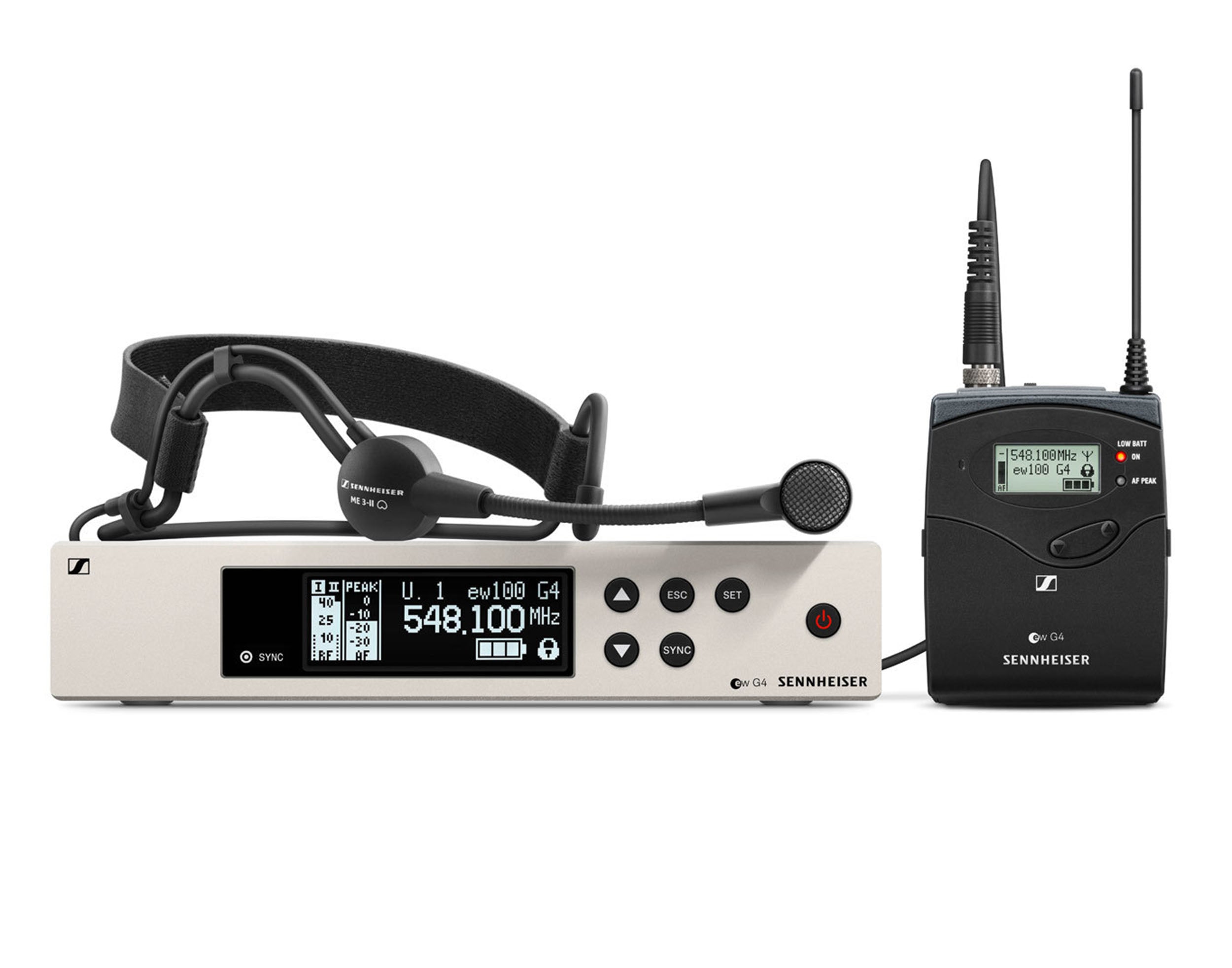

Sennheiser EW 100 G4-ME3-A Wireless Headmic Set - 516 to 558 MHz

The Sennheiser Sennheiser EW 100 G4-ME3-A Wireless Headmic Set - 516 - 558 MHz for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems. For hands-free operation during performances and speeches: Robust bodypack transmitter and feedback resistant head mic ME 3-II with high speech intelligibility for daily use on stage.

Reliability and Performance

When taking any stage, large or small, a presenter needs to have just as much confidence in their equipment as they do in themselves. The ability to rely on technology is just as much a factor as the content itself when it comes to delivering a message to an audience. Enter the evolution wireless G4 100 Series a wireless system built on the need for dependability that continues to deliver for presenters and A/V technicians time and time again.

Feature-Rich and Built to Last

The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it’s easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.

Differences Between the Sets

The ME2, ME3 and ME4 are all great set options and vary depending on your needs. While the EW 100 G4-ME2 features our classic ME 2-II omnidirectional lavalier microphone, the ME4 offers a cardioid lavalier microphone in its place. The ME3 features the ME 3-II cardioid head-worn microphone which is ideal for getting the microphone capsule closer to the sound source in noisy or reverberant rooms. Lastly, the ME2/835-S is a combo set for those that need to switch between an omnidirectional lavalier and a cardioid handheld microphone depending on their application.

Product Specifications:

Frequency Range: A: 516 - 558 MHz

Compander: Sennheiser HDX

THD, Total Harmonic Distortion: ≤ 0.9 %

Audio Output:

6.3 mm jack socket (unbalanced): +12 dBu

XLR socket (balanced): +18 dBu

Signal-To-Noise Ratio: ≥ 110 dBA

Switching Bandwidth: up to 42 MHz

Peak Deviation: ±48 kHz

Nominal Deviation: ±24 kHz

Modulation: Wideband FM

Power Supply: 12 V DC

Antenna Connector: 2 BNC sockets

Current Consumption: 300 mA

Adjacent Channel Rejection: Typically ≥ 65 dB

Intermodulation Attenuation: Typically ≥ 65 dB

RF Sensitivity: < 2.5 μV for 52 dBA eff S/N

Squelch: low: 5 dBµV middle: 15 dBµV high: 25 dBμV

Temperature Range: -10 °C to +55 °C

Receiver Principle: True diversity

Blocking: ≥ 70 dB"

Weight: Approx. 2.16 lbs

Dimensions: Approx. 7.5 x 8.5 x 1.7”
