Sennheiser EW-D ASA (Q-R-S), 4-Way Active Antenna Splitter with DC Distribution for EW-D Wireless Systems - 470 to 694 MHz

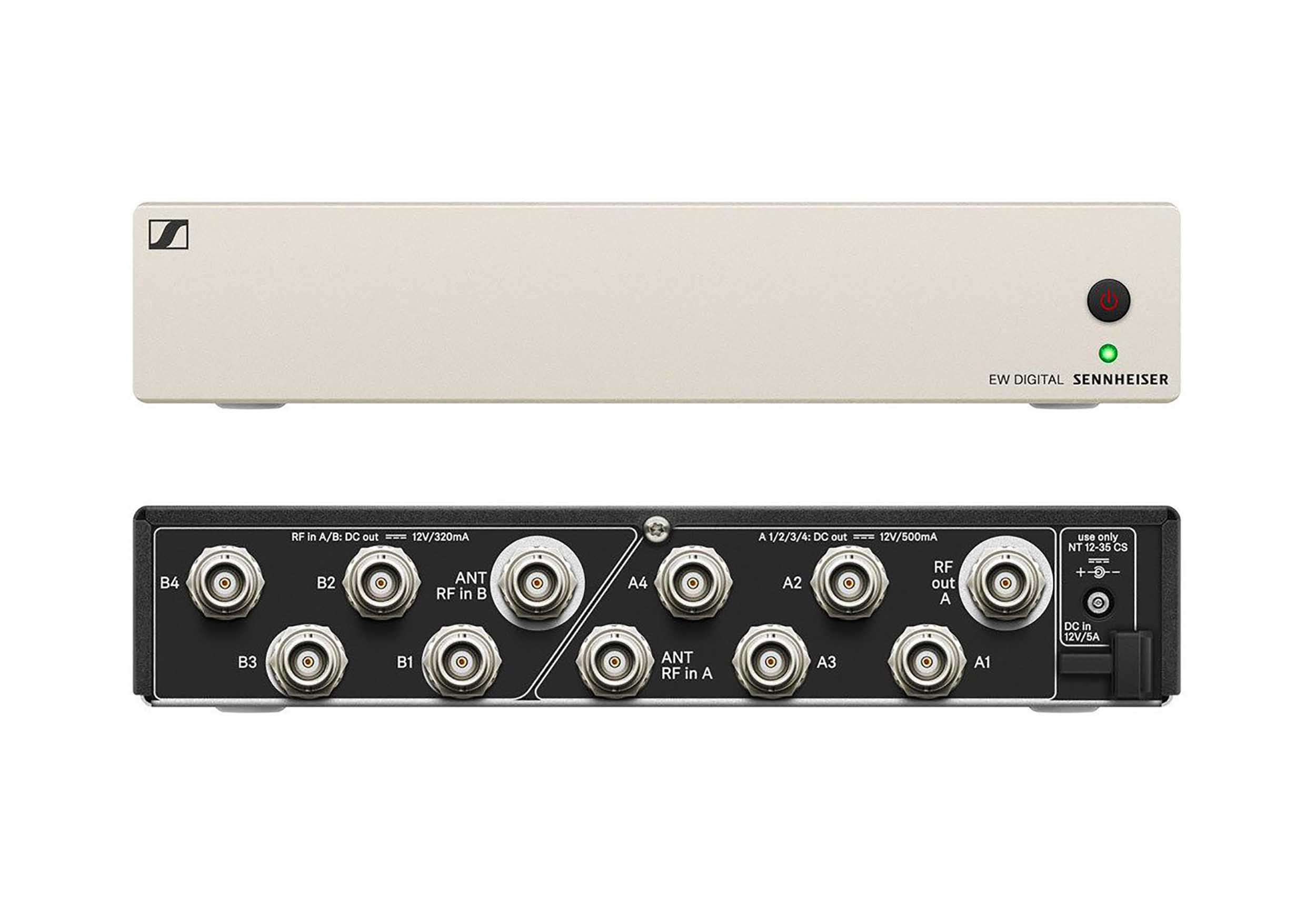

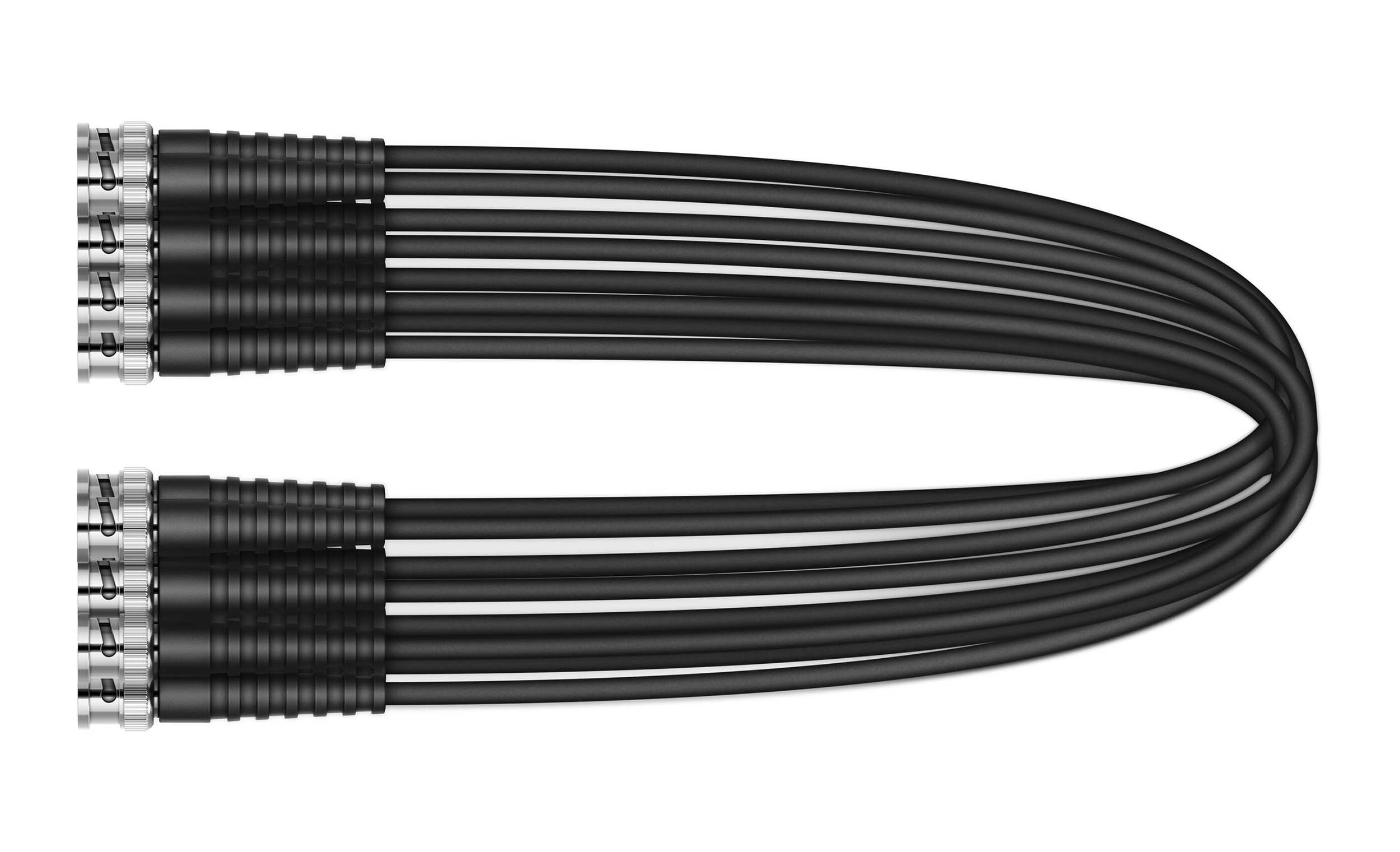

The Sennheiser EW-D ASA (Q-R-S) is a 4-way active antenna splitter that delivers diversity wireless signal distribution for up to four EW-D EM wireless receivers. It also provides DC power to the four receivers, for less clutter in your rack. The unit covers the Q, R, and S frequency ranges, from 470 to 694 MHz. The EW-D ASA receives up to four wireless microphone signals through a single pair of antennas, split and amplifies these signals, and send each signal to their respective receiver via the included BNC cables. You can either use a pair of 1/4 wave antenna (provided with one of the receivers) or upgrade to longer, 1/2-wave dipole antennas (available separately) for added range and reliability. Adding the ADP UHF passive/directional remote antennas (available separately) to your system enables you to position the antennas closer to your transmitters and orient them for maximum coverage, achieving professional-quality RF signal reliability with virtually no dropouts.

Product Specification:

Frequency Range:(Q-R-S): 470 to 694 MHz

Antenna Splitter:2 x 1:4 or 1 x 1:8, Active

Amplification:In A/Out A: 0 ± 1 dB

In A/Out A1, A2, A3, A4: 0 ± 1 dB

In B/Out B1, B2, B3, B4: 0 ± 1 dB

Isolation:Output Connector: > 25 dB

Reflection Loss:10 dB (All RF Ports)

Input Voltage:NT 12-35 CS Power Supply: 100 to 240 VAC, 50/60 Hz

Operating Voltage:12 VDC

Current Consumption:Typical: 210 mA

Total: Max 3 A (with 4 x EW-D EM and EW-D AB Connected)

Supplied Power :12 VDC, 320 mA for Antenna Boosters at ANT RF In A and ANT RF In B

12 VDC, 350 mA (Max 500 mA) at A1 to A4 (Typical)

Relative Humidity:5 to 95%

Temperature:Operating Temperature Range: 14 to 131°F / -10 to 55°C

Storage Temperature Range: -4 to 158°F / -20 to 70°C

Dimensions:8.3 x 6.6 x 1.7" / 212 x 168 x 43 mm

Weight:38.8 oz / 1,100 g
