Description

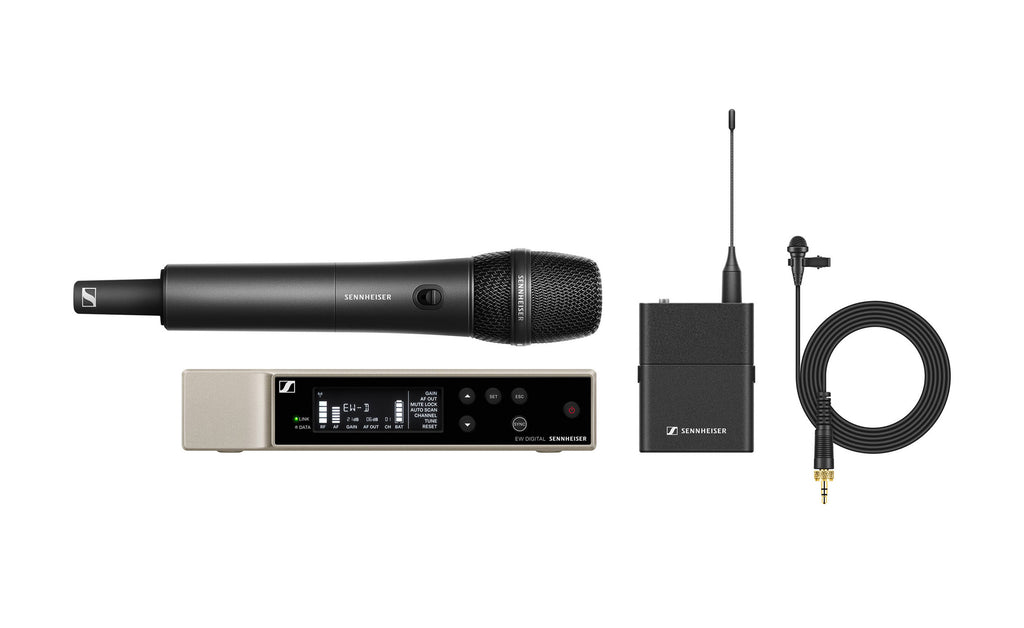

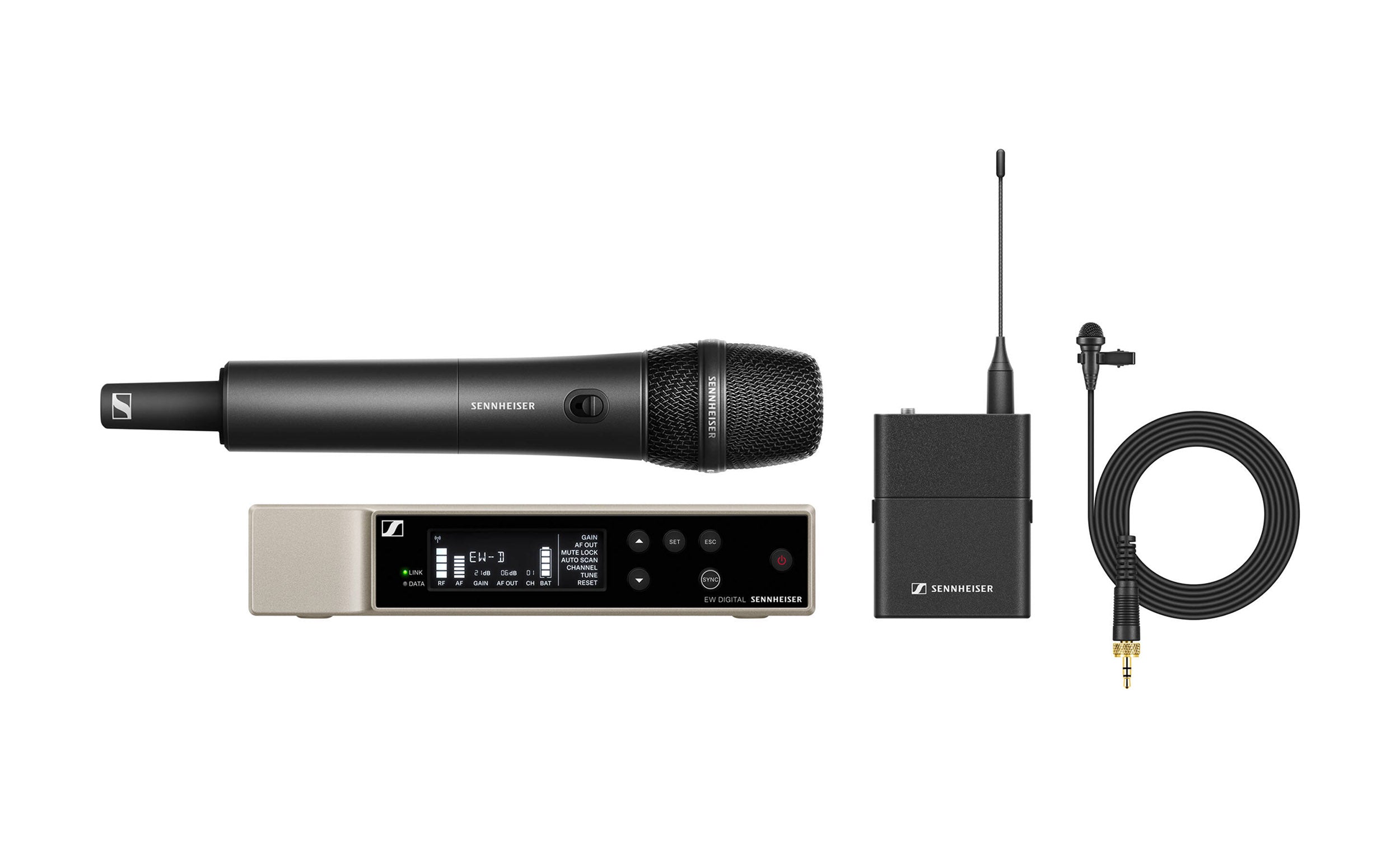

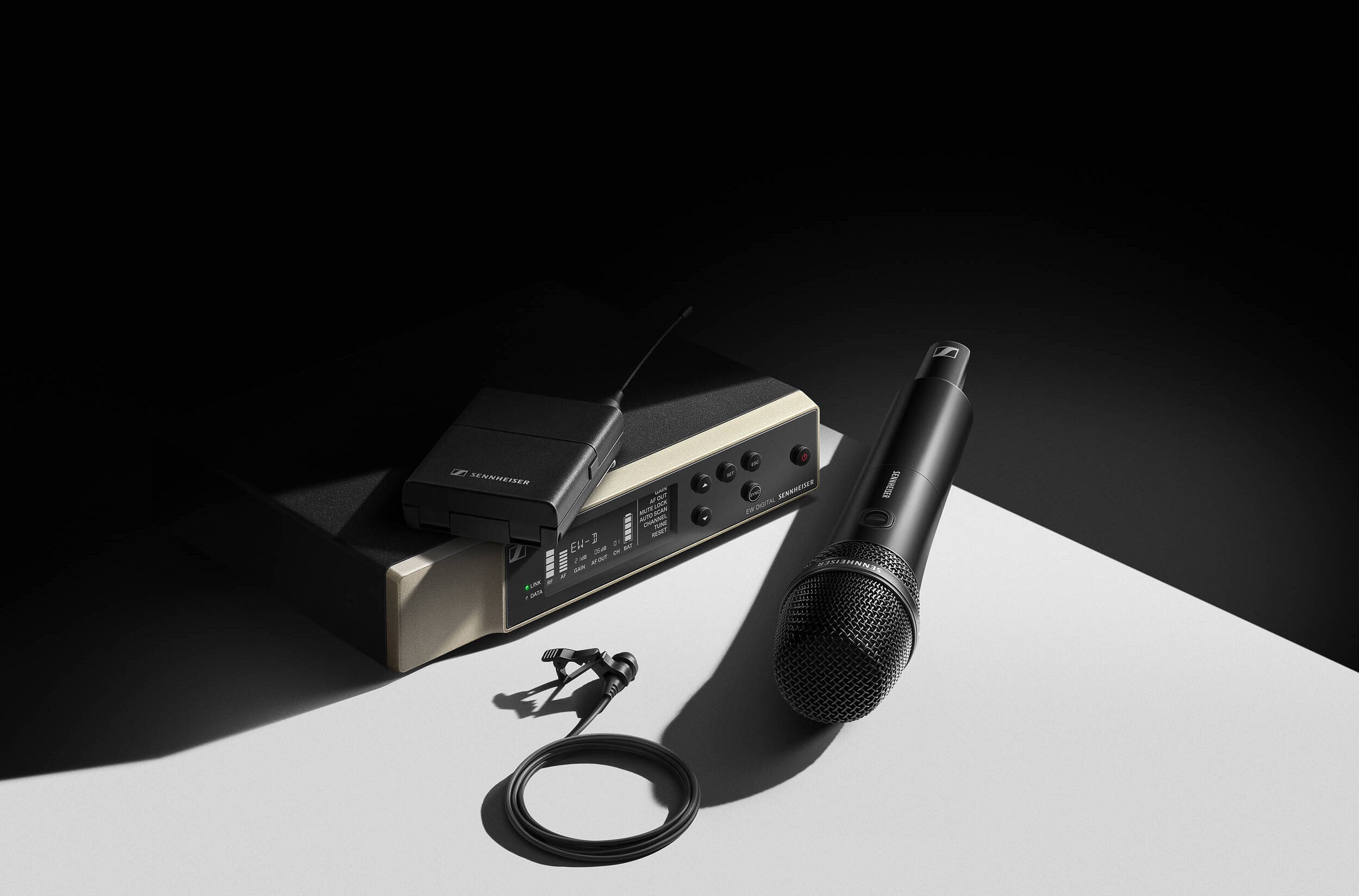

The Sennheiser EW-D ME2/835-S SET (R4-9) Digital Wireless Combo Microphone System - R4-9: 552 to 607 MHz featuring stationary receiver, handheld transmitter and clip-on microphone. Versatile and feature-rich digital wireless system for those who sing, speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter suits perfectly for daily use on stage.
Effortless, Worry-Free Wireless
Full control via Bluetooth using the Smart Assist app. Easy setup, monitoring, and troubleshooting—even for beginners. Smart algorithms handle frequency selection and syncing, minimizing dropouts and interference.
Rock-Solid Reliability
The most reliable UHF connection. German-engineered build quality. Pro-grade build quality with uncompromised fit and finish. Lightweight, rugged transmitters and receivers. Rack-mountable receivers for pro setups.
Pristine Sound Quality
Superior clarity via 24-bit resolution, surpassing analog systems. Handles quiet and loud sources effortlessly with 134 dB dynamic range. Sound feels natural and immediate with ultra-low latency (1.9 ms). Evenly spaced frequencies eliminate intermodulation interference.
Future-Proof & Upgradable
Integrates easily with other Evolution Wireless components. Scales well for growing setups—from simple gigs to multi-channel stage productions. Compatible with a wide range of Sennheiser mic capsules (on the handheld version)
Legendary Sennheiser Sound & Ultra-Wide Dynamic Range
The Sennheiser EW-D wireless system delivers legendary audio quality with an impressive 134 dB dynamic range, allowing it to handle everything from quiet speech to loud instruments without distortion or transmitter gain adjustments. With 24-bit digital audio and a 20 Hz – 20 kHz frequency response, it captures every detail with exceptional clarity. The system’s ultra-low 1.9 ms latency ensures near-instant audio transmission, helping performers stay perfectly in sync during live performances. Its equidistant tuning grid across 56 MHz bandwidth provides up to 2240 frequencies, allowing operation of up to 90 channels simultaneously without complex frequency coordination. Intelligent Switching Diversity technology improves RF reliability by constantly selecting the best signal between two antennas. Operating in the UHF band, the system avoids common Wi-Fi interference found in 2.4 GHz systems. This results in stable, professional wireless performance even in crowded RF environments.
Flexible Wireless System with Smart Control & Multiple Microphone Options
The system includes the ME 2 omnidirectional lavalier microphone and a lightweight bodypack transmitter for clear, hands-free presentations, along with a handheld transmitter featuring the MMD 835 cardioid capsule for vocals with reduced background noise and feedback. The durable all-metal transmitters feature a convenient mute switch and fast Bluetooth pairing up to 120 ft. The EW-D EM receiver offers an intuitive interface with a high-contrast OLED display, RF meters, battery monitoring, and both XLR and 1/4-inch outputs for easy connection to mixers or PA systems. Through the Sennheiser Smart Assist App, users can control frequency allocation, muting, battery status, and channel naming directly from their smartphone via Bluetooth. The system also supports expandable antenna solutions, rack mounting, and additional microphone options for presenters, musicians, and educators. With flexible accessories and reliable RF performance, it’s designed to adapt to professional audio setups of any scale.
Product Specifications:
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 552 to 607 MHz
Number of RF Channel Frequencies: 2240
Max Operating Range: 328.1' / 100 m (Line of Sight)
Max Transmitters per Band: 90
Dynamic Range: 134 dB
Latency: 1.9 ms
Encryption: No
Built-In Recorder: No
Receiver:
Receiver Type: 1x Tabletop/Rack-Mountable
Mounting Options: Rackmount (with Included Hardware, 1 U Half-Rack)
Antenna: 2x Removable BNC External (Rear-Mount)
Number of Audio Channels: 1
Audio I/O:
1x XLR 3-Pin Balanced Output
1x 1/4" TS Unbalanced Output
Network I/O: No
Word Clock I/O: No
Gain Range: -3 to +42 dB (3 dB Steps)
Frequency Response: 20 Hz to 20 kHz ±3 dB
Display: OLED
Power Requirements: AC/DC Power Adapter
Transmitters:
Included Transmitters: 1x Bodypack
RF Output Power:
10 mW
≤ 10 mW
Antenna: Fixed External
Input Level: Microphone / Instrument / Line
Audio I/O: 1/8" / 3.5 mm Locking TRS Female Input (on Bodypack Transmitter)
Bias/Plug-In & Phantom Power:
2 to 4.35 V Bias/Plug-In Power
No Phantom Support
Muting: Mute Switch
Auto-Level/Gain: No
Sync Method: Bluetooth
Display: Single-LED Indicators Only
Microphones:
Microphone Type:
1x Handheld
1x Lavalier
Polar Pattern:
Cardioid (Handheld)
Omnidirectional (Lavalier)
Output Connector: 1x 1/8" / 3.5 mm Locking TRS Male (on Lavalier)
Cable Length: 5.2' / 1.6 m
Color: Black
Power:
Transmitter Battery Type:
2x AA (Included) or
1x Sennheiser Battery Pack (Not Included)
Transmitter Battery Life:
8 Hours (Alkaline)
12 Hours (Sennheiser Battery Pack)
AC/DC Power Adapter: 11 to 13 VDC at 300 mA (Included)
Input Power: 100 to 240 VAC, 50 / 60 Hz
Physical:
Environmental Resistance: No
Shipping Weight: 6.855 lbs.
Shipping Dimensions: 16.6 x 13.8 x 3.1"
