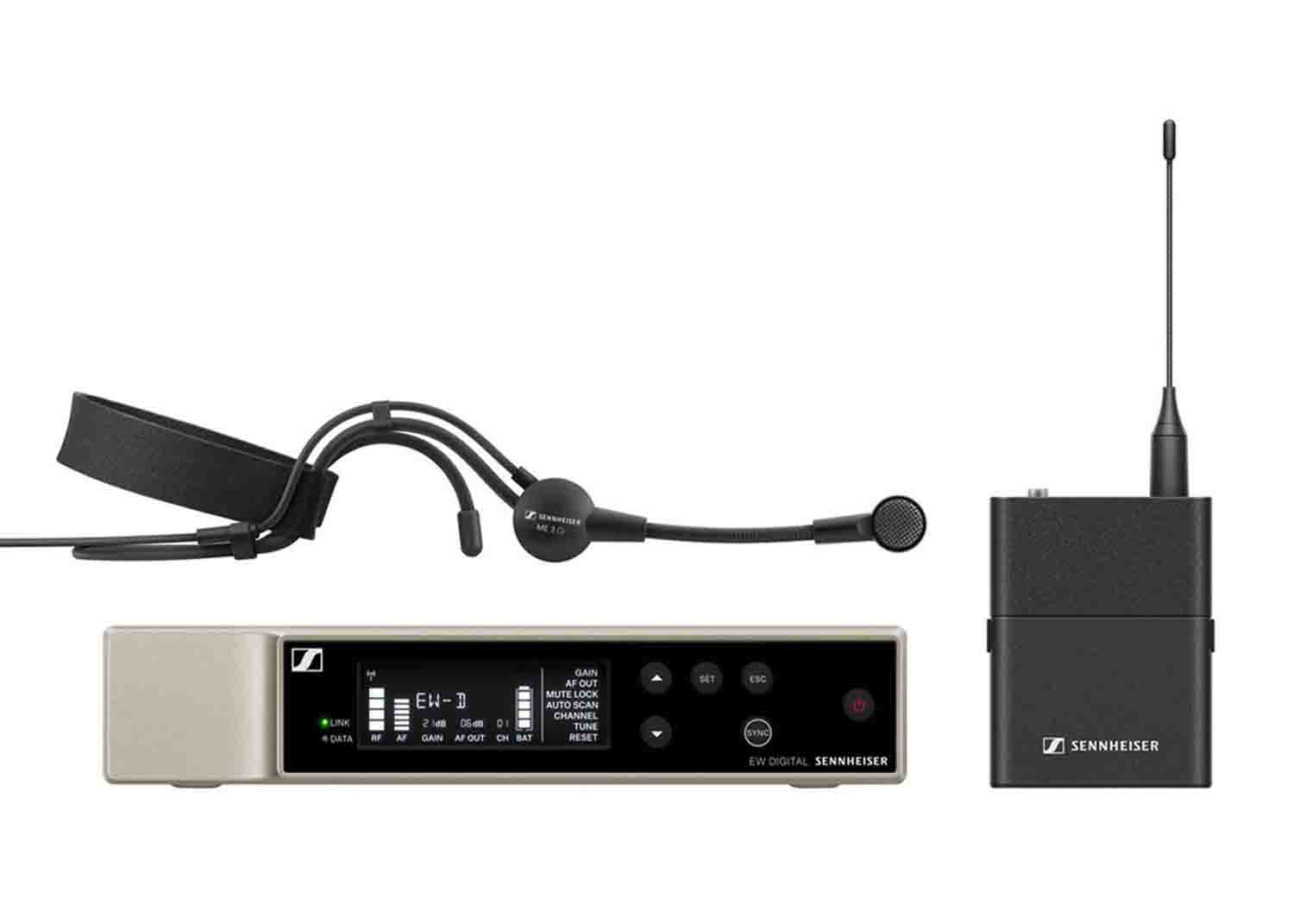

Sennheiser EW-D ME3 SET Digital Wireless Cardioid Headset Microphone System (Q1, R1, R4)

The Sennheiser EW-D ME3 SET is a Digital Wireless Cardioid Headset Microphone System (Q1, R1, R4). Versatile and feature-rich digital wireless system for those who speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and unobtrusive clip-on microphone ME 3 (cardioid) with high speech intelligibility suit perfectly for daily use on stage.

Raising the Bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing Simpler Than It Sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals and contributes to the system’s scalability and impressively high channel count.

An Engineer in Your Pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting, and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

What's in the box

EW-D EM rack receiver

EW-D SK bodypack transmitter

ME 3 headset microphones (cardioid)

2 rod antennas

Power supply with country adapters

Rackmount set

4 rubber feet

Quick guide

Safety guide

Manufacturer declaration sheet

Product Specifications:

Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)

Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

System Latency: 1.9 ms

Operating relative humidity: 5 - 95 % (non-condensing)

EW-D EM

Dimensions: 212 x 44 x 189 mm

Weight: approx. 1000 g (without antennas and power supply)

Current consumption: ≤ 300 mA

Input voltage range: 11 - 13 V ⎓

Audio output level: 18 dBu max.

Transmission power: BLE: max. 10 mW EIRP

ME 3

Connector: 3.5 mm jack

Frequency response: 50 to 18,000 Hz

Max. sound pressure level: 150 dB

Cable length: approx. 1.60 m

Pick-up pattern: cardioid

Sensitivity in free field, no load (1kHz): 1.6 mV/Pa

Transducer principle: pre-polarized condenser microphone

EW-D SK

Dimensions: 63 x 80 x 20 mm (without antenna)

Weight: approx. 120 g

Current consumption: < 300 mA

Input voltage range: 2.0 - 4.35 V
