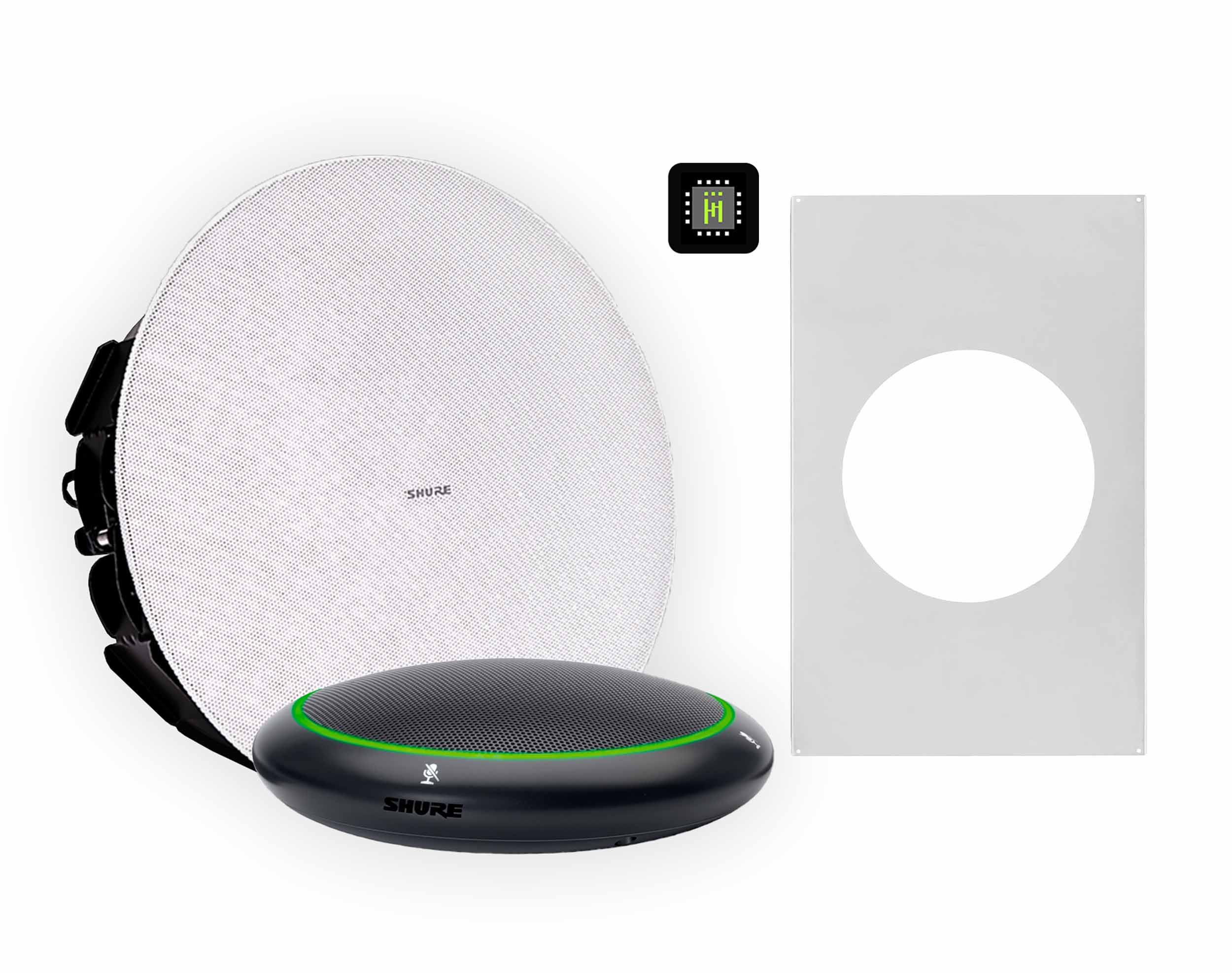

Shure 310M B-V Ecosystem DJ Package Including 1 MXA310B Microphone, 1 IMX-RM8-SUB3, 1 MXN5W-C Ceiling Loudspeaker and 1 Tile Bridge

This DJ Package, the Shure 310M B-V Ecosystem, offers a professional-grade audio solution for seamless collaboration and unmatched sound quality. It includes the Shure MXA310B Table Array Microphone for crystal-clear audio capture, a 3-year IntelliMix Room subscription for advanced DSP processing, and the MXN5W-C Networked Ceiling Loudspeaker with a tile bridge for easy installation and exceptional sound delivery. Ideal for corporate meetings, educational setups, and events, this package ensures effortless integration, secure communication with Shure Audio Encryption, and outstanding performance in any environment. Elevate your audio experience with this all-in-one solution designed for modern spaces.

This DJ Package Includes,

• 1 Shure MXA310B, Table Array Conferencing Microphone - Black
• 1 Shure IMX-RM8-SUB3, 8-Channel IntelliMix Room Subscription - 3 Years
• 1 Shure MXN5W-C Networked Ceiling Loudspeaker
• 1 Shure A-MXN5-TB Tile Bridge for MXN5-C Microflex

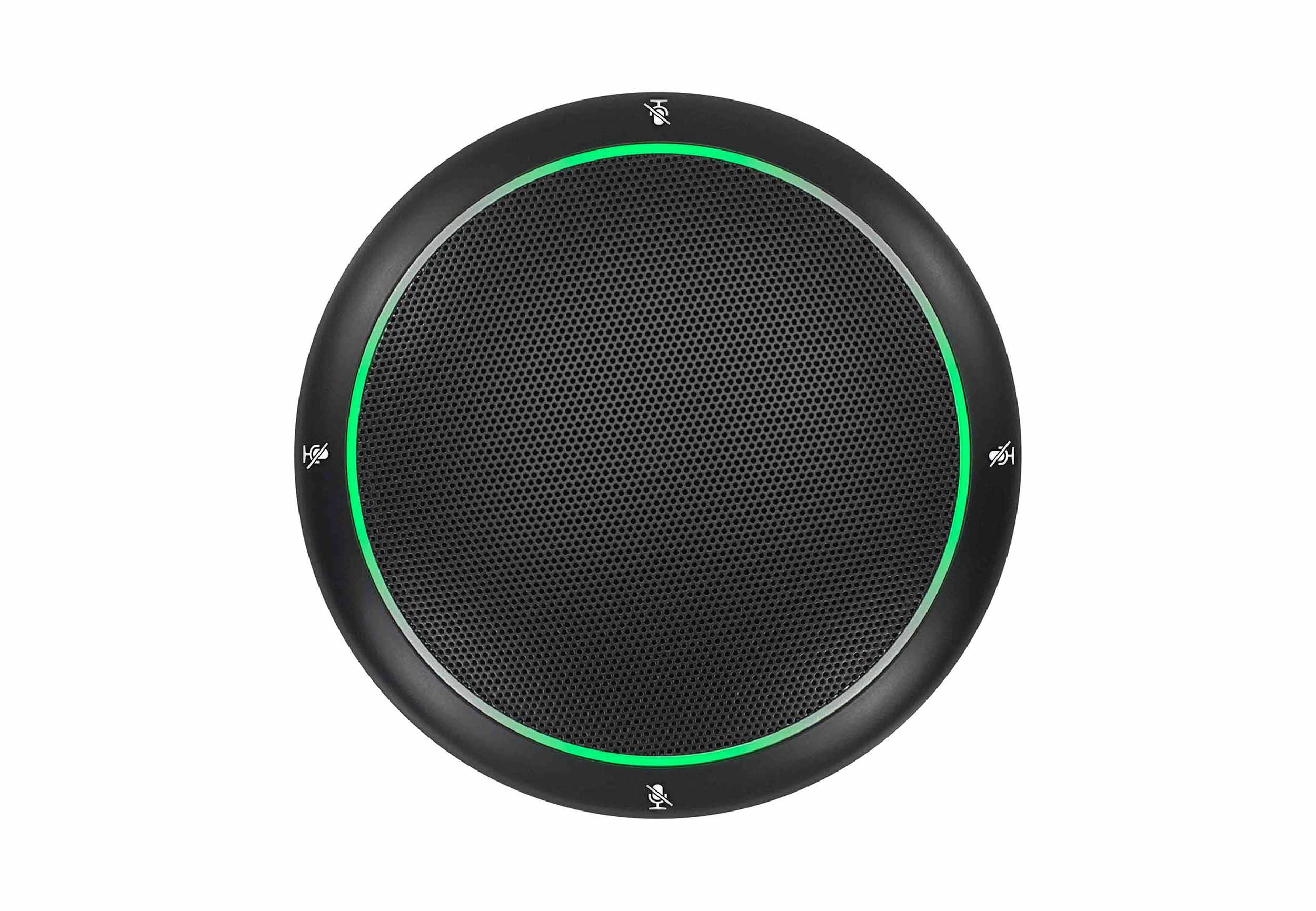

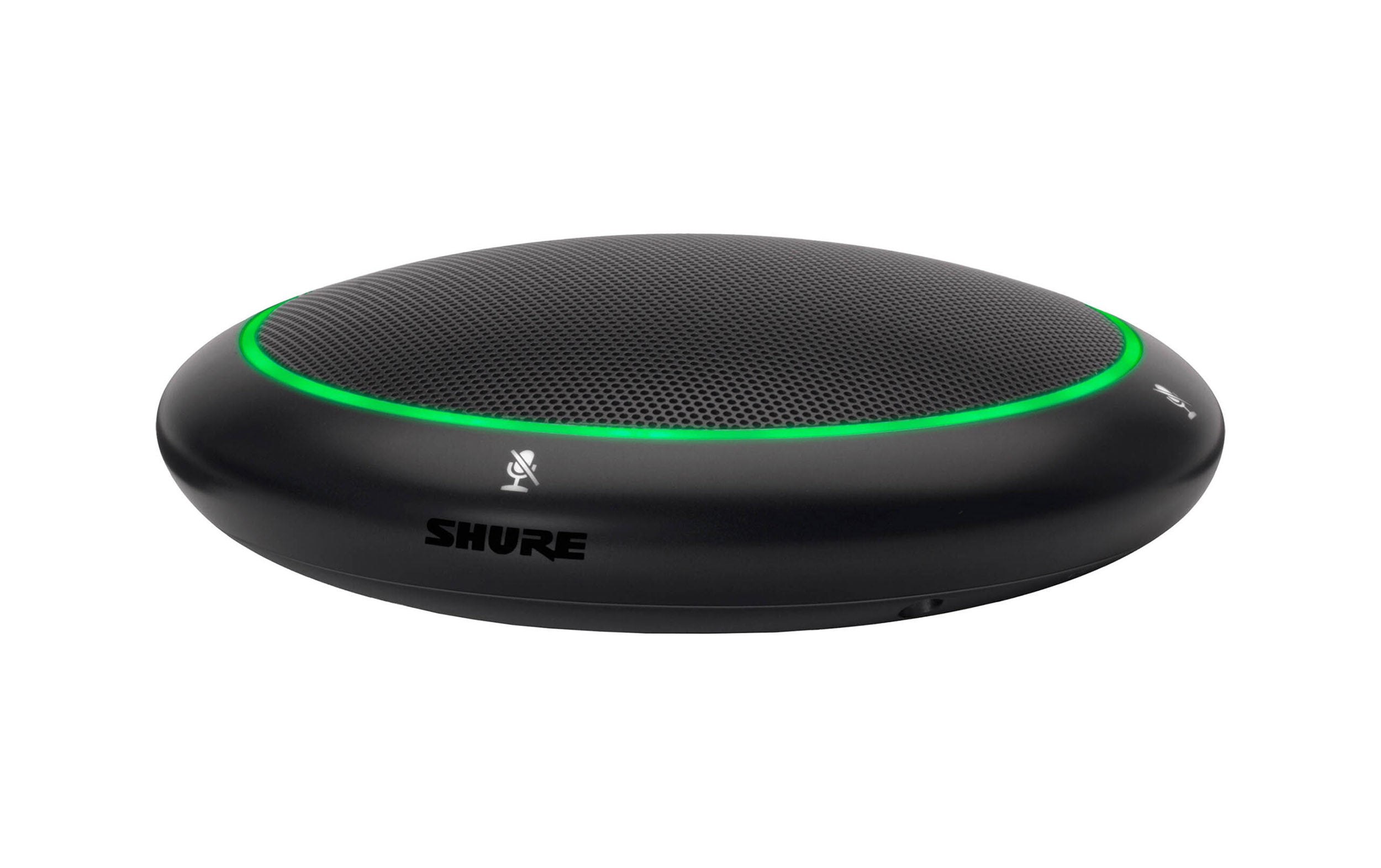

1 Shure MXA310B, Table Array Conferencing Microphone - Black

The MXA310 from Shure is a tabletop array microphone with a Black finish designed to integrate smartly into any conference or meeting space, including boardrooms, huddle rooms, and multipurpose areas. A powerful feature set, including Steerable Coverage, multiple pickup patterns, auto-mixing, and more ensures speech is captured accurately and intelligibly, while the configurable color LED shows mute and channel statuses. The elegant, low-profile design requires only a single connecting cable and discreetly integrates into your room with two permanent mounting options: either on the table with the included hardware or via the A310-FM flush mount (available separately).

Product Specifications:

Polar Pattern:

All Channels Independently Adjustable

Cardioid

Hypercardioid

Super cardioid

Toroid

Omnidirectional

Bidirectional

Control: HTML5 Browser-Based

Frequency Response: 100 Hz to 20 kHz

Digital:

AES67 or Dante Digital Output

Channel Count: 5 Total Channels

Sampling Rate: 48 kHz

Bit Depth: 24

Sensitivity: -21 dBFS/Pa (at 1 kHz, -15 dB Gain Setting)

Maximum SPL: 115.2 dB SPL (1 kHz at 1% THD, -15 dB Gain Setting)

Signal to Noise Ratio:

Cardioid: 75 dB

Toroid:67 dB

(Ref. 94 dB SPL at 1 kHz, -15 dB Gain Setting)

Latency: <1 ms (Not Including Dante Latency)

Noise Level:

Cardioid: 19.2 dB SPL-A

Toroid: 26.8 dB SPL-A

(-15 dB Gain Setting)

Dynamic Range:

Cardioid: 96 dB

Toroid: 90 dB

(-15 dB Gain Setting)

DSP: Per Channel:

Equalizer (4-Band Parametric), Mute, Gain (140 dB Range)

System: Automatic Mixing, Low-Cut Filter ( -12 dB/Octave at 150 Hz)

Audio I/O: 1x RJ45 Dante Output

Power Source: PoE

Power Consumption: 4 W (Maximum)

Certifications: CANICES-3 (B)/NMB-3(B), FCCPart 15, CE

Operating Temperature: 20 to 104°F / -6 to 40°C

Storage Temperature: -20 to 165°F / -28 to 73°C

Mounting: Bottom: 1 x Surface Mount

Color: Black

Dimensions: 5.3 x 5.3 x 1.4"

Weight: 0.79 lbs.

1 Shure IMX-RM8-SUB3, 8-Channel IntelliMix Room Subscription - 3 Years

The Shure IMX-RM8-SUB3, 8-Channel IntelliMix Room Subscription - 3 Years allows you to enjoy the seamless integration of your existing audio network and Shure Microflex wireless systems (all sold separately) with the only software optimized for Shure conferencing microphones. Intellimix Room software requires no DSP hardware installation, and you'll be up and running in under five minutes. Simple installation, a cleaner aesthetic, and rock-solid Shure audio. IntelliMix Room is compatible with Microflex Advance, Microflex Wireless, and Microflex Complete Wireless systems and runs on Windows 10 and 11 in-room PCs. It makes your computer a Dante endpoint for hassle-free integration with your current network and keeps all communication secure, thanks to built-in Shure Audio Encryption. IntelliMix also supports Microsoft Teams and Zoom Mute Sync, so everybody knows when your mic is live. Plus, with echo-cancellation and optional AI denoiser you can rely on highly intelligible capture and transmission of all your critical information. Quality, convenience, and confidence. Enjoy the future of conferencing with IntelliMix.

IMX-RM8-SUB3 is a 3-year subscription license for up to 8 channels (devices).

Product Specification:

Digital Signal Processing: Automatic mixing, matrix mixer, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, AI denoiser, equalizer (4-band parametric) , mute, gain (140 dB range)

Frequency Response:

Dante Digital Audio or Virtual Audio Device: 20 to 20,000 Hz

Compatible Devices:

MXA920

MXA910

MXA710

MXA310

P300

IntelliMix Room

ANIUSB-MATRIX

MXN5-C

MXA Network Mute Button

Sampling Rate:

Dante Digital Audio or Virtual Audio Device: 48 kHz

Bit Depth:

Dante Digital Audio: 24 bits

Virtual Audio Device: 24 bits

Audio Signal Type:

Virtual Audio Input: Sums to single mono channel

Virtual Audio Output: Dual mono channels

PC Input: Sums to single mono channel

PC Output: Dual mono channels

Auxiliary Dante Inputs to Dante Out: 17.9 ms

Dante Mic Inputs to Dante Out (AEC enabled): 24.6 ms

Dante Mic Inputs to Dante Out (AEC and NR disabled): 17.9 ms

AI Denoiser Enabled: 45.3 ms

Acoustic Echo Cancellation Tail Length: Up to 300 ms.

Latency Not including Dante latency

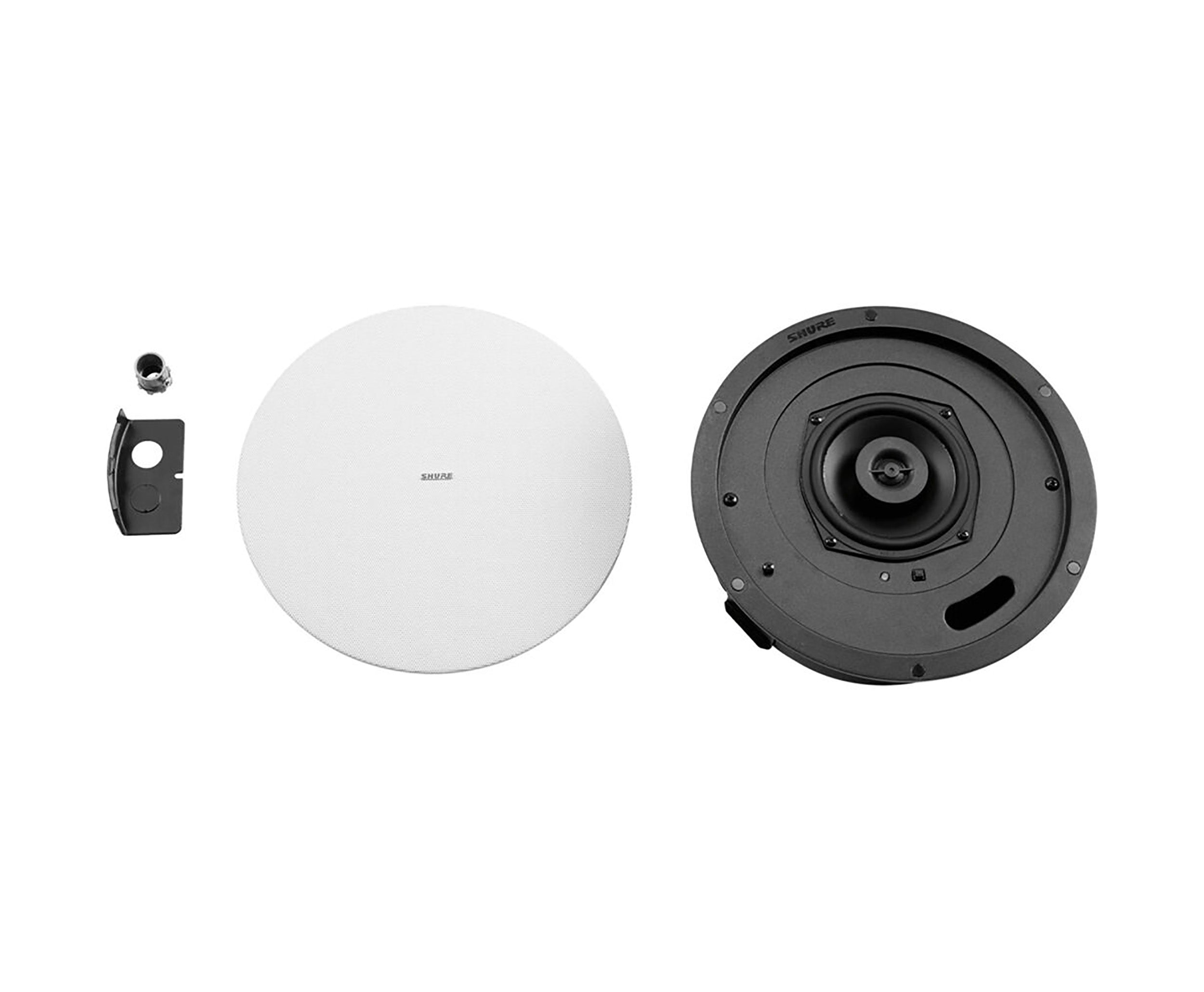

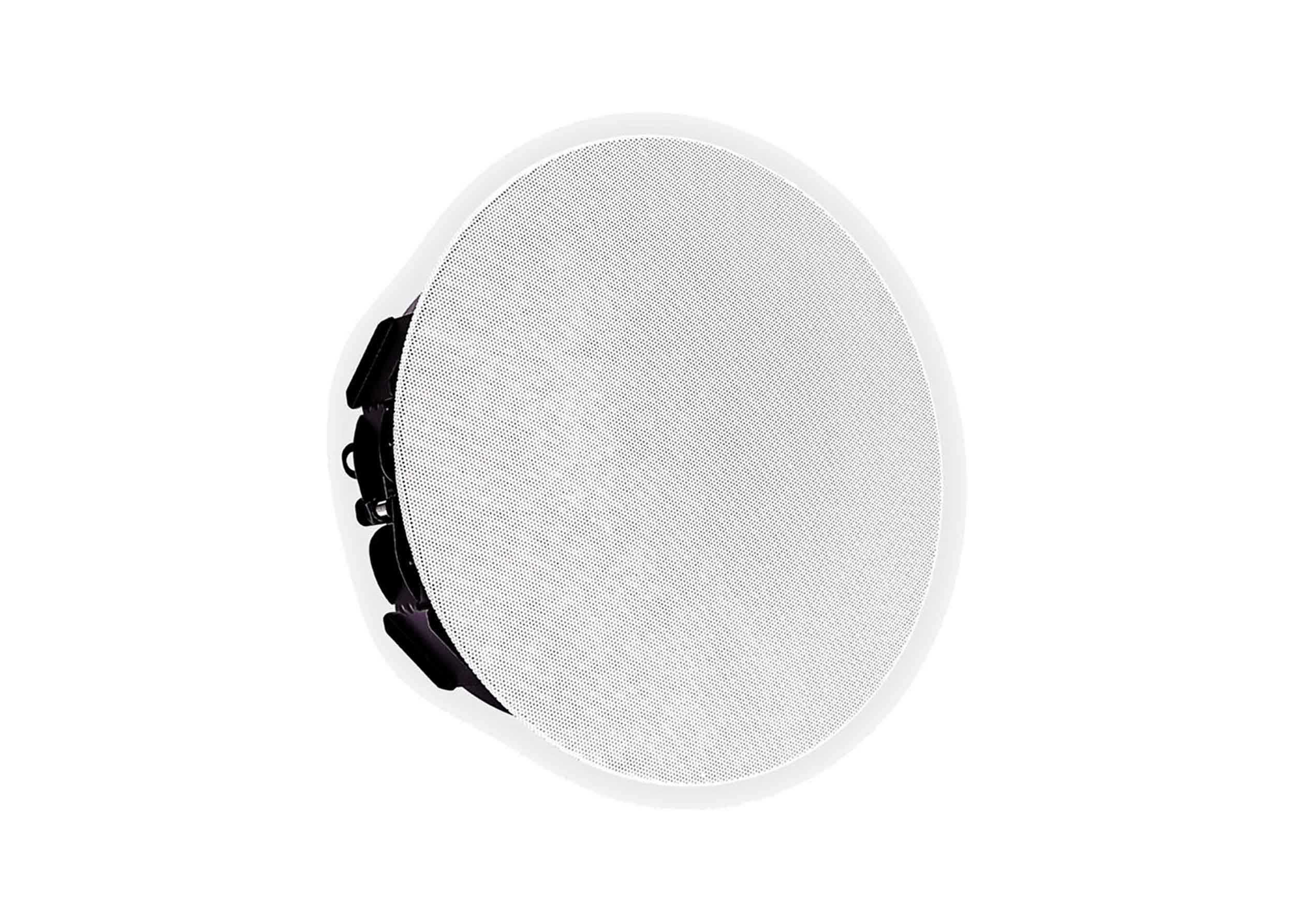

1 Shure MXN5W-C Networked Ceiling Loudspeaker

The Shure MXN5W-C Provides high-quality speech reproduction for AV conferencing applications. PoE-enabled with a low-profile design optimized for easy installation in drop ceiling configurations. Deployed and controlled via software, this networked loudspeaker does not require a separate amplifier or outboard DSP. Integrates seamlessly with Shure’s ecosystem of networked hardware and software for a complete audio solution.

The Microflex MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.

Loudspeaker Technical Elements

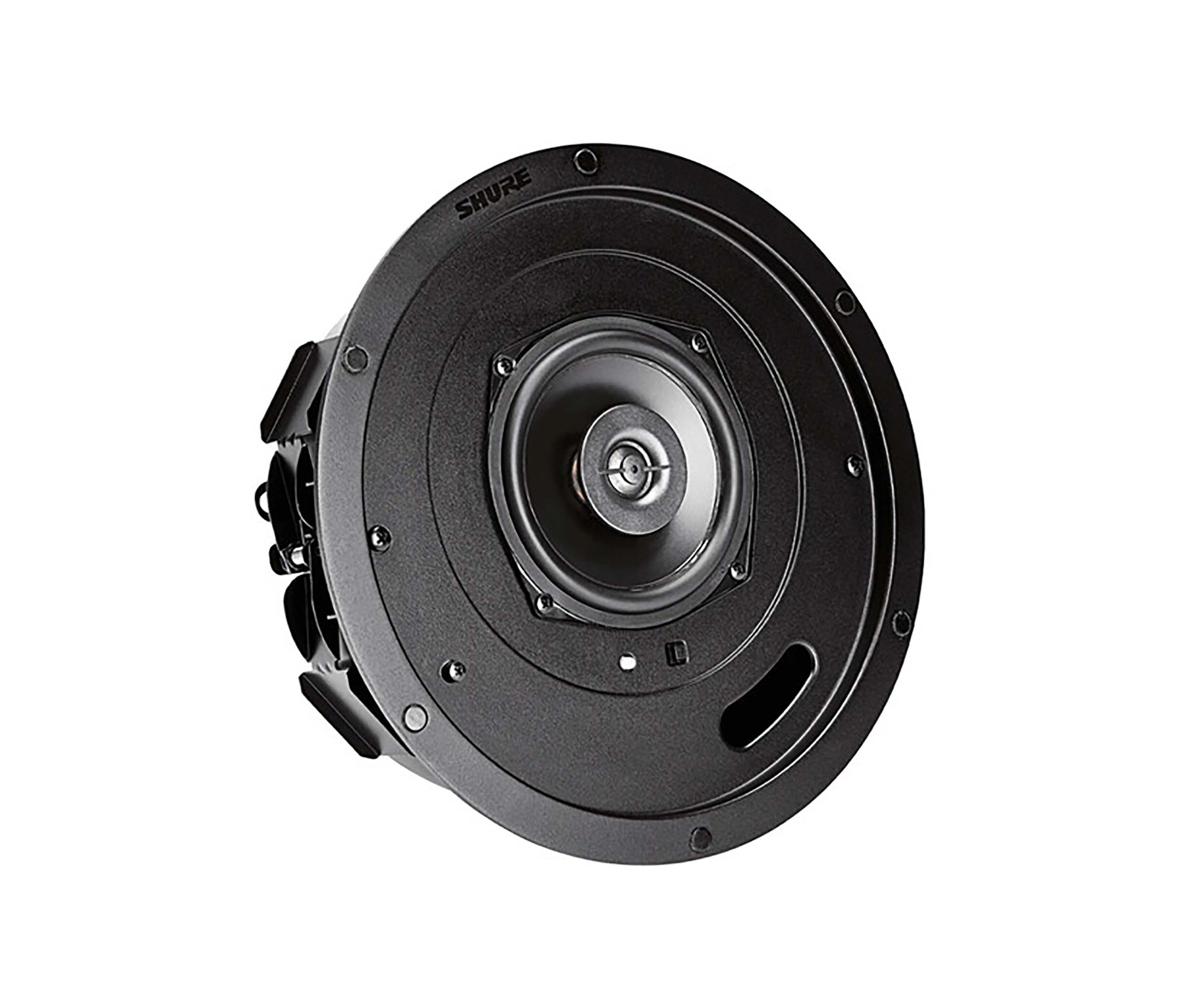

Pre-tuned frequency response optimized for voice intelligibility in AV conferencing applications. Low-profile, shallow-can design compatible with most drop ceiling installations. 2-way driver system with 5.25 in (13.3cm) woofer. PoE/PoE+ enabled, eliminating the need for an outboard amplifier. Integrated Shure DSP Utilities: EQ, delay, limiter, and signal/tone generator. 2 Dante inputs and 1 Dante output.

Clean Design Elements

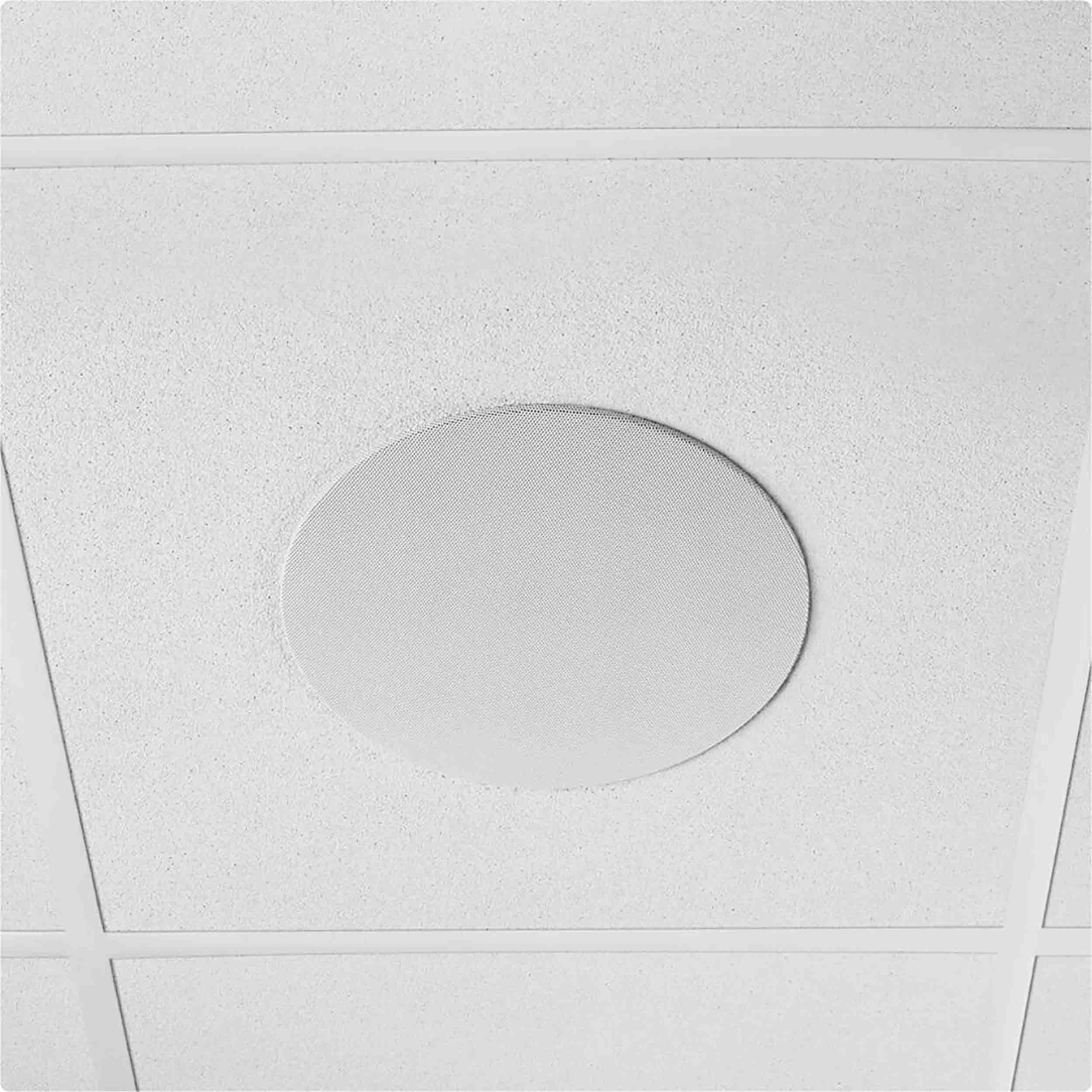

Aesthetic design subtly blends into drop ceiling environments. Removable magnetic and paintable grille seamlessly covers the entire loudspeaker. Removable magnetic Shure logo. UL 2043 plenum rated. Tile bridge or New Construction Bracket accessories for quick and easy mounting.

Product Specification:

Crossover Channel Qty: 2-way

Frequency Response: 120 - 20000 hertz

Max Output Level (Max SPL): 98 decibels

Enclosure Design: Bass reflex

Amplifier: Integrated

Connectivity Technology: Wired

Recommended Placing: Ceiling tile mountable

Detachable Grilles: Yes

Connector Type: 2 x Dante input (RJ-45), Dante output (RJ-45)

Length: 14”

Width: 14”

Height: 6.2”

Weight: 9.35 lbs.

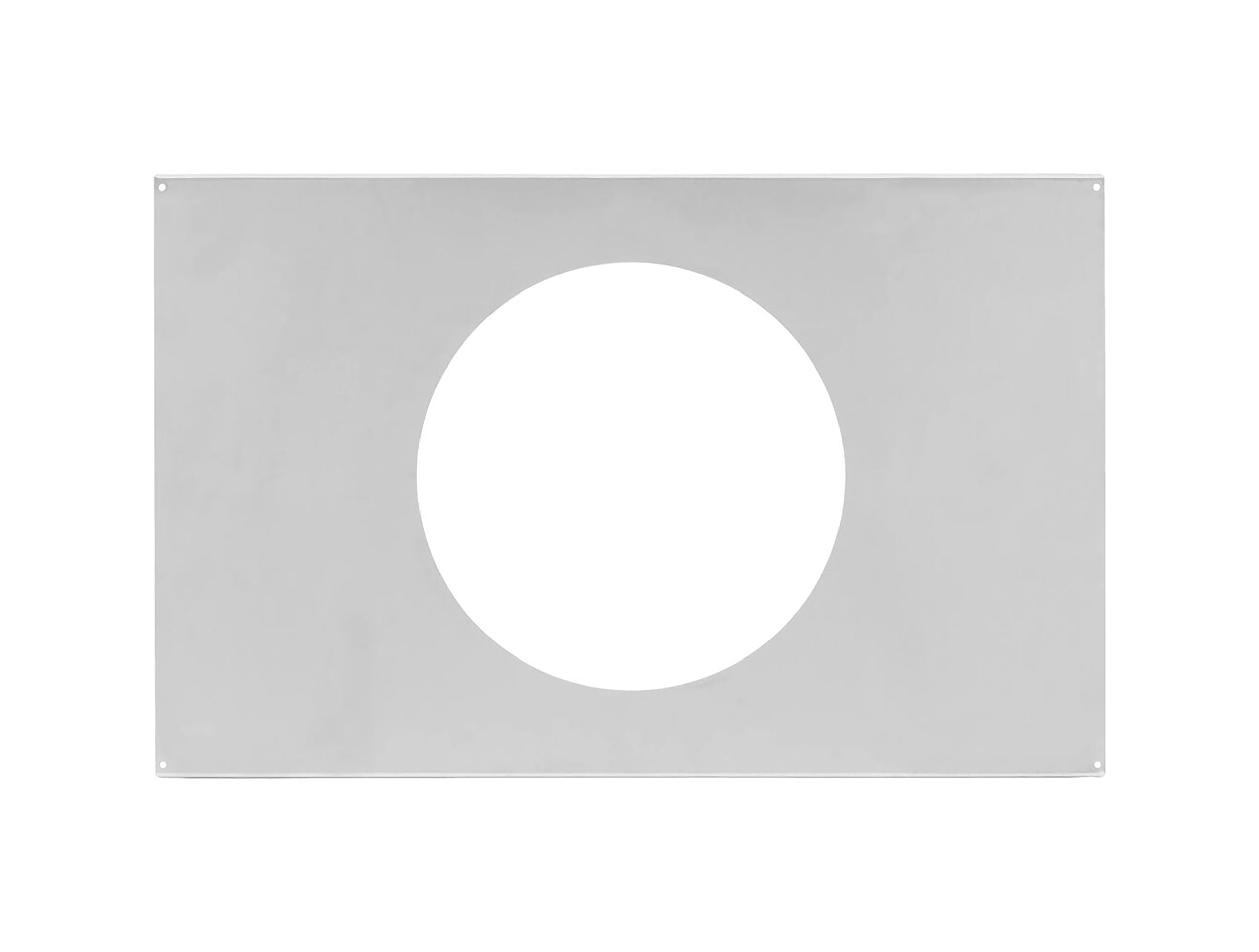

1 Shure A-MXN5-TB Tile Bridge for MXN5-C Microflex

The Shure A-MXN5-TB is tile bridge for MXN5-C Microflex networked loudspeaker. A-MXN5-TB Tile Bridge allows for quick and easy drop ceiling installation of the MXN5-C Networked Loudspeaker.

Product Specification:

Length: 24.2”

Width: 16”

Height: 0.8”

Weight: 3.75 lbs.
