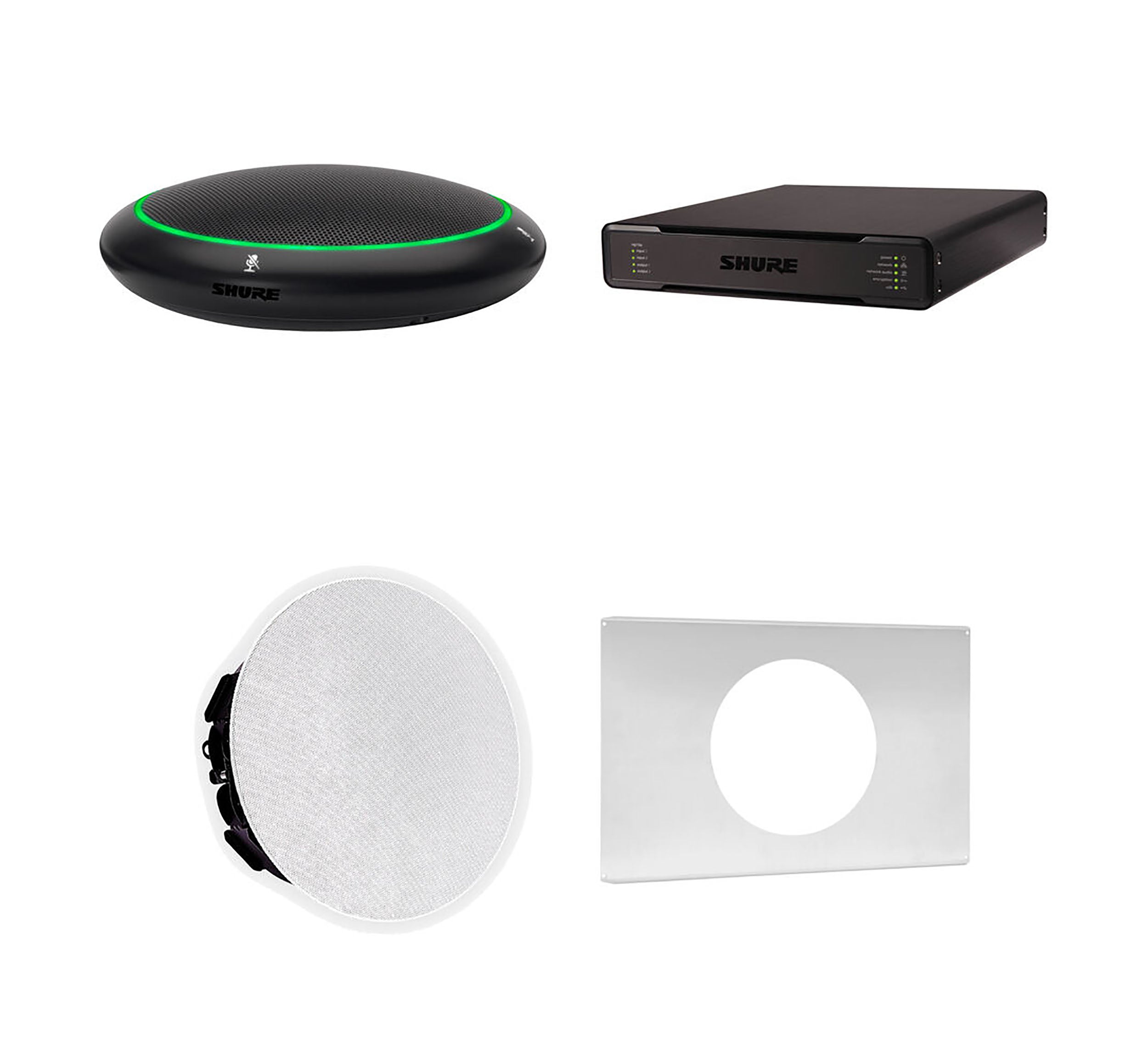

Shure 310P B-V Ecosystem DJ Package Including 1 MXA310B Microphone, 1 P300-IMXAudio Processor, MXN5W-C Ceiling Loudspeaker and 1 Tile Bridge

The Shure 310P B-V Ecosystem DJ Package is a premium solution for seamless audio integration, ideal for professional spaces. This bundle includes one MXA310B Table Array Microphones, delivering exceptional voice clarity for conferences and meetings, and the P300-IMX Audio Processor, which offers advanced DSP with echo cancellation and noise reduction. Enhance the experience with MXN5W-C Ceiling Loudspeakers and tile bridges for easy installation. Perfect for businesses, classrooms, and event spaces, this package ensures outstanding performance and reliability with Shure's trusted quality.

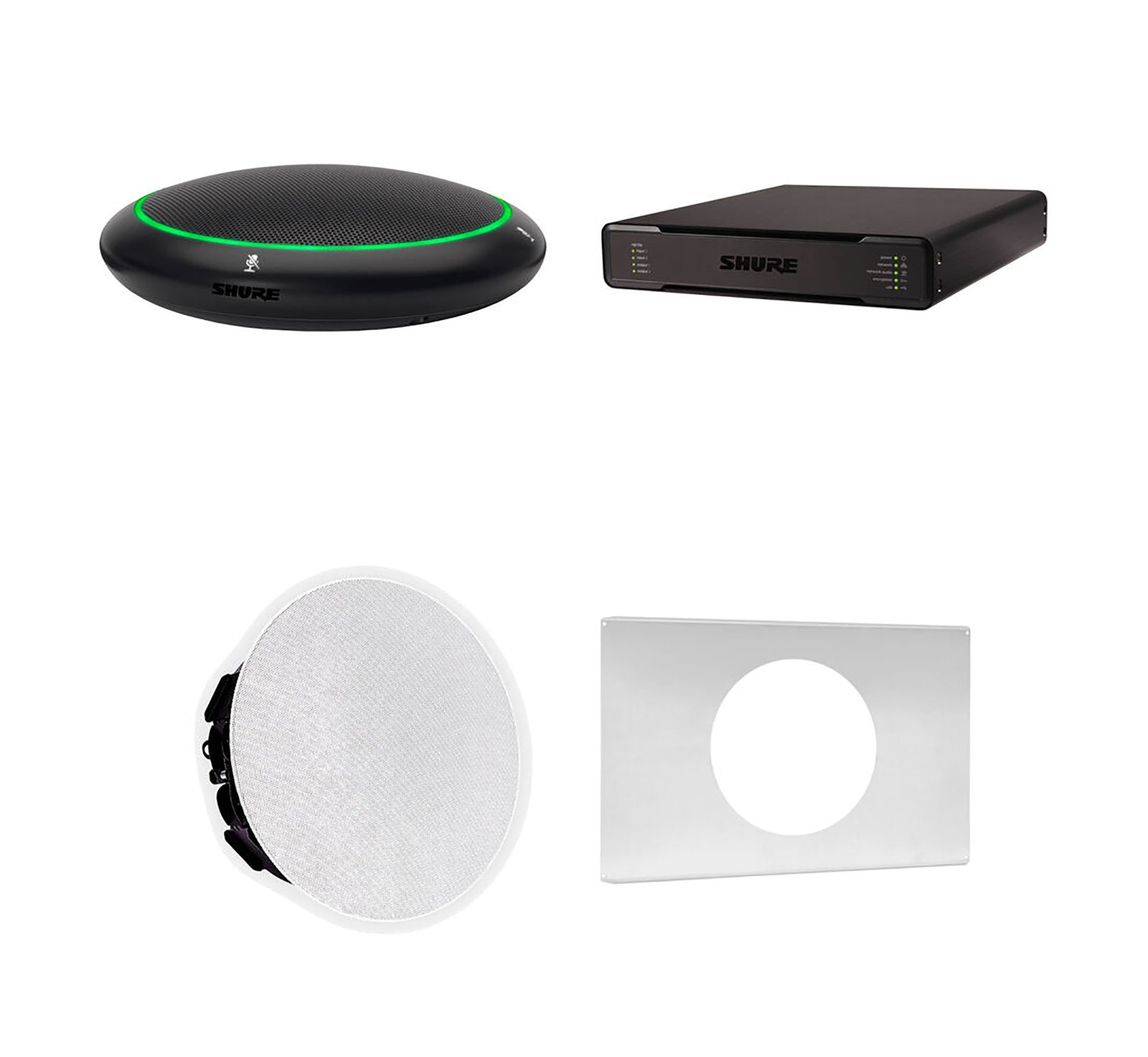

This DJ Package Includes,

• 1 Shure MXA310B, Table Array Conferencing Microphone - Black
• 1 Shure P300-IMX, IntelliMix Audio Conferencing Processor for Seamless Collaboration
• 1 Shure MXN5W-C Networked Ceiling Loudspeaker

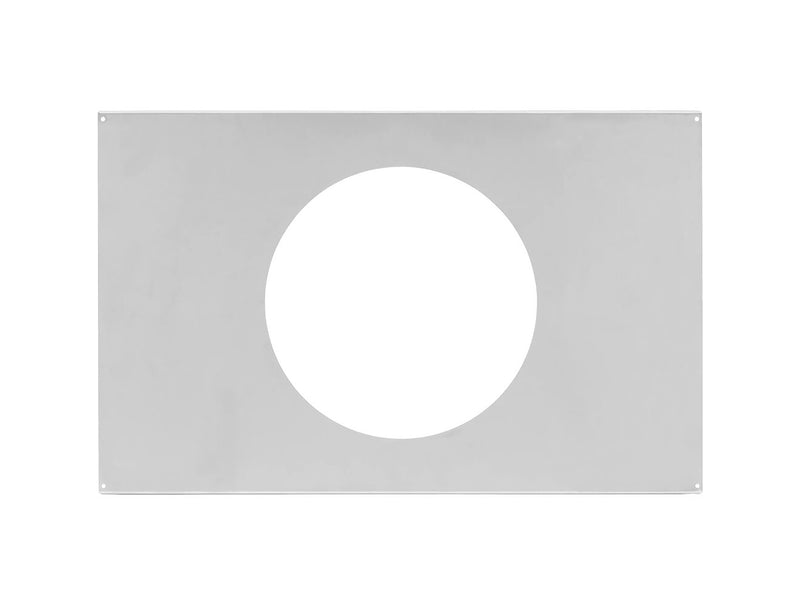

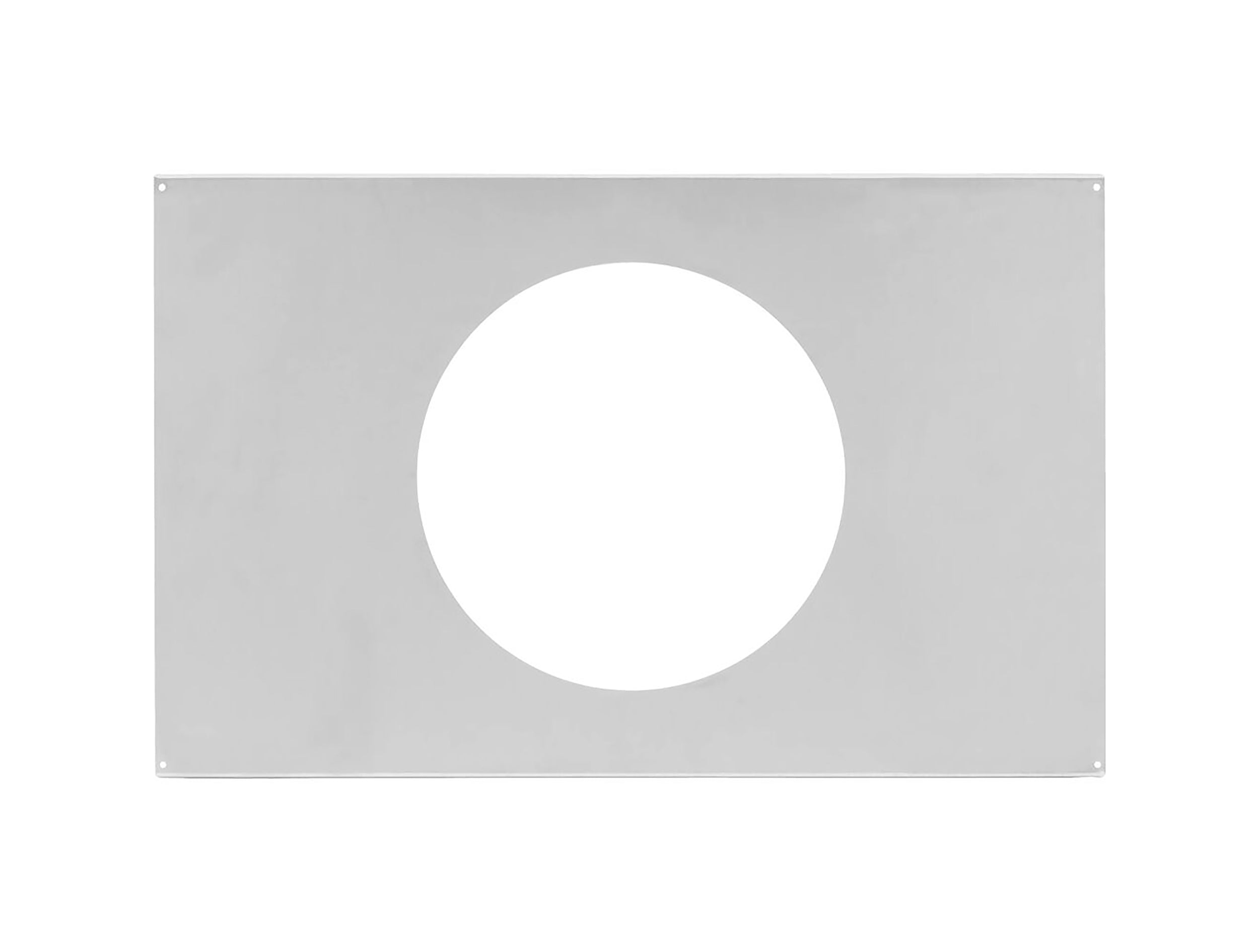

• 1 Shure A-MXN5-TB Tile Bridge for MXN5-C Microflex

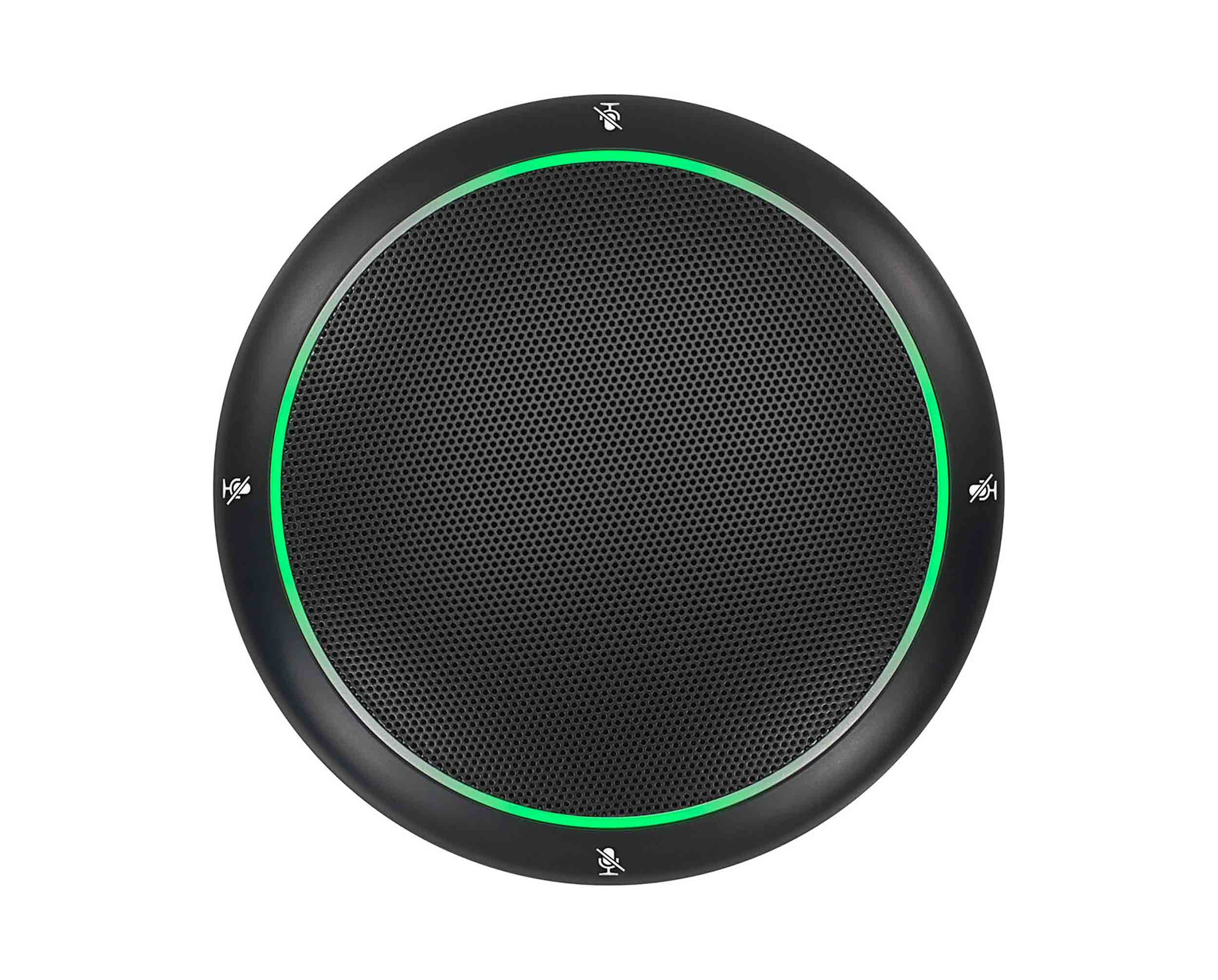

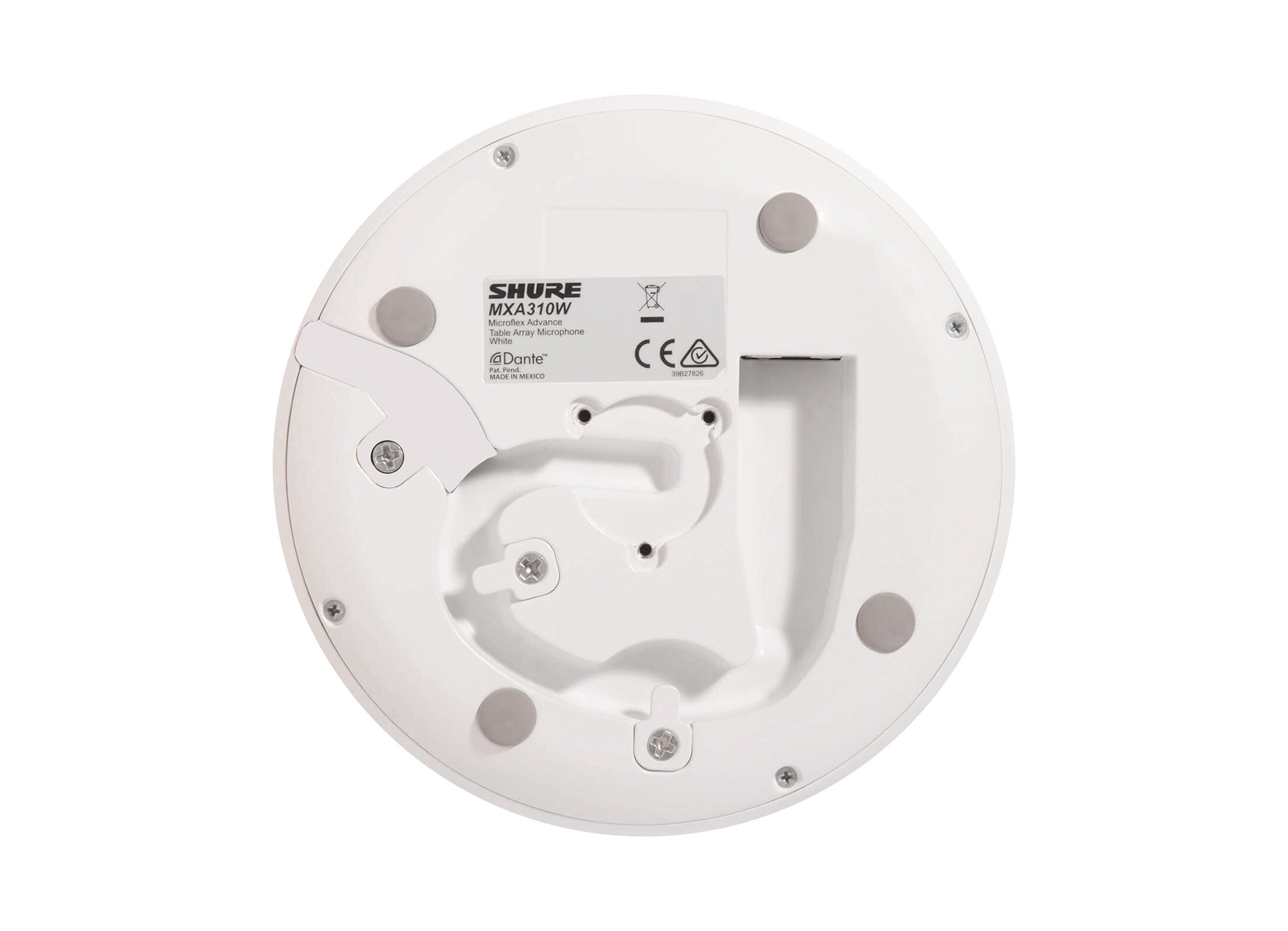

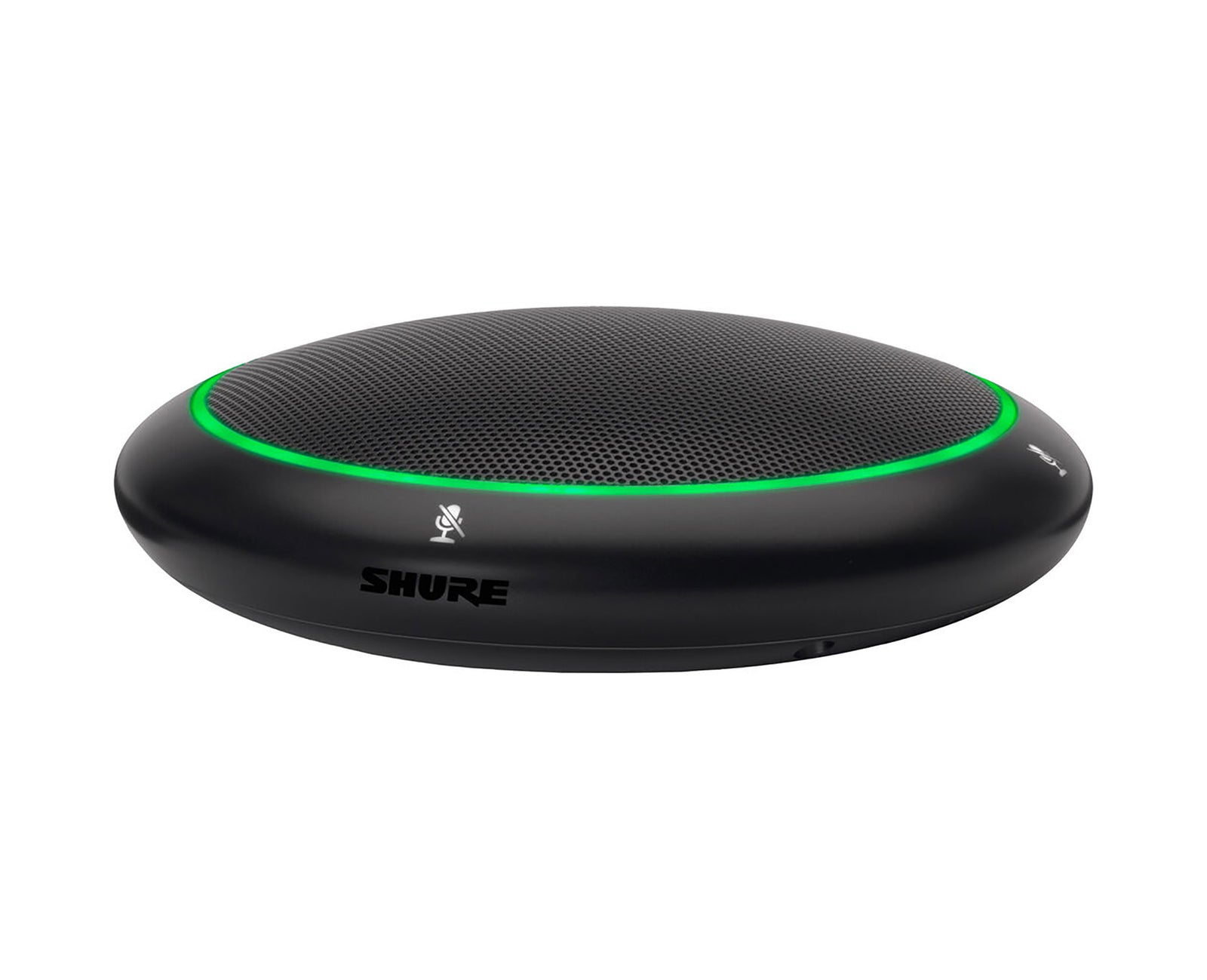

1 Shure MXA310B, Table Array Conferencing Microphone - Black

The MXA310 from Shure is a tabletop array microphone with a Black finish designed to integrate smartly into any conference or meeting space, including boardrooms, huddle rooms, and multipurpose areas. A powerful feature set, including Steerable Coverage, multiple pickup patterns, auto-mixing, and more ensures speech is captured accurately and intelligibly, while the configurable color LED shows mute and channel statuses. The elegant, low-profile design requires only a single connecting cable and discreetly integrates into your room with two permanent mounting options: either on the table with the included hardware or via the A310-FM flush mount (available separately).

Product Specifications:

Polar Pattern:

All Channels Independently Adjustable

Cardioid

Hypercardioid

Super cardioid

Toroid

Omnidirectional

Bidirectional

Control: HTML5 Browser-Based

Frequency Response: 100 Hz to 20 kHz

Digital:

AES67 or Dante Digital Output

Channel Count: 5 Total Channels

Sampling Rate: 48 kHz

Bit Depth: 24

Sensitivity: -21 dBFS/Pa (at 1 kHz, -15 dB Gain Setting)

Maximum SPL: 115.2 dB SPL (1 kHz at 1% THD, -15 dB Gain Setting)

Signal to Noise Ratio:

Cardioid: 75 dB

Toroid:67 dB

(Ref. 94 dB SPL at 1 kHz, -15 dB Gain Setting)

Latency: <1 ms (Not Including Dante Latency)

Noise Level:

Cardioid: 19.2 dB SPL-A

Toroid: 26.8 dB SPL-A

(-15 dB Gain Setting)

Dynamic Range:

Cardioid: 96 dB

Toroid: 90 dB

(-15 dB Gain Setting)

DSP: Per Channel:

Equalizer (4-Band Parametric), Mute, Gain (140 dB Range)

System: Automatic Mixing, Low-Cut Filter ( -12 dB/Octave at 150 Hz)

Audio I/O: 1x RJ45 Dante Output

Power Source: PoE

Power Consumption: 4 W (Maximum)

Certifications: CANICES-3 (B)/NMB-3(B), FCCPart 15, CE

Operating Temperature: 20 to 104°F / -6 to 40°C

Storage Temperature: -20 to 165°F / -28 to 73°C

Mounting: Bottom: 1 x Surface Mount

Color: Black

Dimensions: 5.3 x 5.3 x 1.4"

Weight: 0.79 lbs.

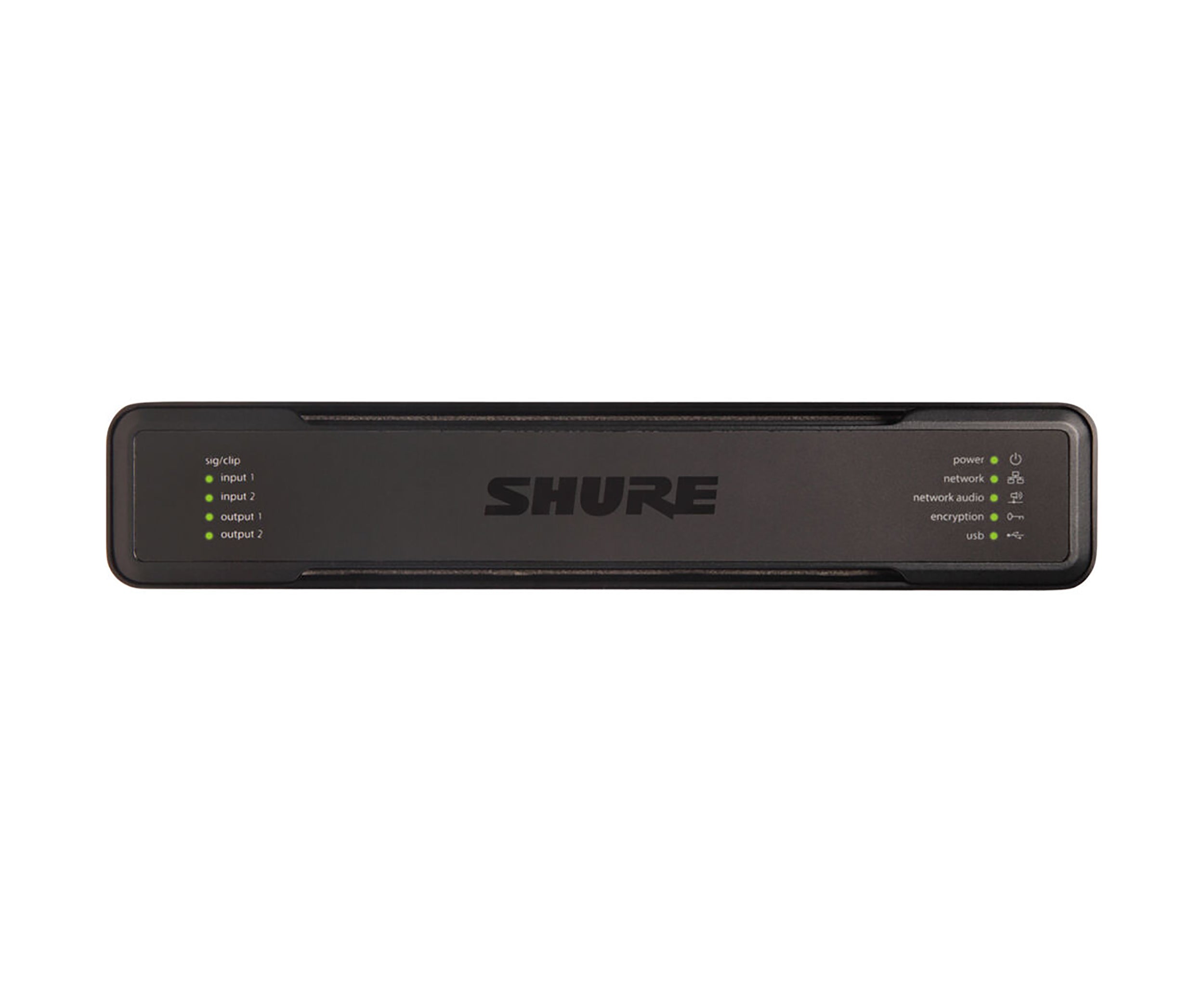

1 Shure P300-IMX, IntelliMix Audio Conferencing Processor for Seamless Collaboration

The Shure P300-IMX IntelliMix Audio Conferencing Processor is designed to work with the Microflex Wireless (MXW) system to deliver eight channels of acoustic echo cancellation, DSP-processing, and level control for conference rooms and meeting spaces. The processor supports Microflex wireless microphones while also offering versatile input and output connectivity options that allows users to incorporate loudspeakers, computers, mobile devices, and other audio components.

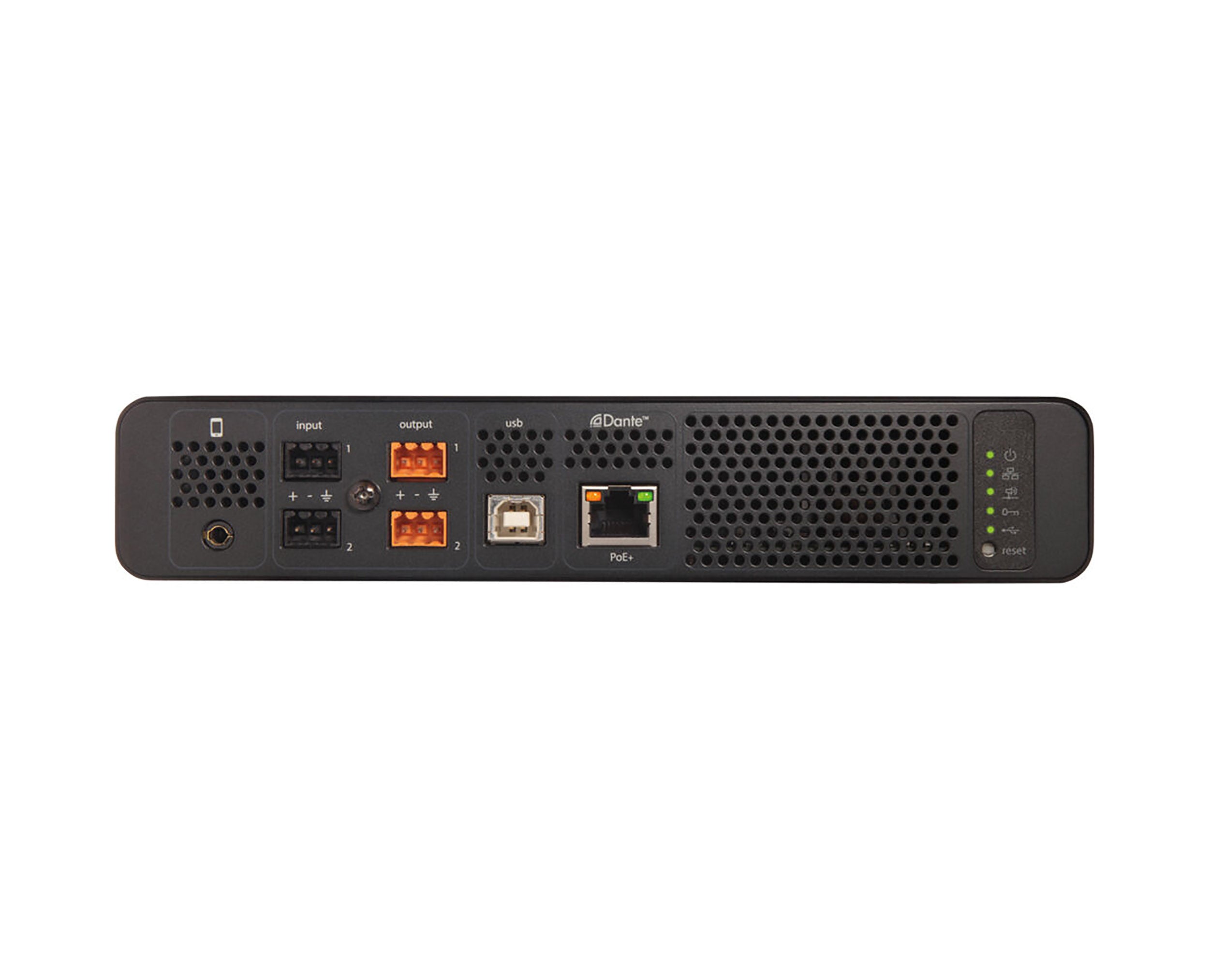

The P300 provides Dante (10 in/8 out), and to connect analog devices, the unit provides two 3-pin block connector inputs and two 3-pin block connector outputs along with a 3.5mm input jack for mobile devices. The USB Type-B port lets you connect computers and other USB devices, while the RJ45 port supplies the unit with power and connects it to other access points in the conference system network.

Clear Audio for Conferences, Panels, and Meetings:

Streamline the audio experience for every discussion. Fixed architecture provides simple setup, requiring less DSP programming and commissioning time. Multiple connectivity options allow for seamless integration with Shure conferencing microphones, laptops, and even mobile devices. Easy, rackless mounting enables quick, compact integration behind a display, under a table, or in a credenza.

Clever Operation:

Intuitive, programming-free LED mute sync functionality with leading third-party software codecs including Zoom Rooms, Microsoft Teams and Skype for Business.

Scale Up:

Easily add a presenter mic or control additional zoned loudspeakers with onboard matrix mixing for sound reinforcement applications

Connect with Confidence:

Driverless USB audio connection to PCs for soft codecs. Analog I/O for hard codecs. 3.5 mm connection to mobile phones to bridge a remote caller. Design projects offline with Designer System Configuration Software for simple project management. Seamlessly compatible with Microflex Advance and Microflex Wireless conferencing microphones for a complete Shure ecosystem.

Meet In Confidence:

Shure Audio Encryption utilizes AES-256 technology to protect confidential content.

Product Specifications:

Frequency Response: 20 Hz to 20 kHz (+1, -1.5 dB)

Dante Digital Audio:

Sampling Rate: 48 kHz

Bit Rate: 24 Bit

USB Audio:

Sampling Rate: 48 kHz

Bit Rate: 24 / 16 Bit

Latency

Firmware 4.1 and Newer:

Dante 1-8 In to Dante Out (AEC enabled): 15.4 ms

Dante 1-8 In to Dante Out (AEC disabled): 8.7 ms

Dante 9-10 In to Dante Out: 3.4 ms

Analog In to Analog Out: 3.8 ms

Firmware 3.1 and Older:

Dante 1-8 In to Dante Out (AEC Enabled): 12.5 ms

Dante 1-8 In to Dante Out (AEC Disabled): 5.8 ms

Dante 9-10 In to Dante Out: 1.8 ms

Analog In to Analog Out: 2.2 ms

Acoustic Echo Cancelling:

Tail Length: Up to 300 ms

Analog Connections:

Block Connectors:

Dynamic Range (20 Hz to 20 kHz, A-Weighted, Typical) - Analog to Dante: 113 dB, Dante to Analog - 117 dB

Equivalent Input Noise (20 Hz to 20 kHz, A-Weighted, Input Terminated with 150 Ohms):

Line -86 dBV, Aux -98 dBV

Total Harmonic Distortion at 1 kHz, 0 dBV Input, 0 dB Analog Gain: <0.05%

Common Mode Rejection Ratio (150-Ohm Balanced Source @ 1 kHz): > 50 dB

Input Impedance: 9.6 Kilohms

Input Clipping Level: Line +27 dBV, Aux+15 dBV

Output Impedance: 80 Ohms

Output Clipping Level: Line +20 dBV, Aux +0 dBV, Mic -26 dBV

Mobile:

Connector: 1/8" / 3.5 mm

Pin Assignments: Tip - Audio Input (Left), Ring 1 - Audio Input (Right), Ring 2 - Ground
Sleeve: Audio Output (To Phone)

Dynamic Range (20 Hz to 20 kHz, A-Weighted, Typical): Analog to Dante: 99 dB, Dante to Analog - 90 dB

Total Harmonic Distortion (at 1 kHz, 0 dBV Input, 0 dB Analog Gain): <0.05%

Input Impedance:  3.7 Kilohms

Input Clipping Level: +4 dBV

Output Impedance: 1.4 Kilohms

Output Clipping Level (Output Terminated with 2.2 Kilohms): -20 dBV

General:

Analog Input:

2 x 3-Pin Block Connector (Active Balanced)

1 x 1/8" / 3.5mm TRRS Input

Control Software: Shure Designer

Analog Output:

2 x 3-Pin Block Connector (Impedance Balanced)

USB:

USB 2.0, Type B

Single Port Carries 2 Input and 2 Output Channels (Summed Mono)

Network Connection:

1 x RJ45

10 x Dante Inputs

8 x Dante Outputs

Networking

Cable Requirements: Cat 5e or Higher (Shielded Cable Recommended)

Polarity: Non-Inverting, Any Input to Any Output

Power Requirements: 802.3 at Type 2 (PoE Plus), Class 4

Power Consumption: 17.5 W, Maximum

Thermal Dissipation

Maximum: 17.5 W (60 BTU/Hr.)

Typical: 14.6 W (50 BTU/Hr.)

Operating Temperature Range: 20 to 122° F / -6.7 to 50° C

Storage Temperature Range: -20 to 165° F / -29 to 74° C

Shipping Weight: 8 lbs.

Shipping Dimensions: 11 x 12 x 3 inches

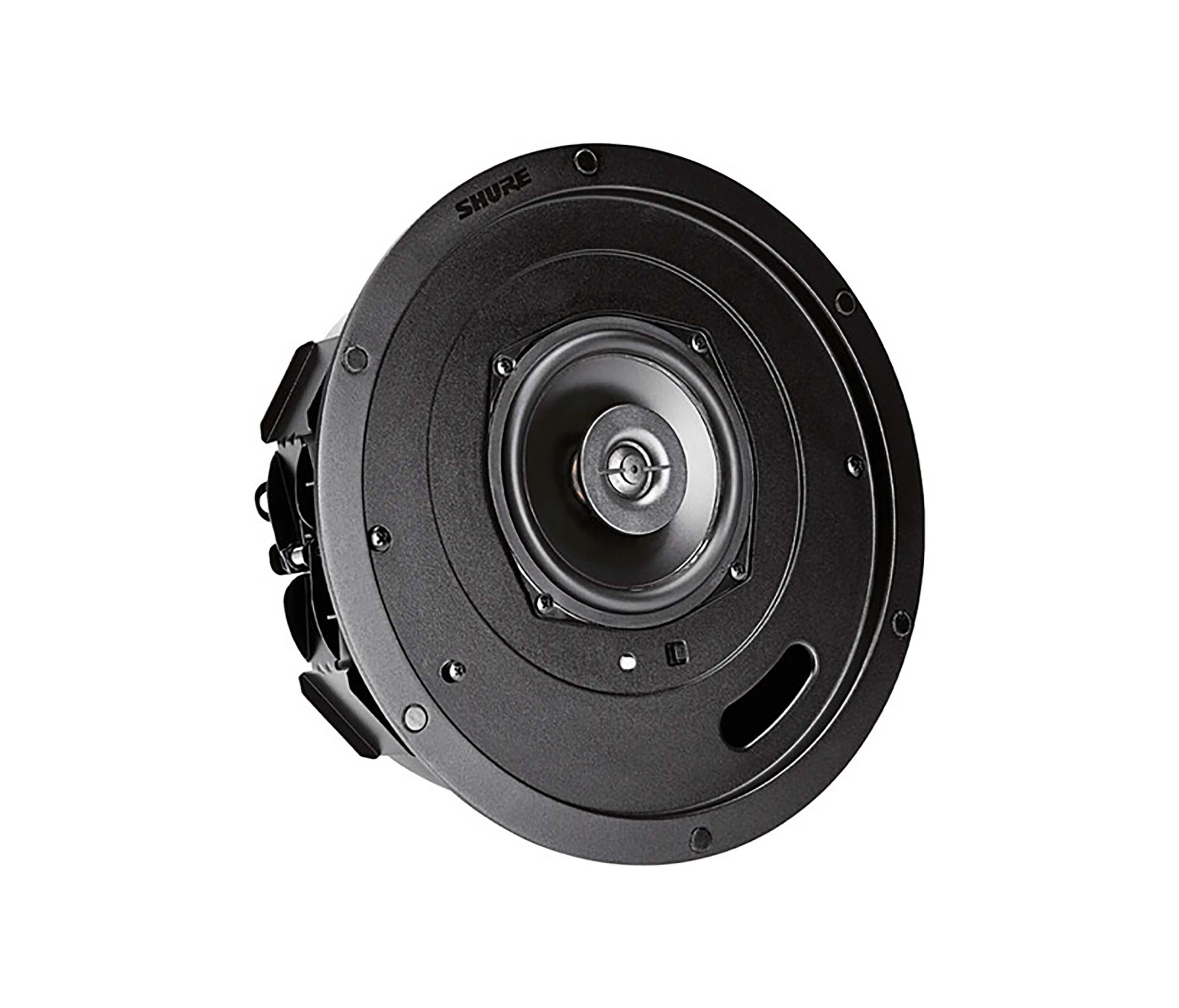

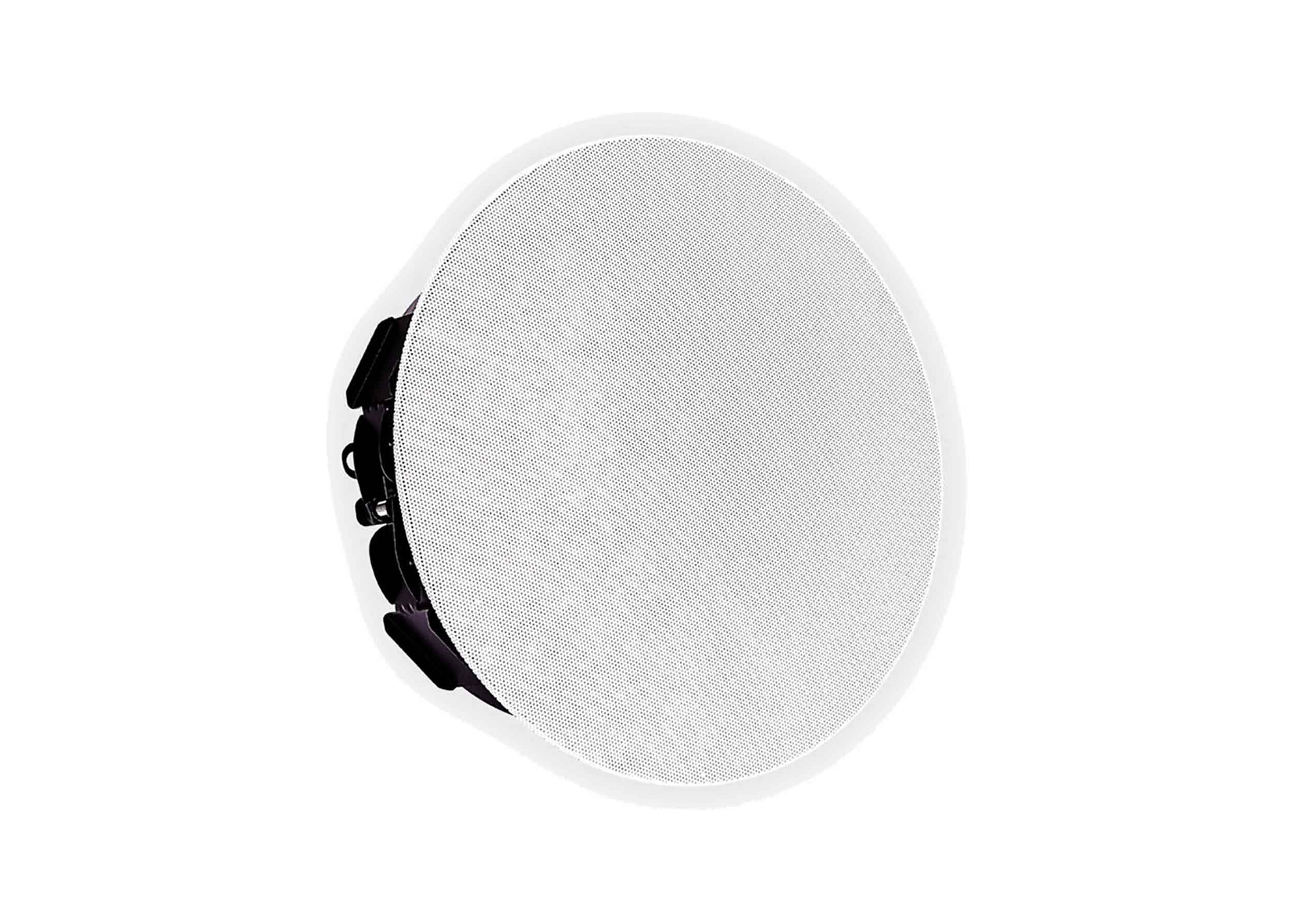

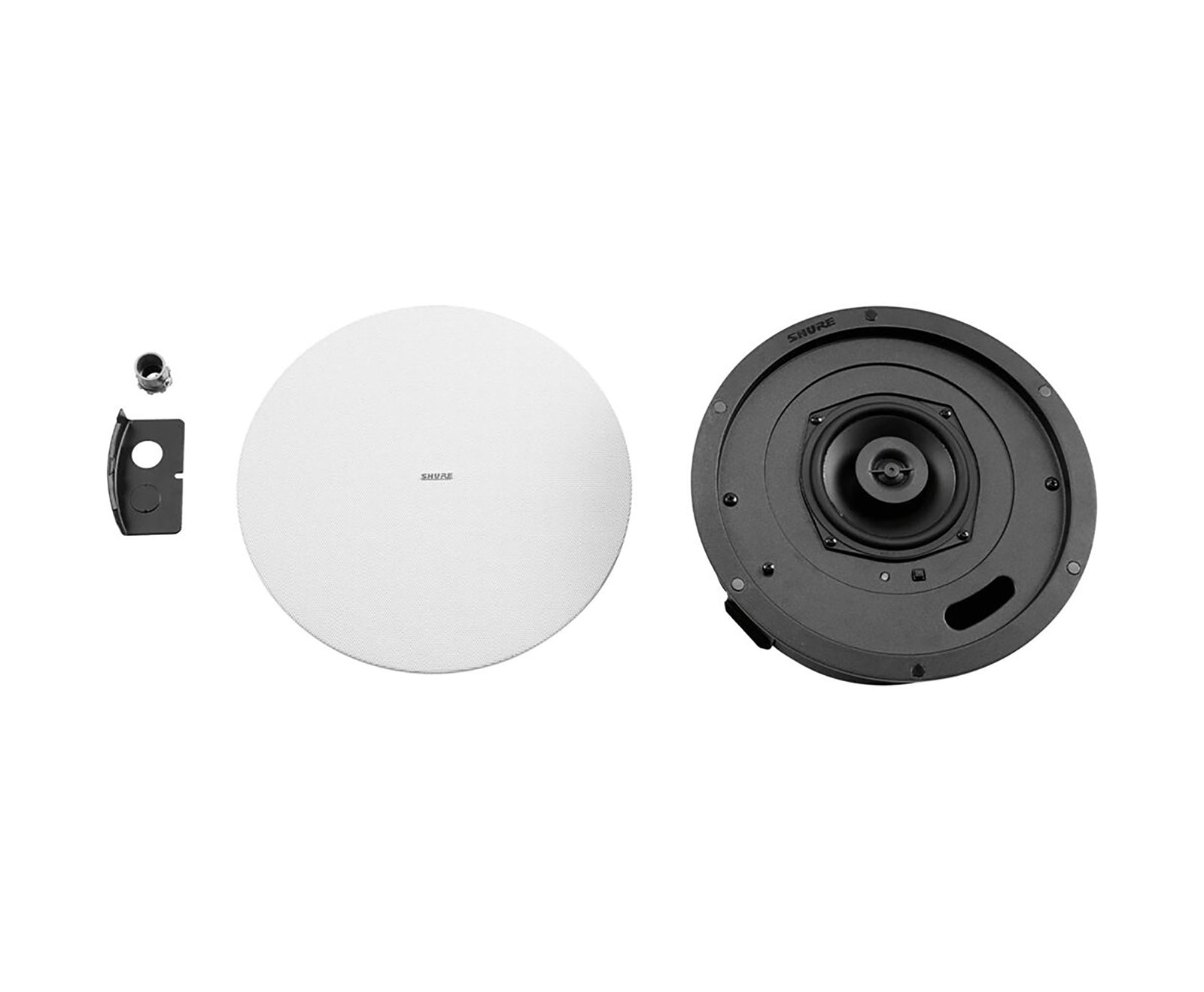

1 Shure MXN5W-C Networked Ceiling Loudspeaker

The Shure MXN5W-C Provides high-quality speech reproduction for AV conferencing applications. PoE-enabled with a low-profile design optimized for easy installation in drop ceiling configurations. Deployed and controlled via software, this networked loudspeaker does not require a separate amplifier or outboard DSP. Integrates seamlessly with Shure’s ecosystem of networked hardware and software for a complete audio solution.

The Microflex MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.

Loudspeaker Technical Elements

Pre-tuned frequency response optimized for voice intelligibility in AV conferencing applications. Low-profile, shallow-can design compatible with most drop ceiling installations. 2-way driver system with 5.25 in (13.3cm) woofer. PoE/PoE+ enabled, eliminating the need for an outboard amplifier. Integrated Shure DSP Utilities: EQ, delay, limiter, and signal/tone generator. 2 Dante inputs and 1 Dante output.

Clean Design Elements

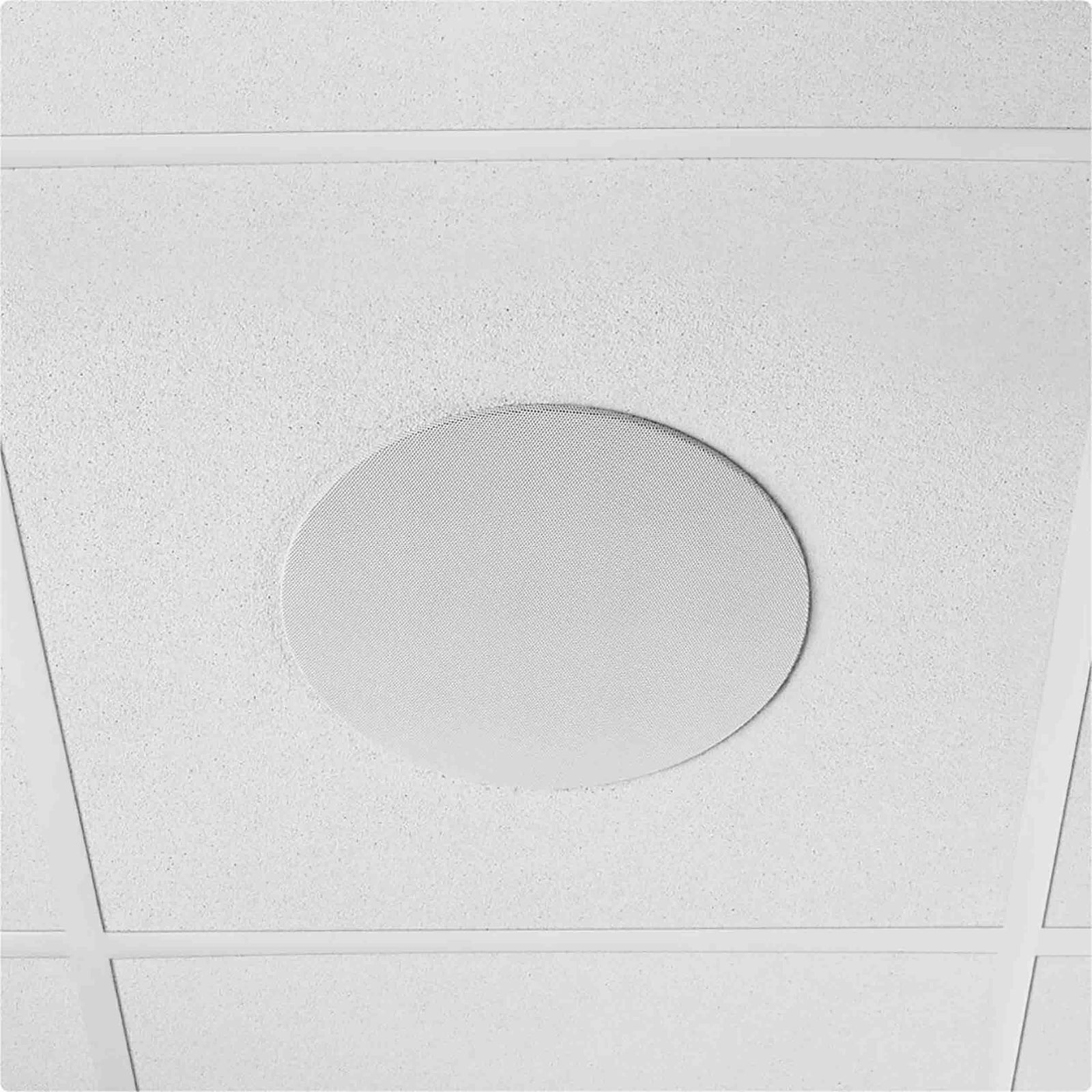

Aesthetic design subtly blends into drop ceiling environments. Removable magnetic and paintable grille seamlessly covers the entire loudspeaker. Removable magnetic Shure logo. UL 2043 plenum rated. Tile bridge or New Construction Bracket accessories for quick and easy mounting.

Product Specification:

Crossover Channel Qty: 2-way

Frequency Response: 120 - 20000 hertz

Max Output Level (Max SPL): 98 decibels

Enclosure Design: Bass reflex

Amplifier: Integrated

Connectivity Technology: Wired

Recommended Placing: Ceiling tile mountable

Detachable Grilles: Yes

Connector Type: 2 x Dante input (RJ-45), Dante output (RJ-45)

Length: 14”

Width: 14”

Height: 6.2”

Weight: 9.35 lbs.
