Shure 714P B-V Ecosystem DJ Package Including 1 MXA710-4FT Linear Microphone, 1 P300-IMX Conferencing Processor, 4 MXN5W-C Ceiling Speaker + Tile Bridge

The Shure 714P B-V Ecosystem DJ Package offers the ultimate audio solution for professional environments, combining cutting-edge technology with seamless integration. This package includes the Shure MXA710B-4FT 4-Foot Linear Array Microphone for crystal-clear, focused voice capture, the Shure P300-IMX Conferencing Processor for flawless audio mixing and DSP processing, and four Shure MXN5W-C Networked Ceiling Speakers with tile bridges for exceptional sound clarity. Designed for modern conference rooms, educational spaces, and event venues, this bundle ensures easy installation and premium audio performance. With PoE-enabled speakers, intuitive software control, and Shure Audio Encryption for secure communication, this package guarantees reliable, high-quality audio in any setting. Ideal for those looking to enhance their audio systems with minimal hassle and maximum impact.

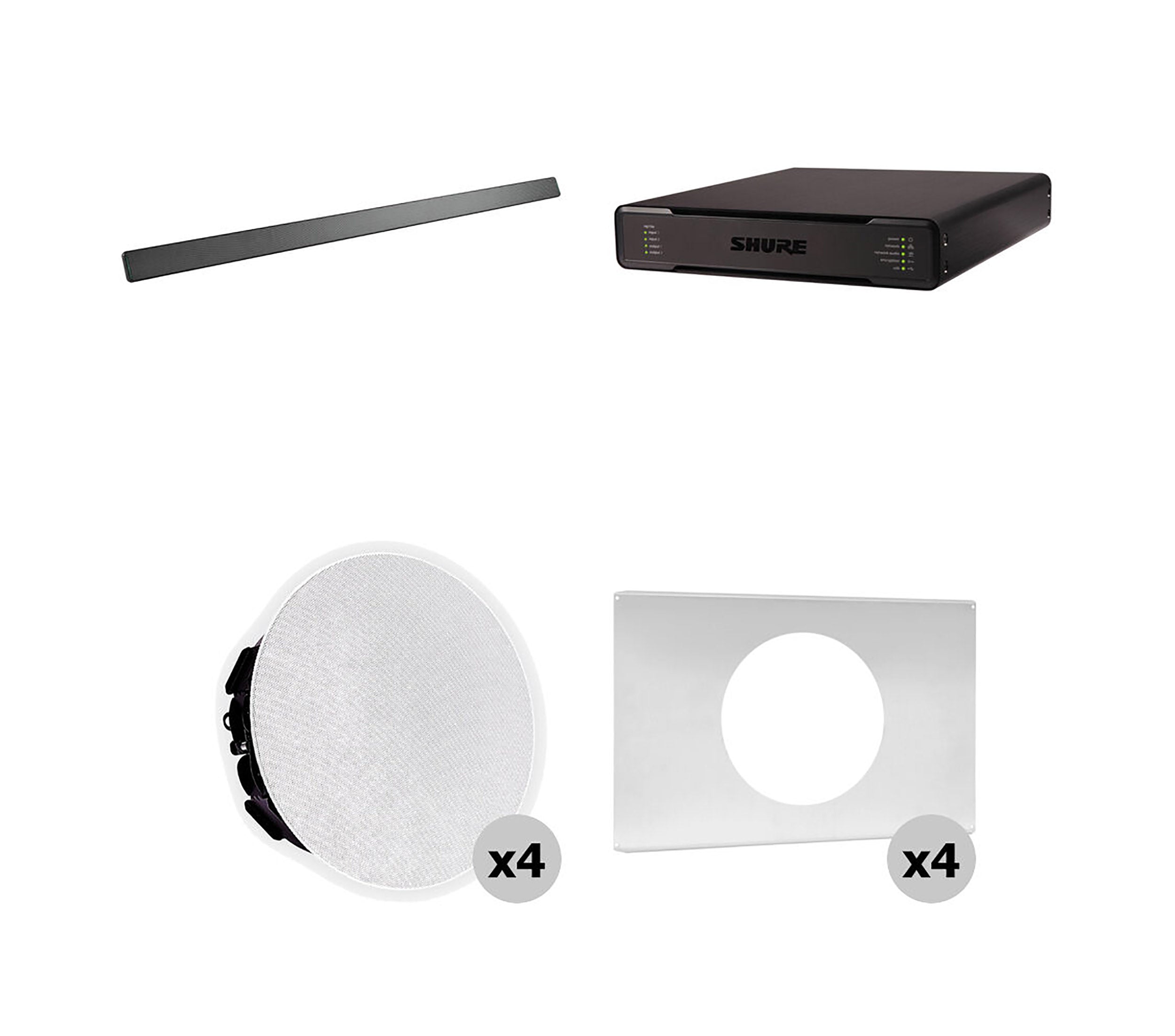

This DJ Package Includes,

• 1 Shure MXA710B-4FT, 4 Ft Microflex Advance Linear Array Microphone - Black
• 1 Shure P300-IMX, IntelliMix Audio Conferencing Processor for Seamless Collaboration
• 4 Shure MXN5W-C Networked Ceiling Speaker with Dante (White)
• 4 Shure A-MXN5-TB Tile Bridge for MXN5-C Microflex

1 Shure MXA710B-4FT, 4 Ft Microflex Advance Linear Array Microphone - Black

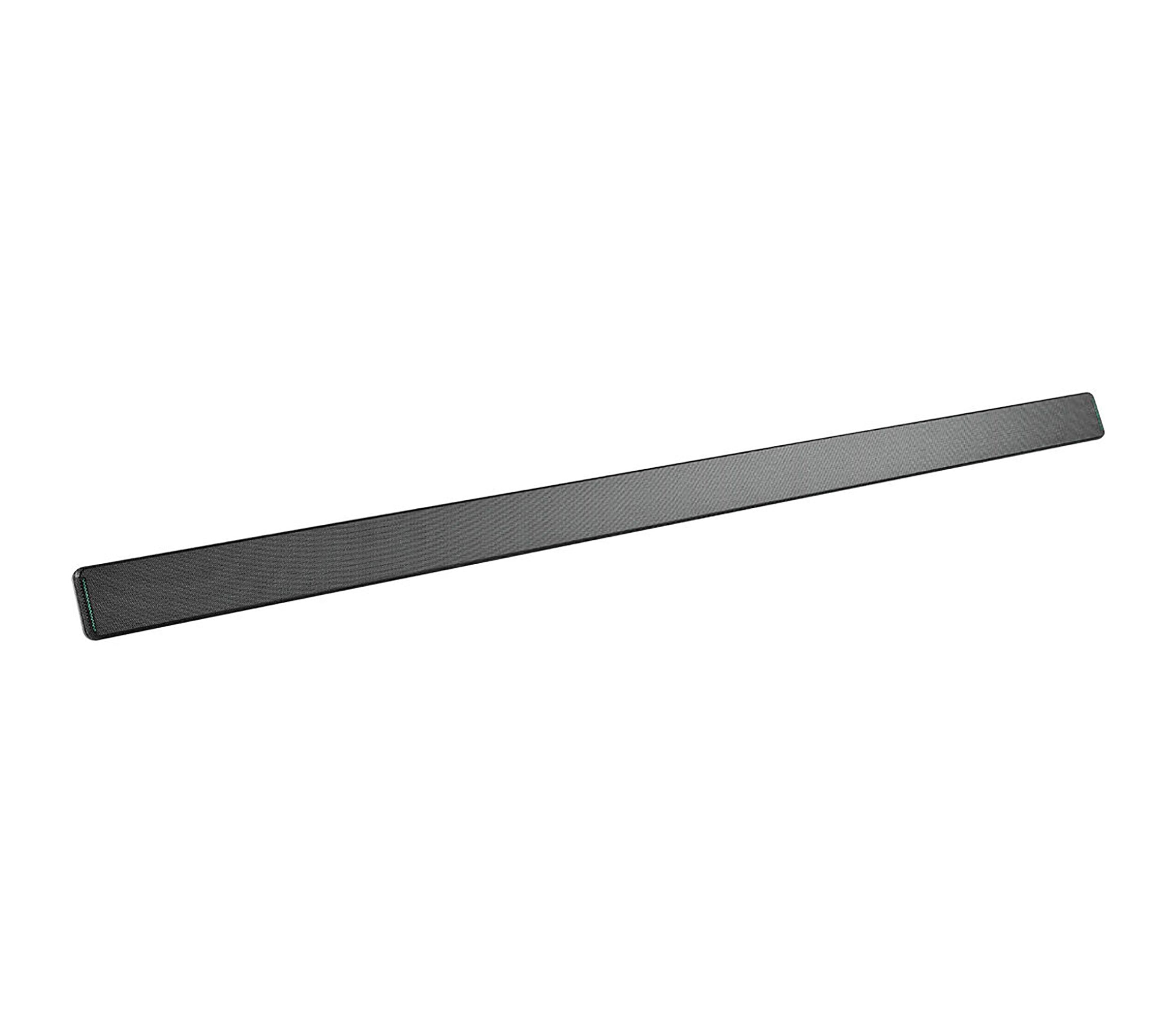

The Shure MXA710B-4FT, Microflex Advance Linear Array Microphone with a Black finish and have a sleek design that's well suited to today's modern workspaces, the 4' Shure MXA710 linear array microphone is easy to install and delivers high-quality audio capture for AV conferencing. The versatile, linear form factor can be placed on the wall, ceiling, or tabletop, and a single cable provides Power over Ethernet (PoE) and Dante networking for audio and control data transfer. Built-in proprietary IntelliMix DSP and Autofocus technology provides all the processing needed for echo- and noise-free audio in small spaces, while the unit can be used with the Intellimix P300 DSP (available separately) or Intellimix Room software-based DSP for larger spaces with additional components.

Collaboration Re-Imagined

The 4' Shure MXA710 microphone array utilizes Steerable Coverage technology to optimize sound pick up from 100 onboard MEMS microphones across 8 lobes, enhanced with IntelliMix digital signal processing for clear voice capture. IntelliMix DSP offers advanced features like automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control. Its Autofocus technology adjusts lobes in real time to maintain clarity, even when participants move. With a single PoE cable for power and data transfer, it supports Dante and AES67 audio networking protocols. The default room coverage template simplifies setup for wall, ceiling, or table installations, while its LED mute sync works with popular third-party software like Zoom, Microsoft Teams, Cisco, and Skype for Business when used with the IntelliMix P300 or ANIUSB-MATRIX interface (sold separately). The MXA710 offers unmatched flexibility for rooms of all sizes, with easy configuration via Shure Designer software, and features AES-256 encryption for secure audio when paired with Shure network interfaces. Additionally, the System On software enables remote management and troubleshooting.

Product Specifications:

Compatibility: Shure Microflex Advance

Color: Black

Audio I/O: 1x RJ45 Input/output

Mobile App Compatible: No

Power Source: PoE

Power Consumption: 10 W (Maximum)

Environmental Resistance: Dust-Resistant (IP5X)

Certifications: CE, UL2043, IEC60529

Operating Temperature: 20 to 104°F / -6 to 40°C

Storage Temperature: -20 to 165°F / -28 to 73°C

Mounting: Back - Multiple Keyholes and Screw Holes

Product Dimensions: 49.1 x 2.4 x 0.9" / 1247.8 x 60 x 22.1 mm

Product Weight: 3.7 lbs. / 1.7 kg

Shipping Weight: 8 lbs.

Shipping Dimensions: 51 x 5 x 4 inches

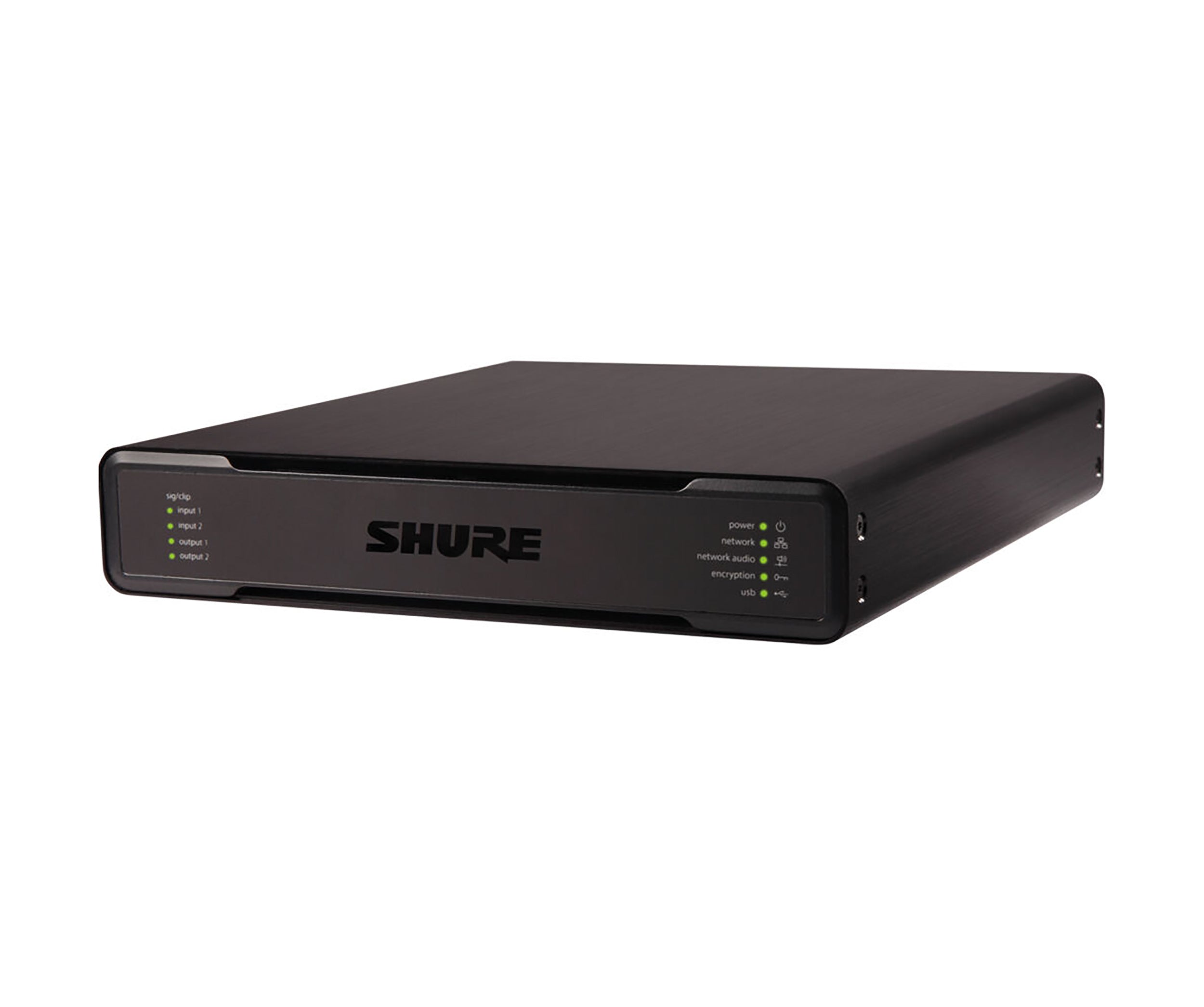

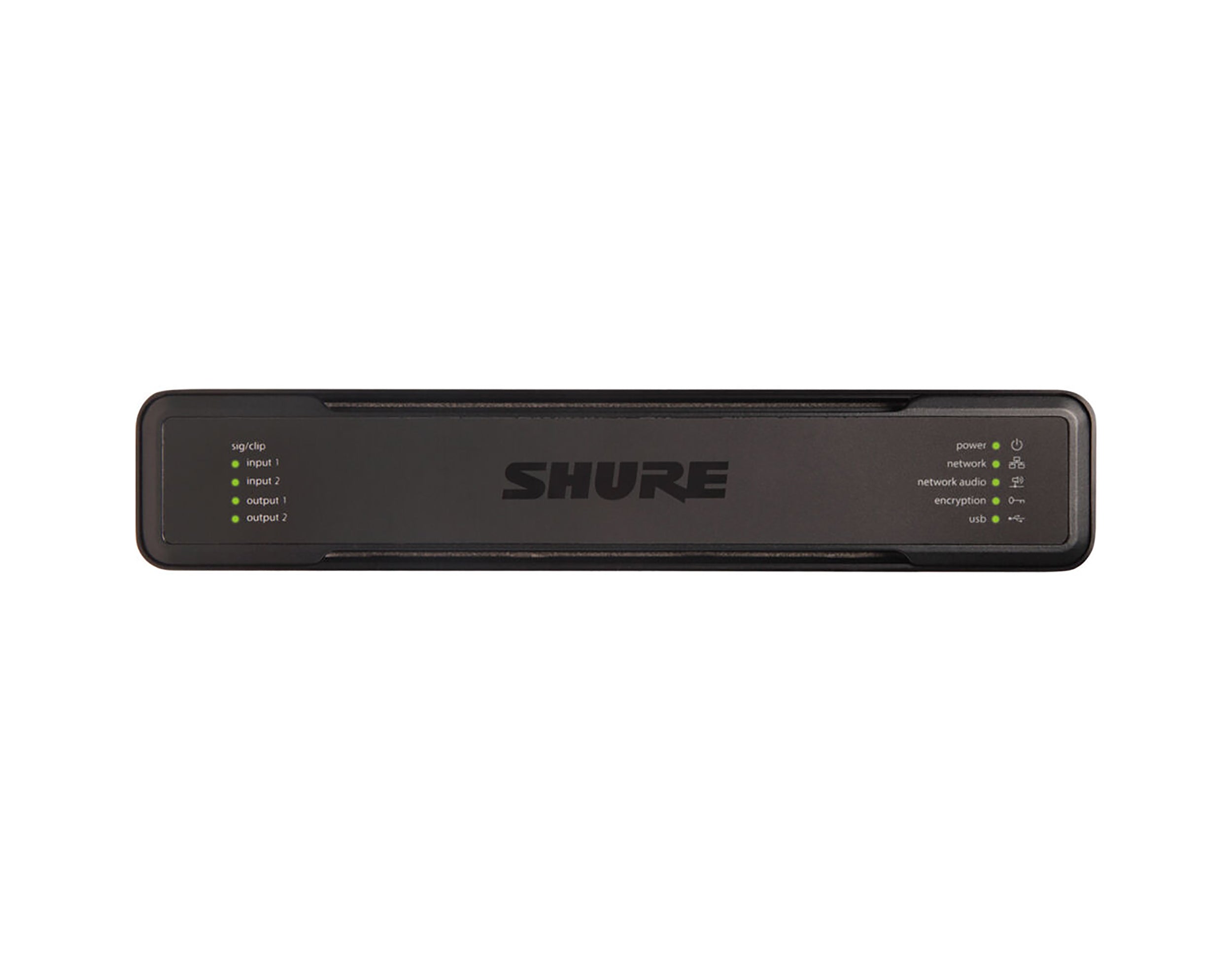

1 Shure P300-IMX, IntelliMix Audio Conferencing Processor for Seamless Collaboration

The Shure P300-IMX IntelliMix Audio Conferencing Processor is designed to work with the Microflex Wireless (MXW) system to deliver eight channels of acoustic echo cancellation, DSP-processing, and level control for conference rooms and meeting spaces. The processor supports Microflex wireless microphones while also offering versatile input and output connectivity options that allows users to incorporate loudspeakers, computers, mobile devices, and other audio components.

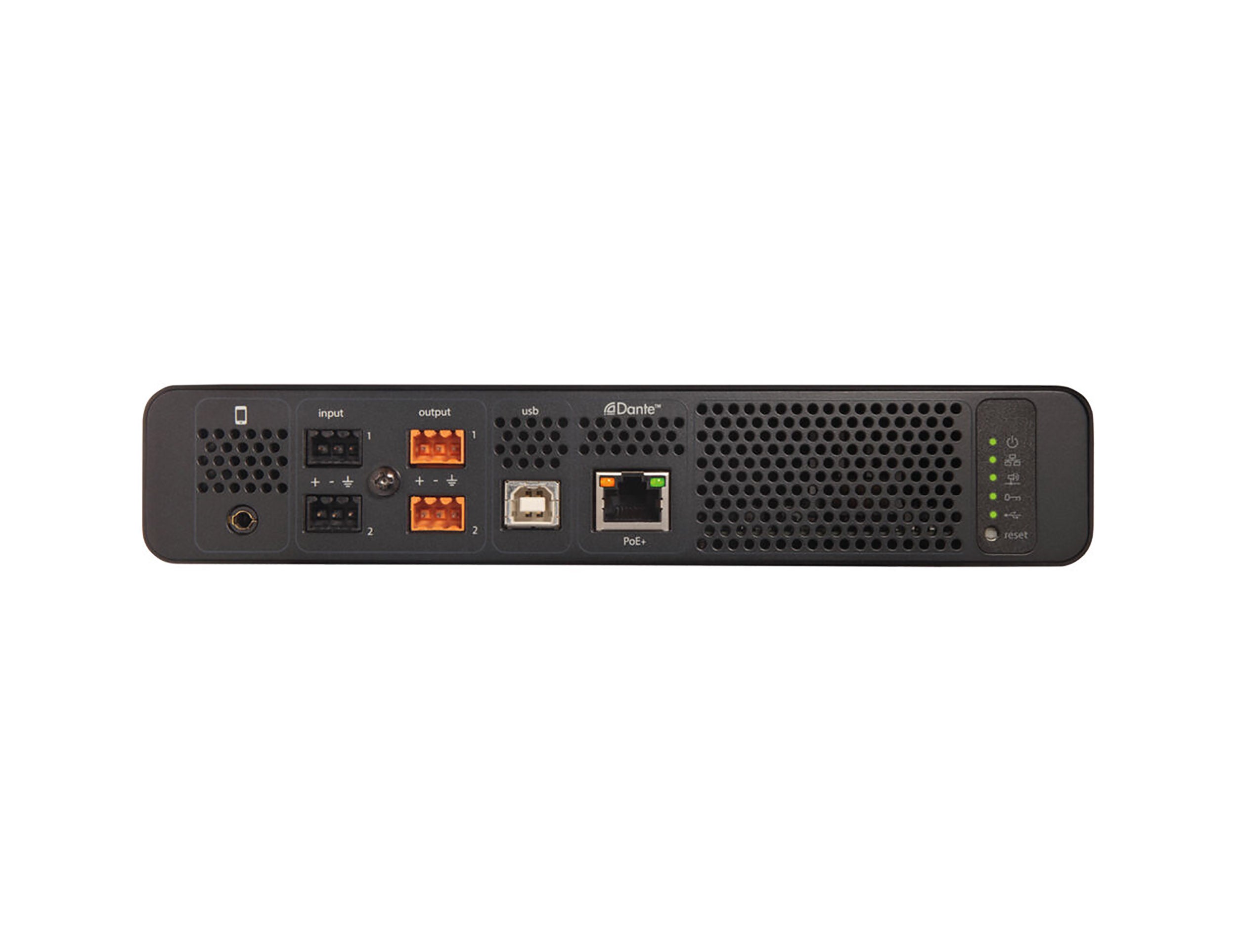

The P300 provides Dante (10 in/8 out), and to connect analog devices, the unit provides two 3-pin block connector inputs and two 3-pin block connector outputs along with a 3.5mm input jack for mobile devices. The USB Type-B port lets you connect computers and other USB devices, while the RJ45 port supplies the unit with power and connects it to other access points in the conference system network.

Clear Audio for Conferences, Panels, and Meetings:

Streamline the audio experience for every discussion. Fixed architecture provides simple setup, requiring less DSP programming and commissioning time. Multiple connectivity options allow for seamless integration with Shure conferencing microphones, laptops, and even mobile devices. Easy, rackless mounting enables quick, compact integration behind a display, under a table, or in a credenza.

Clever Operation:

Intuitive, programming-free LED mute sync functionality with leading third-party software codecs including Zoom Rooms, Microsoft Teams and Skype for Business.

Scale Up:

Easily add a presenter mic or control additional zoned loudspeakers with onboard matrix mixing for sound reinforcement applications

Connect with Confidence:

Driverless USB audio connection to PCs for soft codecs. Analog I/O for hard codecs. 3.5 mm connection to mobile phones to bridge a remote caller. Design projects offline with Designer System Configuration Software for simple project management. Seamlessly compatible with Microflex Advance and Microflex Wireless conferencing microphones for a complete Shure ecosystem.

Meet In Confidence:

Shure Audio Encryption utilizes AES-256 technology to protect confidential content.

Product Specifications:

Frequency Response: 20 Hz to 20 kHz (+1, -1.5 dB)

Dante Digital Audio:

Sampling Rate: 48 kHz

Bit Rate: 24 Bit

USB Audio:

Sampling Rate: 48 kHz

Bit Rate: 24 / 16 Bit

Latency

Firmware 4.1 and Newer:

Dante 1-8 In to Dante Out (AEC enabled): 15.4 ms

Dante 1-8 In to Dante Out (AEC disabled): 8.7 ms

Dante 9-10 In to Dante Out: 3.4 ms

Analog In to Analog Out: 3.8 ms

Firmware 3.1 and Older:

Dante 1-8 In to Dante Out (AEC Enabled): 12.5 ms

Dante 1-8 In to Dante Out (AEC Disabled): 5.8 ms

Dante 9-10 In to Dante Out: 1.8 ms

Analog In to Analog Out: 2.2 ms

Acoustic Echo Cancelling:

Tail Length: Up to 300 ms

Analog Connections:

Block Connectors:

Dynamic Range (20 Hz to 20 kHz, A-Weighted, Typical) - Analog to Dante: 113 dB, Dante to Analog - 117 dB

Equivalent Input Noise (20 Hz to 20 kHz, A-Weighted, Input Terminated with 150 Ohms):

Line -86 dBV, Aux -98 dBV

Total Harmonic Distortion at 1 kHz, 0 dBV Input, 0 dB Analog Gain: <0.05%

Common Mode Rejection Ratio (150-Ohm Balanced Source @ 1 kHz): > 50 dB

Input Impedance: 9.6 Kilohms

Input Clipping Level: Line +27 dBV, Aux+15 dBV

Output Impedance: 80 Ohms

Output Clipping Level: Line +20 dBV, Aux +0 dBV, Mic -26 dBV

Mobile:

Connector: 1/8" / 3.5 mm

Pin Assignments: Tip - Audio Input (Left), Ring 1 - Audio Input (Right), Ring 2 - Ground
Sleeve: Audio Output (To Phone)

Dynamic Range (20 Hz to 20 kHz, A-Weighted, Typical): Analog to Dante: 99 dB, Dante to Analog - 90 dB

Total Harmonic Distortion (at 1 kHz, 0 dBV Input, 0 dB Analog Gain): <0.05%

Input Impedance:  3.7 Kilohms

Input Clipping Level: +4 dBV

Output Impedance: 1.4 Kilohms

Output Clipping Level (Output Terminated with 2.2 Kilohms): -20 dBV

General:

Analog Input:

2 x 3-Pin Block Connector (Active Balanced)

1 x 1/8" / 3.5mm TRRS Input

Control Software: Shure Designer

Analog Output:

2 x 3-Pin Block Connector (Impedance Balanced)

USB:

USB 2.0, Type B

Single Port Carries 2 Input and 2 Output Channels (Summed Mono)

Network Connection:

1 x RJ45

10 x Dante Inputs

8 x Dante Outputs

Networking

Cable Requirements: Cat 5e or Higher (Shielded Cable Recommended)

Polarity : Non-Inverting, Any Input to Any Output

Power Requirements: 802.3 at Type 2 (PoE Plus), Class 4

Power Consumption: 17.5 W, Maximum

Thermal Dissipation

Maximum: 17.5 W (60 BTU/Hr)

Typical: 14.6 W (50 BTU/Hr)

Operating Temperature Range: 20 to 122° F / -6.7 to 50° C

Storage Temperature Range: -20 to 165° F / -29 to 74° C

Shipping Weight: 8 lbs.

Shipping Dimensions: 11 x 12 x 3 inches

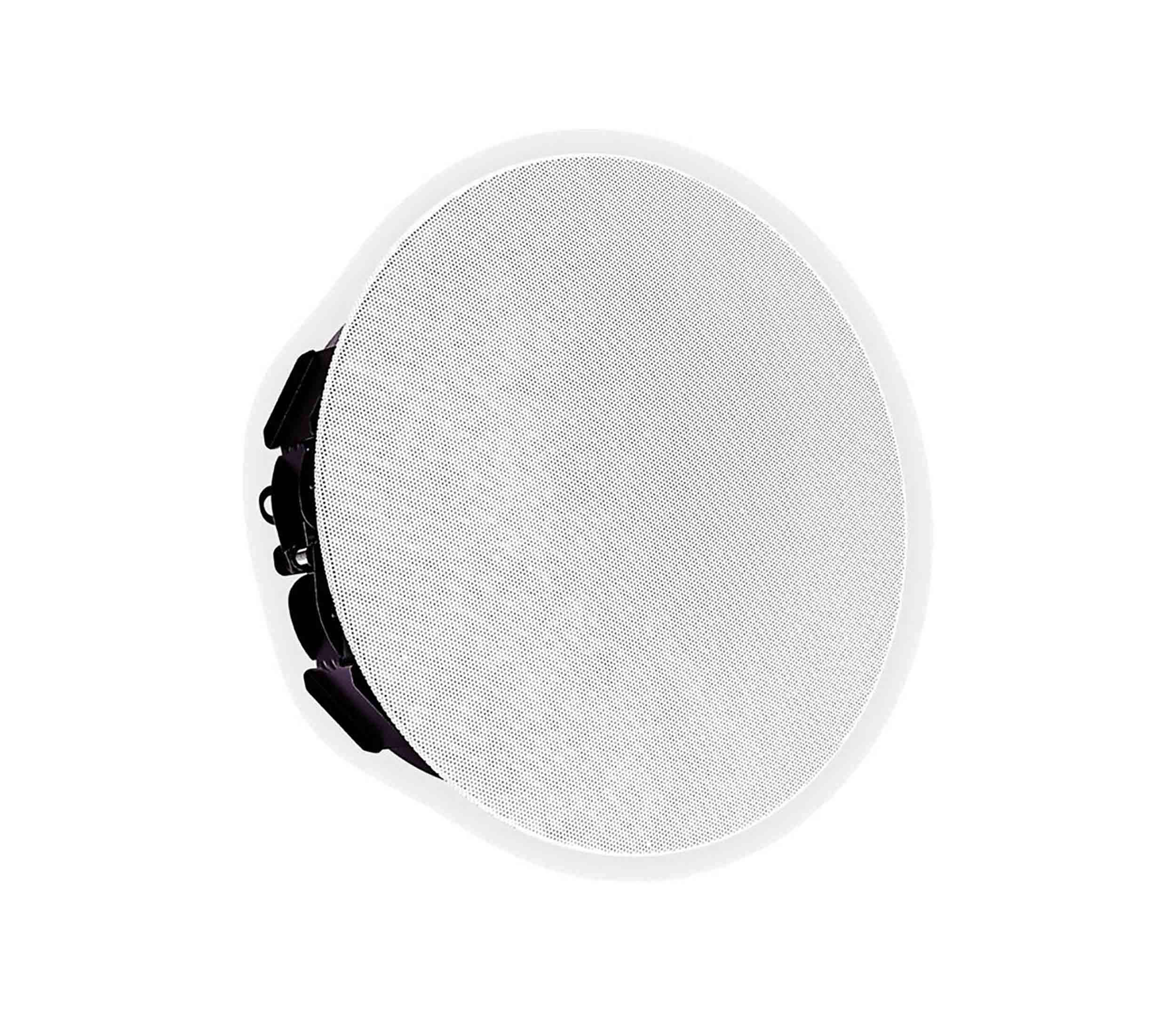

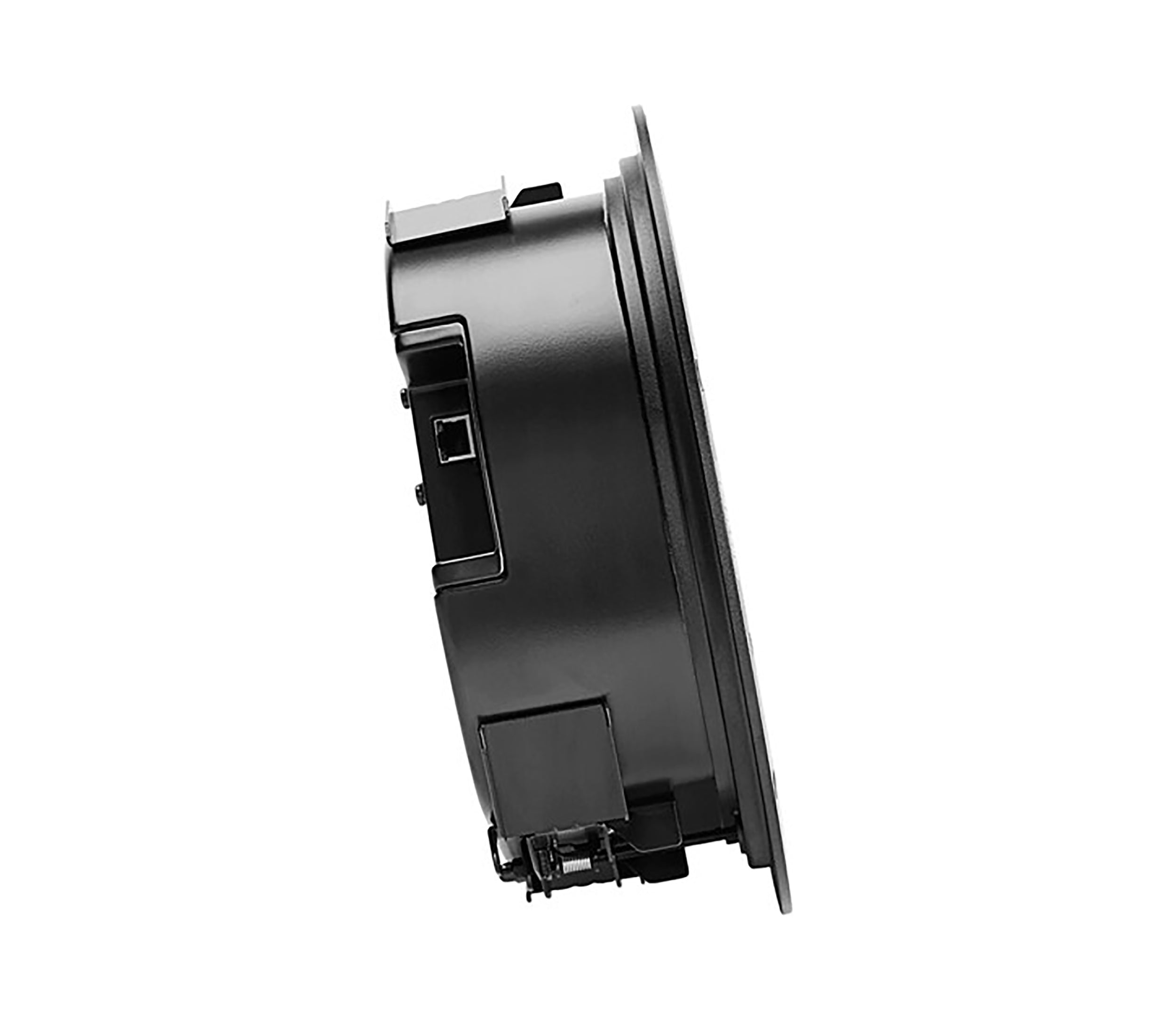

4 Shure MXN5W-C Networked Ceiling Speaker with Dante (White)

The Shure MXN5W-C Provides high-quality speech reproduction for AV conferencing applications. PoE-enabled with a low-profile design optimized for easy installation in drop ceiling configurations. Deployed and controlled via software, this networked loudspeaker does not require a separate amplifier or outboard DSP. Integrates seamlessly with Shure’s ecosystem of networked hardware and software for a complete audio solution.

The Microflex MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.

Loudspeaker Technical Elements

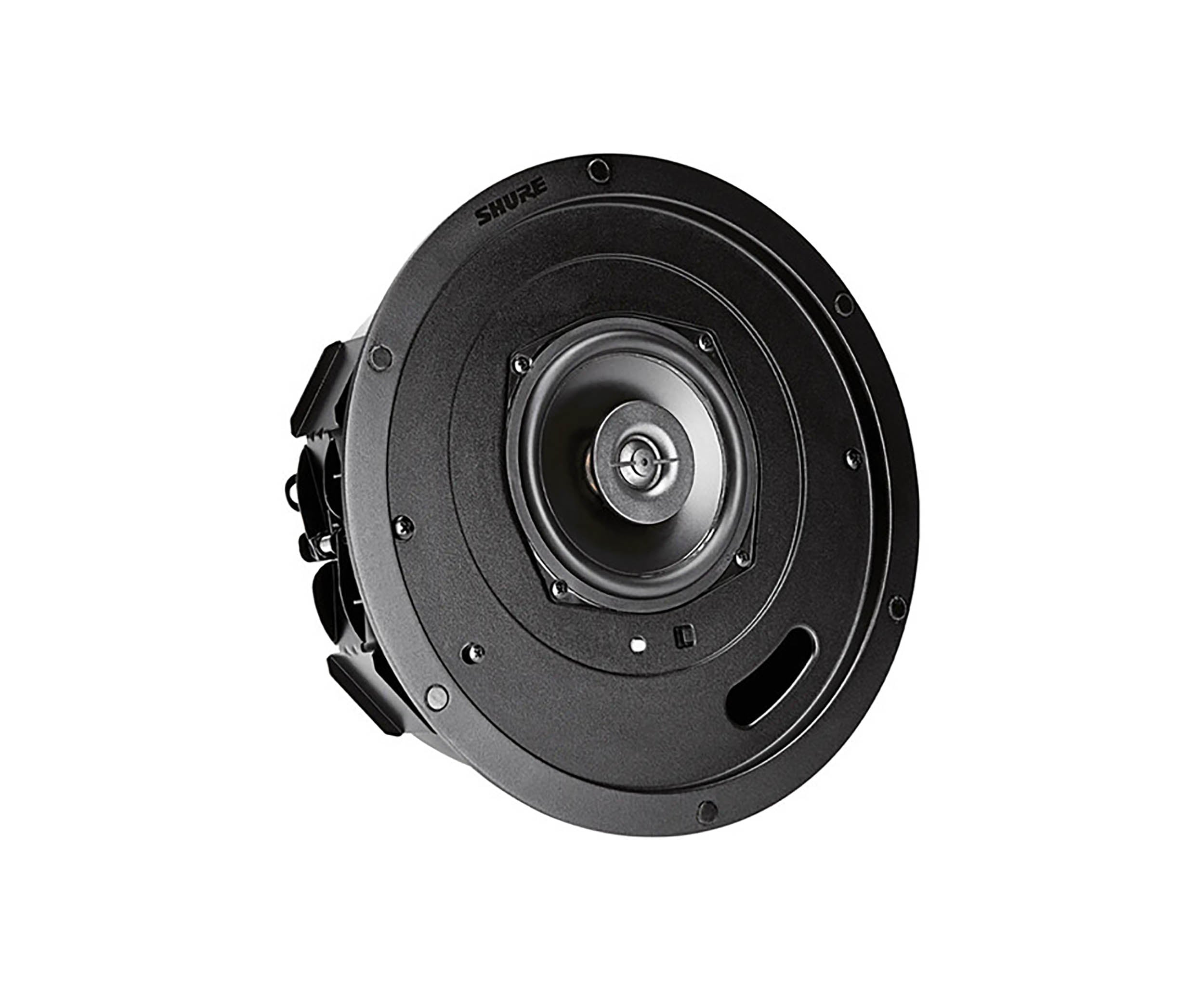

Pre-tuned frequency response optimized for voice intelligibility in AV conferencing applications. Low-profile, shallow-can design compatible with most drop ceiling installations. 2-way driver system with 5.25 in (13.3cm) woofer. PoE/PoE+ enabled, eliminating the need for an outboard amplifier. Integrated Shure DSP Utilities: EQ, delay, limiter, and signal/tone generator. 2 Dante inputs and 1 Dante output.

Clean Design Elements

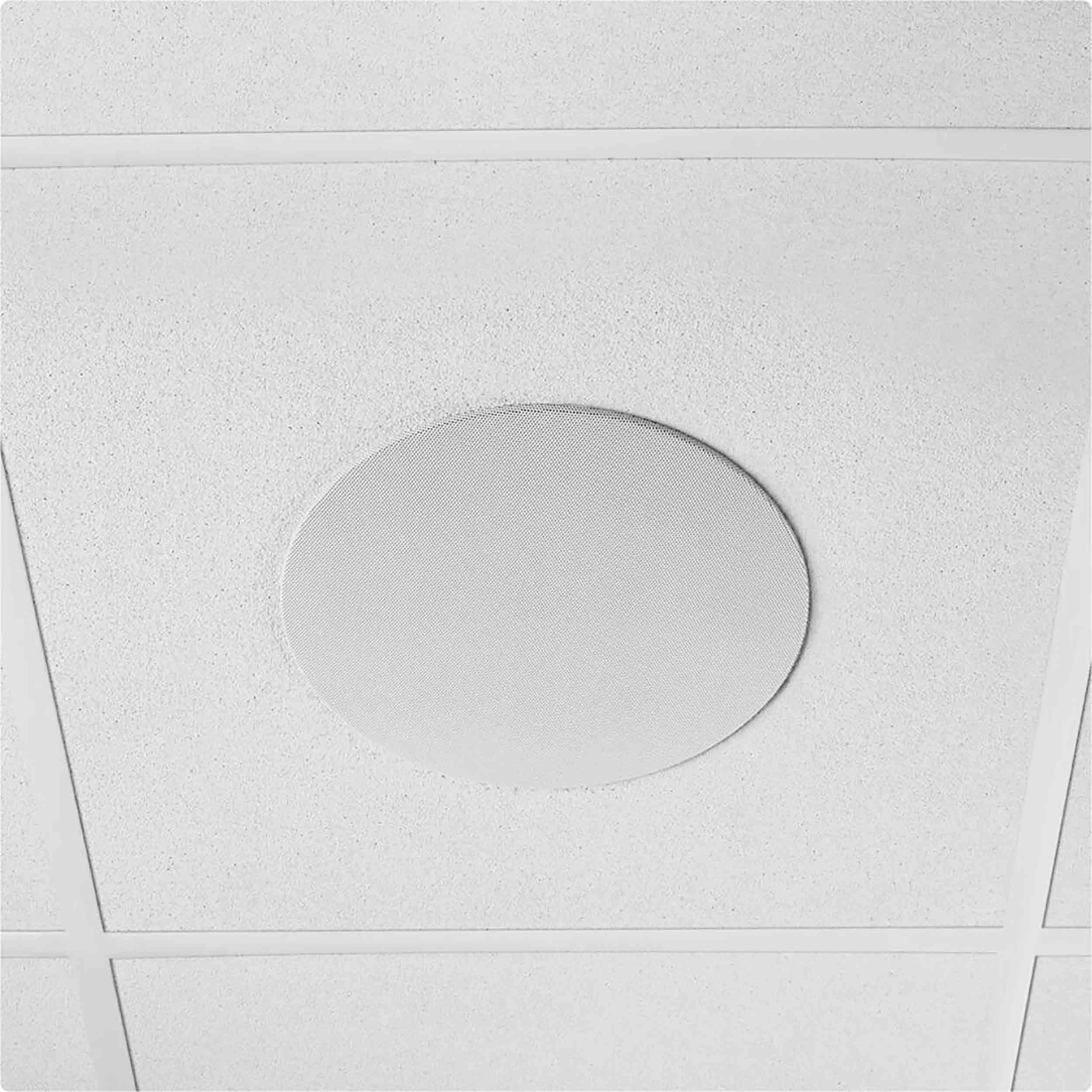

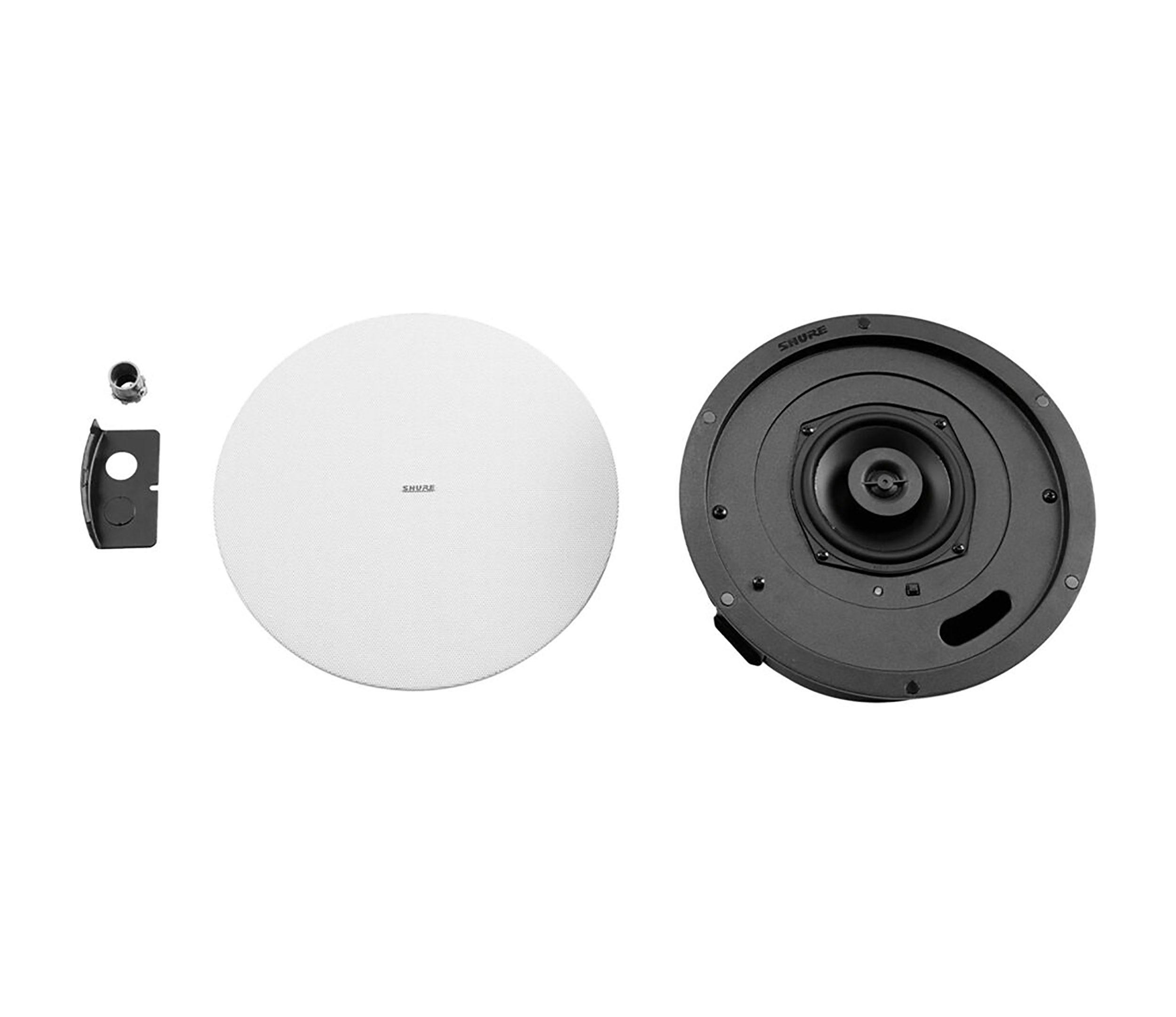

Aesthetic design subtly blends into drop ceiling environments. Removable magnetic and paintable grille seamlessly covers the entire loudspeaker. Removable magnetic Shure logo. UL 2043 plenum rated. Tile bridge or New Construction Bracket accessories for quick and easy mounting.

Product Specification:

Crossover Channel Qty: 2-way

Frequency Response: 120 - 20000 hertz

Max Output Level (Max SPL): 98 decibels

Enclosure Design: Bass reflex

Amplifier: Integrated

Connectivity Technology: Wired

Recommended Placing: Ceiling tile mountable

Detachable Grilles: Yes

Connector Type: 2 x Dante input (RJ-45), Dante output (RJ-45)

Length: 14”

Width: 14”

Height: 6.2”

Weight: 9.35 lbs.

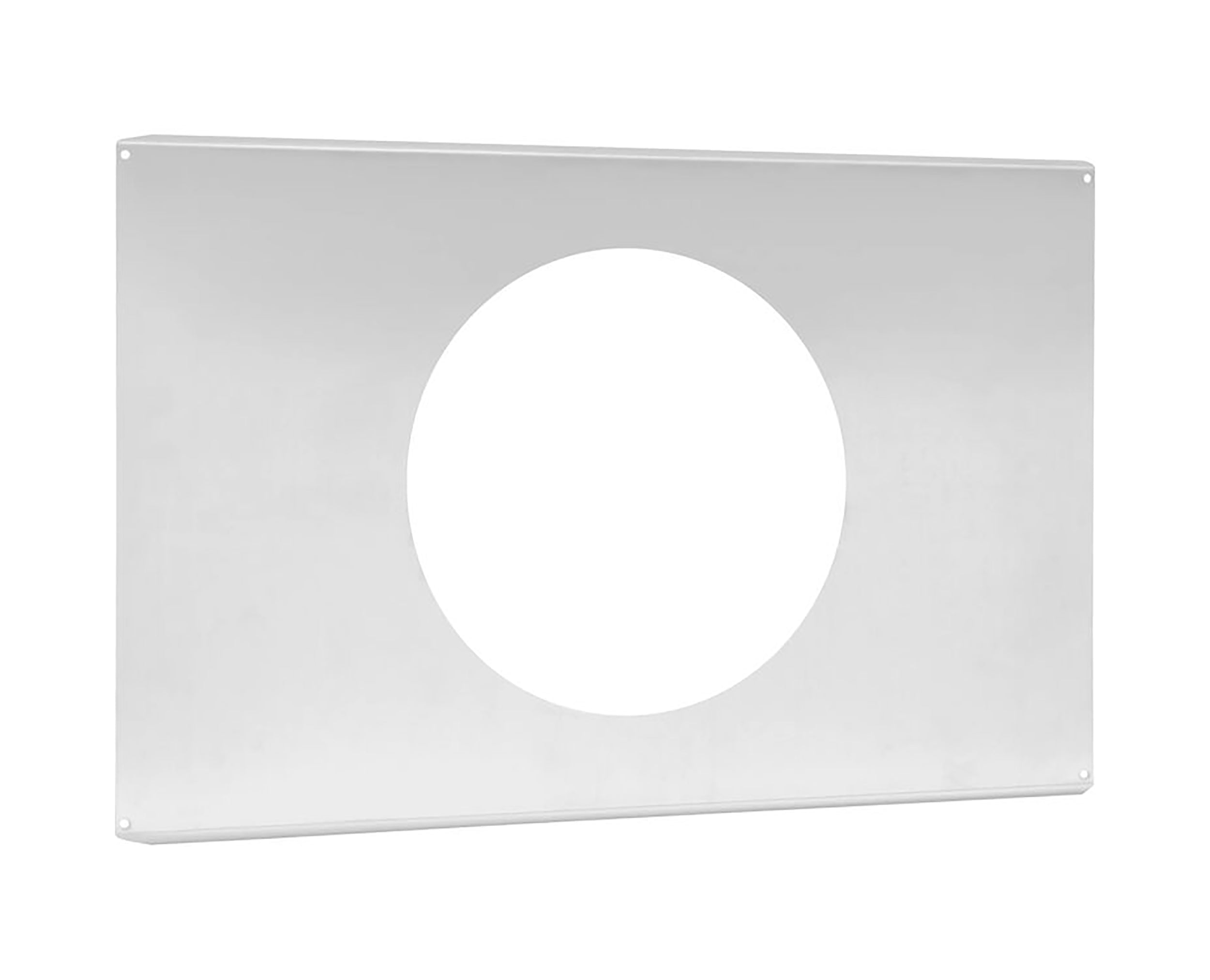

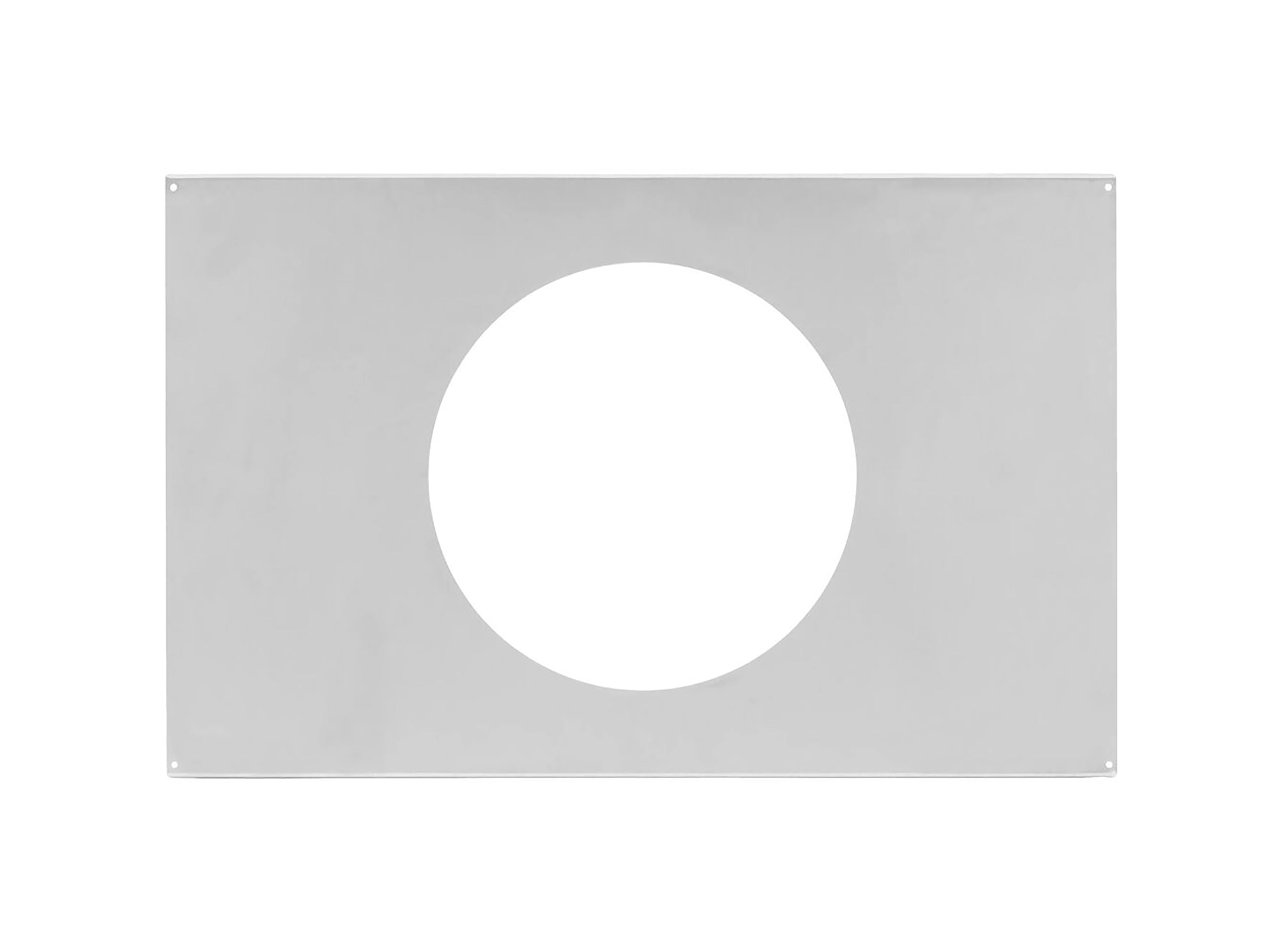

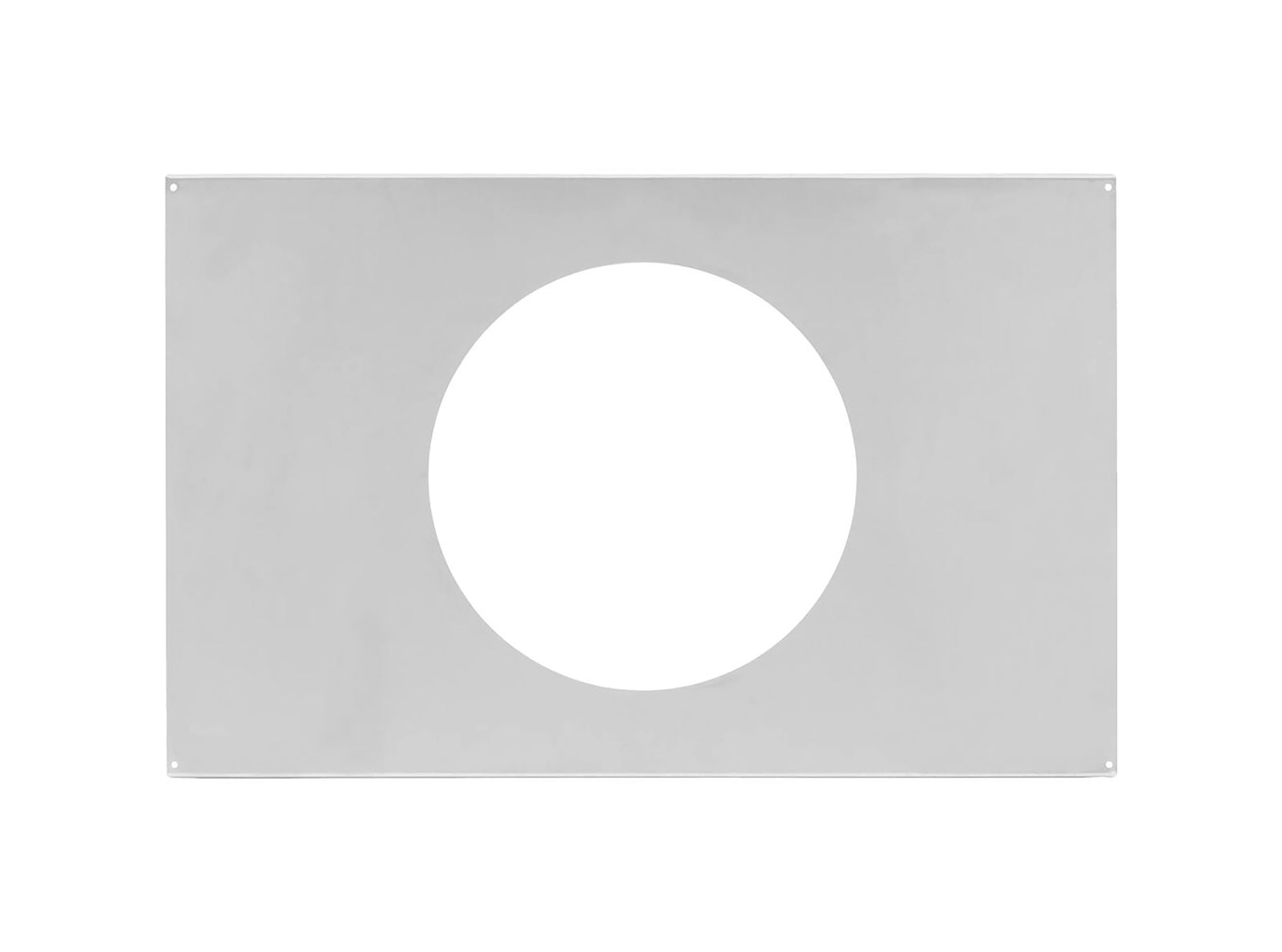

4 Shure A-MXN5-TB Tile Bridge for MXN5-C Microflex

The Shure A-MXN5-TB is tile bridge for MXN5-C Microflex networked loudspeaker. A-MXN5-TB Tile Bridge allows for quick and easy drop ceiling installation of the MXN5-C Networked Loudspeaker.

Product Specification:

Length: 24.2”

Width: 16”

Height: 0.8”

Weight: 3.75 lb
