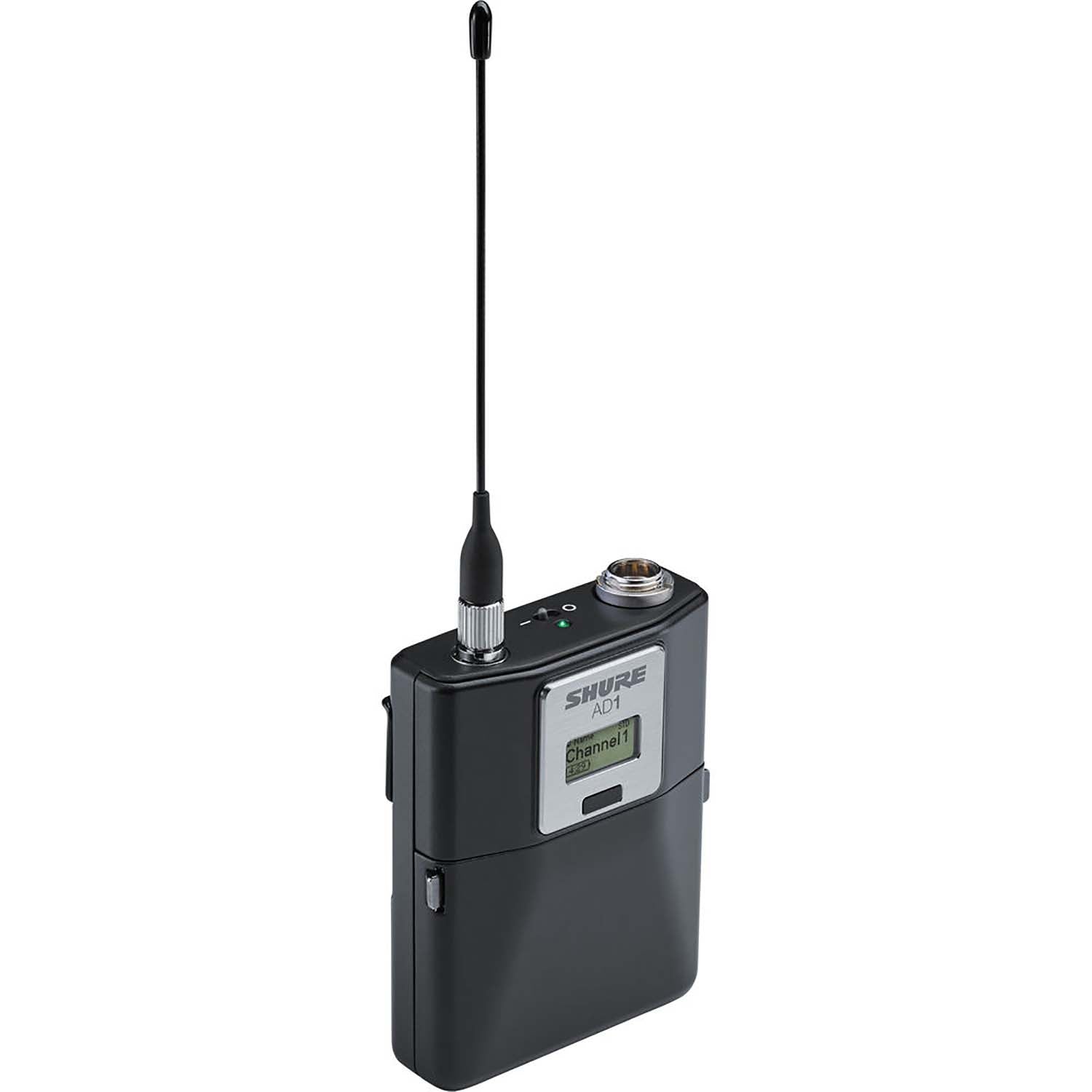

Shure AD1 Bodypack Transmitter with TA4 Connector

The Shure AD1 (AD1=-G57, AD1 TA4) is an Axient Digital wireless bodypack transmitter with a TA4 input for lavalier mics, headsets and instrument cables. It tunes across up to 184 MHz, passes 20 Hz to 20 kHz with more than 120 dB dynamic range, and runs up to 11 hours on a Shure SB900C rechargeable battery or up to 8 hours on two AA batteries.

The AD1 works with Axient Digital receivers. Two transmission modes are selectable: Standard for the best coverage and lowest latency, and High Density for the highest channel count in crowded spectrum. Audio is AES-256 encrypted, input gain is staged automatically, and the cast metal housing, backlit LCD, detachable 1/4-wave antenna and external charging contacts for docked charging round out a rugged design. Match the frequency band of every component in your system.

AD1 specifications

Type	Axient Digital wireless bodypack transmitter

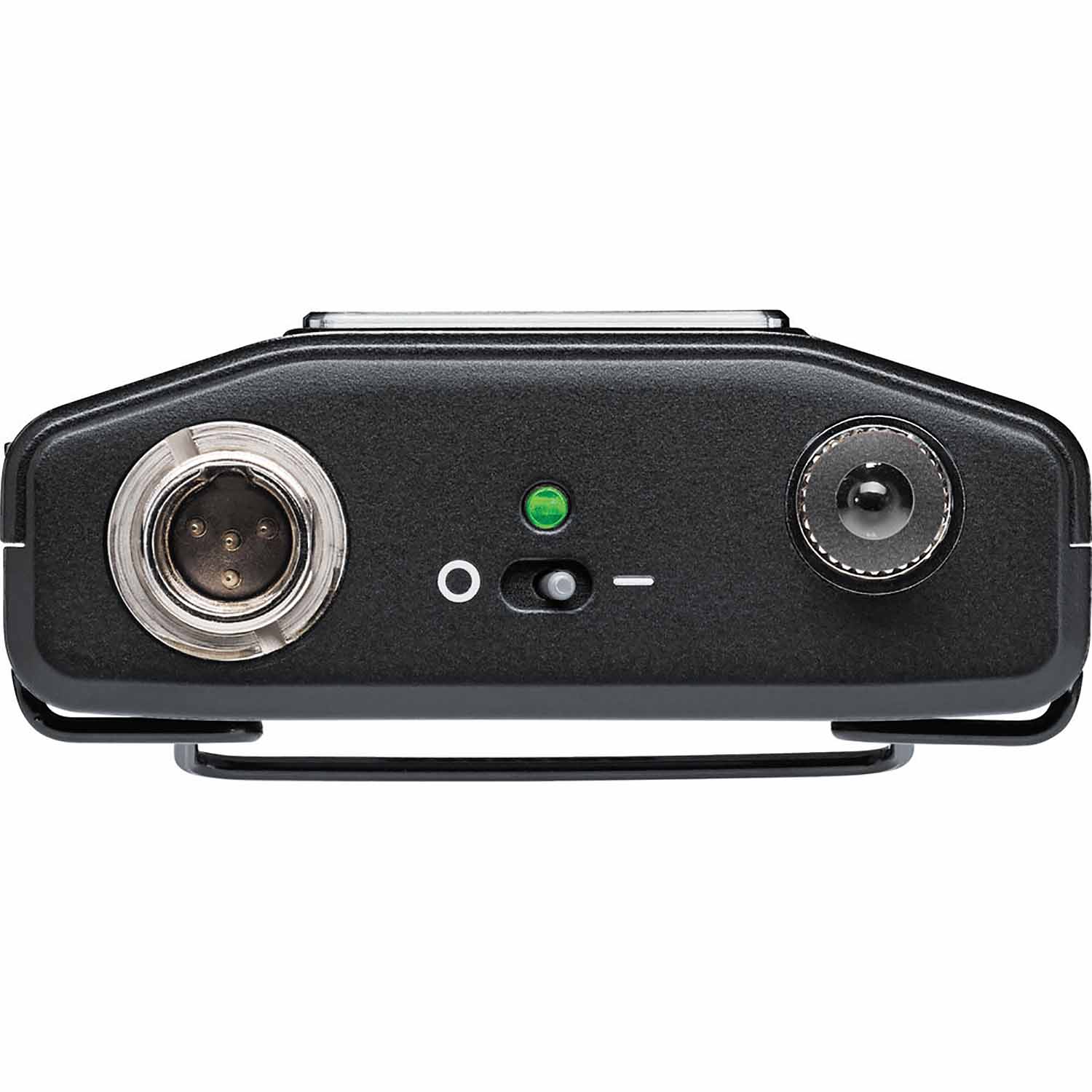

Audio input	4-pin male mini connector (TA4M), unbalanced, 910 kOhm
Frequency bands on this listing	G57: 470 to 616 MHz (gap 608 to 614 MHz). K54: 606 to 663 MHz. X55: 941 to 960 MHz
Tuning range	Up to 184 MHz, band dependent
Audio frequency response	20 Hz to 20 kHz, flat
Dynamic range	More than 120 dB
Mic offset range	-12 to 21 dB in 1 dB steps
Maximum input level	8.5 dBV (7.5 Vpp) pad off, 20.5 dBV (30 Vpp) pad on, 1 kHz at 1% THD
RF output power	2, 10 or 35 mW, selectable, region dependent
Channel spacing	350 kHz Standard mode, 125 kHz High Density mode
Encryption	AES-256
Working range	300 ft (100 m) line of sight
Antenna	Detachable 1/4 wave, SMA connector
Power	Shure SB900C rechargeable lithium-ion (up to 11 hours at 10 mW) or 2 AA batteries (up to 8 hours at 10 mW)
Dimensions	3.4 x 2.6 x 0.9 in (86 x 66 x 23 mm), H x W x D
Weight	5.5 oz (155 g) without batteries
Housing	Cast metal
Operating temperature	0 to 122 F (-18 to 50 C)

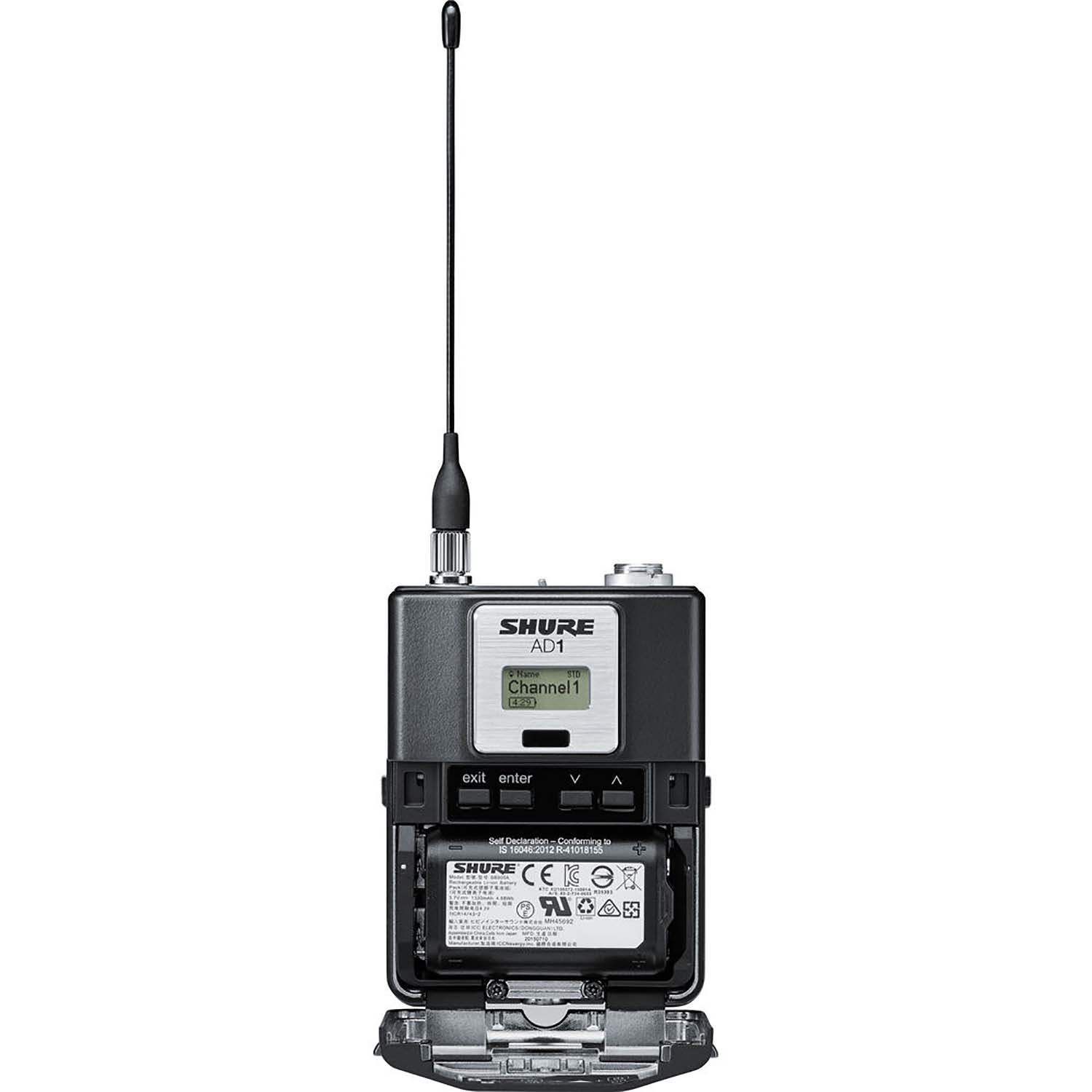

In the box	2 AA alkaline batteries, 1/4 wave antenna, WA340 threaded TA4F adapter, 26A13 carrying bag, belt clip

What receiver does the AD1 work with?

Axient Digital receivers. Buy the AD1 in the same frequency band as your receiver: this listing offers the G57, K54 and X55 bands.

Does the AD1 run on AA batteries?

Yes. Two AA batteries give up to 8 hours at 10 mW, and the optional Shure SB900C rechargeable battery gives up to 11 hours with precision battery metering.

What connector does the AD1 use?

A TA4M (4-pin mini) input, which takes TA4F lavalier and headset mics and instrument cables such as the Shure WA302. Shure also makes a LEMO3 version, the AD1LEMO3.

What is High Density mode?

A transmission mode that narrows channel spacing from 350 kHz to 125 kHz, so far more channels fit in the same spectrum for large multi-mic productions.

AD1 or ADX1?

Both are Axient Digital bodypacks with TA4 inputs. The AD1 runs on AA batteries or an SB900C rechargeable, weighs 155 g and measures 3.4 x 2.6 x 0.9 in. The ADX1 adds ShowLink remote control and automatic interference avoidance, runs up to 10 hours on the SB910 rechargeable (two included), and is slimmer and lighter at 142 g and 3.6 x 2.7 x 0.7 in. Pick the AD1 when you want AA backup power, the ADX1 for ShowLink control from the booth.
