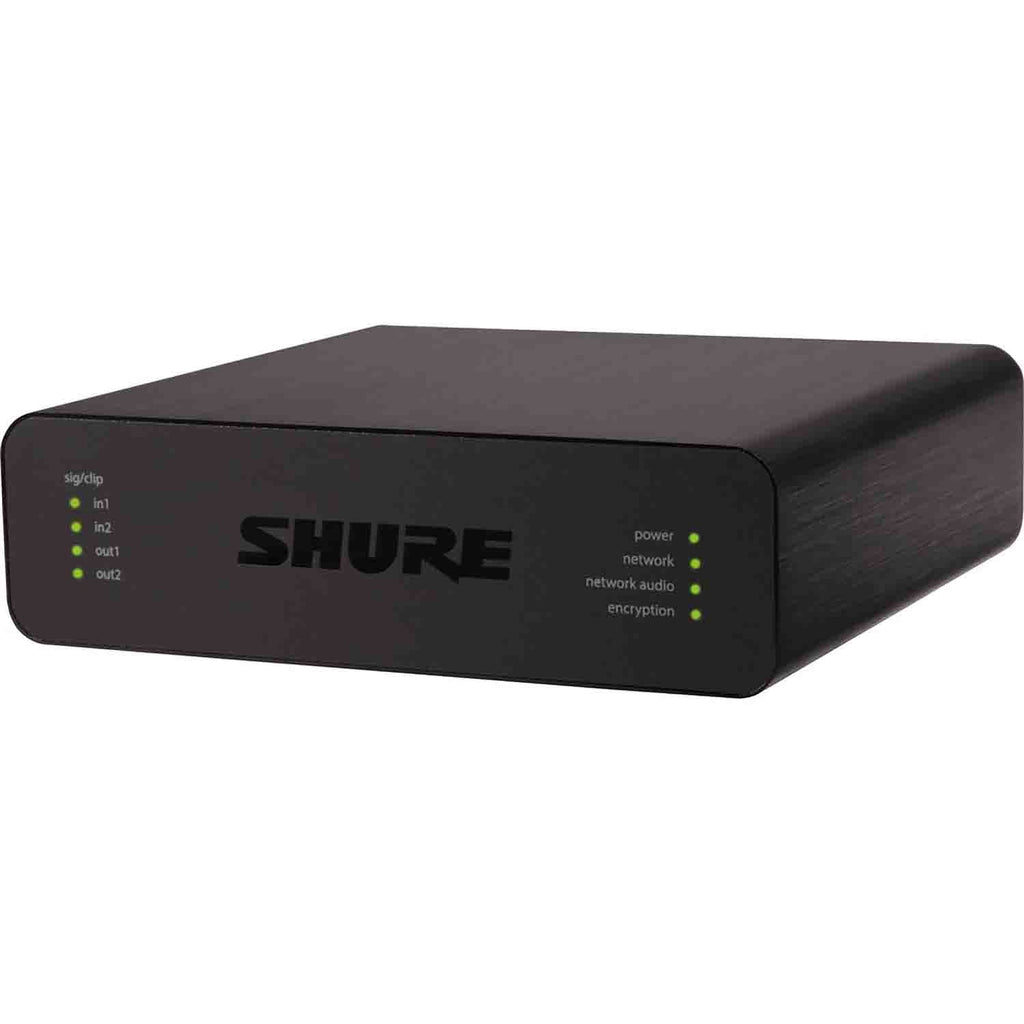

The Shure ANI22-XLR is Audio Network Interface XLR Connectors. Audio network interface allows 2 analog mic or line inputs and 2 analog outputs to connect to a Dante network for easy audio routing and convenient browser-based remote control. Audio network interface complements the existing ANI4IN and ANI4OUT products. Converts up to 2 Dante digital audio signals to line/mic analog signals, ANI22BLOCK: Analog audio block connectors (2 in, 2 out); ANI22XLR Analog audio XLR connectors (2 in, 2 out)
Product Specification:

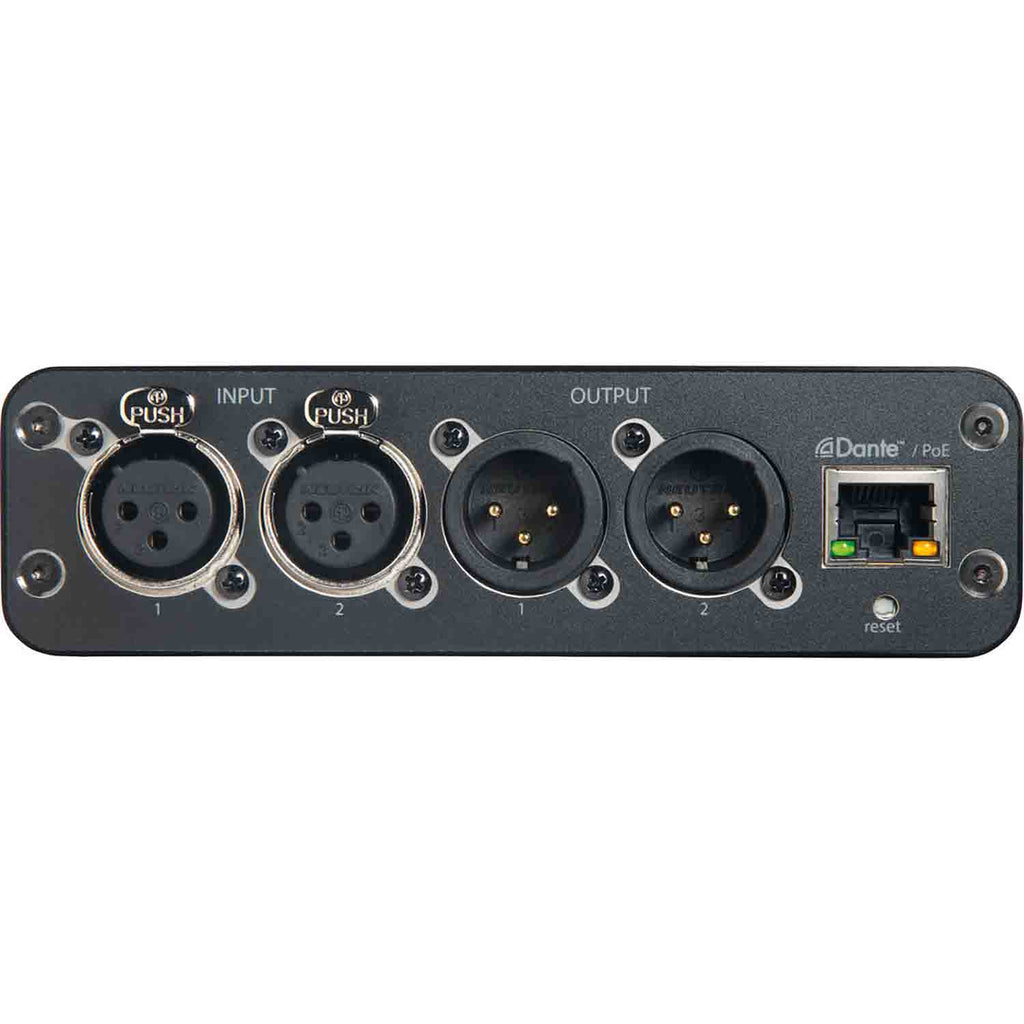

nputs (Analog): 2 x 3-pin XLR connectors
Outputs (Analog): 2 x 3-pin XLR connectors
Dante Connection: 1 x RJ45
Channel Count: 2 inputs, 2 outputs
Polarity Non-inverting: Any input to Any output
Power Requirements: Power over Ethernet (PoE), Class 0 (PoE Plus compatible)
Power Consumption: 11 W maximum
Application Control: HTML5
Operating Temperature Range: 20 to 104°F (-6.7 to 40°C)
Storage Temperature Range: 20 to 165°F (-29 to 74°C)
Thermal Dissipation: Maximum 12.1 W (41.3 BTU/hr), Typical: 9.8 W (33.7 BTU/hr) Length: 9”
Width: 6.25”
Height: 3”
Weight: 2.127 lbs
