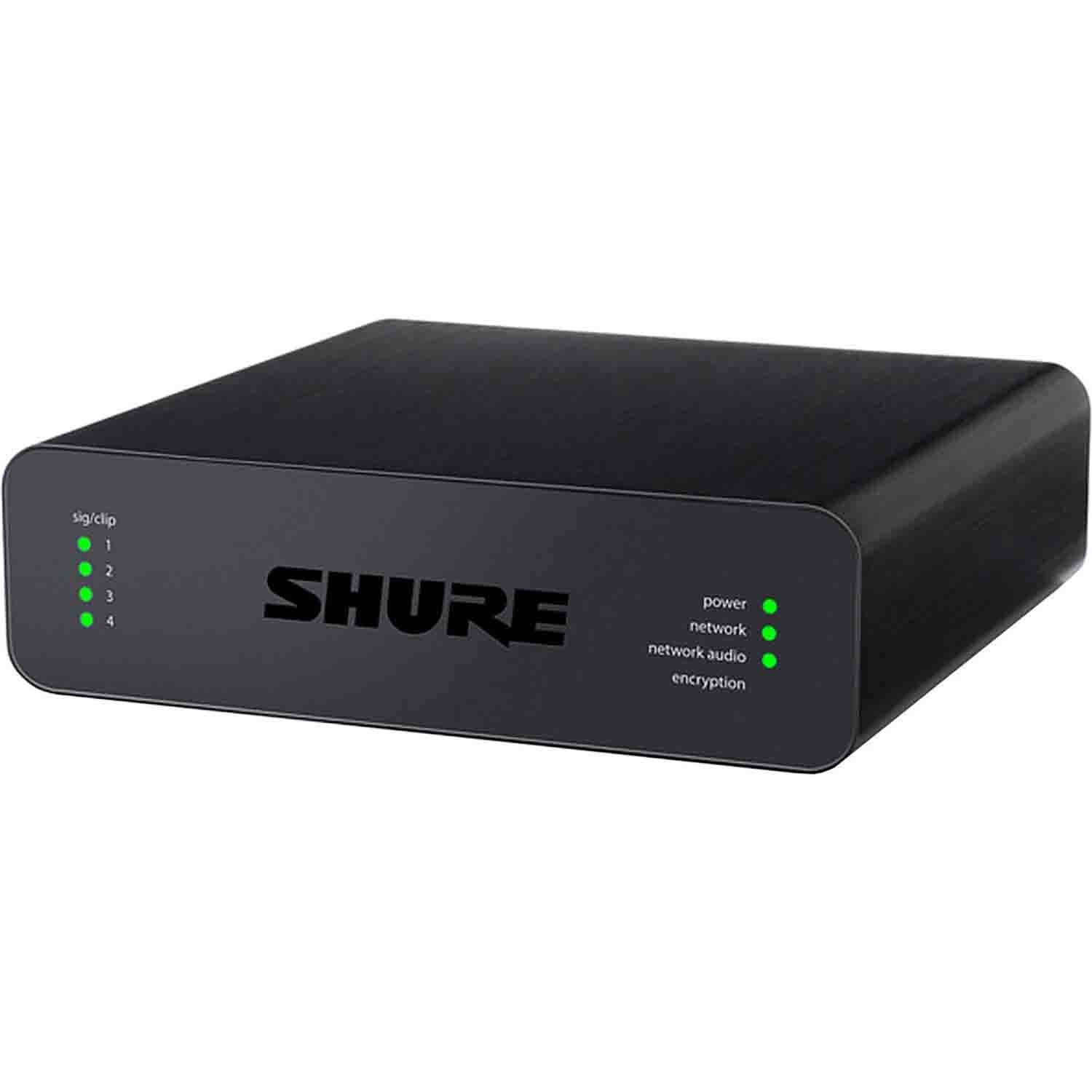

The Shure ANI4OUT-BLOCK is an interface unit with four block output ports that convert a Dante digital audio signal to four line or microphone analog signals for audio routing and browser-based control. It features a single Ethernet port, customizable EQ settings, channel summing, and LEDs that indicate the device status and audio signal. It is compatible with third party control systems.
Single Ethernet port carries Dante audio, power (PoE - class 0). Control strings for third-party preset controllers including Crestron and AMX. Four band C/S PEQ on every channel. Provides channel summing to combine Dante signals from the network and send them over a single analog output. Browser-based software control for all device parameters, per output channel for mute control, digital gain, and polarity control. Chassis ground screw provides common chassis ground for multiple inputs.
Product Specification:
Rack Units: 1/3 RU wide

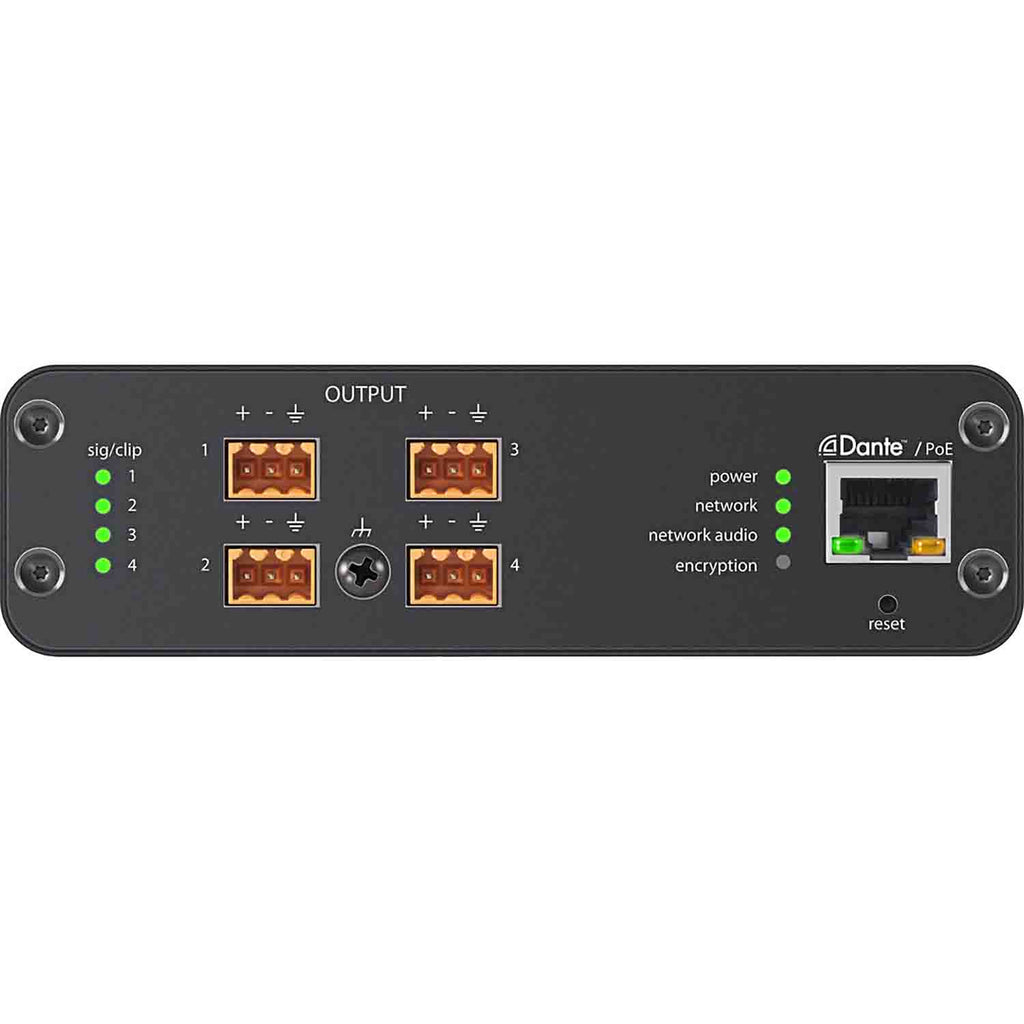

Connectors: 4 x block analog ports, output, 1 x PoE port (class 0)
Length: 9”
Width: 6.25”
Height: 3”
Weight: 2.16 lbs
