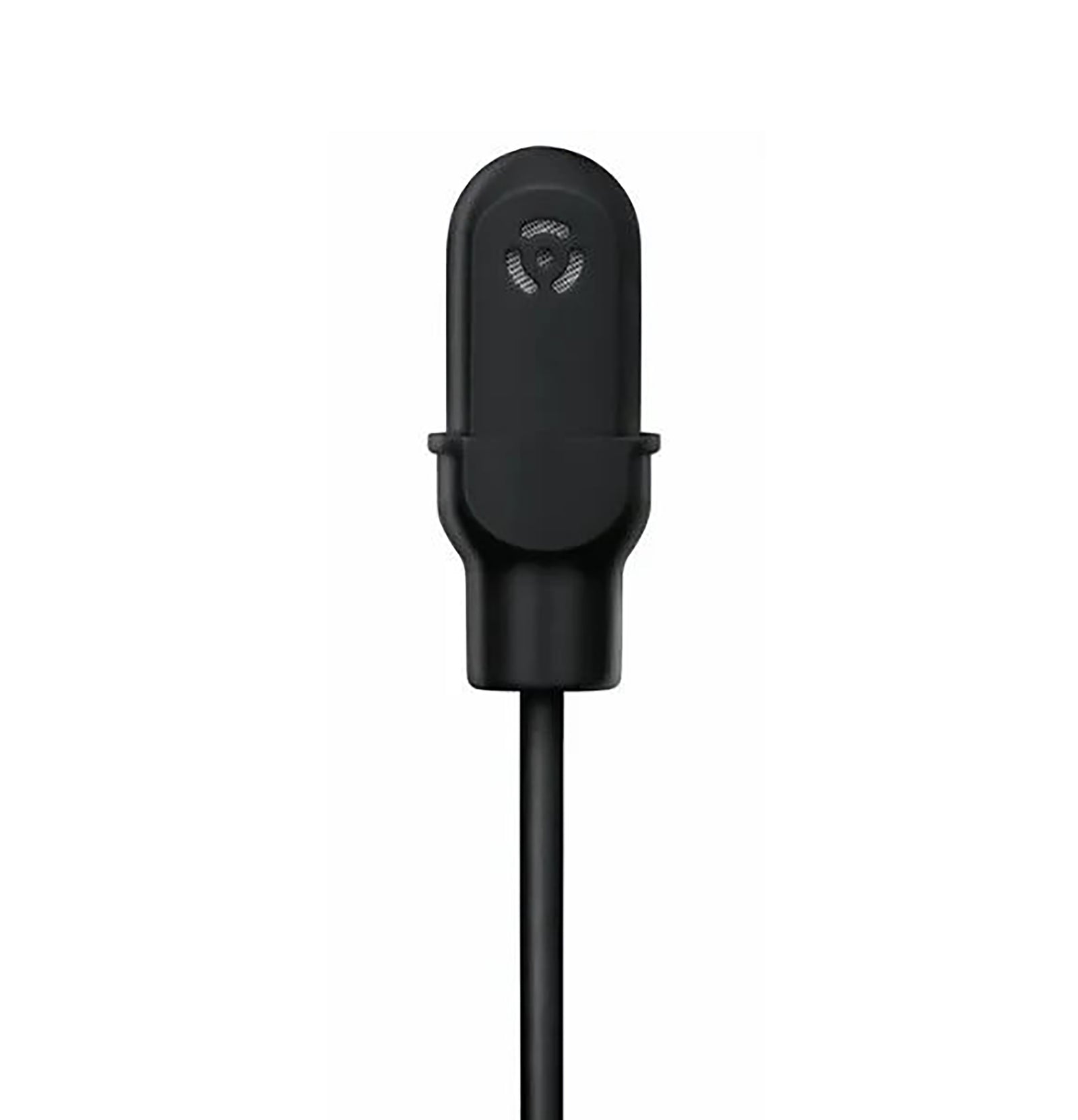

Shure DL4B/O-LM6-A DuraPlex Omni Lavalier Mic w/ 6-Pin LEMO Connector

The Shure DL4B/O-LM6-A, DuraPlex Omnidirectional Lavalier Microphone with 6-Pin LEMO Connector - Black offers a consistent, long-lasting, and durable solution for capturing professional-quality audio. With its dust, dirt, water, and sweat-resistant design, it's suitable for a wide range of applications, including film, broadcast, speech, theater, and live performances.

This microphone is built to withstand even the harshest environments, making it ideal for outdoor shoots, broadcast audio, and sound for film. Rain or shine, you can capture every moment with confidence. The DuraPlex DL4 wireless lavalier microphone has been extensively tested to ensure an IP57 dust-resistant, waterproof rating. so that you can be sure it will perform when you need it most.

The advanced 1.6mm Shure Plex cable is the same cable used with the award-winning Twin Plex subminiature microphone. It lasts longer than competing cables due to a dual redundant ground which doubles as a secondary shield. This microphone won't kink, is fully paintable, and offers virtually zero “memory effect.”

Whether you're shooting reality TV, mounting a professional theatrical tour, or working in any other demanding audio environment, the DuraPlex DL4 wireless lavalier microphone is the perfect audio solution. It offers a neutral, full sound quality that lives up to the highest audio standards, making it just as comfortable on the beach as it is in a broadcast studio.

Product Specifications:

Microphone Capsule: MEMS

Polar Pattern: Omnidirectional

Frequency Response: 20 Hz to 20 kHz

Sensitivity:

MTQG, LEMO: -42.5 dBV at 1 kHz

LEMO1, LEMO6: -38.5 dBV at 1 kHz

Self-Noise (A-Weighted, Equivalent Acoustical):

MTQG, LEMO: 31 dB SPL-A

LEMO1, LEMO6: 33 dB SPL-A

Signal-to-Noise Ratio:

MTQG, LEMO: 63.0 dB

LEMO1, LEMO6: 61.0 dB

Maximum SPL (1 kHz at 1% THD, typical):

MTQG, LEMO: 132.0 dB SPL

LEMO1, LEMO6: 125.0 dB SPL

Dynamic Range:

MTQG, LEMO: 101.0 dB, typical

LEMO1, LEMO6: 92 dB, typical

Microphone Current Draw: 220 µA, maximum

Bias Voltage:

Recommended Operating Voltage: 5 V DC

Minimum Operating Voltage: 2.6 V DC

Cable Diameter: 1.6 mm

Cable Length: 66 in (1.67 m)

Net Weight (DL4): 15.0 g (0.53 oz)

Polarity:

MTQG, LEMO: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1

LEMO1: Positive pressure on diaphragm produces positive voltage on pin 1 with respect to SHIELD

LEMO6: Positive pressure on diaphragm produces positive voltage on pin 1 with respect to pin 2
