Description

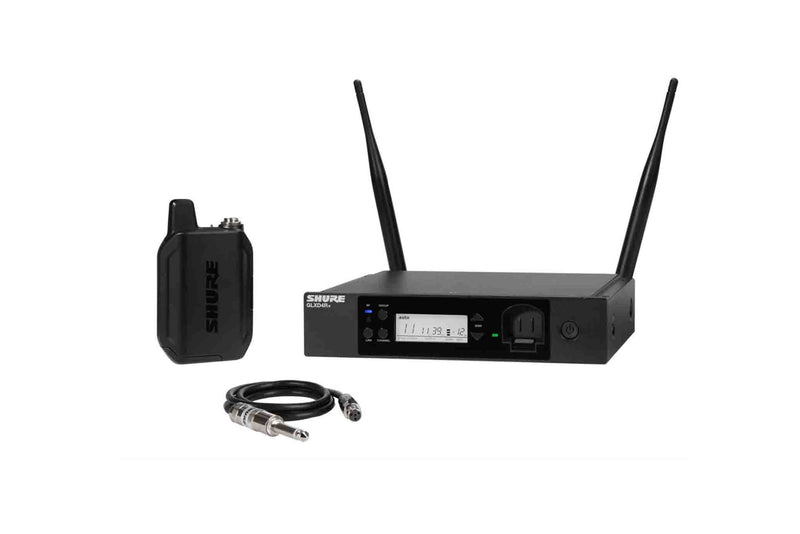

The Shure GLXD14R+-Z3 (GLXD14R+, GLX-D+ rack system) is a dual-band digital wireless guitar and bass system that pairs a GLXD1+ bodypack transmitter and WA302 instrument cable with a GLXD4R+ steel half-rack receiver. It operates in both 2.4 GHz and 5.8 GHz, runs up to 12 hours on the included SB904 rechargeable battery, and the receiver mounts in a rack with the included hardware.
Plug the WA302 cable (TA4F to 1/4 in) into your guitar or bass, clip on the bodypack, and the system finds a clear channel automatically and moves away from interference without interrupting the audio. Because the GLXD1+ takes any Shure TA4F (TQG) microphone, the same system also works with a Shure headset or lavalier mic later.
GLXD14R+-Z3 specifications
| System | GLXD1+ bodypack transmitter, GLXD4R+ half-rack receiver, WA302 instrument cable |
|---|---|
| Frequency bands (Z3) | 2.4 GHz (2400 to 2483.5 MHz) and 5.8 GHz (5725 to 5850 MHz), dual band |
| Transmission | Shure proprietary digital, true digital diversity, automatic frequency management |
| Audio frequency response (system) | 20 Hz to 20 kHz |
| Dynamic range | 120 dB, A-weighted |
| Total harmonic distortion | 0.07%, typical |
| RF output power | 10 mW E.I.R.P. maximum |
| Channel count | Up to 4 typical, 8 optimal; with the GLX-D+ Frequency Manager up to 11 typical, 16 optimal |
| Receiver outputs | XLR (balanced, mic/line switch with 30 dB pad) and 1/4 in (6.35 mm) instrument output |
| Receiver gain range | -18 to 42 dB, 1 dB steps |
| Receiver size | Half rack, 1 RU; 7.7 x 6.4 x 1.6 in (196.8 x 162.97 x 41.8 mm) without antenna |
| Receiver weight | 30.5 oz (866 g) |
| Receiver housing | Steel |
| Receiver power | PS43 power supply, 14.5 to 17 V DC, 600 mA |
| Receiver indicators | LED for battery status and sync |
| Transmitter input | TA4M 4-pin mini, 900 kOhm input impedance, max input +8.4 dBV |
| Transmitter dimensions | 4.5 x 2.6 x 1.1 in (115 x 66.94 x 28.51 mm) |
| Transmitter weight | 5.4 oz (153.1 g) without battery |
| Transmitter housing | Aluminum alloy and ABS plastic |
| Battery | SB904 lithium-ion rechargeable, up to 12 hours (the user guide spec table lists up to 11.5 hours); charges in the receiver's charging bay or over USB-C |
| Instrument cable | WA302, 2.5 ft (0.75 m), TA4F to 1/4 in |
| Operating temperature | 32 to 113 F (0 to 45 C) |
| In the box | PS43 power supply, SB904 lithium-ion rechargeable battery, WA302 instrument cable (TA4F to 1/4 in), zippered vinyl bag, rack-mount hardware (with the GLXD1+ and GLXD4R+) |
Is the GLXD14R+ a guitar system or a microphone system?
It ships as a guitar and bass system: the included WA302 cable connects the bodypack to your instrument and there is no microphone in the box. The GLXD1+ bodypack also accepts Shure TA4F (TQG) headset and lavalier mics if you add one later.
Can I rack-mount the receiver?
Yes. The GLXD4R+ is a steel half-rack, 1 RU receiver and the rack-mount hardware is included.
How many systems can I run at once?
Up to 4 typical and 8 optimal on their own. Connect GLXD4R+ receivers to the GLX-D+ Frequency Manager and Shure rates up to 11 typical and 16 optimal channels.
How long does the battery last?
Up to 12 hours per charge from the included SB904 lithium-ion battery. It charges in the receiver's built-in bay or over USB-C, and the receiver displays remaining runtime in hours and minutes.
GLXD14R+ rack system or GLXD14+ tabletop system?
Both use the GLXD1+ bodypack and WA302 instrument cable. This GLXD14R+ uses the GLXD4R+ steel half-rack receiver, 7.7 x 6.4 x 1.6 in and 30.5 oz (866 g), with -18 to 42 dB gain and Frequency Manager support for up to 16 optimal channels. The GLXD14+-Z3 uses the GLXD4+ tabletop receiver, 7.2 x 4.8 x 1.6 in and 10.9 oz (310 g), with up to 8 optimal channels, and comes with a black carrying case instead of rack hardware. For a pedalboard, see the GLXD16+-Z3 guitar pedal system. Browse all of them in Shure GLX-D+ Wireless Systems, and add a spare SB904 battery or the WA305 locking guitar cable.
