Description
The Shure Large Conferencing Room Bundle (White) is an all-in-one audio solution designed for large meeting spaces. This bundle includes the Shure MXA920-S Microflex Advance 24" ceiling microphone array, the Shure P300 IntelliMix Audio Conferencing Processor, and the Shure MXN5W-C networked ceiling speakers. The MXA920-S microphone array uses advanced Automatic and Steerable Coverage technologies, ensuring precise audio capture across a large room. The P300 processor integrates seamlessly with Shure’s ecosystem, offering powerful DSP features such as echo cancellation, noise reduction, and automatic gain control. The MXN5W-C speakers provide high-quality audio reproduction, delivering clear, intelligible sound through a PoE-enabled Dante connection. Together, these components create a comprehensive and scalable conferencing solution for optimal sound performance and ease of integration in professional settings.

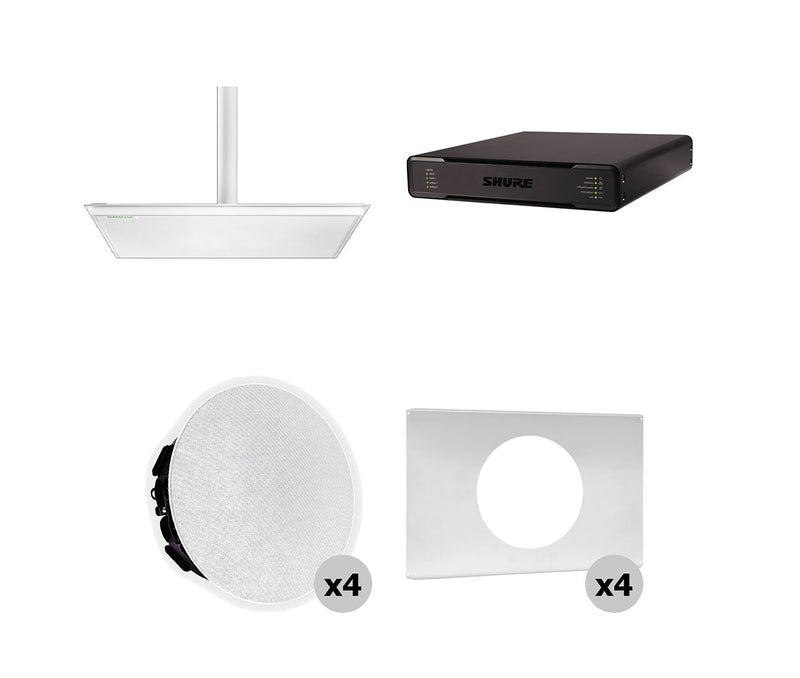

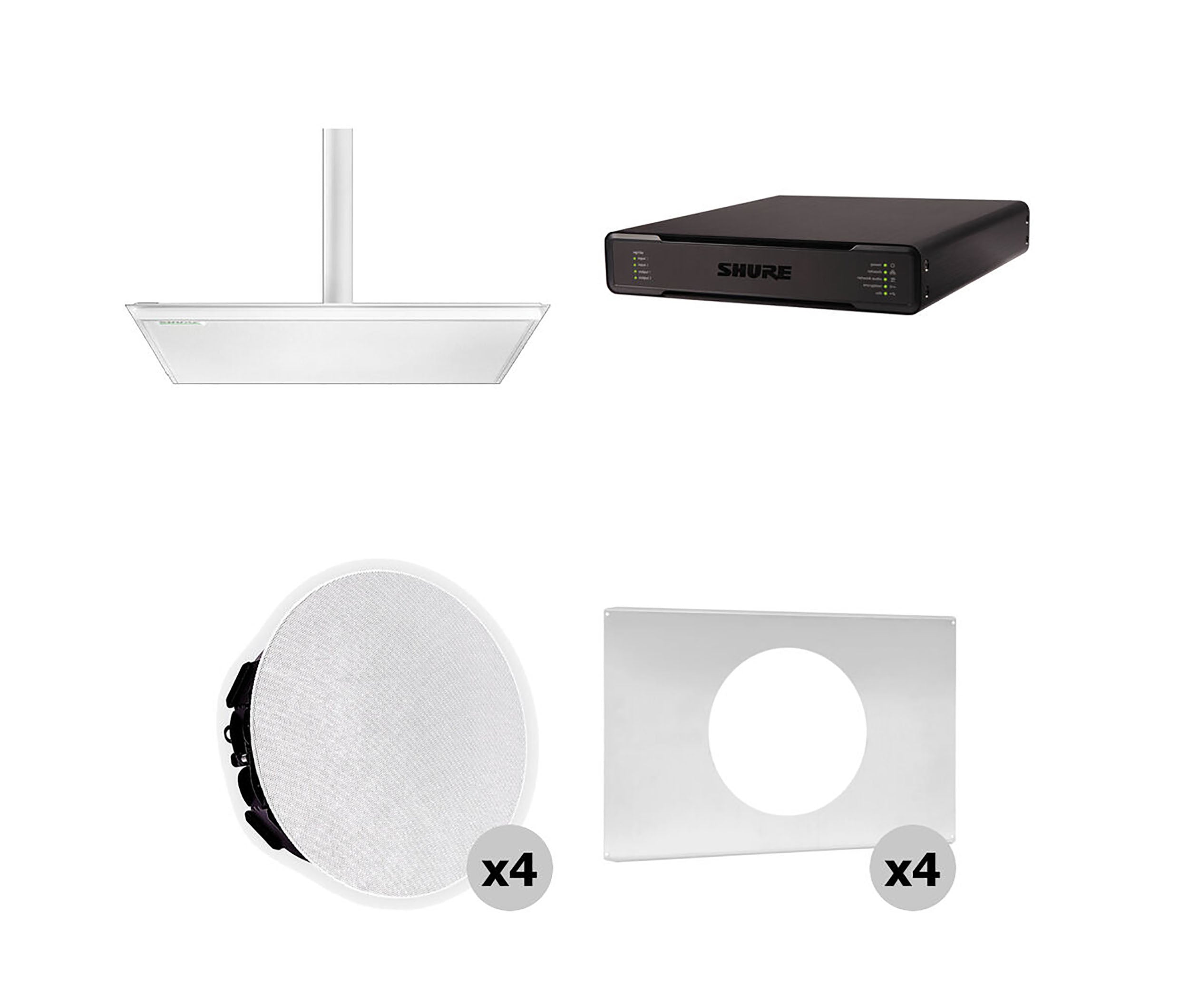

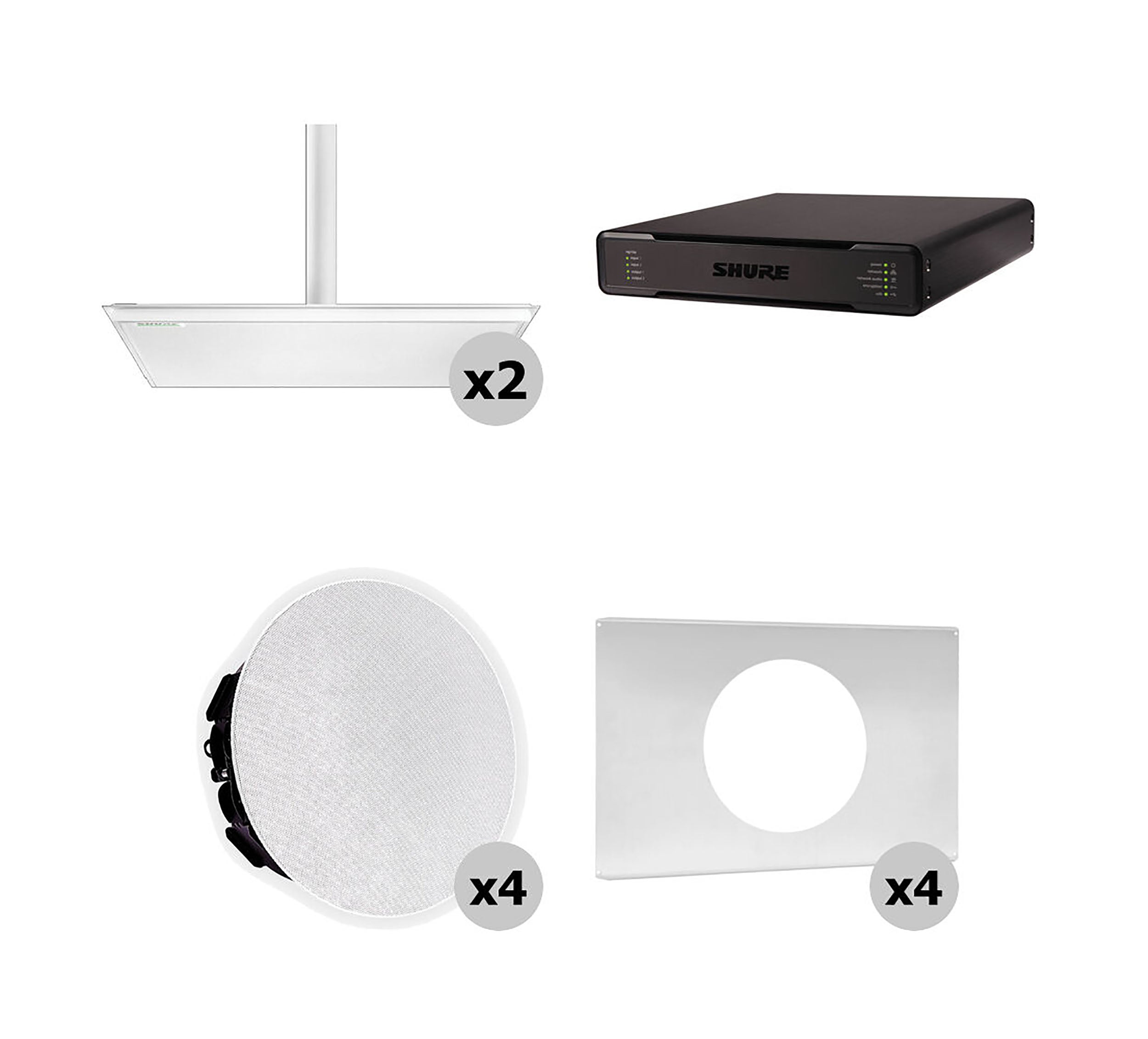

What’s In the Box:
- 1x / 2x Shure MXA920-S Microflex Advance Square 24" Ceiling Microphone Array (White)
- 1 Shure P300 IntelliMix Audio Conferencing Processor
- 4 x Shure MXN5W-C Networked Ceiling Speaker with Dante (White)
- 4 x Shure A-MXN5-TB Tile Bridge for MXN5W-C Speaker

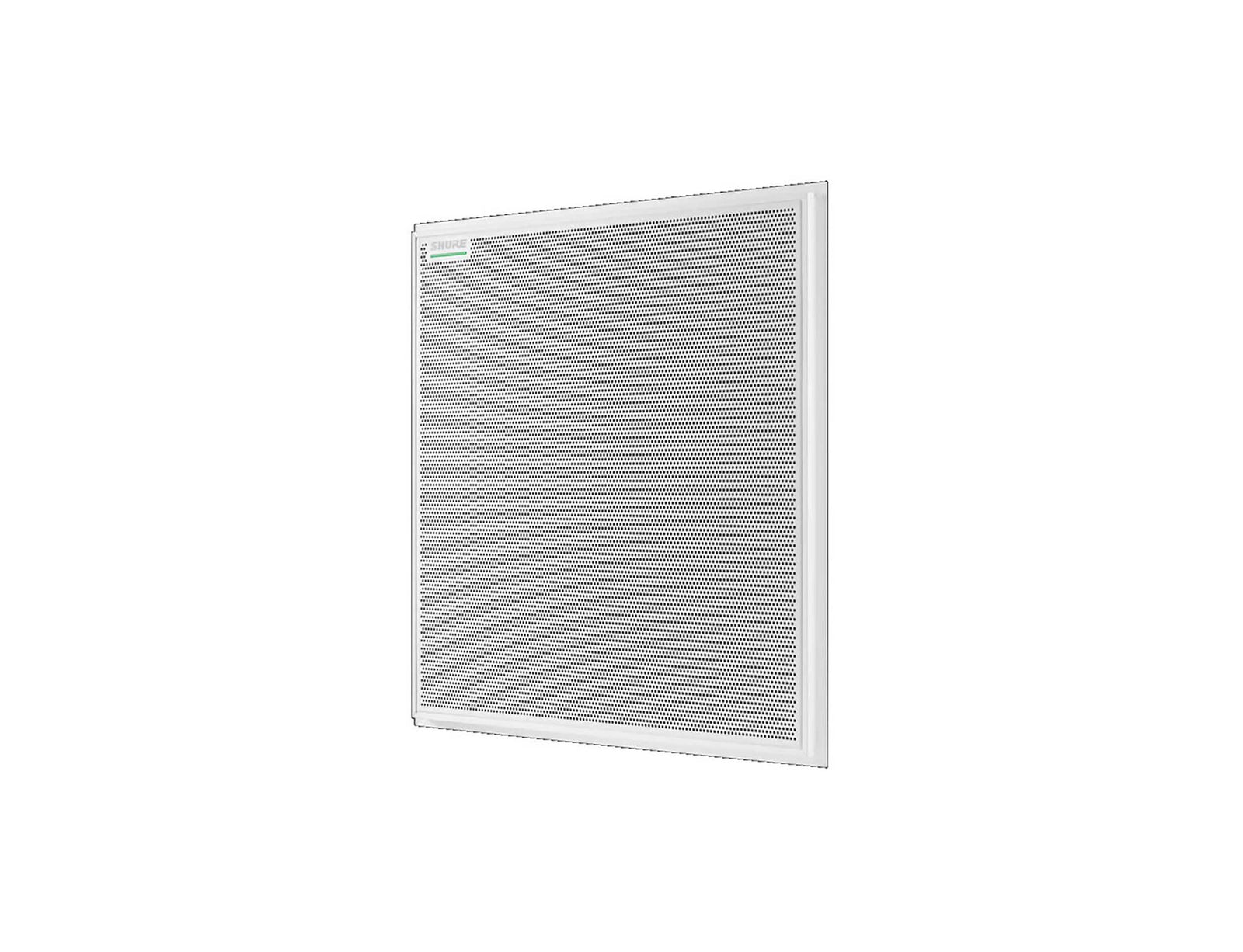

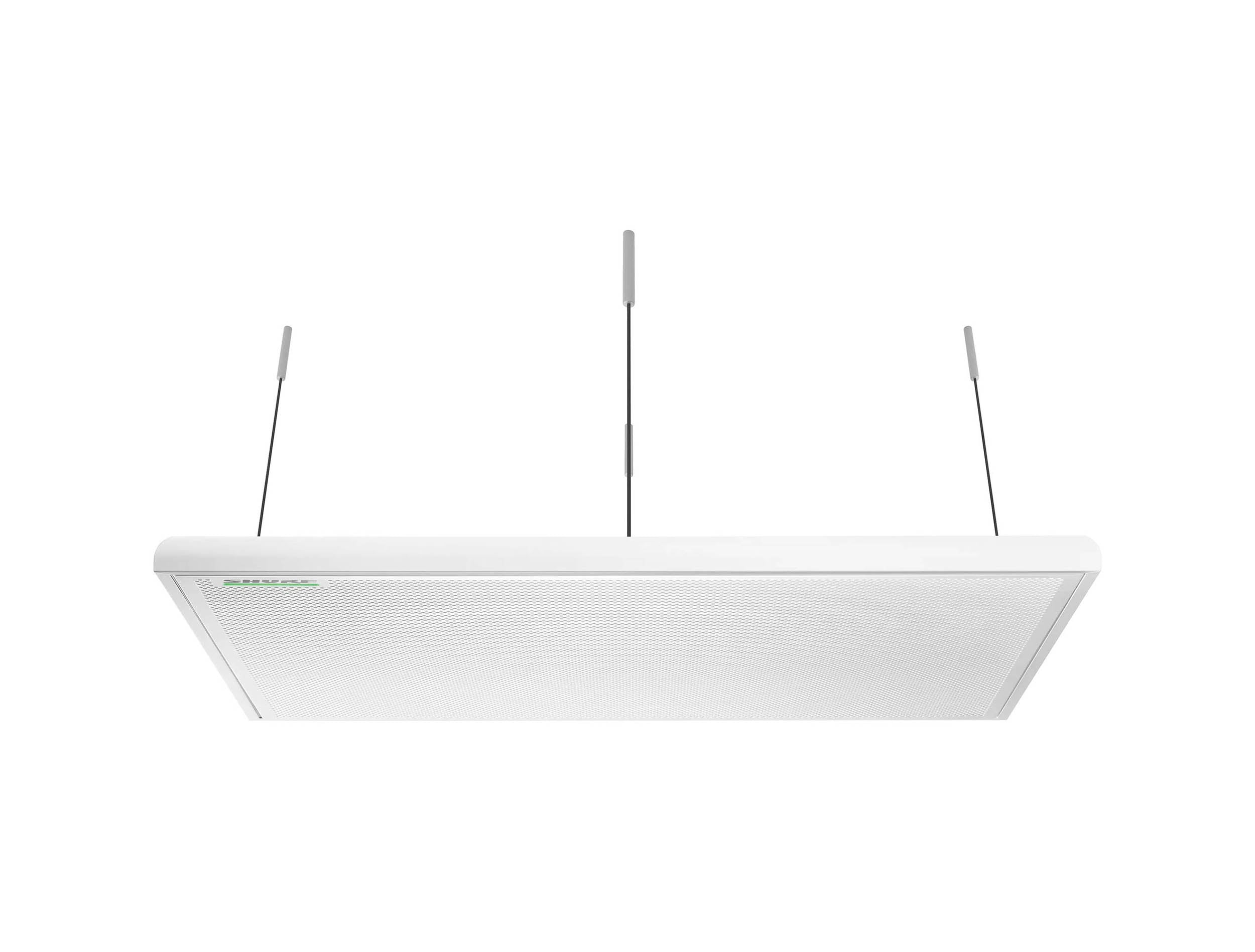

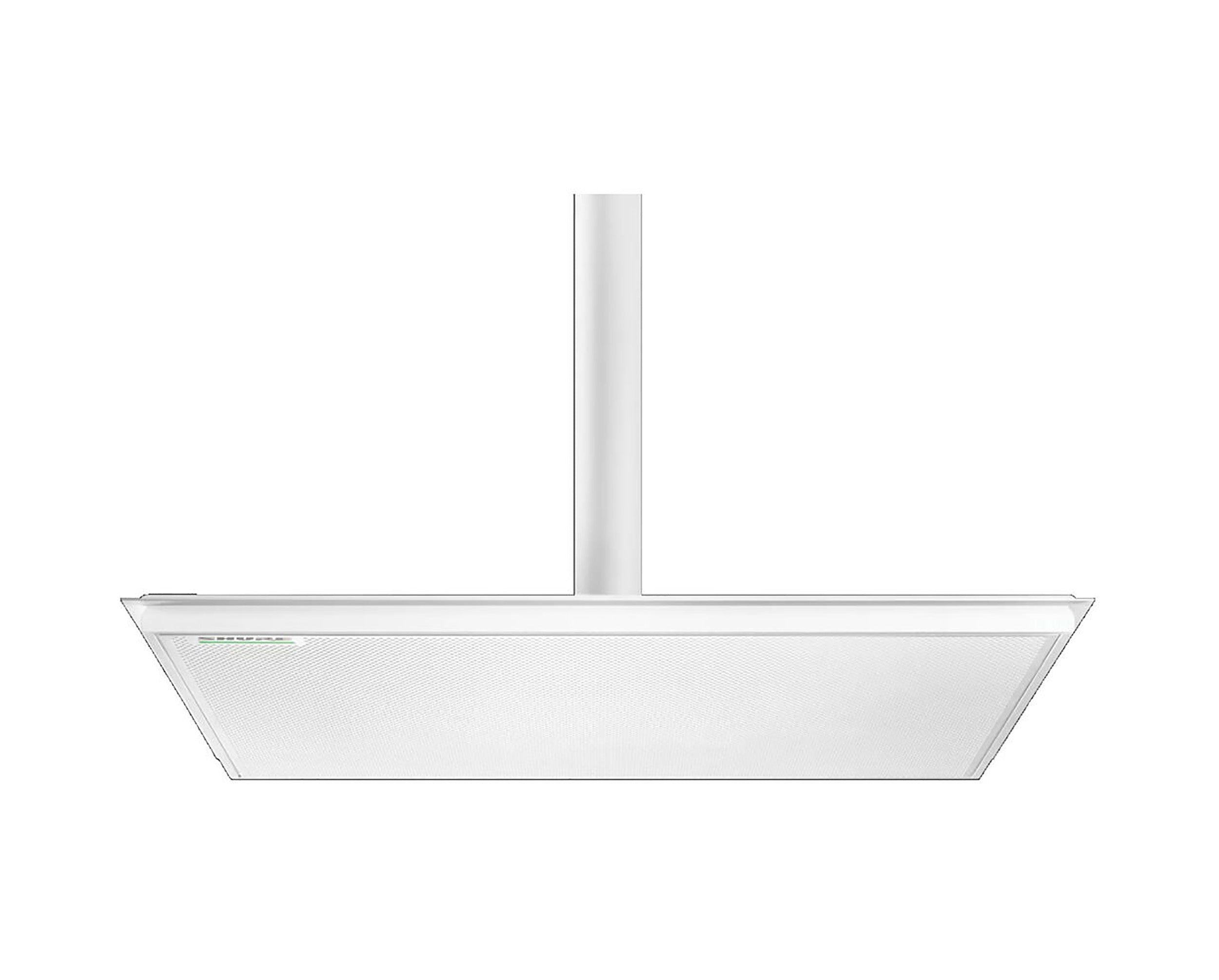

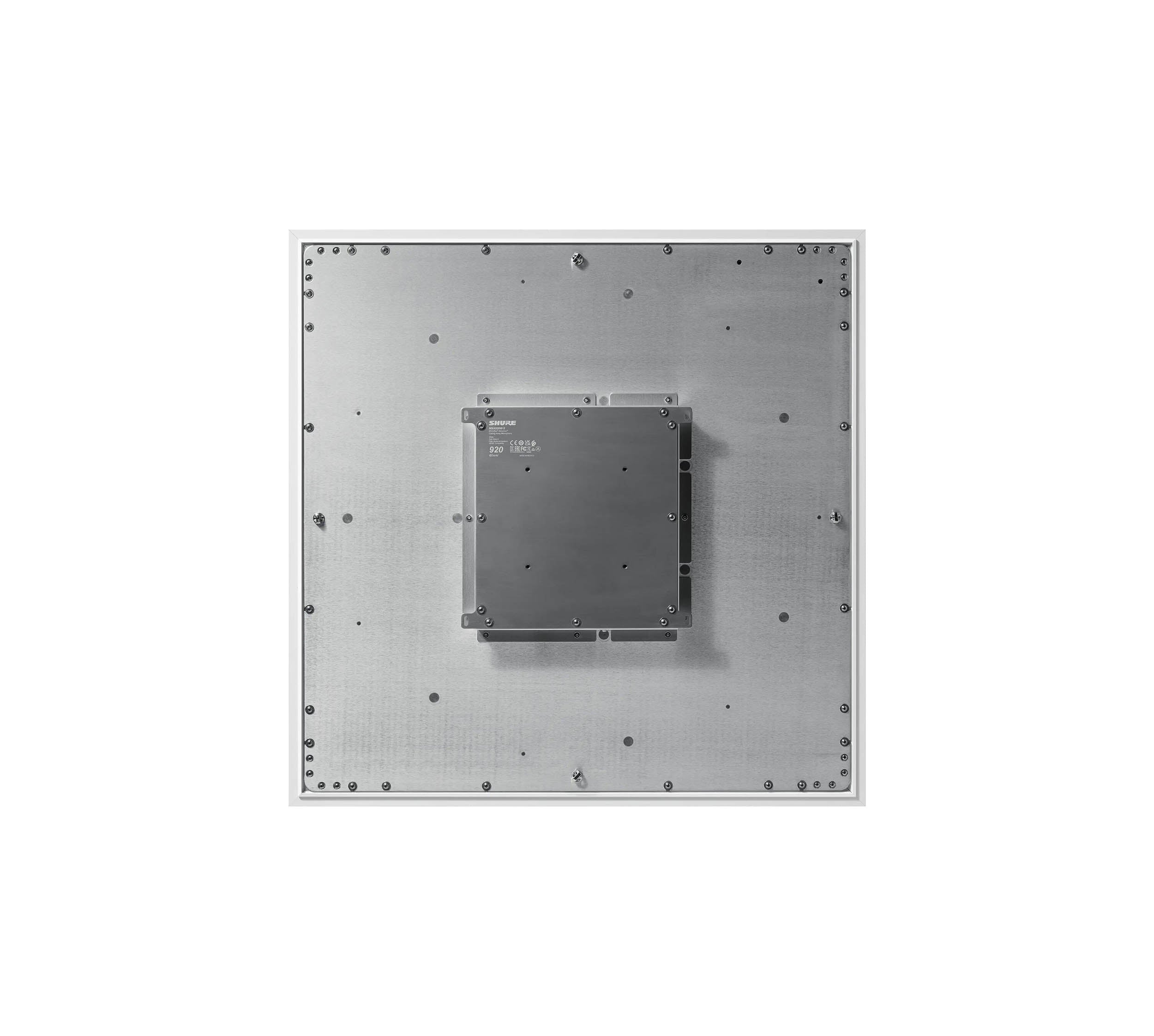

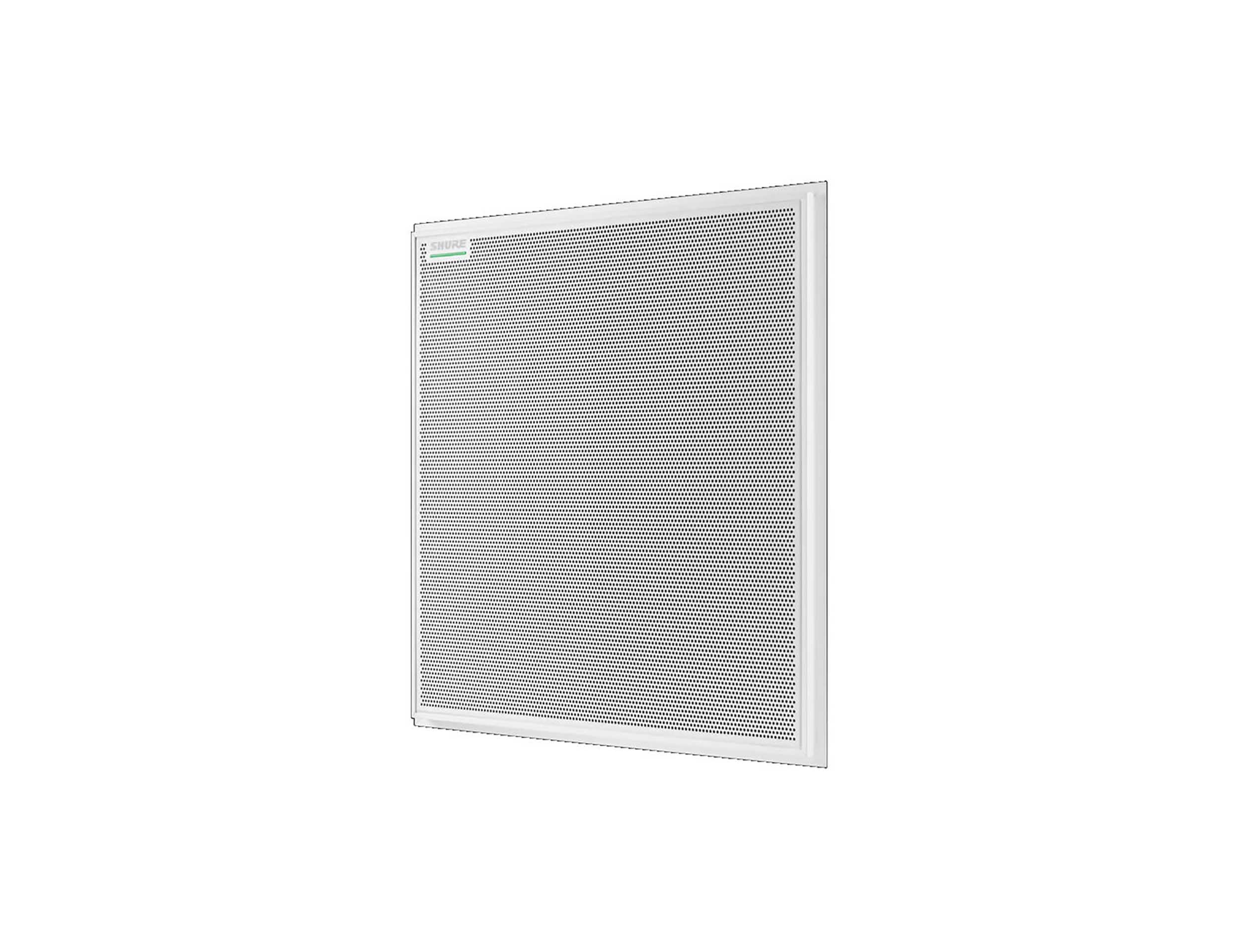

Shure MXA920-S Microflex Advance Square 24" Ceiling Microphone Array (White):
The white Shure MXA920-S is a square 24" ceiling array microphone that is easy to use and quick to deploy for AV conferencing, camera tracking, voice lift, or sound reinforcement applications. The unit offers a powerful feature set, including Automatic Coverage and Steerable Coverage technology, that focuses audio capture to make sure everyone gets heard clearly for more productive meetings and presentations. This 24" version of the MXA920-S is designed for use with standard 2' American ceiling tiles.
How It Works
Automatic Coverage technology captures the talkers you want to hear while avoiding sounds in other areas, without aiming pickup lobes
Out of the box, the MXA920 covers up to a 30 by 30' seating area with no setup at all
To capture talkers only in specific locations, drag and drop up to 8 adjustable coverage areas using the built-in web interface
Capture simultaneous talkers in different areas at the same time
You can also turn Automatic Coverage technology off and use Steerable Coverage technology to place 8 pickup lobes with 8 individual audio outputs, plus an automix—just like an MXA910
Onboard IntelliMix DSP applies automatic mixing, echo cancellation, noise reduction, and automatic gain control for a pristine audio mix
Quality Details
Square and round form factors meet the architectural needs of today’s meeting spaces
White, black, and aluminum finishes to complement your interior design; all paintable for custom needs
Certified for use with Microsoft Teams and compatible with popular collaboration tools
Audio, PoE power, and control signals connect via Dante/AES67 digital audio networking over a single cable
Shure Audio Encryption keeps meeting content secure between the MXA920 and other Microflex ecosystem devices in the room
LED status bar with configurable colors and brightness
Command strings enable seamless integration with third-party camera and room control systems
Certification Required
Shure requires completion of their certification program tailored for both existing and prospective customers in the integrated systems market to purchase this item. The certificate is also required to purchase the following products:
MXA310 Table Array Microphone
MXA710 Linear Array Microphone
MXA901 Conferencing Ceiling Array Microphone
MXA902 Ceiling Array Microphone and Loudspeaker

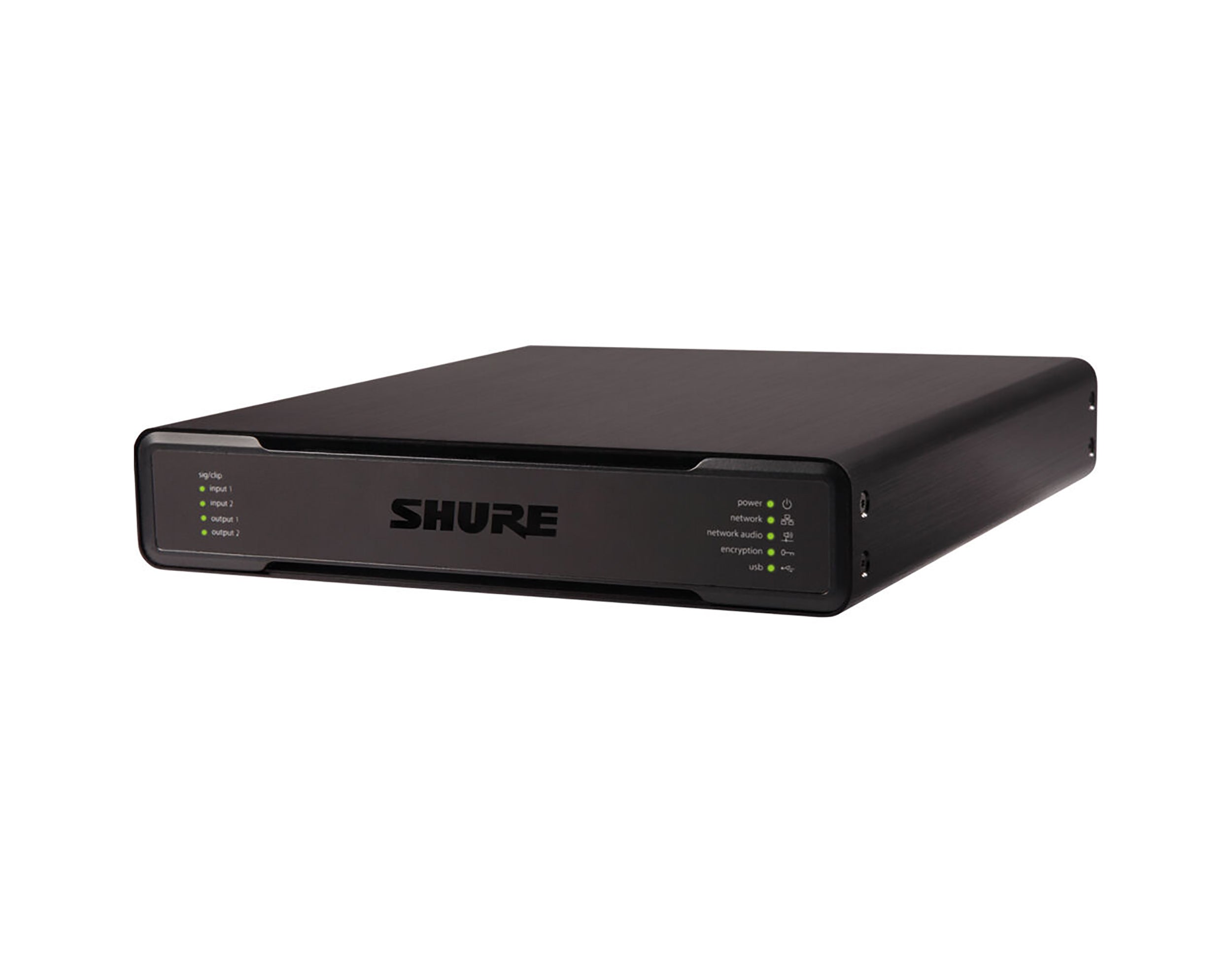

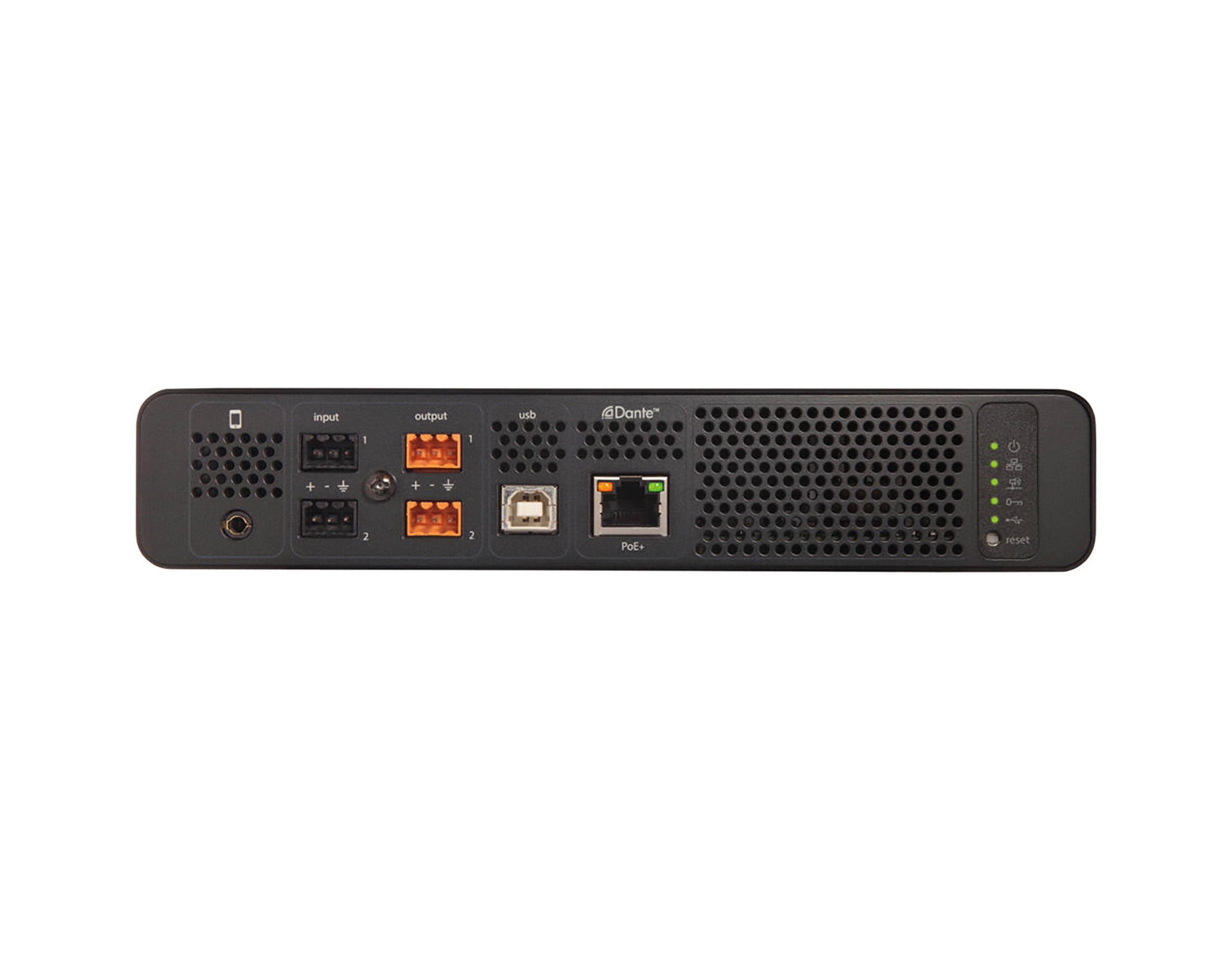

Shure P300 IntelliMix Audio Conferencing Processor:
The Shure P300 IntelliMix Audio Conferencing Processor is designed to work with the Microflex Wireless (MXW) system to deliver eight channels of acoustic echo cancellation, DSP-processing, and level control for conference rooms and meeting spaces. The processor supports Microflex wireless microphones while also offering versatile input and output connectivity options that allows users to incorporate loudspeakers, computers, mobile devices, and other audio components. The P300 provides Dante (10 in/8 out), and to connect analog devices, the unit provides two 3-pin block connector inputs and two 3-pin block connector outputs along with a 3.5mm input jack for mobile devices. The USB Type-B port lets you connect computers and other USB devices, while the RJ45 port supplies the unit with power and connects it to other access points in the conference system network.
Clear Audio for Conferences, Panels, and Meetings
Streamline the audio experience for every discussion. Fixed architecture provides simple setup, requiring less DSP programming and commissioning time. Multiple connectivity options allow for seamless integration with Shure conferencing microphones, laptops, and even mobile devices. Easy, rackless mounting enables quick, compact integration behind a display, under a table, or in a credenza.
Clever Operation
Intuitive, programming-free LED mute sync functionality with leading third-party software codecs including Zoom Rooms, Microsoft Teams and Skype for Business.
Scale Up
Easily add a presenter mic or control additional zoned loudspeakers with onboard matrix mixing for sound reinforcement applications
Connect with Confidence
Driverless USB audio connection to PCs for soft codecs. Analog I/O for hard codecs. 3.5 mm connection to mobile phones to bridge a remote caller. Design projects offline with Designer System Configuration Software for simple project management. Seamlessly compatible with Microflex Advance and Microflex Wireless conferencing microphones for a complete Shure ecosystem.
Meet In Confidence
Shure Audio Encryption utilizes AES-256 technology to protect confidential content.
Quality Details for Ease of Use:
Compatible with Dante Domain Manager / Device Lock
Discretely mounts underneath a table or behind a display
Versatile connectivity and powerful DSP for AV conferencing
Easily setup and deploy settings with Designer System Configuration Software
Monitor and manage with SystemOn Audio Asset Management software
PoE+ powered eliminates the need for an outboard power supply

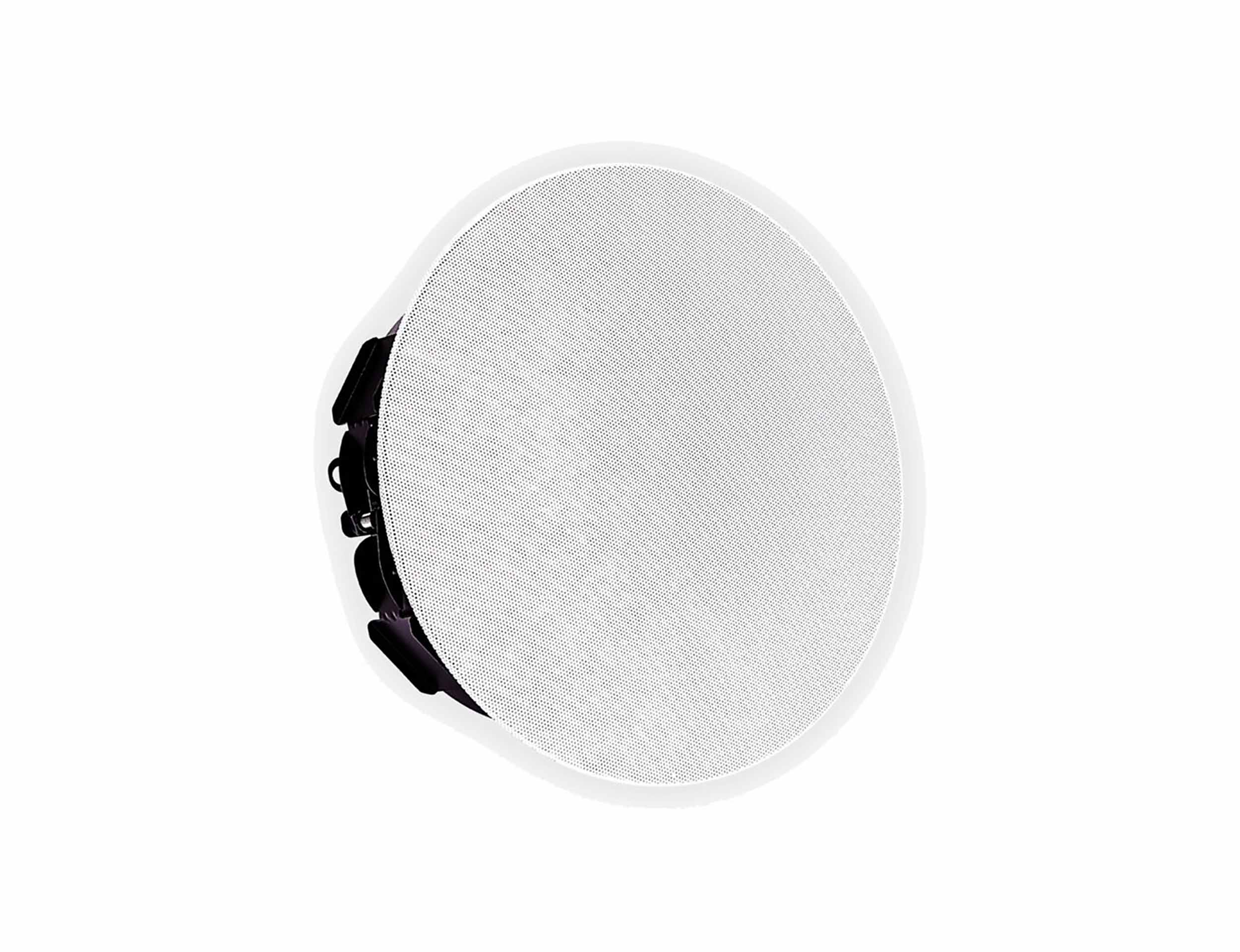

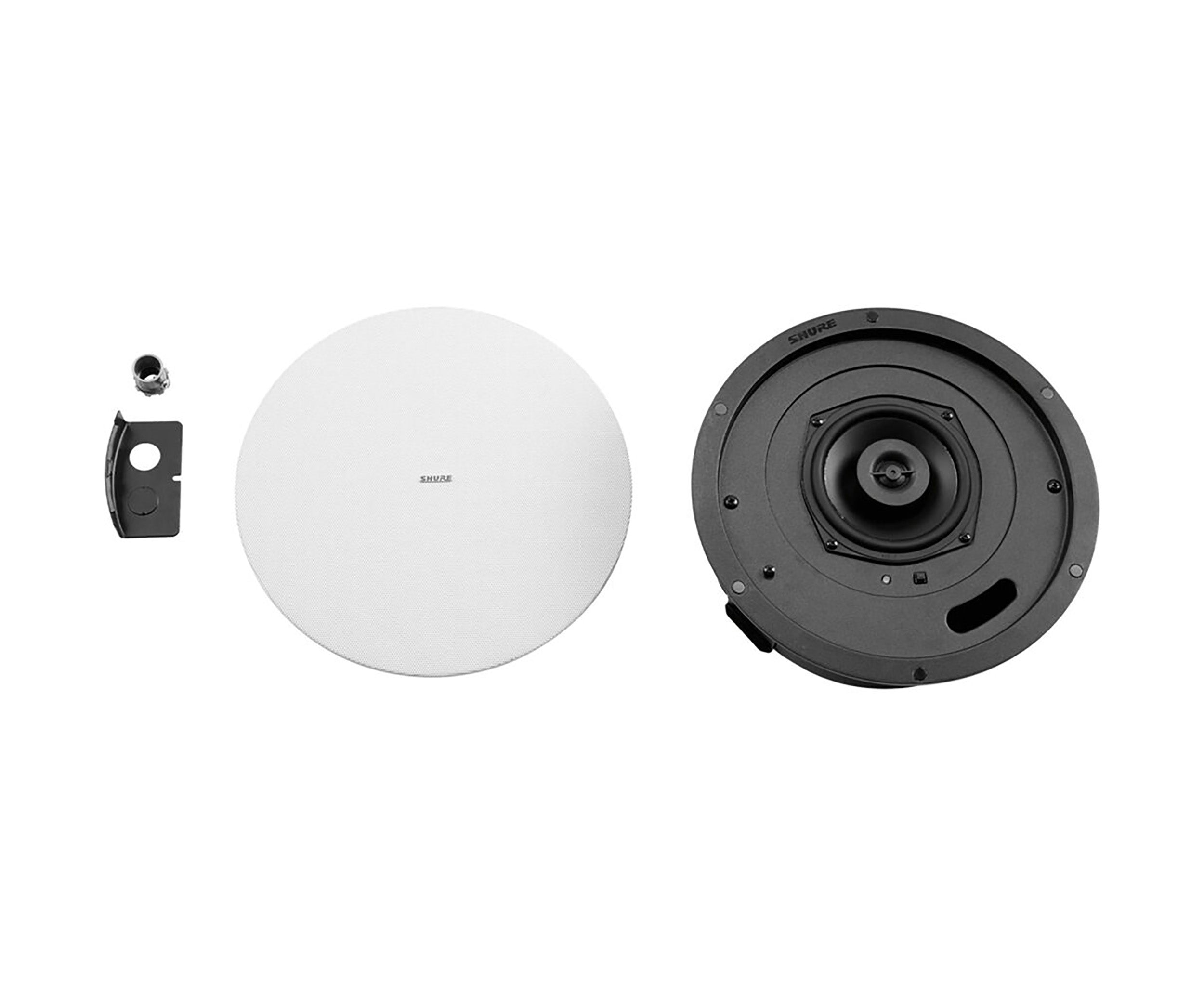

Shure MXN5W-C Networked Ceiling Speaker with Dante (White):
The white Shure Microflex MXN5-C Networked Ceiling Loudspeaker is a discreet conference speaker designed to be permanently installed in a boardroom or conference space ceiling. A single cable provides power (PoE and PoE+) and carries encrypted audio and control data, providing high-quality speech reproduction for AV conferencing applications in a low-profile design optimized for easy installation in drop ceiling configurations. The MXN5-C integrates seamlessly with other Shure-networked, PoE-enabled audio devices using the Dante audio networking protocol. The active loudspeaker includes a built-in amplifier and uses a 2-way driver with a 5.25" woofer tuned to deliver clear, intelligible speech over a 120 Hz to 20 kHz range, while a set of integrated computer-controlled DSP functions help to ensure ideas are properly communicated and meetings are productive.
Software-Based Configuration and Control
Software-based configuration and control
Design and deploy every device in your audio chain with Shure Designer System Configuration software
SystemOn Audio Asset Management software for remote management and troubleshooting
Shure Audio Encryption
Dante Domain Manager compatible
AES67 compatible
Loudspeaker Technical Elements
Pre-tuned frequency response optimized for voice intelligibility in AV conferencing applications
Low-profile, shallow-can design compatible with most drop ceiling installations
2-way driver system with 5.25" woofer
PoE/PoE+ enabled, eliminating the need for an outboard amplifier
Integrated Shure DSP Utilities: EQ, delay, limiter, and signal/tone generator
2 Dante inputs and 1 Dante output
Clean Design Elements
Aesthetic design subtly blends into drop ceiling environment
Removable magnetic and paintable grille seamlessly covers the entire loudspeaker
Removable magnetic Shure logo
UL 2043 plenum rated
A-MXN5-TB Tile Bridge or A-MXN5-NCB New Construction Bracket accessories (both available separately) provide quick and easy mounting

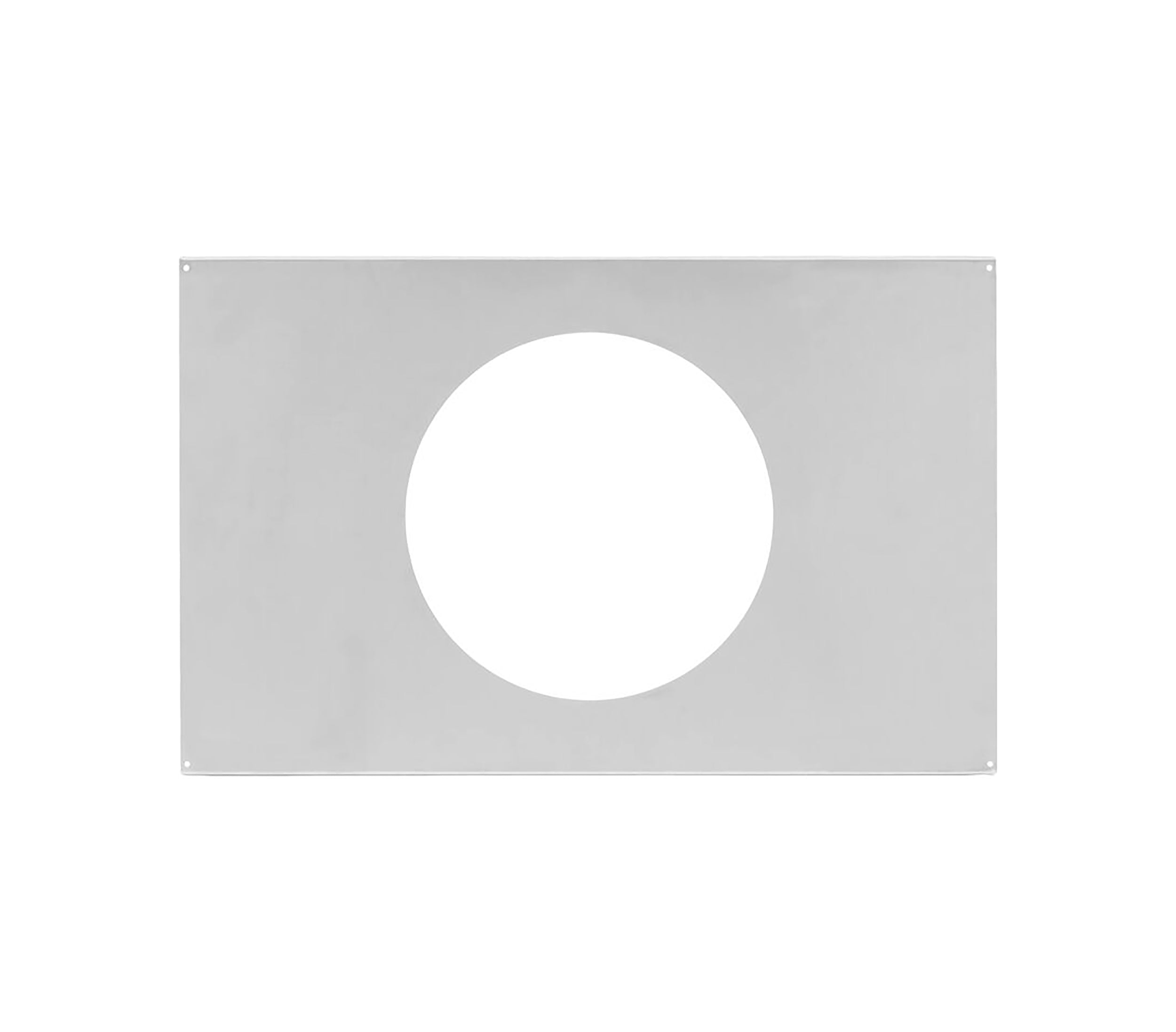

Shure A-MXN5-TB Tile Bridge for MXN5W-C Speaker:
The Shure A-MXN5-TB is a tile bridge that allows for quick and easy installation of the MXN5-C Networked Loudspeaker in a drop ceiling.
Product Specifications:
Shure MXA920-S Microflex Advance Square 24" Ceiling Microphone Array (White):
Microphone:
Microphone Type: Ceiling Conferencing
Sound Field: Mono
Element Type: 8x MEMS
Polar Pattern: Not Specified by Manufacturer
Pad: No
High-Pass Filter: No
Gain Adjustment: Up to +140 dB
Controls: Gain/Sensitivity
Performance: 1x TA4F/Mini-XLR 4-Pin Female
Frequency Response: 125 Hz to 20 kHz
Maximum SPL: 95.7 dB
Dynamic Range: 77.5 dB
Equivalent Noise Level: 18.24 dB SPL (A-Weighted)
Connectivity:
Analog Output: No
USB/Digital Output: 1x RJ45
USB Class-Compliant: No USB Connectivity
Digital Audio: 0.515 lb
A/D Conversion: 24-Bit
Sample Rate: 48 kHz
Digital Signal Processing & FX: Noise Reduction
OS Compatibility: Windows
Mobile App Compatible:
Yes: iOS Only
App Name: Q-SYS
Power:
Power Sources: PoE (Power over Ethernet)
Operating Voltage: Not Specified by Manufacturer
Physical:
Color: White
Mounting Thread Size: No Mount Included
Environmental Resistance: No
Dimensions: H: 2.15 x W: 23.8" / H: 54.69 x W: 603.8 mm
Weight: 11.8 lb / 5.4 kg
Shure P300 IntelliMix Audio Conferencing Processor:
Frequency Response: 20 Hz to 20 kHz (+1, -1.5 dB)
Dante Digital Audio:
Sampling Rate: 48 kHz
Bit Rate: 24 Bit
USB Audio
Sampling Rate: 48 kHz
Bit Rate: 24 / 16 Bit
Latency:
Firmware 4.1 and Newer:
Dante 1-8 In to Dante Out (AEC enabled): 15.4 ms
Dante 1-8 In to Dante Out (AEC disabled): 8.7 ms
Dante 9-10 In to Dante Out: 3.4 ms
Analog In to Analog Out: 3.8 ms
Firmware 3.1 and Older:
Dante 1-8 In to Dante Out (AEC Enabled): 12.5 ms
Dante 1-8 In to Dante Out (AEC Disabled): 5.8 ms
Dante 9-10 In to Dante Out: 1.8 ms
Analog In to Analog Out: 2.2 ms
Acoustic Echo Cancelling:
Tail Length: Up to 300 ms
Analog Connections: Block Connectors:
Dynamic Range (20 Hz to 20 kHz, A-Weighted, Typical):
Analog to Dante: 113 dB
Dante to Analog: 117 dB
Equivalent Input Noise (20 Hz to 20 kHz, A-Weighted, Input Terminated with 150 Ohms):
Line: -86 dBV
Aux: -98 dBV
Total Harmonic Distortion at 1 kHz, 0 dBV Input, 0 dB Analog Gain: <0.05%
Common Mode Rejection Ratio (150-Ohm Balanced Source @ 1 kHz): > 50 dB
Input Impedance: 9.6 Kilohms
Input Clipping Level:
Line: +27 dBV
Aux: +15 dBV
Output Impedance: 80 Ohms
Output Clipping Level:
Line: +20 dBV
Aux: +0 dBV
Mic: -26 dBV
Mobile:
Connector: 1/8" / 3.5 mm
Pin Assignments:
Tip: Audio Input (Left)
Ring 1: Audio Input (Right)
Ring 2: Ground
Sleeve: Audio Output (To Phone)
Dynamic Range (20 Hz to 20 kHz, A-Weighted, Typical):
Analog to Dante: 99 dB
Dante to Analog: 90 dB
Total Harmonic Distortion (at 1 kHz, 0 dBV Input, 0 dB Analog Gain): <0.05%
Input Impedance: 3.7 Kilohms
Input Clipping Level: +4 dBV
Output Impedance: 1.4 Kilohms
Output Clipping Level (Output Terminated with 2.2 Kilohms): -20 dBV
General:
Analog Input:
2 x 3-Pin Block Connector (Active Balanced)
1 x 1/8" / 3.5mm TRRS Input
Control Software: Shure Designer
Analog Output: 2 x 3-Pin Block Connector (Impedance Balanced)
USB: USB 2.0, Type B
Single Port Carries 2 Input and 2 Output Channels (Summed Mono)
Network Connection: 1 x RJ45
10 x Dante Inputs
8 x Dante Outputs
Networking:
Cable Requirements: Cat 5e or Higher (Shielded Cable Recommended)
Polarity: Non-Inverting, Any Input to Any Output
Power Requirements: 802.3 at Type 2 (PoE Plus), Class 4
Power Consumption: 17.5 W, Maximum
Thermal Dissipation
Maximum: 17.5 W (60 BTU/Hr)
Typical: 14.6 W (50 BTU/Hr)
Operating Temperature Range: 20 to 122° F / -6.7 to 50° C
Storage Temperature Range: -20 to 165° F / -29 to 74° C
Dimensions: 1.6 x 8.3 x 8.9" / 4 x 21 x 22.6 cm
Weight: 3.8 lb / 1.71 kg
Shure MXN5W-C Networked Ceiling Speaker with Dante (White):
Compatibility: Shure Microflex Advance MXA920 / Microflex Advance MXA910 / Microflex Advance MXA710 / Microflex Advance MXA310 / Microflex P300 / Microflex ANIUSB-MATRIX / Microflex MXN5-C / Microflex Advance MXA Network Mute Button / Microflex IntelliMix Room / Microflex Shure Designer Software
Inputs / Outputs:
Audio I/O: 1x RJ45 Input/Output
Frequency Response: 120 Hz to 20 kHz (-3 dB)
Maximum Output Level:
Power over Ethernet (PoE): 92 dB SPL
PoE Plus: 98 dB SPL
(at 3.3" / 1 m)
DSP: Delay, Limiter, Signal Generator, Equalizer (4-Band Parametric)
Latency: 1.5 ms (Not Including Dante Latency)
Angle of Coverage:
-6 dB at 2 kHz: 180 Degrees
-6 dB at 10 kHz: 107 Degrees
Maximum Output Level:
Power over Ethernet (PoE) at 3.3' / 1 m: 92 dB SPL
PoE Plus at 3.3' / 1 m: 98 dB SPL
Power:
Power Source: PoE
Power Consumption: 24 W (Maximum)
Environmental:
Environmental Resistance: No
Certifications: Plenum UL2043, CANICES-003(B)/NMB-003(B), CE
Operating Temperature: 20 to 104°F / -6 to 40°C
Storage Temperature: -20 to 165°F / -28 to 73°C
Physical:
Mounting: Back: Multiple Ceiling
Color: White
Cable Length: Not Specified by Manufacturer
Dimensions: 12 x 12 x 4" / 304.8 x 304.8 x 101.6 mm
Weight: 6.5 lb / 2.95 kg
Shure A-MXN5-TB Tile Bridge for MXN5W-C Speaker:
General:
Compatibility: Shure Microflex MXN5-C Networked Loudspeaker
Environmental:
Environmental Resistance: No
Physical:
Color: Gray
Dimensions: 23.5 x 15.1" / 596.9 x 383.5 mm
Weight: Not Specified by Manufacturer
Shipping Weight: 22 lb.
Shipping Dimensions (LxWxH): 40 x 50 x 30”
