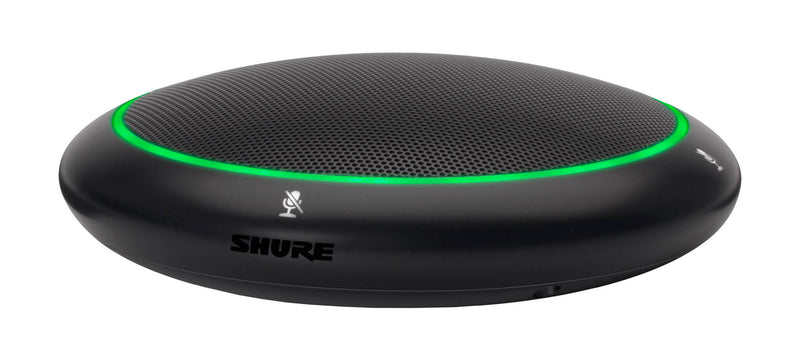

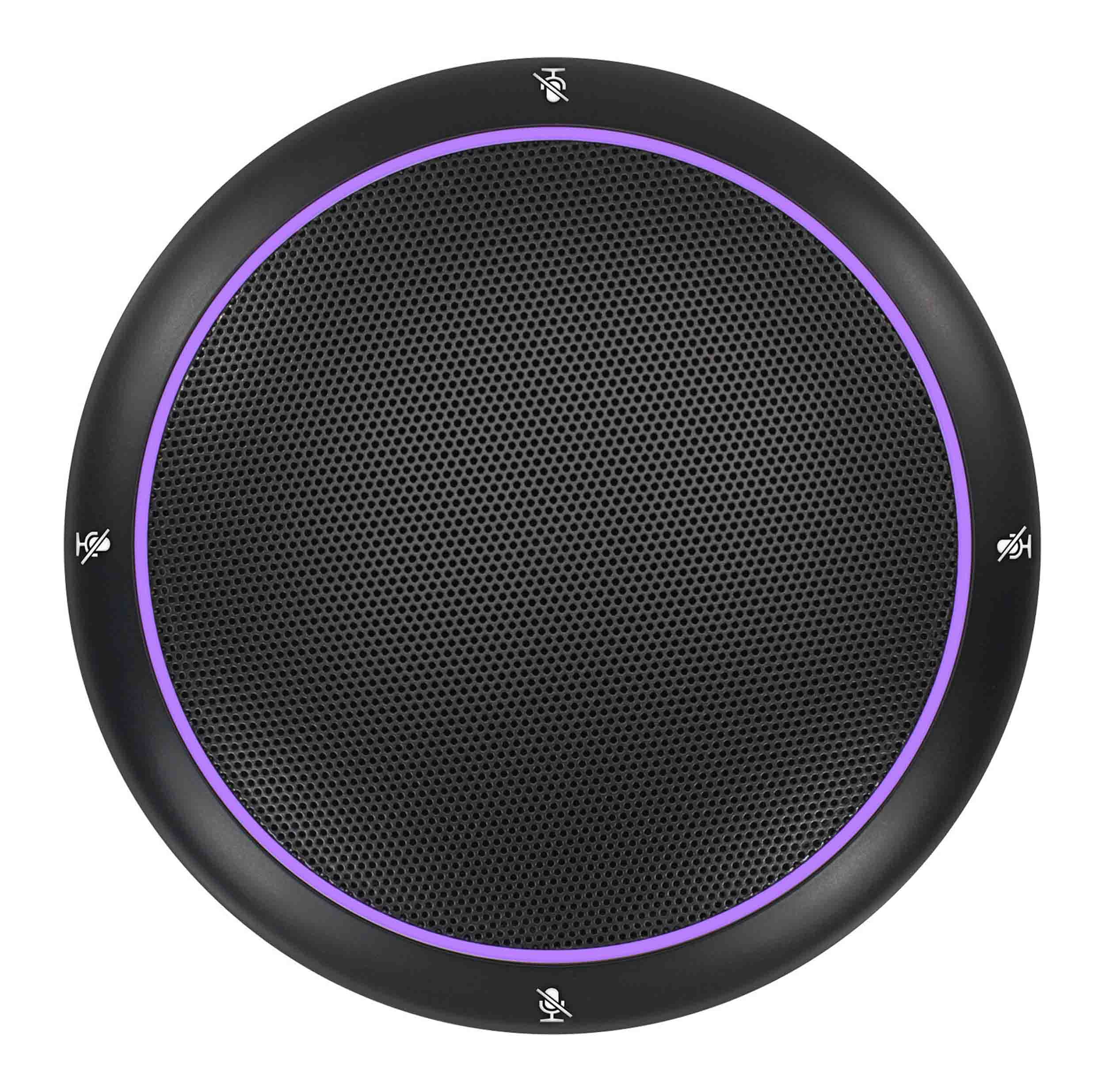

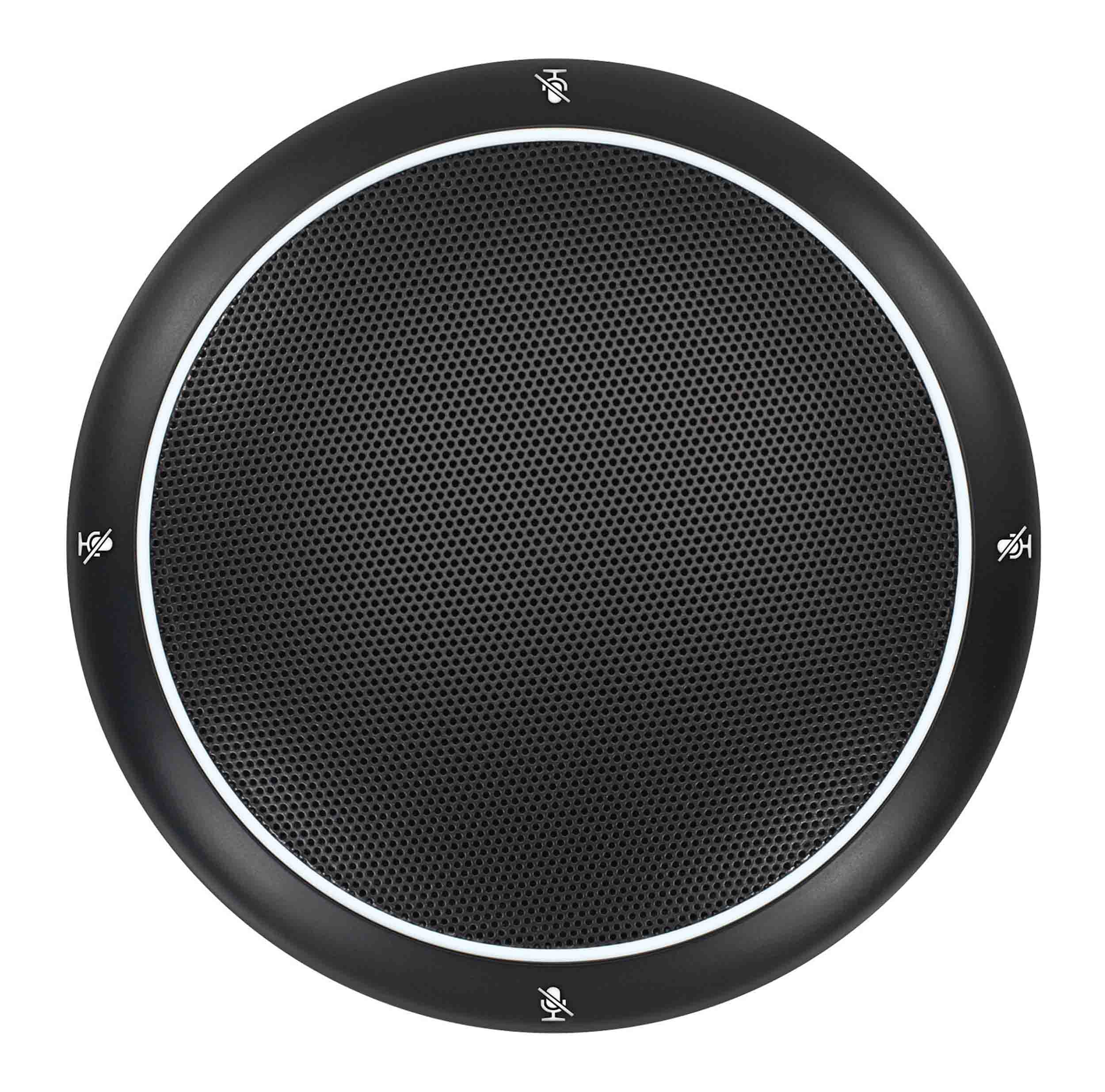

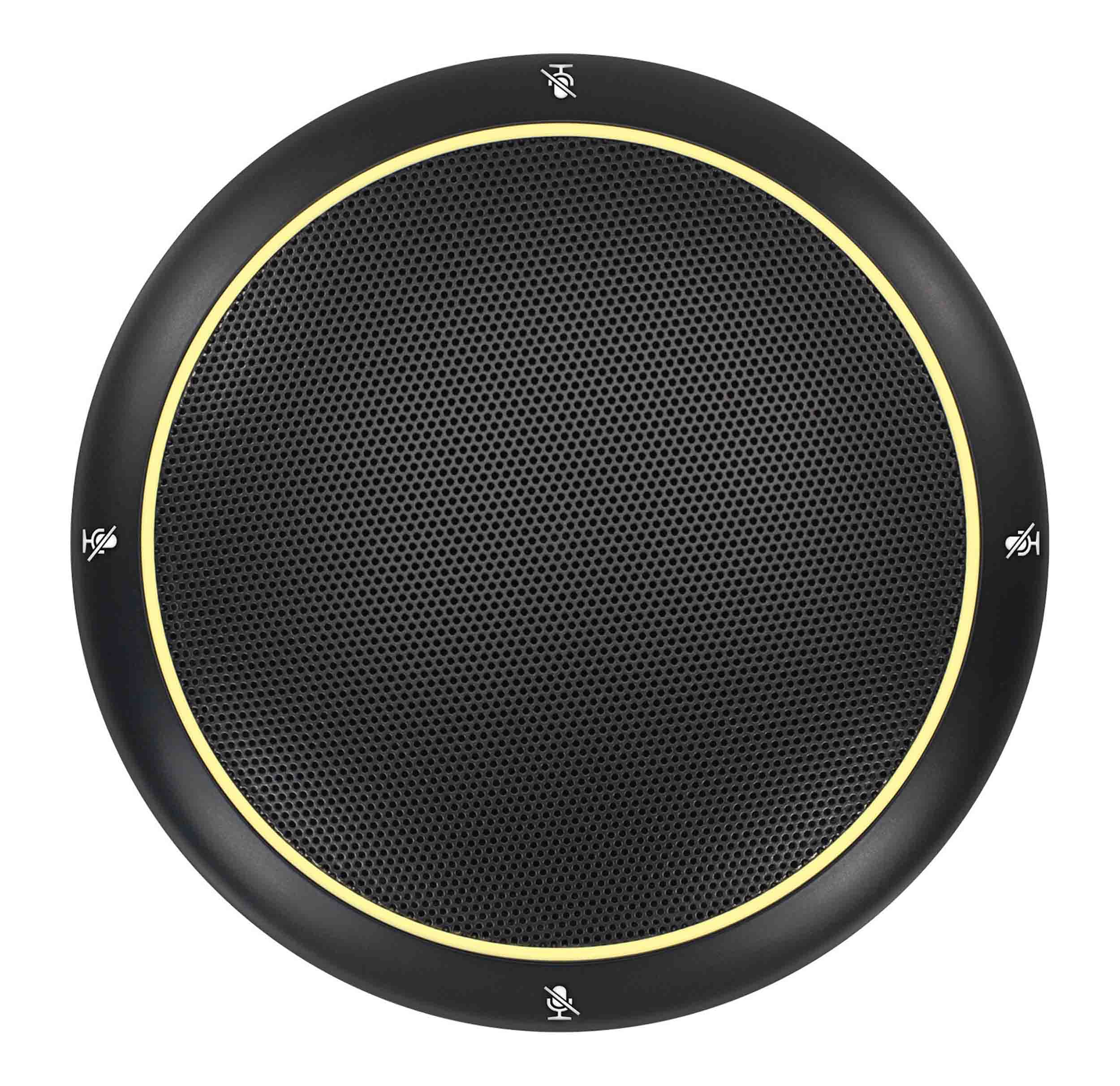

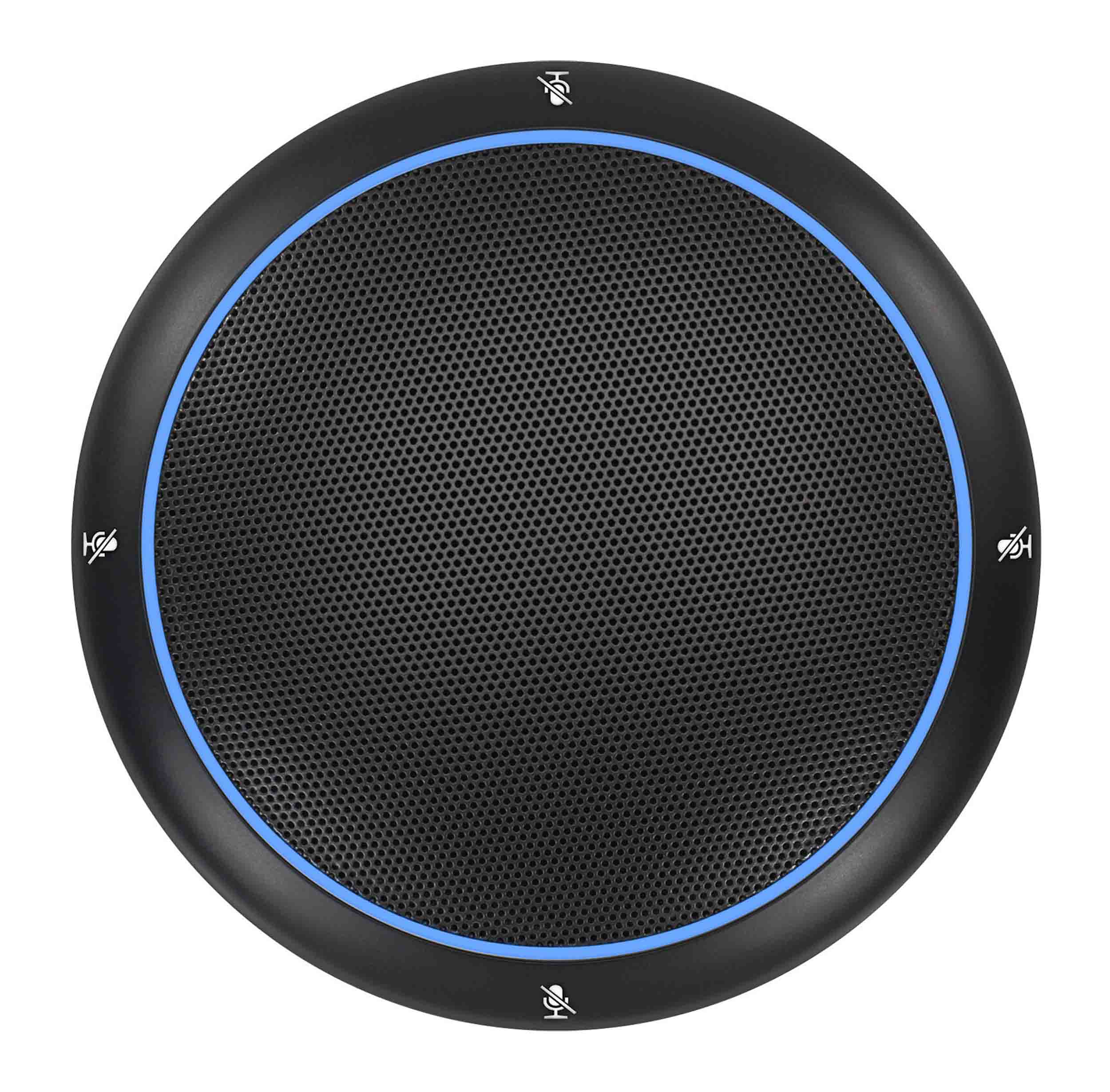

Shure MXA310B, Table Array Conferencing Microphone - Black

The MXA310 from Shure is a tabletop array microphone with a black finish designed to integrate smartly into any conference or meeting space, including boardrooms, huddle rooms, and multipurpose areas. A powerful feature set, including Steerable Coverage, multiple pickup patterns, auto-mixing, and more ensures speech is captured accurately and intelligibly, while the configurable color LED shows mute and channel statuses. The elegant, low-profile design requires only a single connecting cable and discreetly integrates into your room with two permanent mounting options: either on the table with the included hardware or via the A310-FM flush mount (available separately).

Product Specifications:

Control: HTML5 Browser-Based

Frequency Response: 100 Hz to 20 kHz

Digital:

AES67 or Dante Digital Output

Channel Count: 5 Total Channels

Sampling Rate: 48 kHz

Bit Depth: 24

Sensitivity: -21 dBFS/Pa (at 1 kHz, -15 dB Gain Setting)

Maximum SPL: 115.2 dB SPL (1 kHz at 1% THD, -15 dB Gain Setting)

Signal to Noise Ratio:

Cardioid: 75 dB

Toroid:67 dB

(Ref. 94 dB SPL at 1 kHz, -15 dB Gain Setting)

Latency: <1 ms (Not Including Dante Latency)

Noise Level:

Cardioid: 19.2 dB SPL-A

Toroid: 26.8 dB SPL-A

(-15 dB Gain Setting)

Dynamic Range:

Cardioid: 96 dB

Toroid: 90 dB

(-15 dB Gain Setting)

DSP: Per Channel:

Equalizer (4-Band Parametric), Mute, Gain (140 dB Range)

System: Automatic Mixing, Low-Cut Filter ( -12 dB/Octave at 150 Hz)

Audio I/O: 1x RJ45 Dante Output

Power Source: PoE

Power Consumption: 4 W (Maximum)

Certifications: CANICES-3 (B)/NMB-3(B), FCCPart 15, CE

Operating Temperature: 20 to 104°F / -6 to 40°C

Storage Temperature: -20 to 165°F / -28 to 73°C

Mounting: Bottom: 1 x Surface Mount

Color: Black

Shipping Weight: 3 lbs

Shipping Dimension: 7" x 6" x 3"
