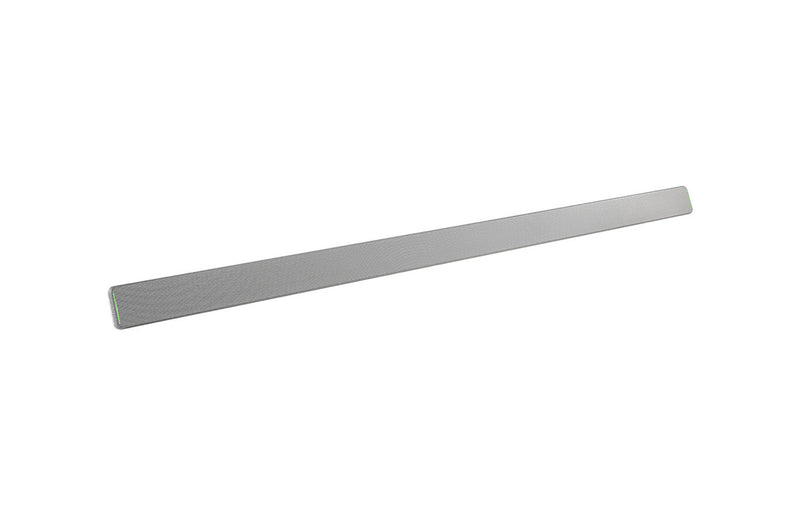

Shure MXA710, 4 Ft Microflex Advance Linear Array Microphone

The Shure MXA710, Microflex Advance Linear Array Microphone have a sleek design that's well suited to today's modern workspaces, the 4' Shure MXA710 linear array microphone is easy to install and delivers high-quality audio capture for AV conferencing. The versatile, linear form factor can be placed on the wall, ceiling, or tabletop, and a single cable provides Power over Ethernet (PoE) and Dante networking for audio and control data transfer. Built-in proprietary IntelliMix DSP and Autofocus technology provides all the processing needed for echo- and noise-free audio in small spaces, while the unit can be used with the Intellimix P300 DSP (available separately) or Intellimix Room software-based DSP for larger spaces with additional components.

Collaboration Re-Imagined

The 4' Shure MXA710 microphone array utilizes Steerable Coverage technology to optimize sound pick up from 100 onboard MEMS microphones across 8 lobes, enhanced with IntelliMix digital signal processing for clear voice capture. IntelliMix DSP offers advanced features like automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control. Its Autofocus technology adjusts lobes in real time to maintain clarity, even when participants move. With a single PoE cable for power and data transfer, it supports Dante and AES67 audio networking protocols. The default room coverage template simplifies setup for wall, ceiling, or table installations, while its LED mute sync works with popular third-party software like Zoom, Microsoft Teams, Cisco, and Skype for Business when used with the IntelliMix P300 or ANIUSB-MATRIX interface (sold separately). The MXA710 offers unmatched flexibility for rooms of all sizes, with easy configuration via Shure Designer software, and features AES-256 encryption for secure audio when paired with Shure network interfaces. Additionally, the SystemOn software enables remote management and troubleshooting.

Product Specifications:

Compatibility: Shure Microflex Advance

Audio I/O: 1x RJ45 Input/Output

Mobile App Compatible: No

Power Source: PoE

Power Consumption: 10 W (Maximum)

Environmental Resistance: Dust-Resistant (IP5X)

Certifications: CE, UL2043, IEC60529

Operating Temperature: 20 to 104°F / -6 to 40°C

Storage Temperature: -20 to 165°F / -28 to 73°C

Mounting: Back - Multiple Keyholes and Screw Holes

Product Dimensions: 49.1 x 2.4 x 0.9" / 1247.8 x 60 x 22.1 mm

Product Weight: 3.7 lbs. / 1.7 kg

Shipping Weight: 8 lbs.

Shipping Dimensions: 51 x 5 x 4 inches
