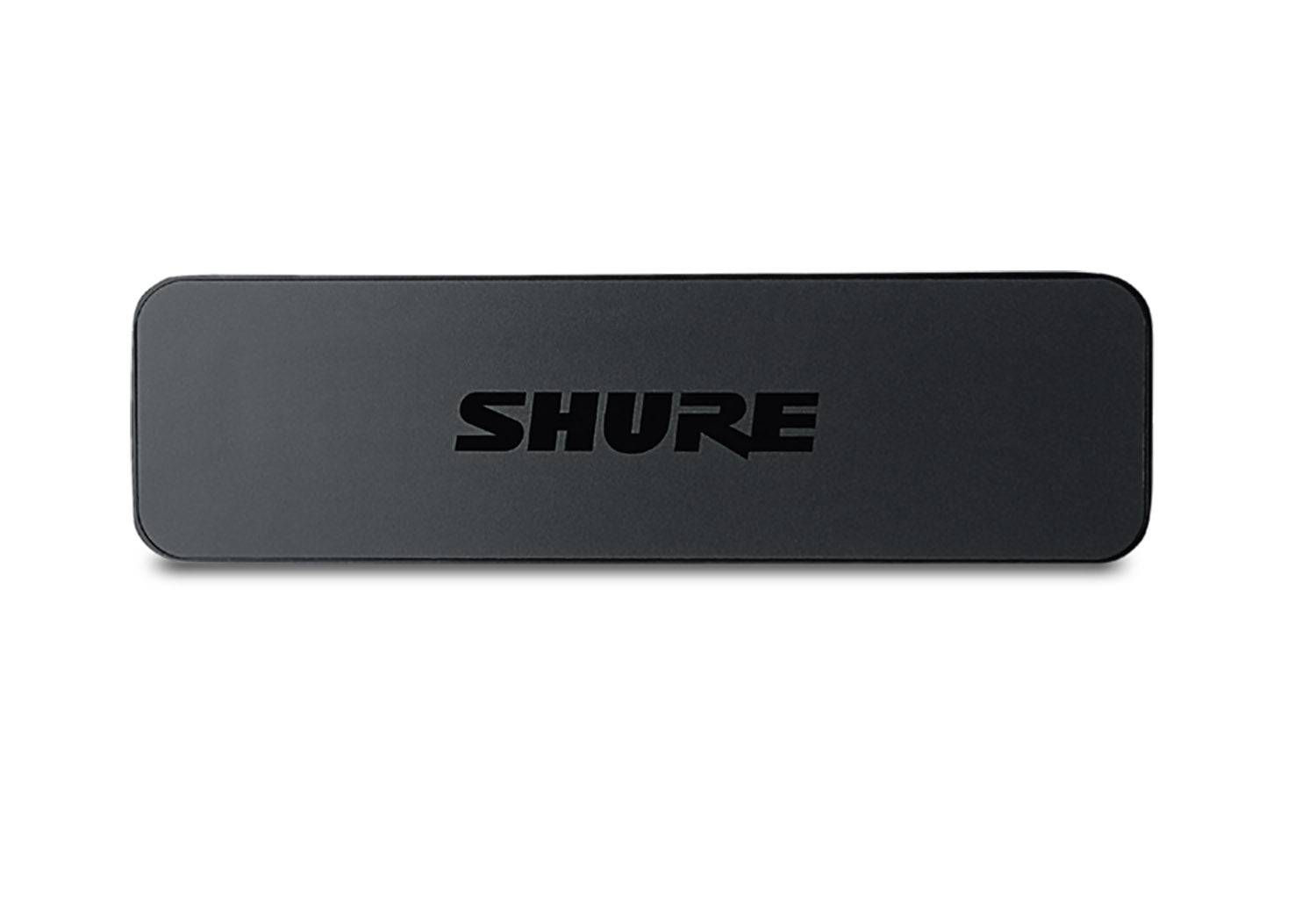

The Shure MXCMIU is a modular conference unit for use with the Microflex Complete (MXC) digital conference system. The MIU can be mounted under the table, inside the furniture, or inside a floor box, allowing the separate front plate to be installed flush in a table or podium where limited space is available.
The unit supports one or two front plates with a microphone, loudspeaker, and control buttons. The unit can also support an analog audio signal from a microphone or audio playback device via the XLR audio input. A ground lift switch is also provided.
The MXCMIU connects to the DIS-CCU central control unit via the DCS-LAN chain, which delivers power, audio, and control data across a shielded Cat 5e cable.
Product Specification:
Frequency Response (channel selector): 65 Hz-16 kHz
Frequency Range (loudspeaker): 150 Hz-15 kHz
Power Consumption: 3 W
THD: < 0.1 %
Signal-to-noise Ratio: > 90 dBA
Front Plate Connection: Two HDMI connectors
Mic/Line Input: 3 pin XLR female
Installation: Flexible
Color: Black
Temperature Range: 5º to 40º C
Dimensions, Unit Without Bracket (H x W x D): 40 x 140 x 84 mm
Weight: 250 g
