Description
The SLXD14/SM35 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required.

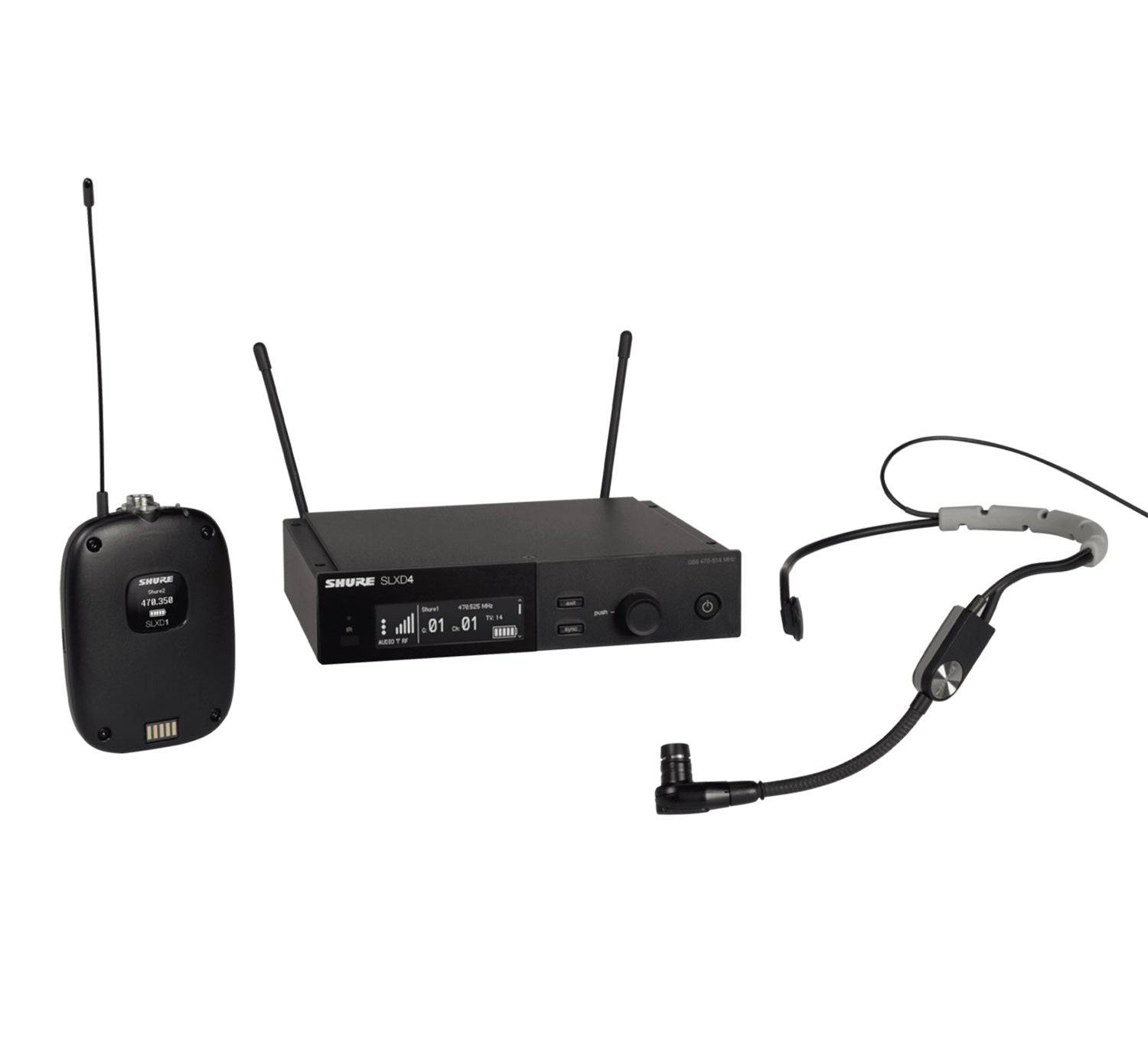

Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitters, and SM35 Performance Headset Condenser Cardioid Microphone with two windscreens, headset clip, antenna, and rackmount accessories and 2 AA batteries.
Product Specifications:
RF Carrier Frequency Range: 470–937.5 MHz, varies by region (See Frequency Range and Output Power table)
Working Range: 100 m (328 ft)
RF Tuning Step Size: 25 kHz, varies by region
Image Rejection: >70 dB, typical
RF Sensitivity: −97 dBm at 10-5 BER
Audio Latency: 3.2 ms
Audio Frequency Response: 20 Hz – 20 kHz (+1, -2 dB)
Audio Dynamic Range: 120 dB at 1% THD, A-weighted, typical
Total Harmonic Distortion: <0.02%
System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (with respect to the ring of the 6.35 mm output) output.
Mic Offset Range: 0 to 21 dB (in 3 dB steps)
Dimensions (H x W x D): 1.65 x 7.76 x 5.98 in
Weight: 816 g, without antennas
