Description

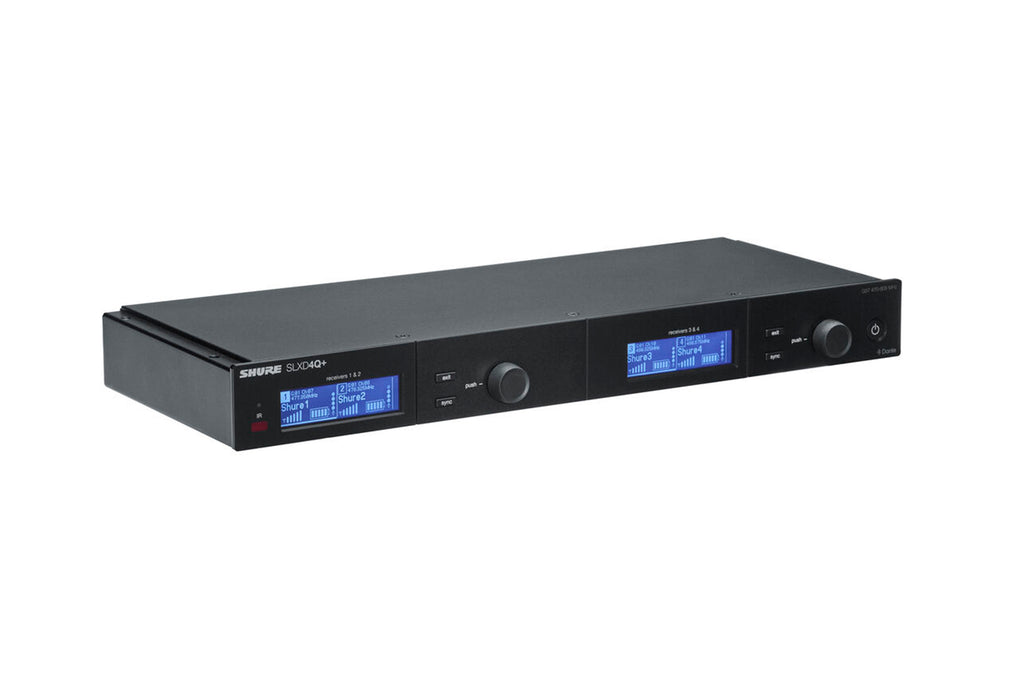

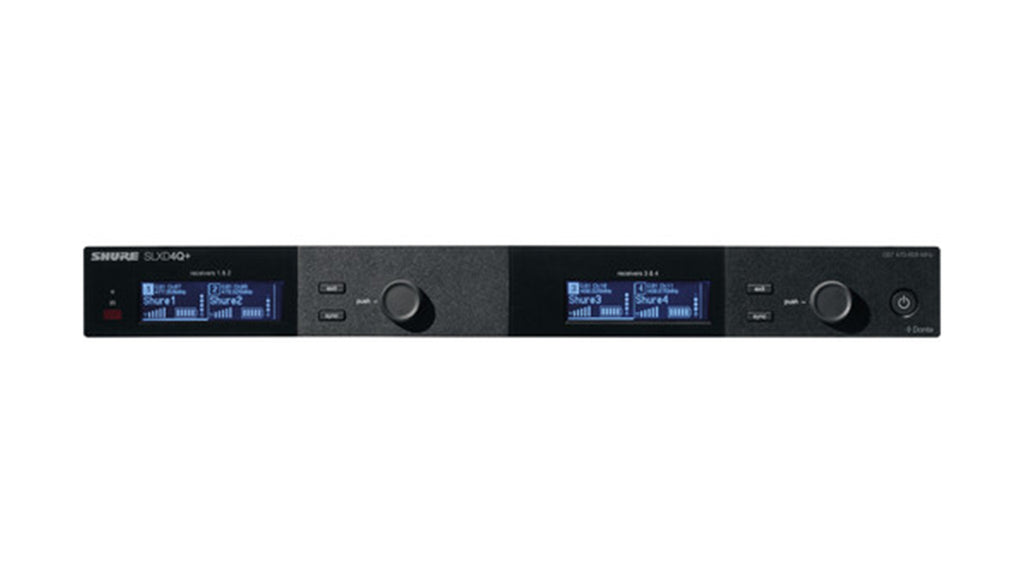

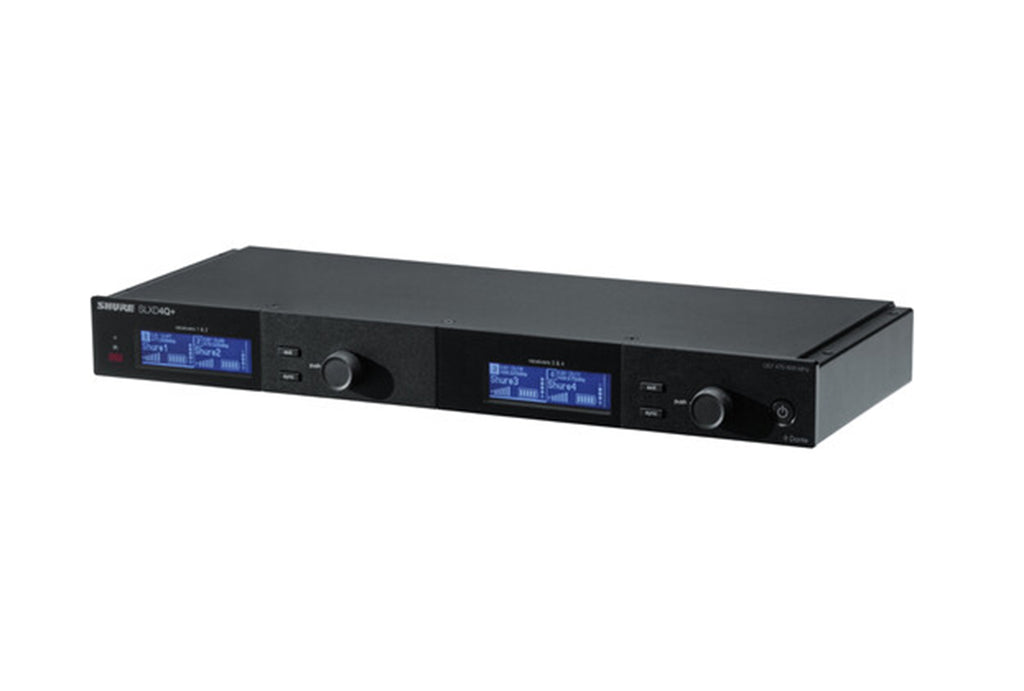

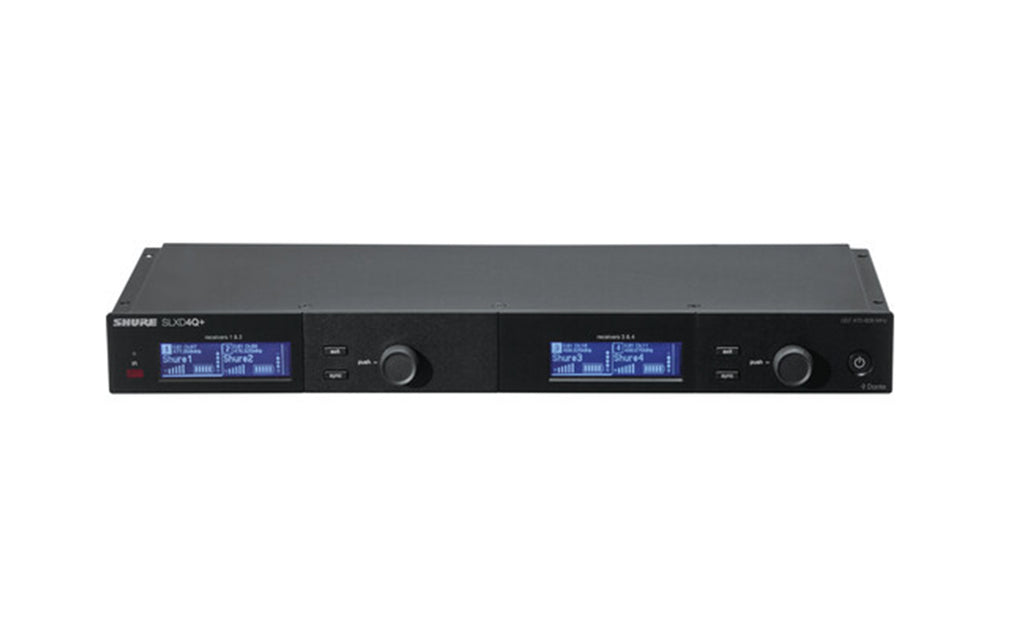

The Shure SLXD4QDAN+ is a professional quad-channel digital wireless receiver designed for live sound, broadcast, installed audio, and houses of worship. Its full-rack, space-efficient design combines four receiver channels with built-in Dante audio networking, significantly reducing cabling and simplifying system deployment. This makes it an ideal solution for modern networked audio environments requiring scalable and streamlined setups.
High-Resolution Digital Audio and Wideband RF Performance
Built on the SLX-D+ platform, the SLXD4QDAN+ delivers transparent 24-bit digital audio with over 118 dB of dynamic range across all four channels. Its wide tuning range of up to 138 MHz (region dependent) ensures reliable operation and simplified frequency coordination across different locations. Designed for high-density environments, it supports multiple simultaneous systems, making it suitable for large-scale wireless deployments.
Advanced Wireless Control and Dante Integration
Featuring ShowLink Ease technology, the SLXD4QDAN+ enables real-time, two-way communication with compatible transmitters, allowing automatic synchronization, remote parameter adjustments, and interference management. Integrated Dante networking allows all four audio channels to be transmitted digitally over a single Ethernet connection, enabling seamless routing, monitoring, and recording within networked AV systems. Compatibility with Shure Wireless Workbench desktop software and mobile app further enhances centralized control and system management.
Scalable System Features, Security, and Flexibility
The SLXD4QDAN+ includes built-in Digital Feedback Reduction (DFR) to automatically suppress feedback and maintain system stability across all channels. It supports a full range of SLX-D+ transmitters, including bodypack, handheld, and plug-on options for versatile applications. Additional features like quad-channel audio summing and RF Cascade allow system expansion up to 12 channels without extra hardware. With AES-256 encryption for secure transmission and a rugged full-rack metal chassis, the SLXD4QDAN+ provides a powerful, scalable, and secure foundation for professional wireless audio systems.
Product Specification:
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 14
Dynamic Range: 118 dB
Latency: 2.8 ms
Encryption: AES 256
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible:
Yes: Android & iOS
Receiver Type: 1x Tabletop/Rack-Mountable
Mounting Options: Rackmount (with Included Hardware, 1 U)
Antenna: 2x Removable 1/4 Wave
Number of Audio Channels: 4

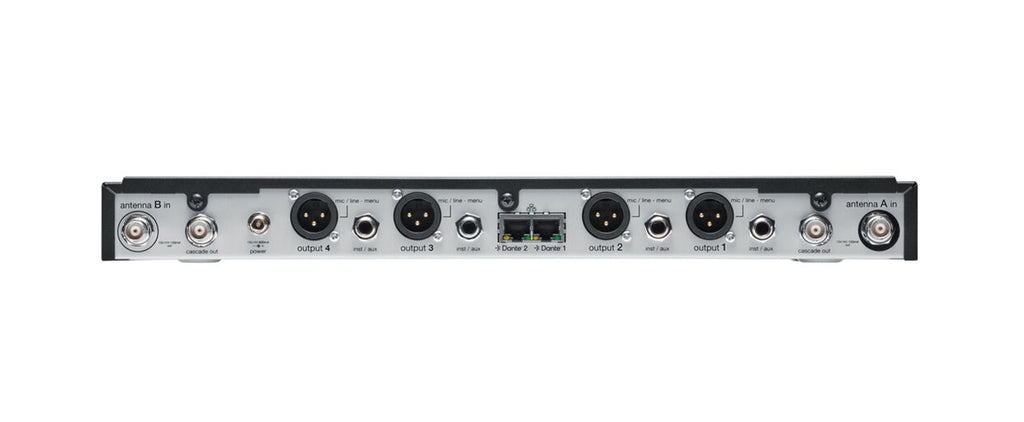

Audio I/O:
4x XLR 3-Pin Balanced Mic/Line Output
4x 1/4" TS Unbalanced Output
Slot-Mount I/O Adapters: No
Network I/O: 2x RJ45 (Dante)
USB/Lightning Connectivity: No
Gain Range: -18 to +42 dB
Frequency Response: 20 Hz to 20 kHz +1/-2 dB
Display: Backlit LCD
Power Requirements: AC Input
Power:
Included Charging Case: No
AC/DC Power Adapter: 15 VDC (Included)
Physical:
Environmental Resistance: No
Housing: Steel (Receiver)
Dimensions: 15.5 x 6 x 1.7" / 393 x 152 x 42 mm
Weight: 3.9 lbs / 1750 g (without Antennas)
Shipping Dimensions: 17.7 x 13.98 x 4.3 inch
Shipping Weight: 7 lbs.
