Description

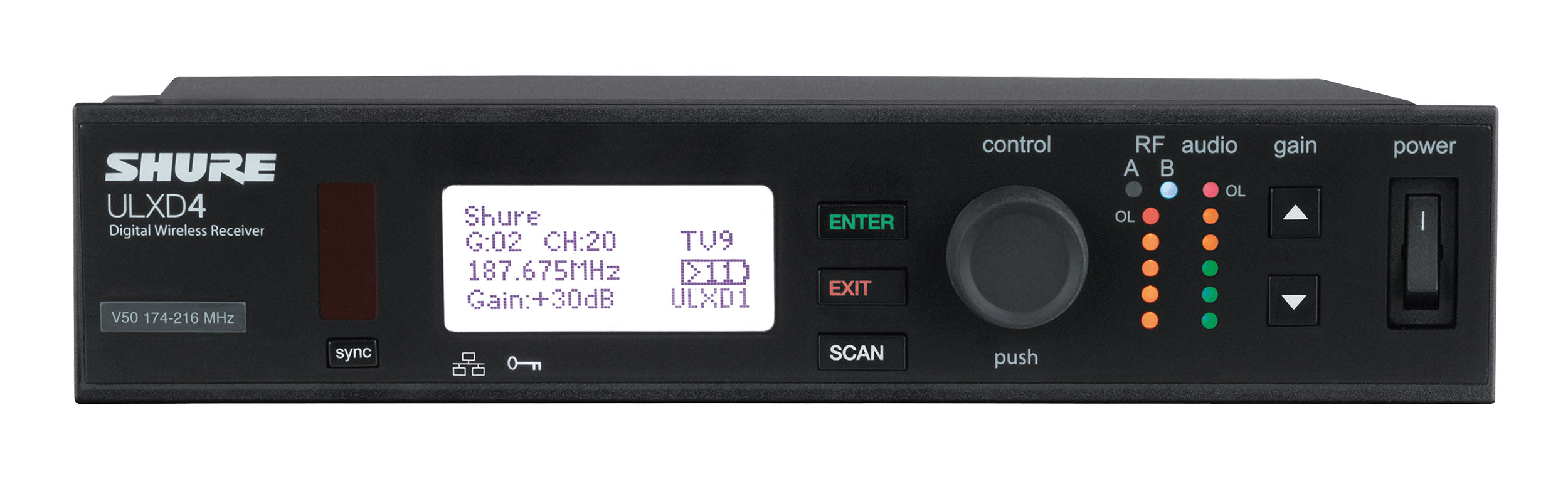

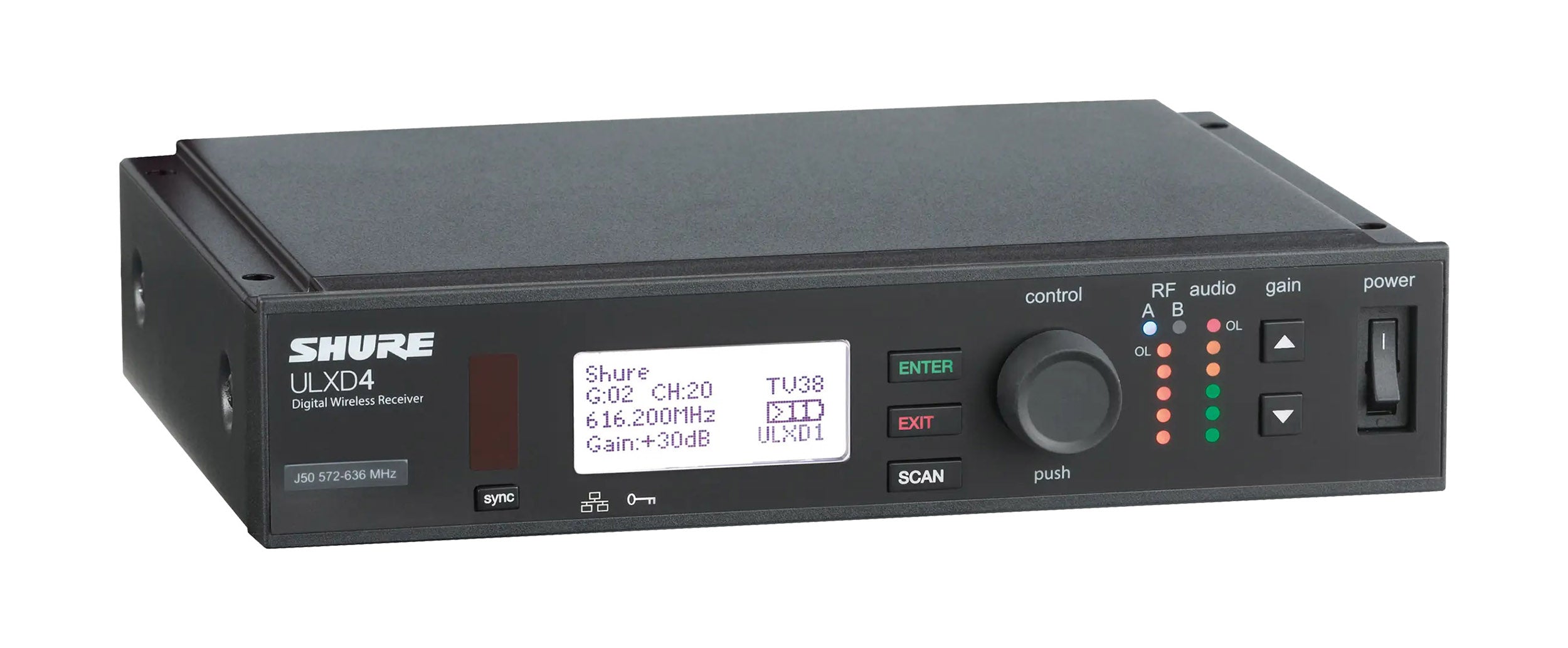

The ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D® Digital Wireless Systems. With an expansive set of professional features, including 24-bit / 48 kHz digital audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX Digital offers uncompromising wireless tailored for professional sound reinforcement.
Product Specifications:
Number of RF Channel Frequencies: 1040
Diversity: Antenna Diversity
RF Frequency Band: X52: 902 to 928 MHz
RF Bandwidth: 26 MHz
Frequency Step Size: 25 kHz
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 12
Latency: < 2.9 ms
Modulation: Proprietary
Receiver Type: Tabletop
Mounting Options: Rackmount, Tabletop (with Included Hardware)
Rackmount Size: 1 RU (1/2 Rack)
Antenna: 2 x 1/2 Wave External, BNC (Rear-Mount)
Antenna Bias Voltage: 12 to 13 VDC, 150 mA (per Antenna)
Number of Audio Channels: 1

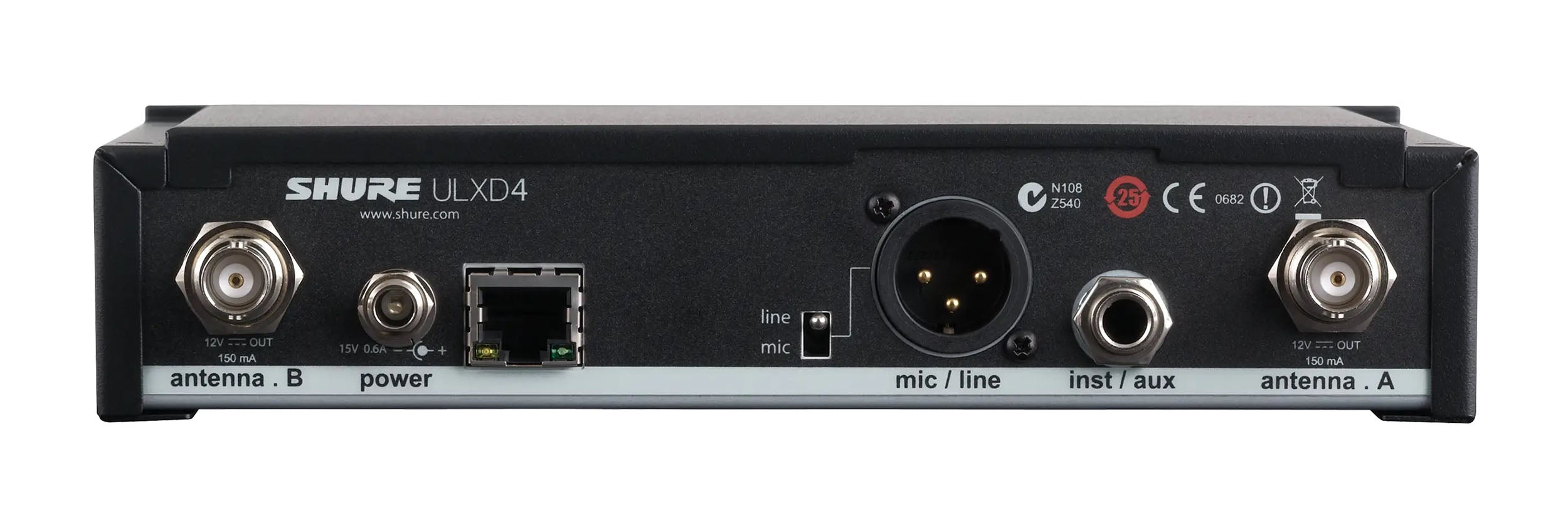

Audio I/O:
1 x XLR 3-Pin Male Balanced Output
1 x 1/4"" TRS Female Balanced Output
Gain Range: -18 to +42 dB (1 dB Steps)
Pad: 30 dB
Phantom Power Protection: On 1/4", XLR Outputs
Frequency Response: 30 Hz to 20 kHz ±1 dB (Dependent on Mic)
Network I/O: 1 x RJ45 (10/100 Mb/s)
Network Protocols: DHCP, Manual IP
Approximate RF Sensitivity: -98 dBm
Adjacent Channel Isolation: >70 dB
Spurious: Rejection: >80 dB
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter: 15 VDC at 600 mA (Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 250 mA
Display & Indicators:
1 x Backlit LCD (Battery Status, Channel, Group, Menu Navigation)
2 x Multi-Segment LED (AF Level, Output Level, Peak)
Housing: Steel
Operating Temperature: 0 to 122°F / -17 to 50°C
Storage Temperature: -20 to 165°F / -28 to 73°C
Dimensions: 6.7 x 1.7 x 7.8" / 171 x 44 x 197 mm
Shipping Weight: 6.75 lbs
Shipping Dimensions (LxWxH): 18.2 x 14.6 x 3.6"
