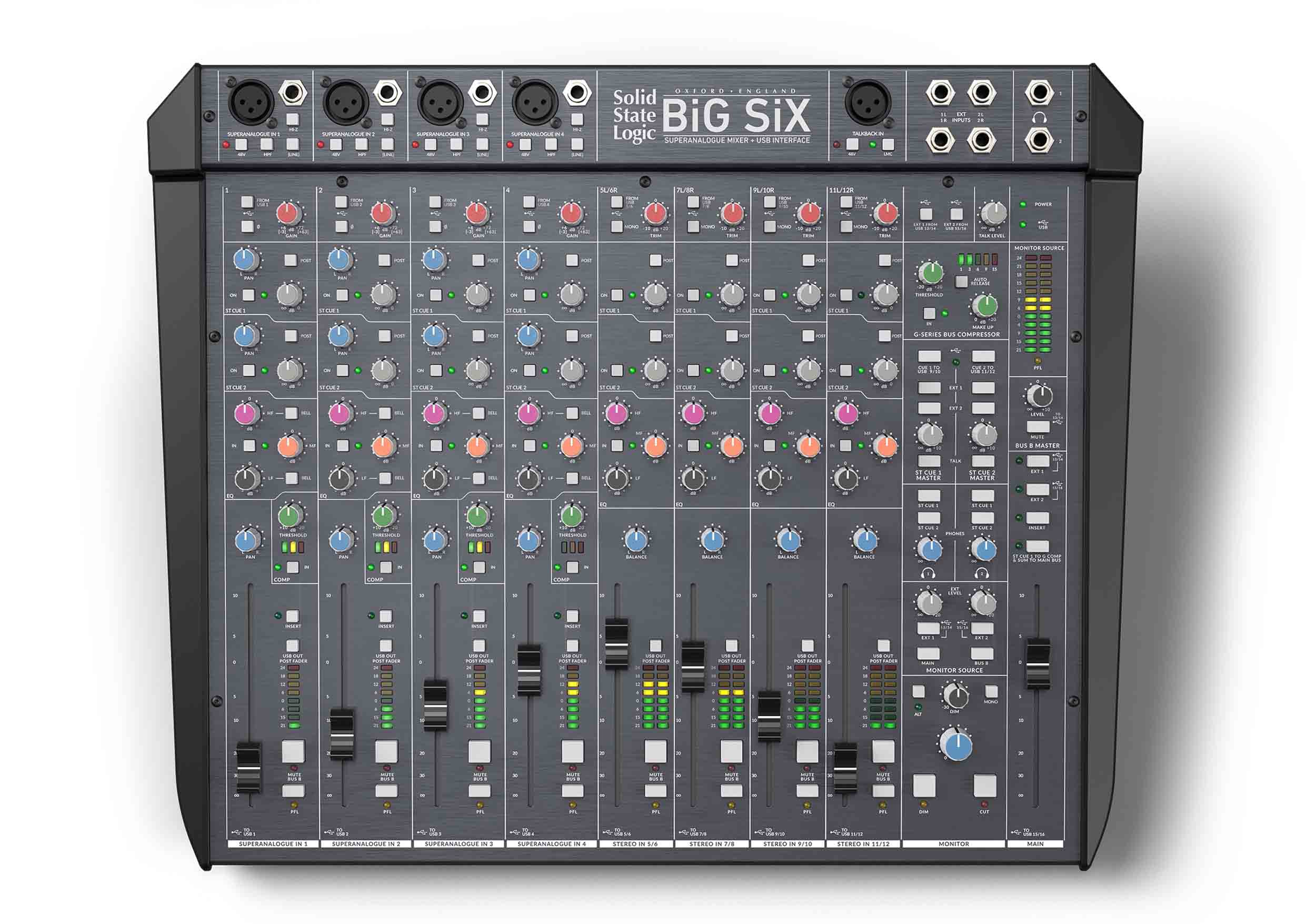

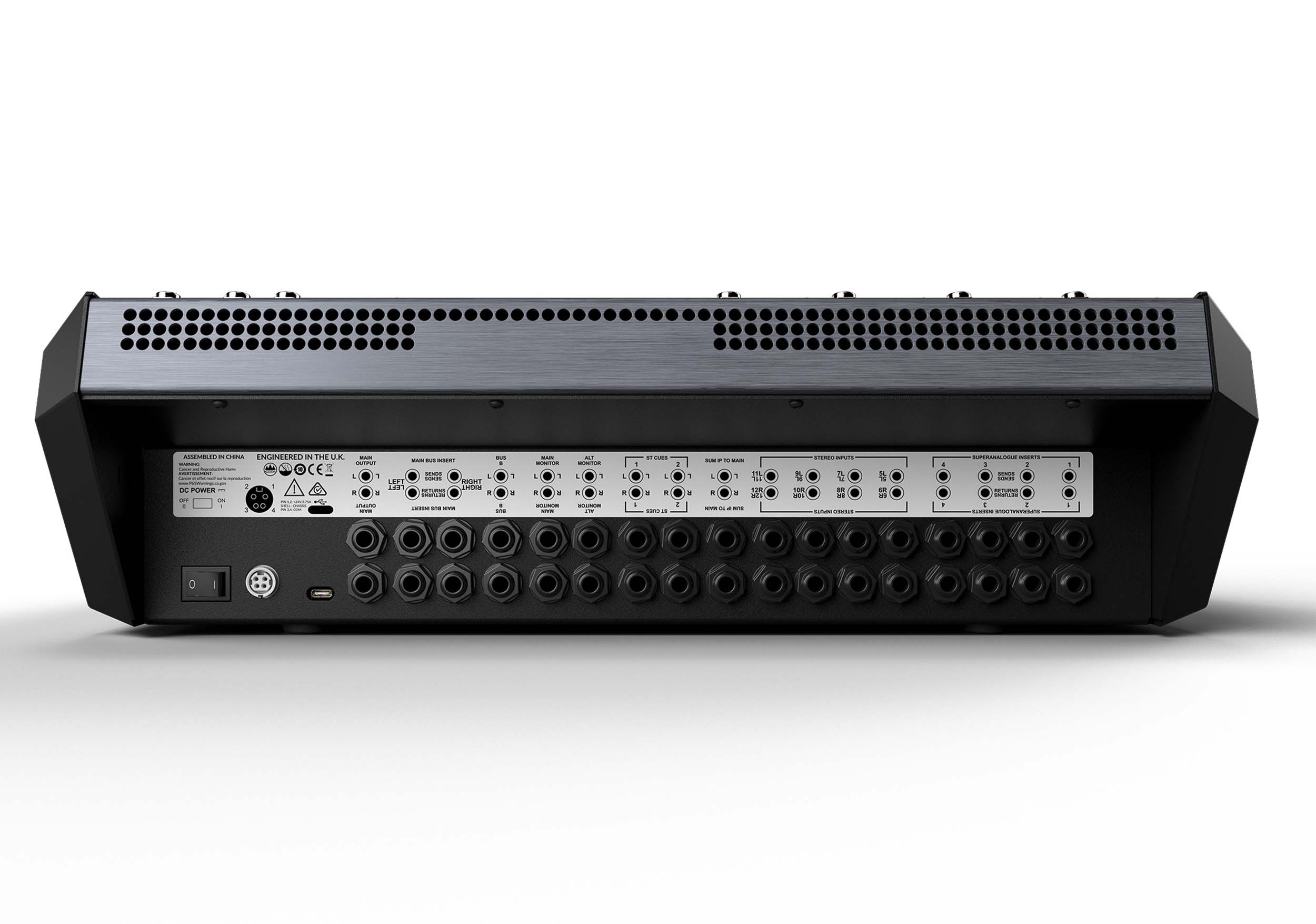

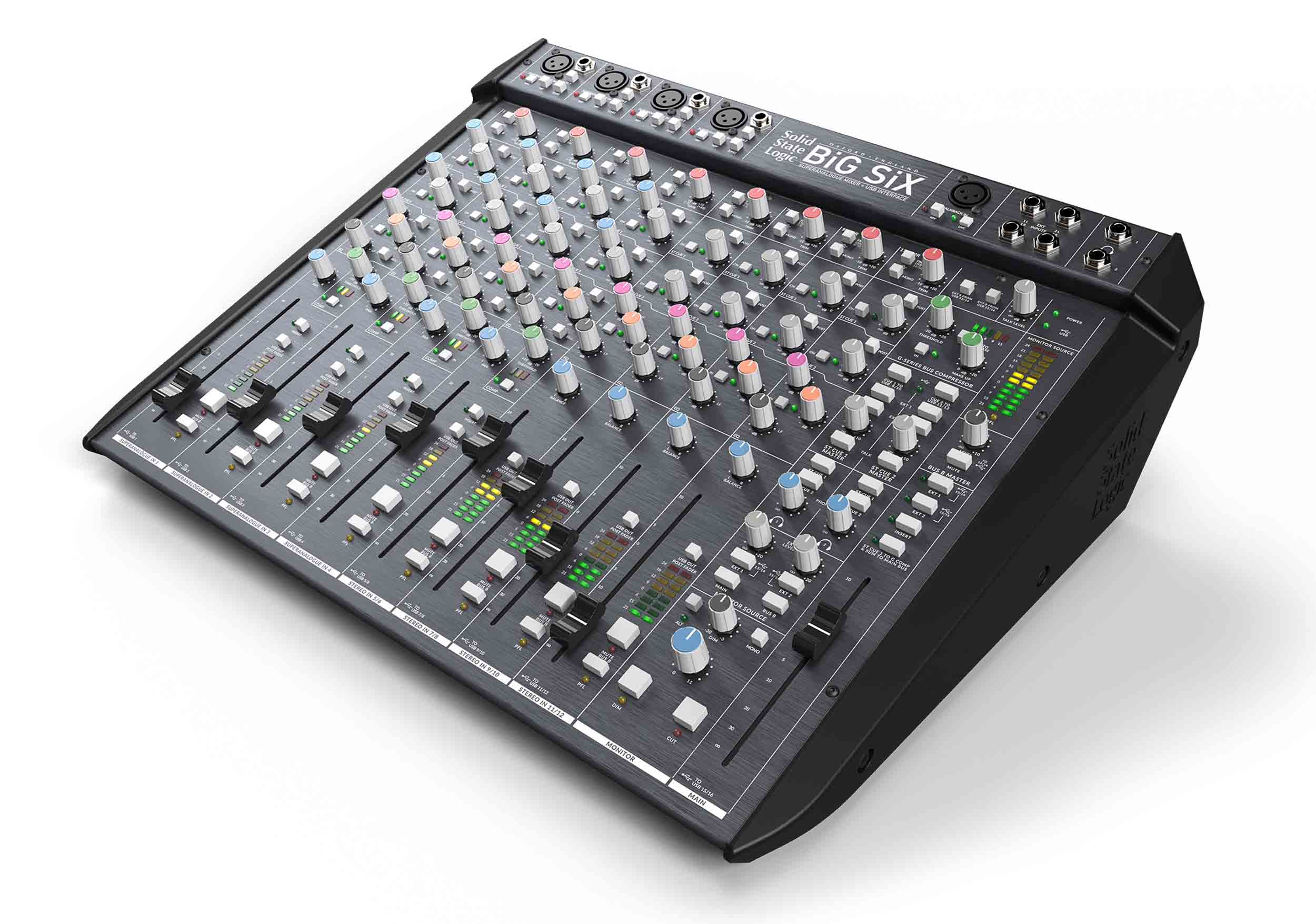

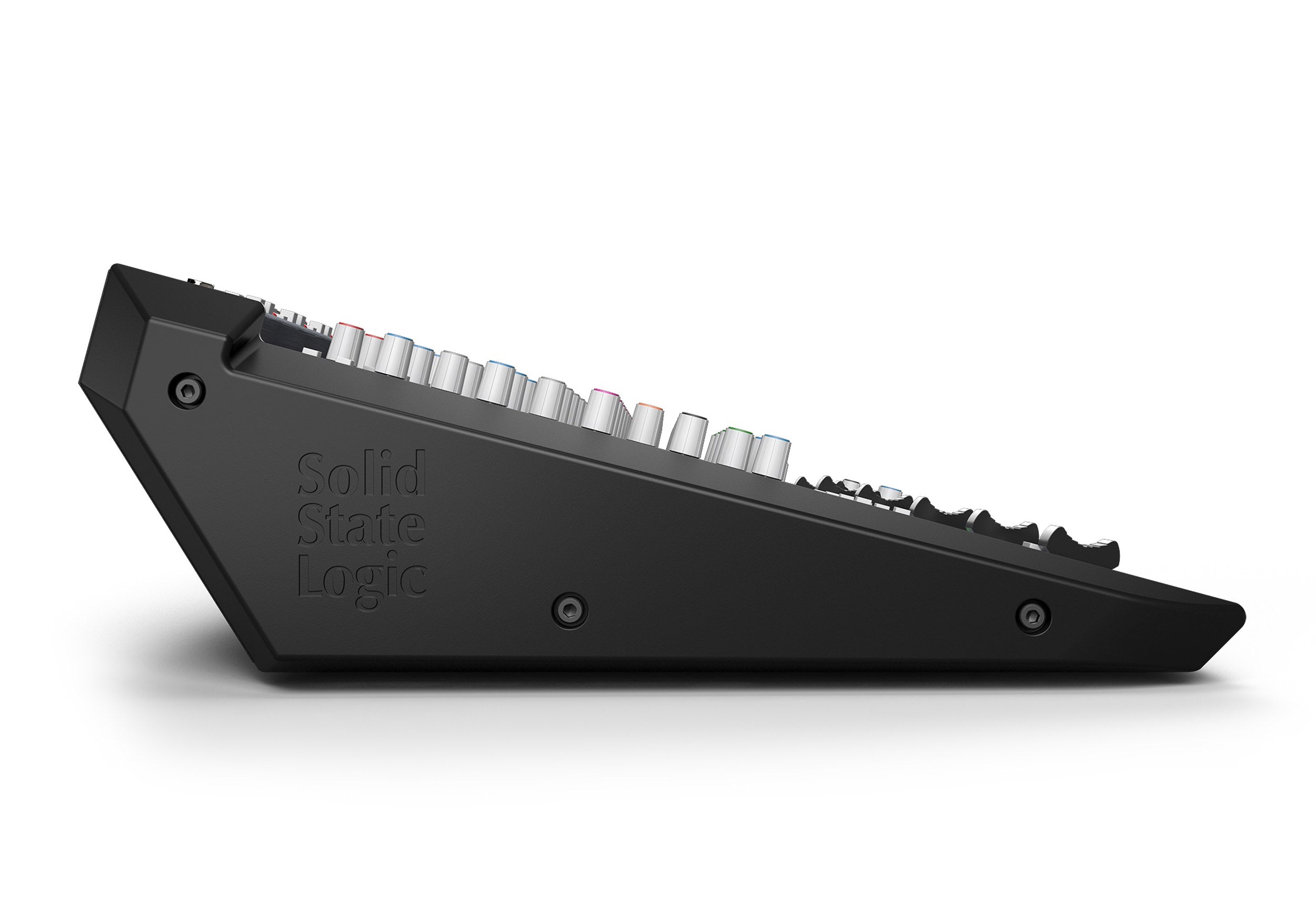

SSL Solid State Logic BIGSIX 12-Channel SuperAnalogue Mixing Interface

The SSL BIGSIX is a premium hybrid production mixer that fuses the heritage of SSL’s iconic large-format studio consoles with modern workflow flexibility. Built on the renowned SuperAnalogue foundation, it delivers pristine audio quality, low noise performance, and professional-grade processing throughout. With the G-Series Bus Compressor, E-Series EQ, SuperAnalogue mic press, and comprehensive routing and monitoring options, BIGSIX brings true SSL studio capability directly to your desktop.

Evolved Design with Expanded Capability:

Building on the success and community feedback of the original SiX, the BIGSIX significantly enhances capacity and functionality across every section. It features four SuperAnalogue mic press, four stereo line inputs with dual-mono switching, 3-band E-Series EQ on every channel, classic SSL channel dynamics, and dual independent headphone outputs with a flexible source matrix. This evolution transforms the BIGSIX into the ideal centerpiece for creators, producers, and engineers requiring more power and versatility.

Flexible Workflow for Any Production Scenario:

Whether you're tackling music production, streaming, content creation, mixing, or post-production, BIGSIX adapts seamlessly to any workflow. The advanced routing capabilities, professional-grade faders, and extensive monitoring controls give you total authority over your signal chain. With 18 channels of analogue summing at mixdown, you can enjoy the depth, width, and cohesion reminiscent of large SSL consoles.

Legendary SSL Bus Compressor & Channel Processing:

At the core of BIGSIX’s sound is the legendary G-Series Bus Compressor, using the exact circuit topology of the original SL 4000 consoles. Its fixed 4:1 ratio, 30 MS attack, and 100 MS release deliver the signature punch and glue that SSL compressors are known for, enhanced by the iconic ‘Auto’ release mode. Each channel also features classic SSL compression and 3-band E-Series EQ, offering smooth dynamics control, tonal shaping, and professional polish.

Professional USB Interface & High-Performance Preamps:

BIGSIX integrates a class-compliant 96 kHz / 24-bit USB interface with 16 channels of A/D and D/A conversion tied directly into the SuperAnalogue signal path. Channels can be routed pre/post fader, with USB 13–16 dedicated to external inputs or master buses. Its SuperAnalogue mic preamps deliver fast, detailed, and punchy performance, complete with Hi-Z, 48V, high-pass filter, and polarity control—ensuring exceptional recording quality for microphones, instruments, and line-level sources.

Product Specifications:

Audio I/O Configuration: 12 analog channels (4 mono with SuperAnalogue mic/line/Hi‑Z + 4 stereo line channels)

Mic Preamps: 4 SuperAnalogue mic preamps with phantom power, high‑pass filter, polarity switch, wide gain range

Stereo Inputs: 4 SuperAnalogue stereo line inputs with dual‑mono switching

EQ: 3‑band SSL LF/MF/HF EQ on every channel derived from SSL classic E‑series design

Dynamics: SSL channel dynamics processing on mono channels with program‑dependent compressor; essential G‑Comp Bus

Compressor on mix bus

Operating Environment: Designed for ventilation front‑to‑back; ensure clearance for cooling

Summing: Up to 18 inputs at analog mix down summing

Power Consumption: 70 W (external PSU)

USB Audio Interface: 16‑channel USB‑C interface, 24‑bit/96 kHz AD/DA conversion with advanced routing

Monitoring & Headphones: Dual independent headphone outputs with source matrix; comprehensive monitor control section

Metering: Professional LED metering with +27 dBu headroom and standards for +18/+24 dBFS

Insert/External: Balanced insert points and two fully balanced stereo external inputs

Cue Sends: Two stereo cue feeds

Faders: 100 mm full‑size console‑grade faders

Balanced Signal Path: Fully balanced throughout (except headphones)

Sample Rate/Resolution: USB audio supports 44.1, 48, 88.2, and 96 kHz at 24 bits

Headroom: +27 dBu overall console signal routing headroom (except headphone)

Connectors: Mic inputs XLR, line inputs 1/4″ TRS, USB‑C connectors

Product Weight: 6.8 kg / 15.0 lbs (Console excluding PSU)

Product Dimensions (L × W × H): 15.4" × 19.3" × 5.6"

Excluding Trim: 17.2"

Including Trim: 19.3"

Shipping Weight: 10.1 kg / 22 lbs

Shipping Dimensions (L × W × H): 21.3" × 23.6" × 10.2"
