Description

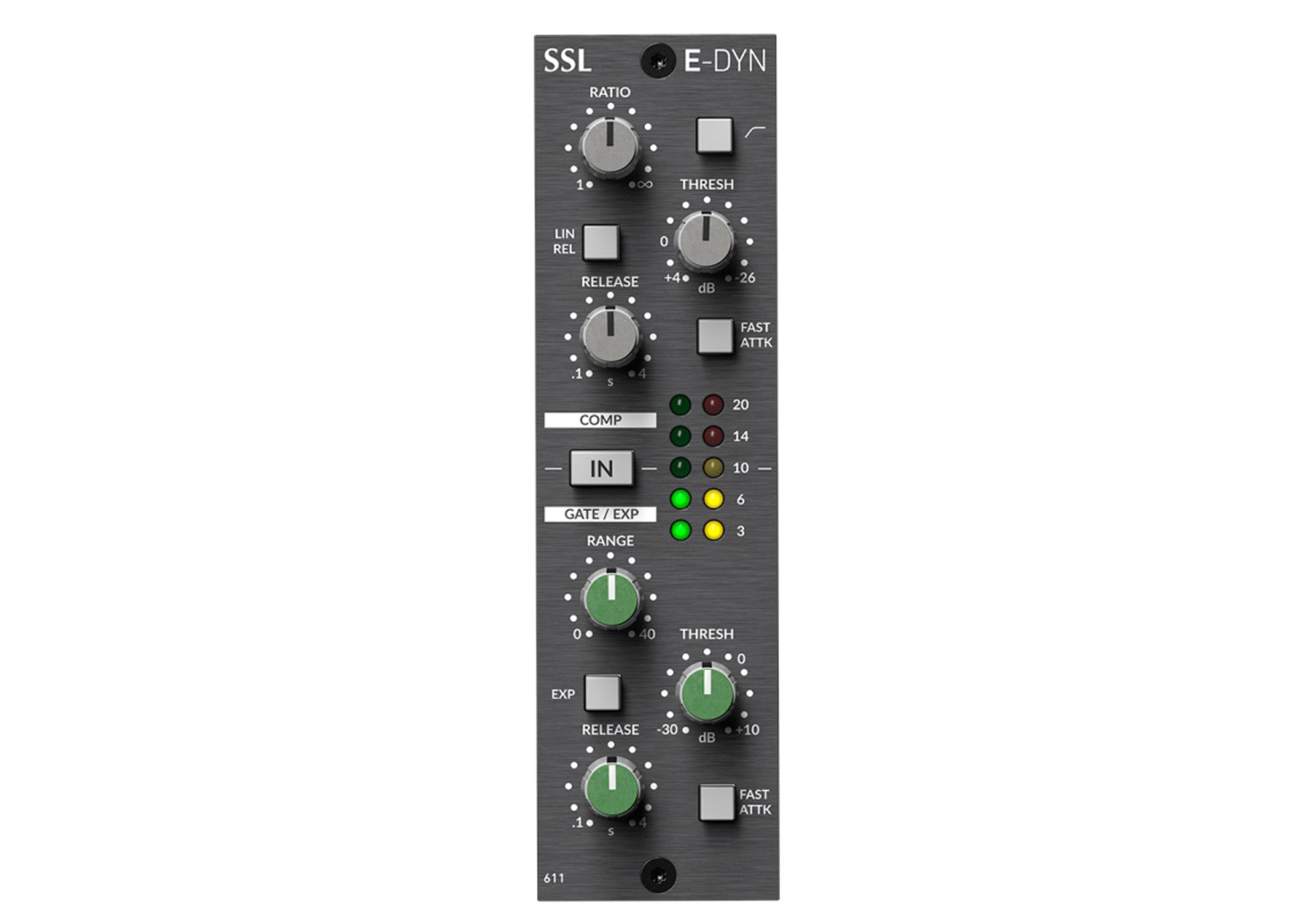

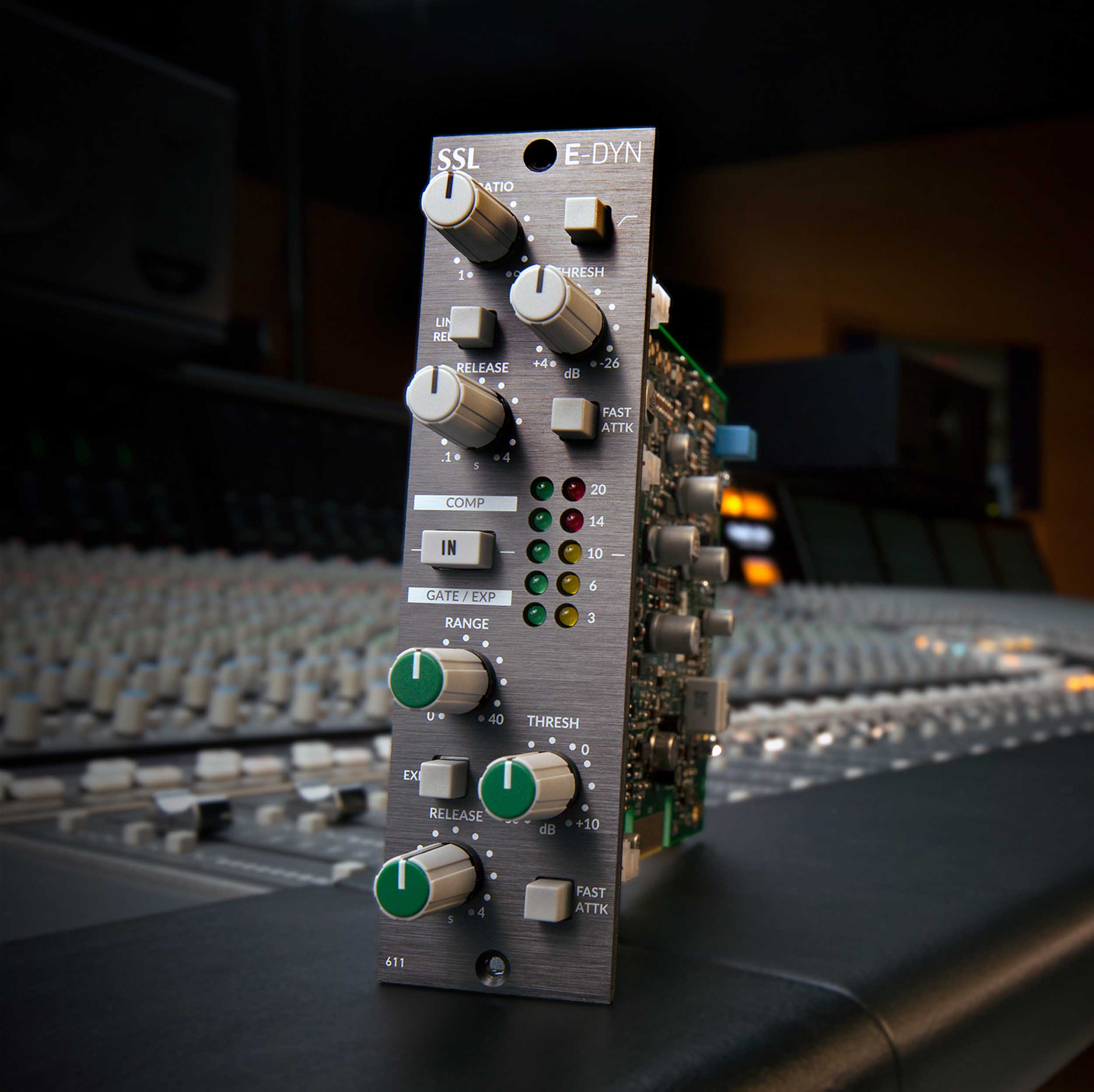

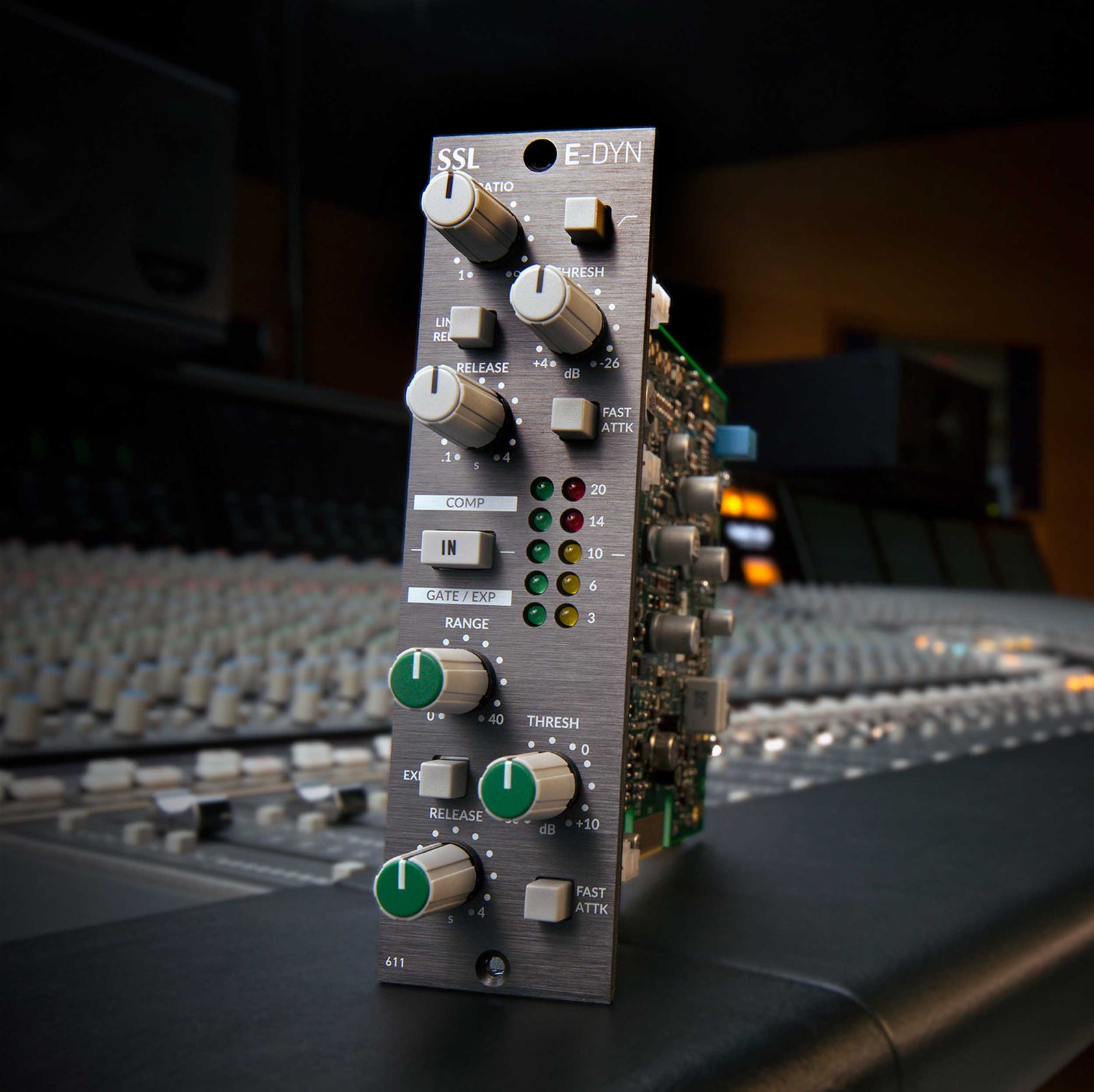

The Solid State Logic EDYNAMICSMK2 E Series Dynamics Module brings the legendary sonic signature of the classic SSL SL 4000E console into the modern 500 Series format. Revered for shaping countless iconic recordings of the 1980s, the original 4000E channel strip is known for its punch, clarity, and unmistakable character. This module authentically recreates that heritage, capturing the tonal essence and dynamic behavior that made the early SL 611E channel strip a studio favorite.
At its core, the unit integrates a faithful compressor/limiter and expander/gate, meticulously modeled after the original circuitry and key components. Immortal SSL 4000 Series architecture and Class A VCA replication ensure that every nuance—from subtle dynamic control to aggressive shaping—remains true to the classic design. The expander/gate section preserves the iconic response and feel, delivering tight control with a smooth, musical edge.
Further enhancing its versatility, the module employs a true RMS converter in the sidechain and a fully discrete gain element identical to the original Class A VCA chip. Additional switching options allow engineers to defeat the Over-Easy curve or select between linear and logarithmic release modes, effectively offering three distinct compressor voices. This expanded flexibility makes the E Series Dynamics Module a powerful and expressive tool for modern production while honoring the unmistakable SSL legacy.
Product Specifications:
Material: Aluminum chassis with steel front panel
Compressor Attack Time (Fast Mode): 3 MS (for 20 dB gain reduction)
Compressor Attack Time (Normal Mode): Slower than Fast Mode
Compressor Release Curve Options: Logarithmic (default) or Linear (switchable for faster response)
Gate/Expander Range: Variable 0 to 40 dB (fully anticlockwise = inactive, fully clockwise = maximum gate depth)
Sidechain: True RMS converter for accurate and consistent dynamic response
Format: API-compatible 500 Series (single slot)
Power Requirements: Powered via rack slot (+16V DC / –16V DC, ~130 mA current draw; no phantom power required)
Connectors: Standard 500 Series edge connector for I/O
Product Weight: 1.1 lbs (0.5 kg)
Product Dimensions (L × W × H): 6" × 1.5" × 5.25"
