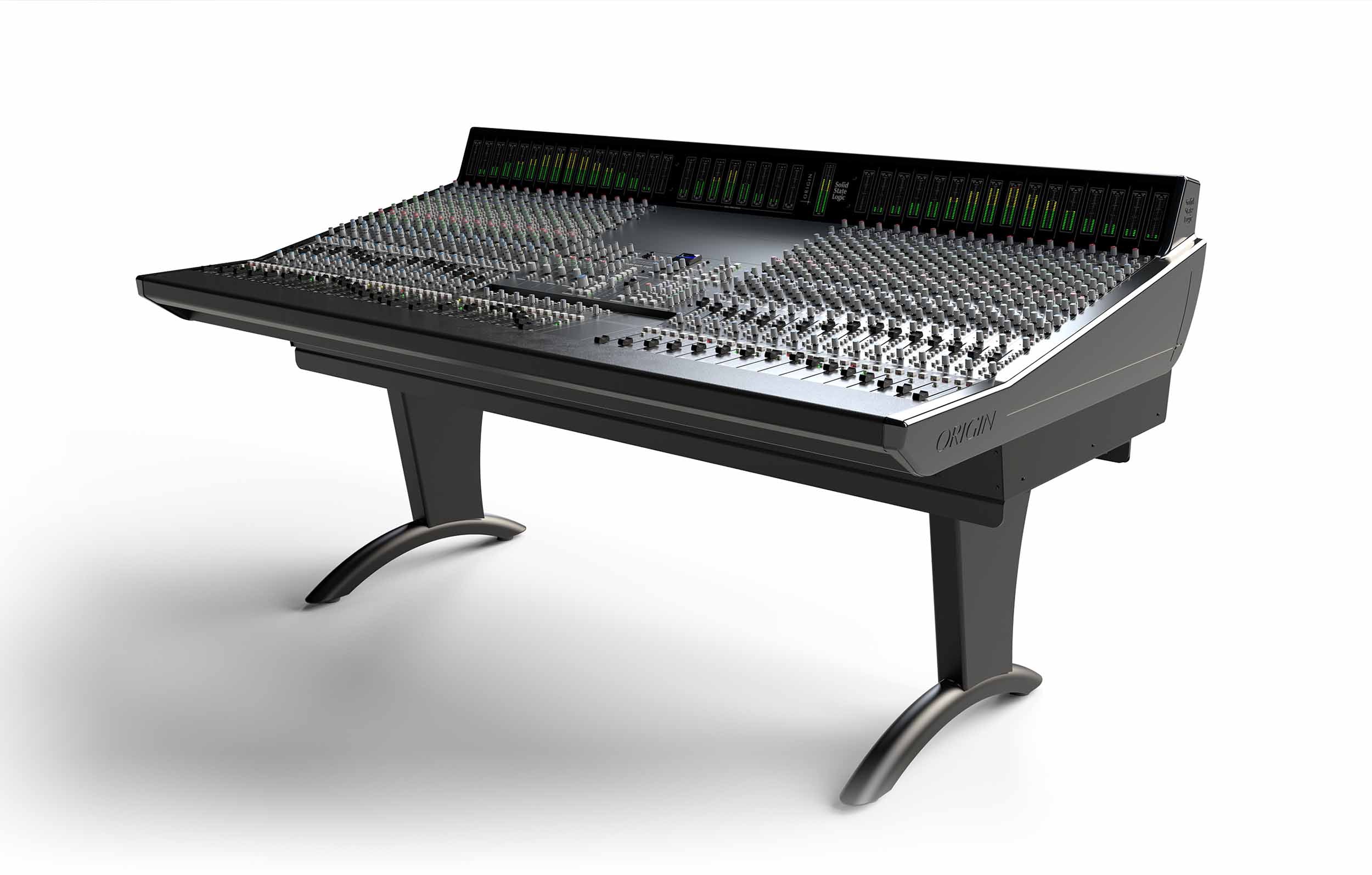

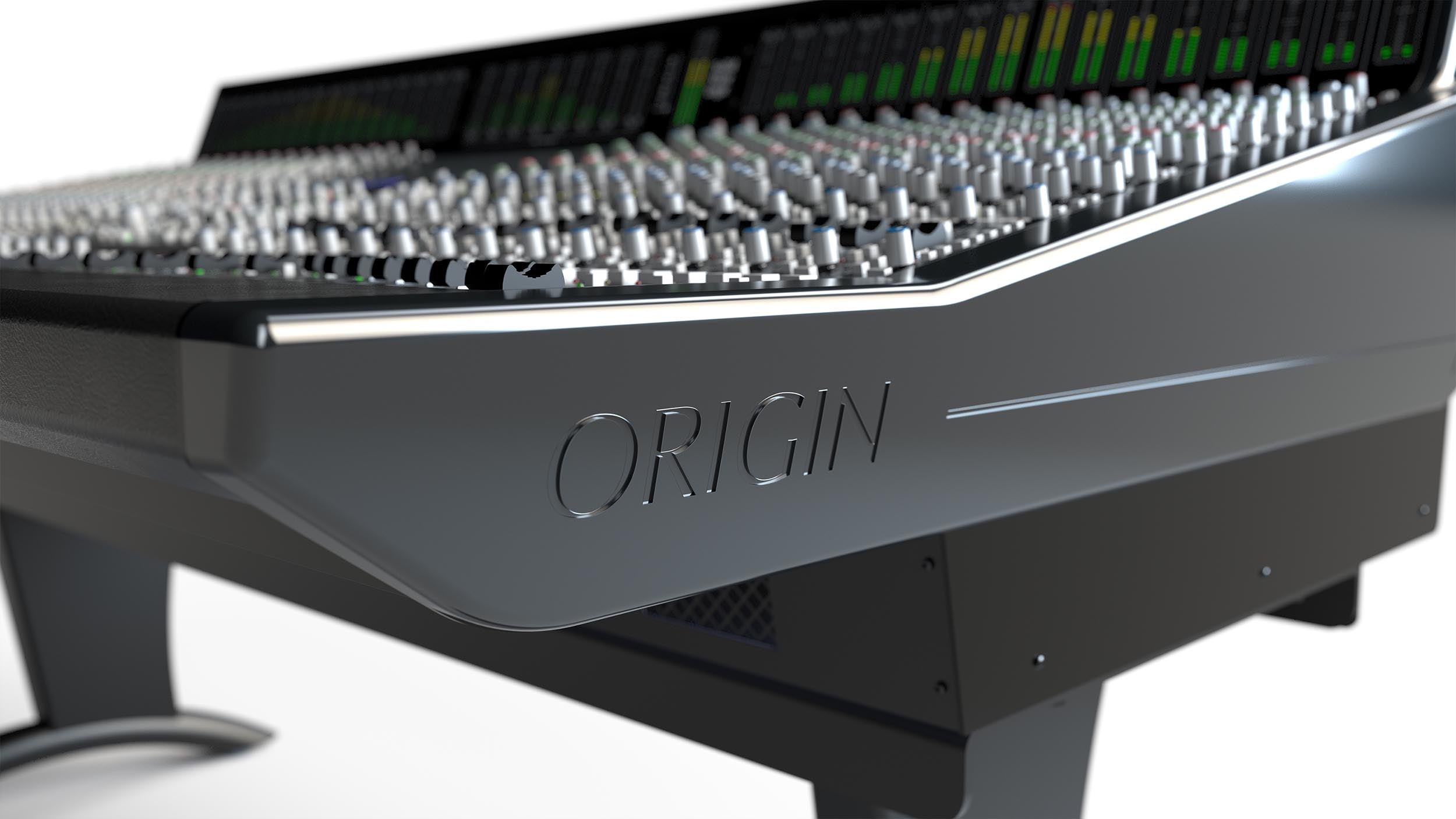

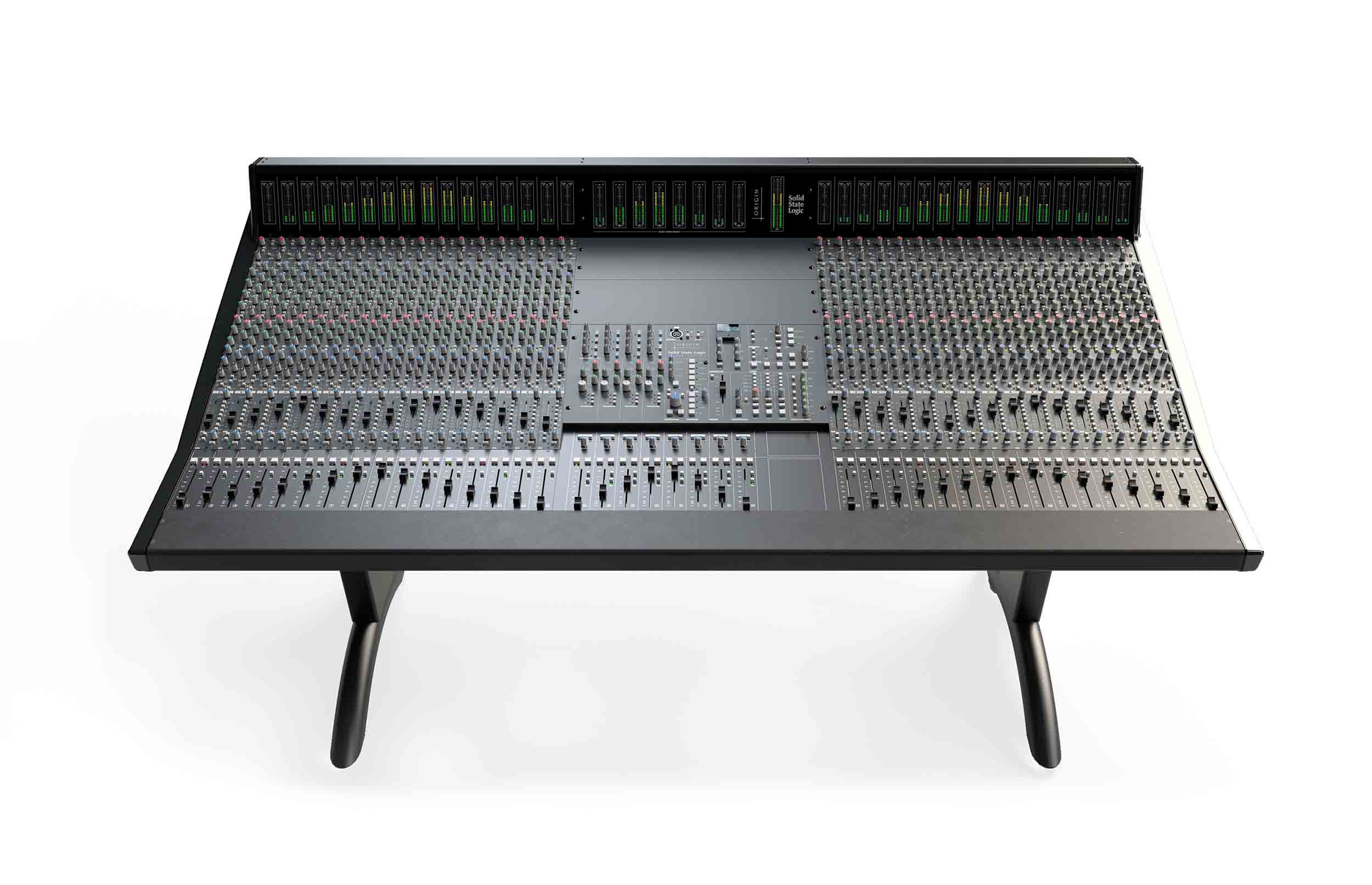

SSL Solid State Logic ORIGIN 32-Channel Studio Console w/ PureDrive

The Solid State Logic ORIGIN is the latest analogue console from SSL, combining decades of heritage with modern hybrid DAW workflow. It preserves the traditional analogue workflow while perfectly complementing digital production environments, providing a seamless bridge between classic SSL console sound and contemporary studio setups.

Analogue Sound and Mic Preamps:

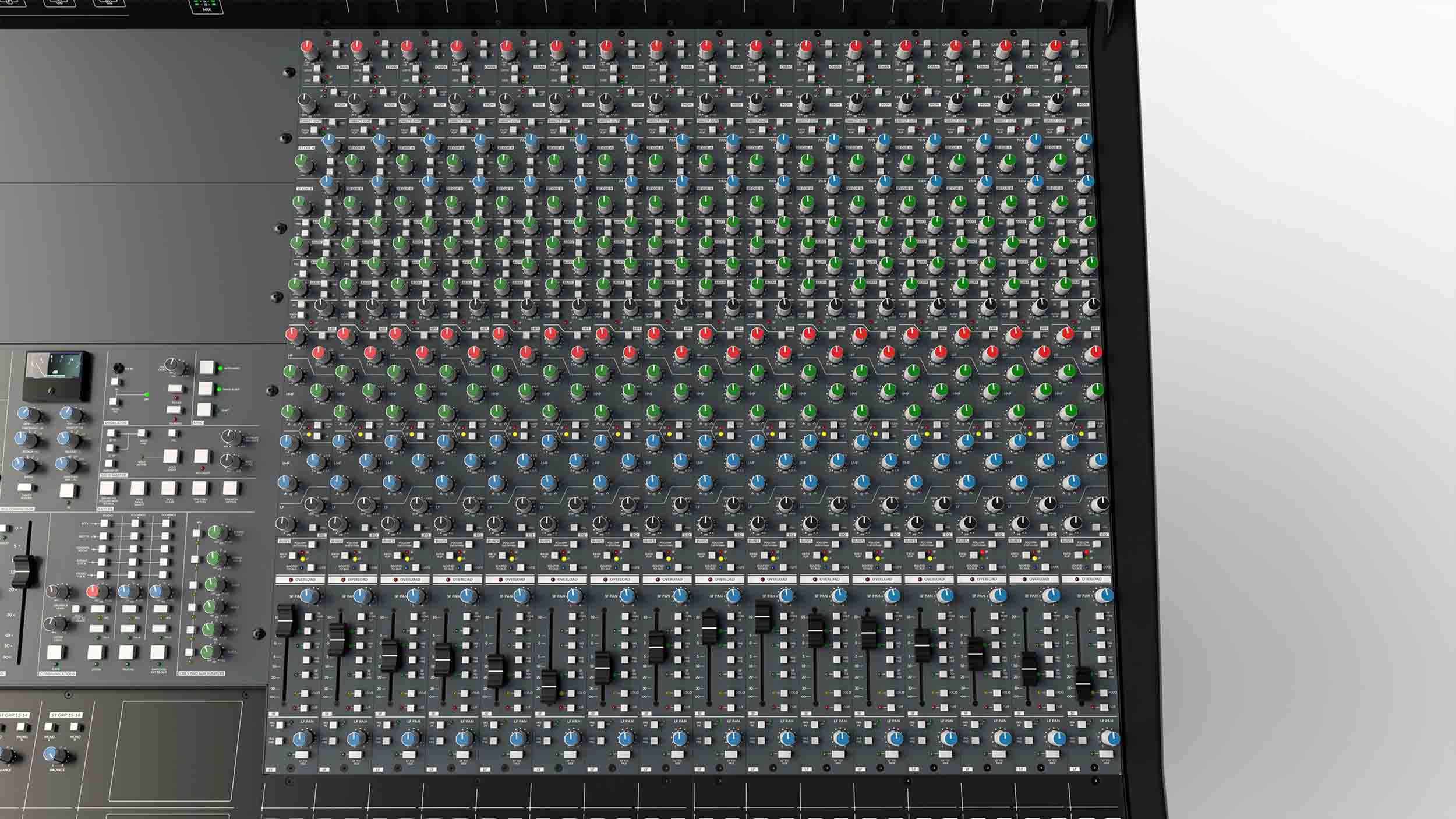

Each channel features the acclaimed E-Series 4-band parametric EQ, offering variable cut/boost, HF/LF bell/shelf switches, and independent sweep able HPF. The PureDrive mic preamps provide ultra-clean transparency in ‘Pure’ mode and a warm, harmonically-rich tone in ‘Drive’ mode, delivering a versatile sonic character that suits both analogue and hybrid workflows.

Mix Bus and Dynamics:

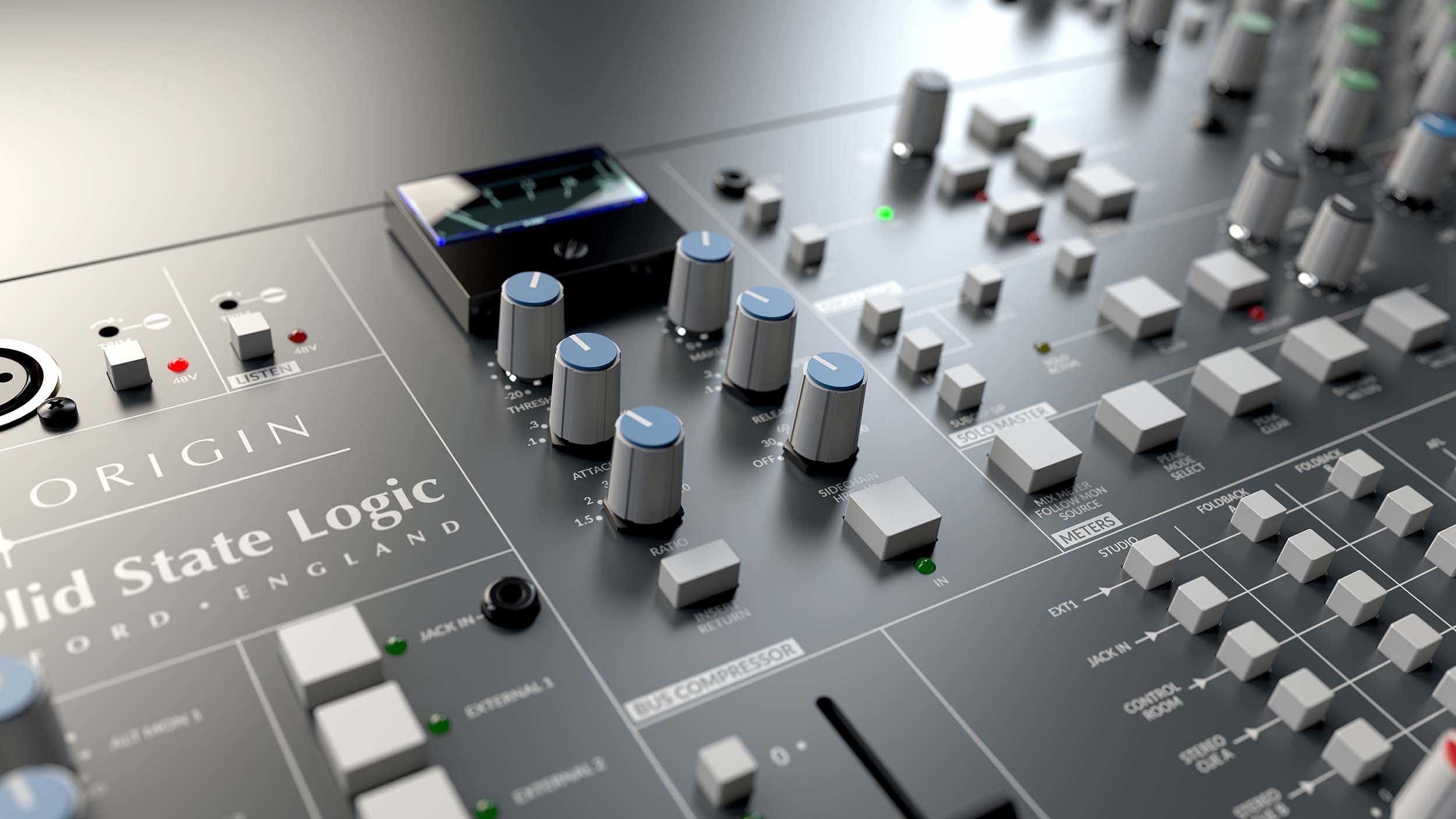

ORIGIN’s mix bus and architecture deliver high headroom and ultra-low noise, retaining the classic SSL sound. The legendary SSL Bus Compressor features updated compression ratios, insert return, and a built-in sidechain filter, providing the punch and glue engineers expect while integrating perfectly with modern production demands.

Flexible Centre Section & Monitoring:

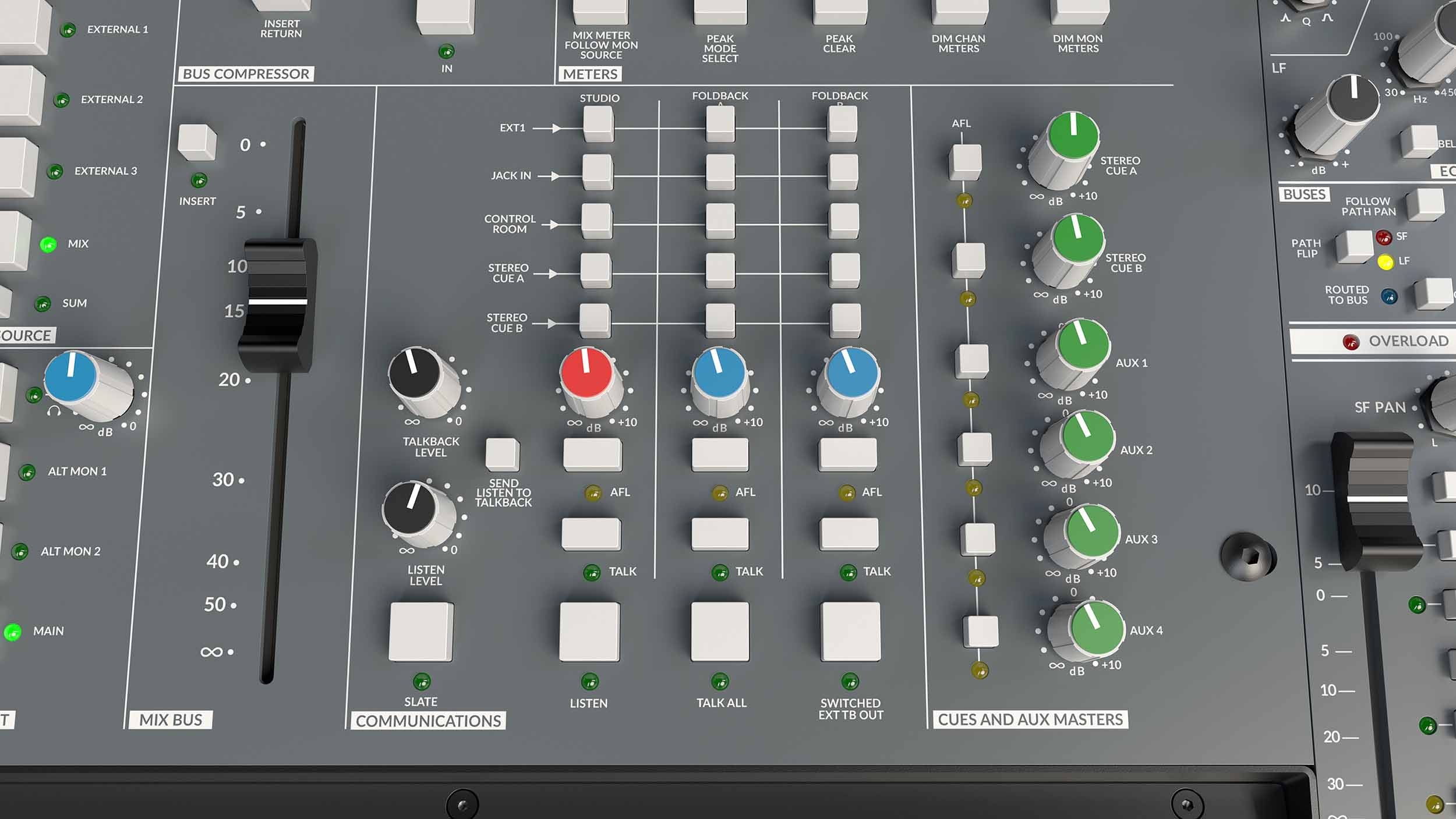

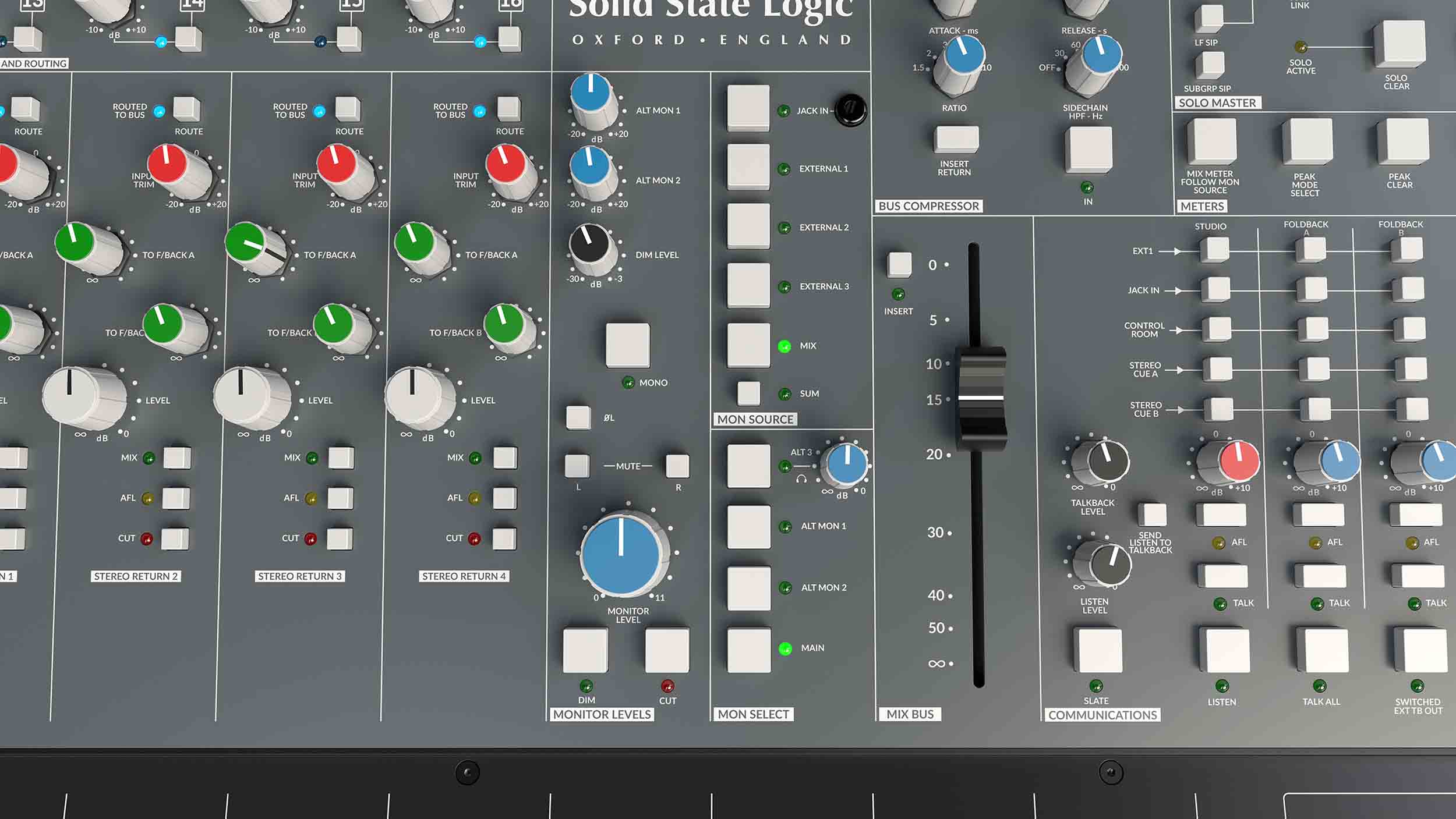

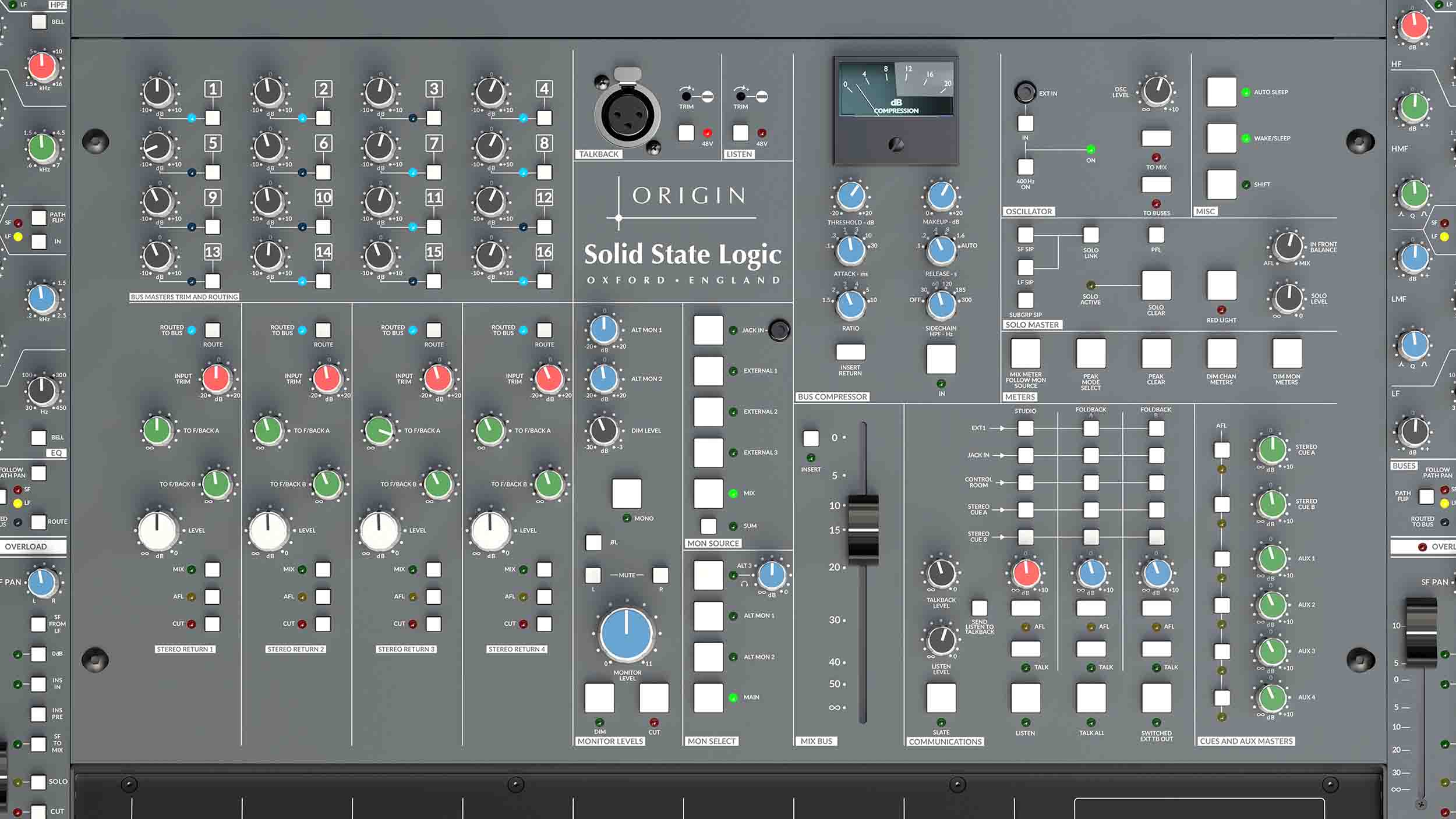

The modular 19" rack-based center section can be repositioned to accommodate outboard gear, workstation controllers, or custom setups. Monitoring is highly flexible, with independent trims, alternate monitors, DIM, MONO, and polarity controls, plus four stereo return inputs for routing to mix and track buses, enabling precise control over complex signal paths.

Workflow and Ergonomics:

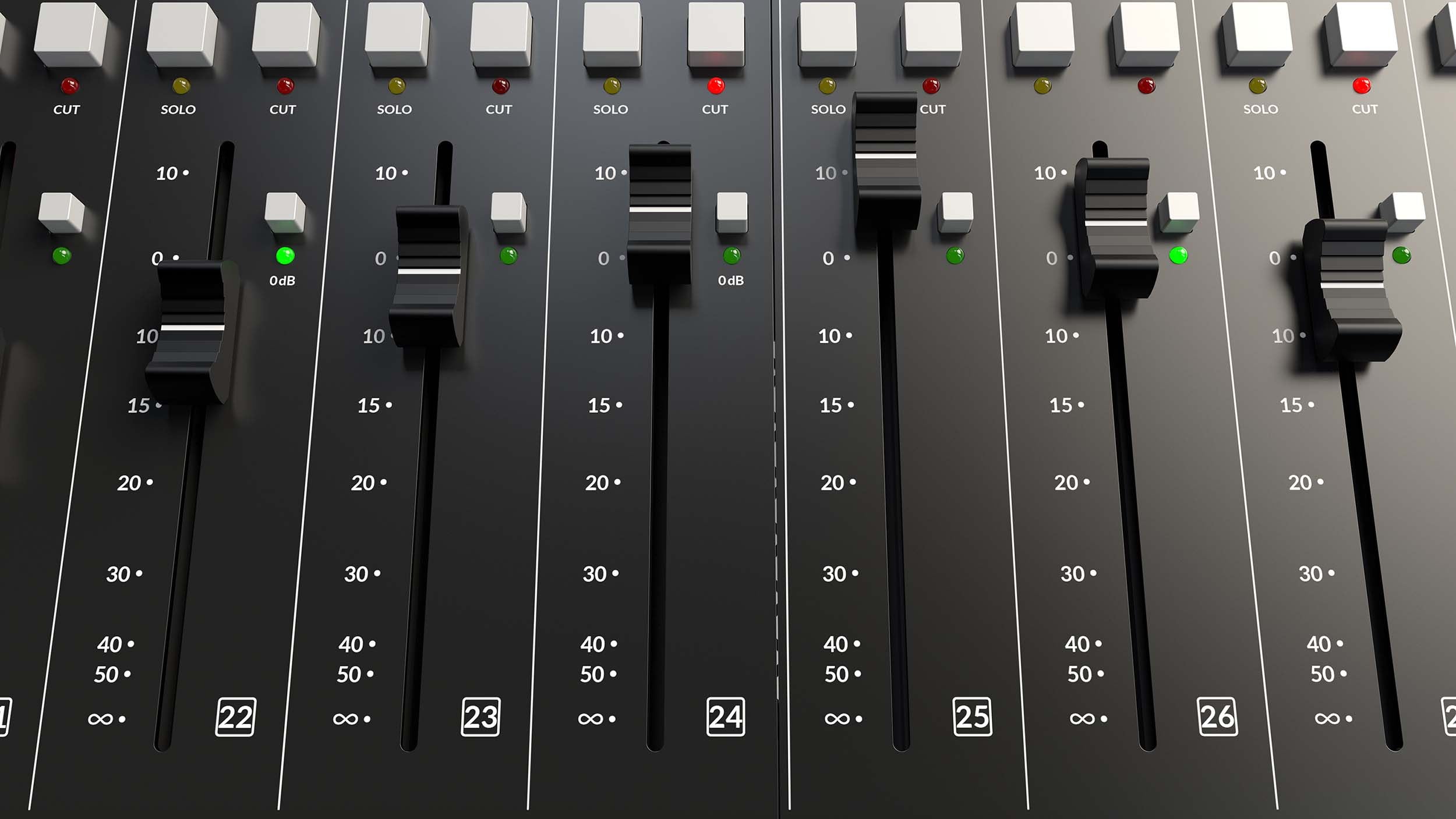

ORIGIN is designed for efficiency and creative workflow. Stem-ready 0 dB fader bypass switches, channel direct outputs, and comprehensive Solo Master controls ensure fast access to essential features. Auto Sleep mode reduces power consumption, while the adjustable meter bridge and ergonomically arranged controls keep the engineer focused on the music rather than the interface.

Product Specifications:

Channel count: 16 mono in-line channels (ORIGIN 16), 32 mono in-line channels (ORIGIN 32)

Track busses: 16

Audio subgroups: 8 stereo subgroups (stereo fader)

Mix busses: 1× stereo

Foldback outputs: 3

Monitor outputs: 4× stereo

Mic preamps: PureDrive mic preamps with ‘Pure’ and ‘Drive’ character modes

Channel EQ: SSL E‑Series 4-band parametric EQ per channel with sweepable HPF

Aux sends: 2× stereo, 4× mono

Channel insert points: 2 balanced inserts per channel (large and small fader paths)

Channel panning: Stereo

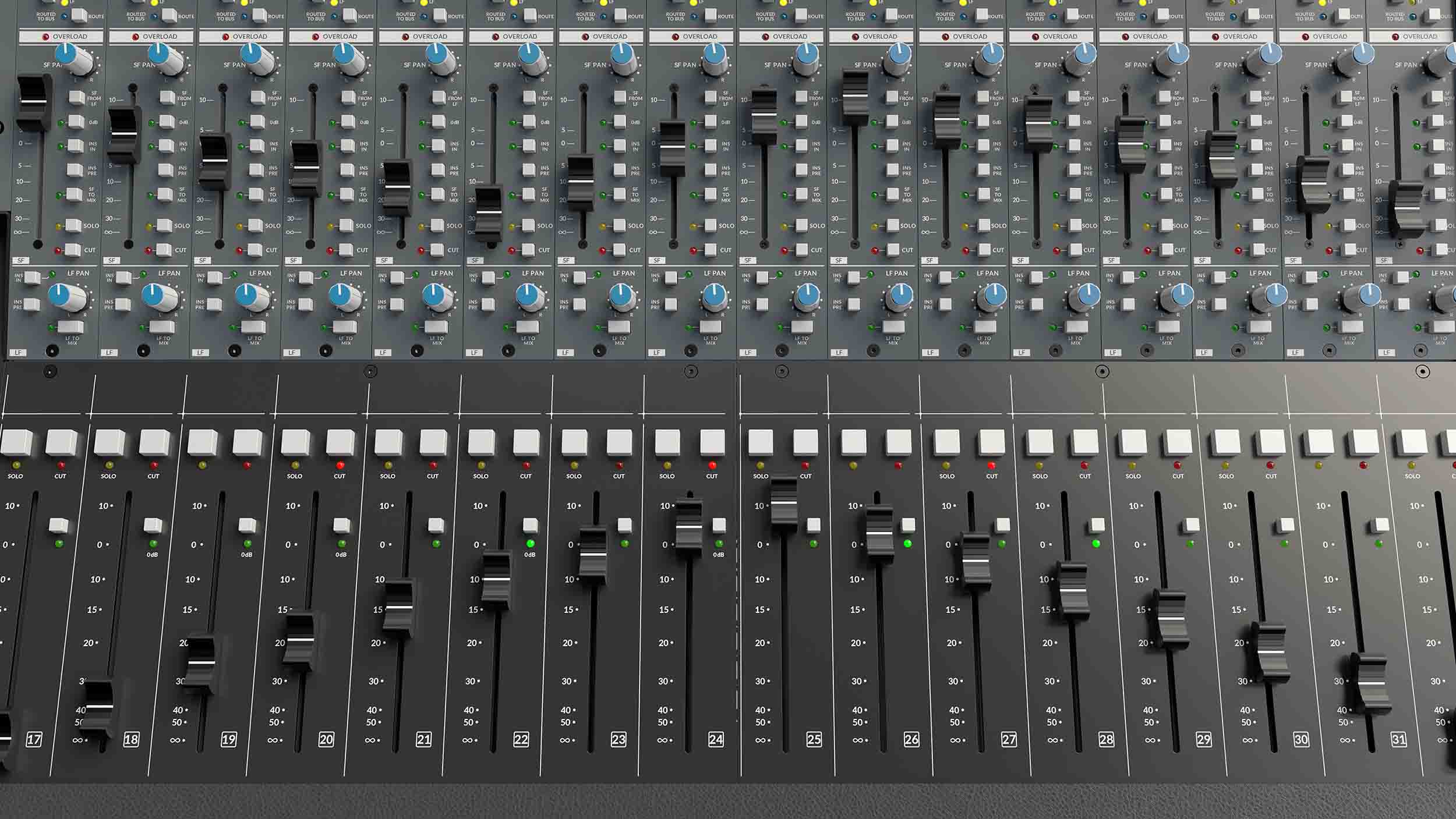

Fader technology: Audio-through faders with 100 mm large and 60 mm small faders on every channel

Mix bus: High-quality 100 mm fader with fully balanced switched insert

Bus compressor: Classic SSL Bus Compressor with enhanced compression ratios, insert return, and sidechain filter

Master control: Comprehensive master section with bus trim masters, routing matrix, Solo Master controls, talkback, and

monitoring controls

Power consumption: Typically, <500 W, up to 600 W max, <40 W in standby

Monitoring section: Independent trims for Alternate Monitors 1 & 2, variable DIM, MONO, L/R mutes, polarity switch, main mix and

external stereo sources selection

Returns: 4 stereo return inputs routable to mix and track buses with stereo foldback feeds

Auto Sleep: Automatic inactivity detection for reduced power consumption

Centre section: Adjustable modular center section with 12 U of 19″ rack space for controllers, keyboard, outboard processing, and

repositionable meter bridge

Product Weight: 198 lbs

Product Dimensions (L × W × H): 43" × 48.03" × 40"
