Description

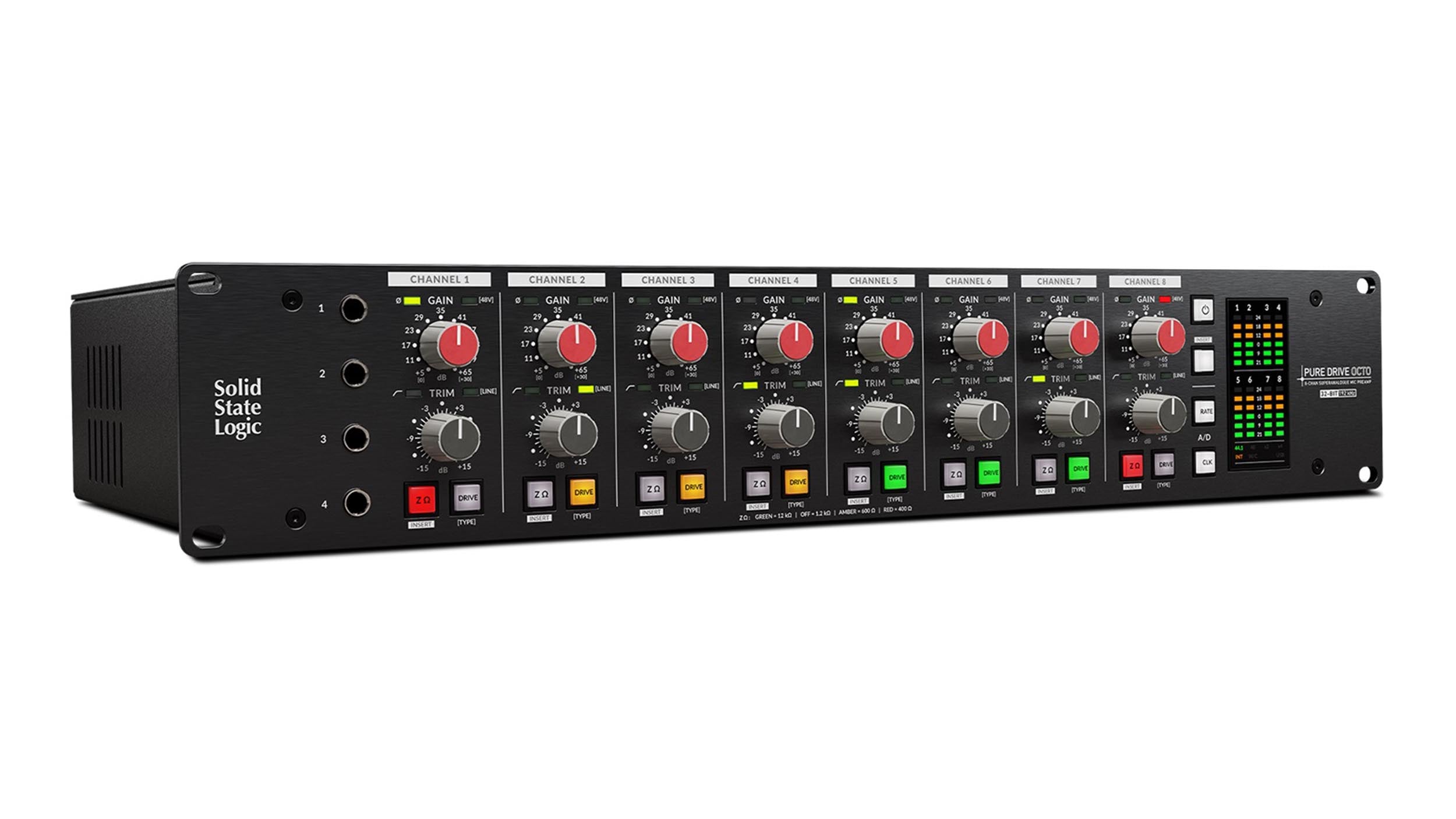

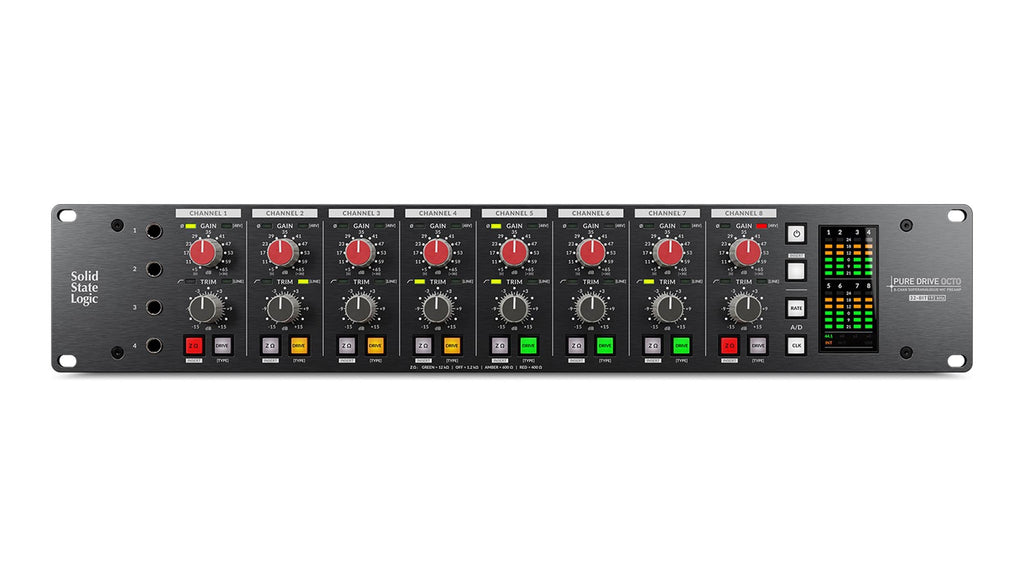

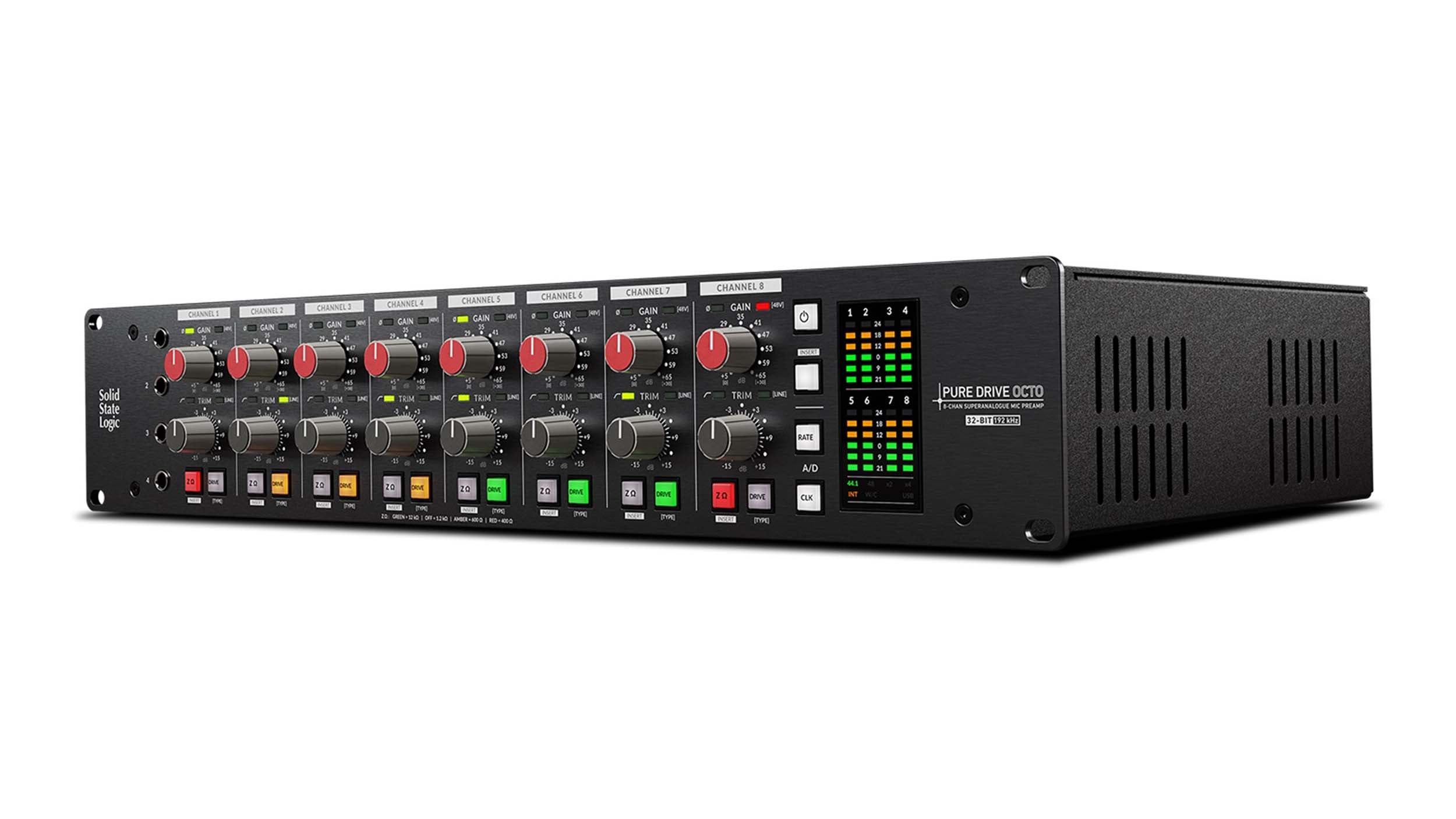

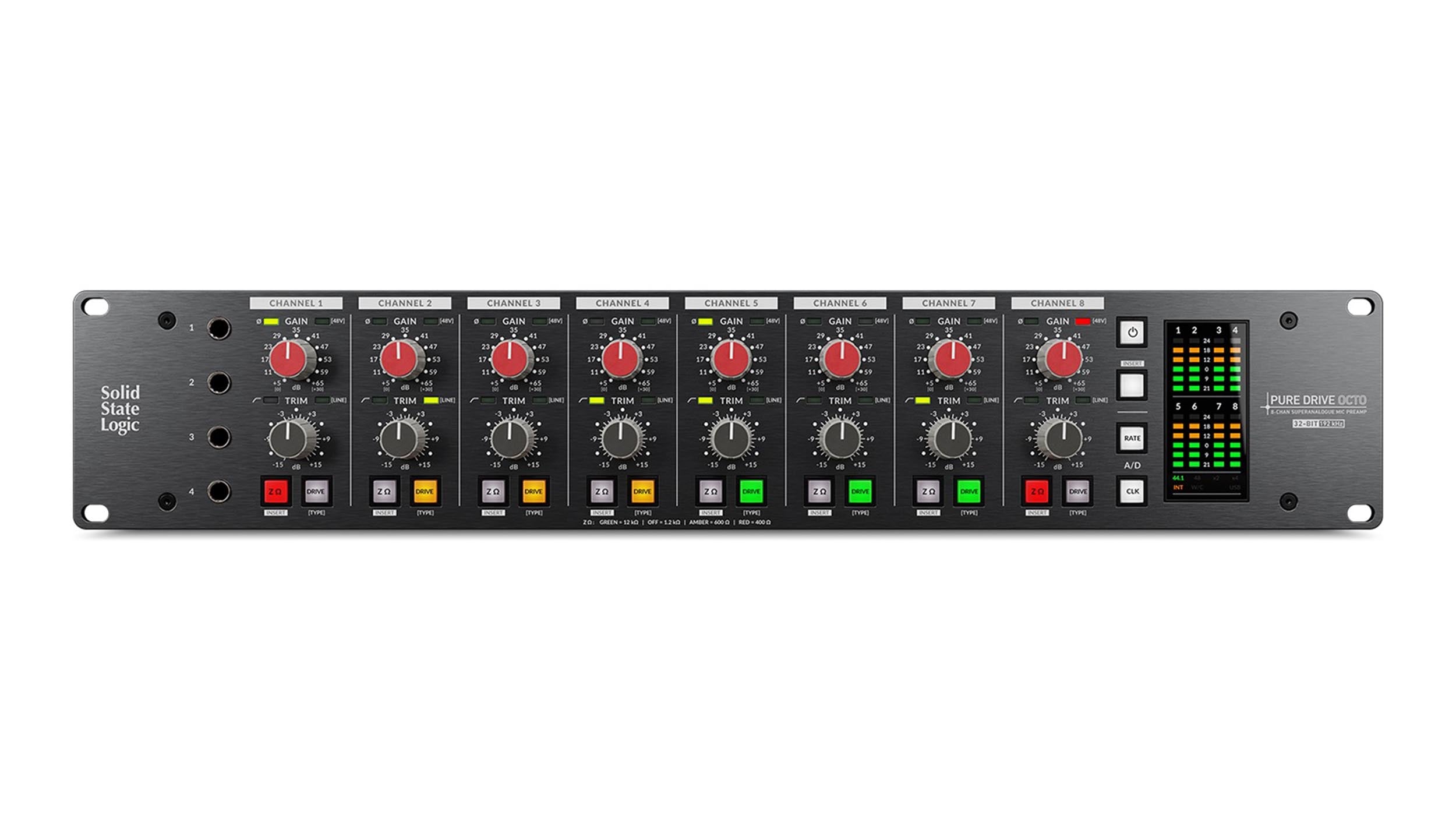

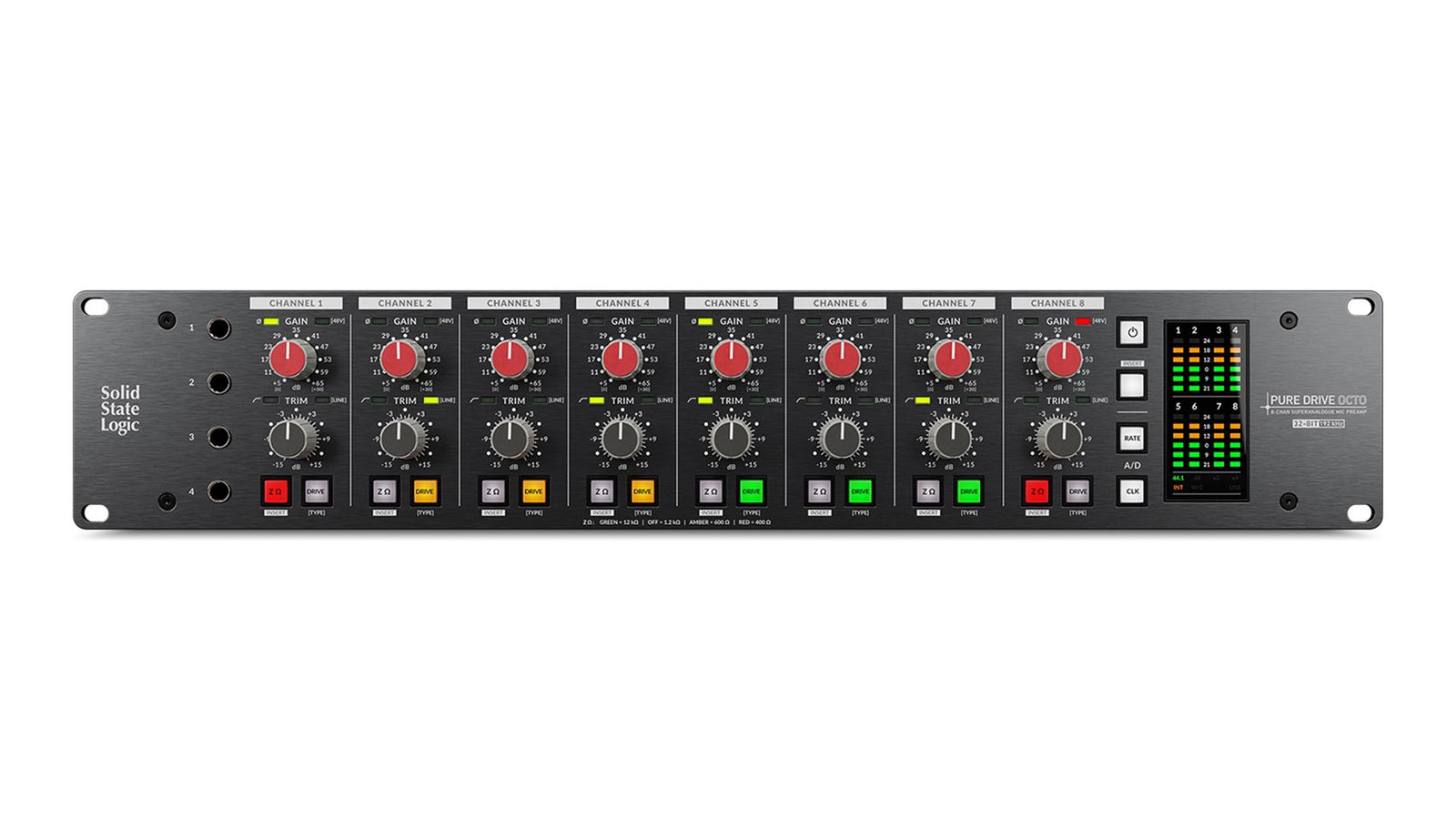

The Solid State Logic PURE DRIVE OCTO brings Solid State Logic’s acclaimed PureDrive microphone preamp technology-originally developed for the ORIGIN console-into a powerful 8-channel rackmount unit. Designed for modern studios, it combines pristine analogue performance with advanced digital integration, delivering unmistakable SSL clarity, punch, and musicality.
Three Distinct Sonic Characters:
Each microphone preamp can be independently switched between Clean, Classic Drive, and Asymmetric Drive modes. Clean mode delivers ultra-transparent, low-noise capture, Classic Drive recreates the harmonically rich drive character of the ORIGIN console, while Asymmetric Drive introduces enhanced even-order harmonics for added thickness and softened transients.
Precision Analogue Design:
PURE DRIVE OCTO uses digitally controlled analogue circuitry with stepped controls to ensure exact channel matching, long-term reliability, and effortless recall. Independent Gain and Trim controls allow engineers to drive the preamp musically while maintaining precise output levels, supported by phantom power, polarity invert, and a fixed 75 Hz high-pass filter on every channel.
Flexible Connectivity & Workflow:
The unit supports microphone, line, and instrument inputs, with front-panel Hi-Z DI connections and multiple impedance options for creative tone shaping. Balanced analogue outputs, insert routing, and professional +24 dBu operating levels make it ideal for both tracking and hybrid analogue workflows.
Modern Digital Integration:
PURE DRIVE OCTO features high-resolution A-D conversion up to 192 kHz / 32-bit, with ADAT, AES, and USB connectivity. USB soundcard mode enables extensive I/O routing, while word clock support and selectable auto-sleep mode ensure seamless integration into advanced studio systems, making it one of the most capable outboard mic preamps available today.
Product Specifications:
Type: 8-channel high-performance PureDrive microphone preamplifier rack unit
Mic preamps: 8 × SSL SuperAnalogue PureDrive microphone preamps
Drive modes: Three selectable modes per channel – Clean, Classic Drive, Asymmetric Drive
Gain control: Stepped gain control up to +65 dB
Trim control: 31-step trim control with precise 1 dB increments
Input impedance: Four selectable mic input impedance options per channel
Phantom power: +48 V phantom power independently switchable per channel
Polarity: Independent polarity invert per channel
High-pass filter: Fixed 75 Hz 3rd-order high-pass filter per channel

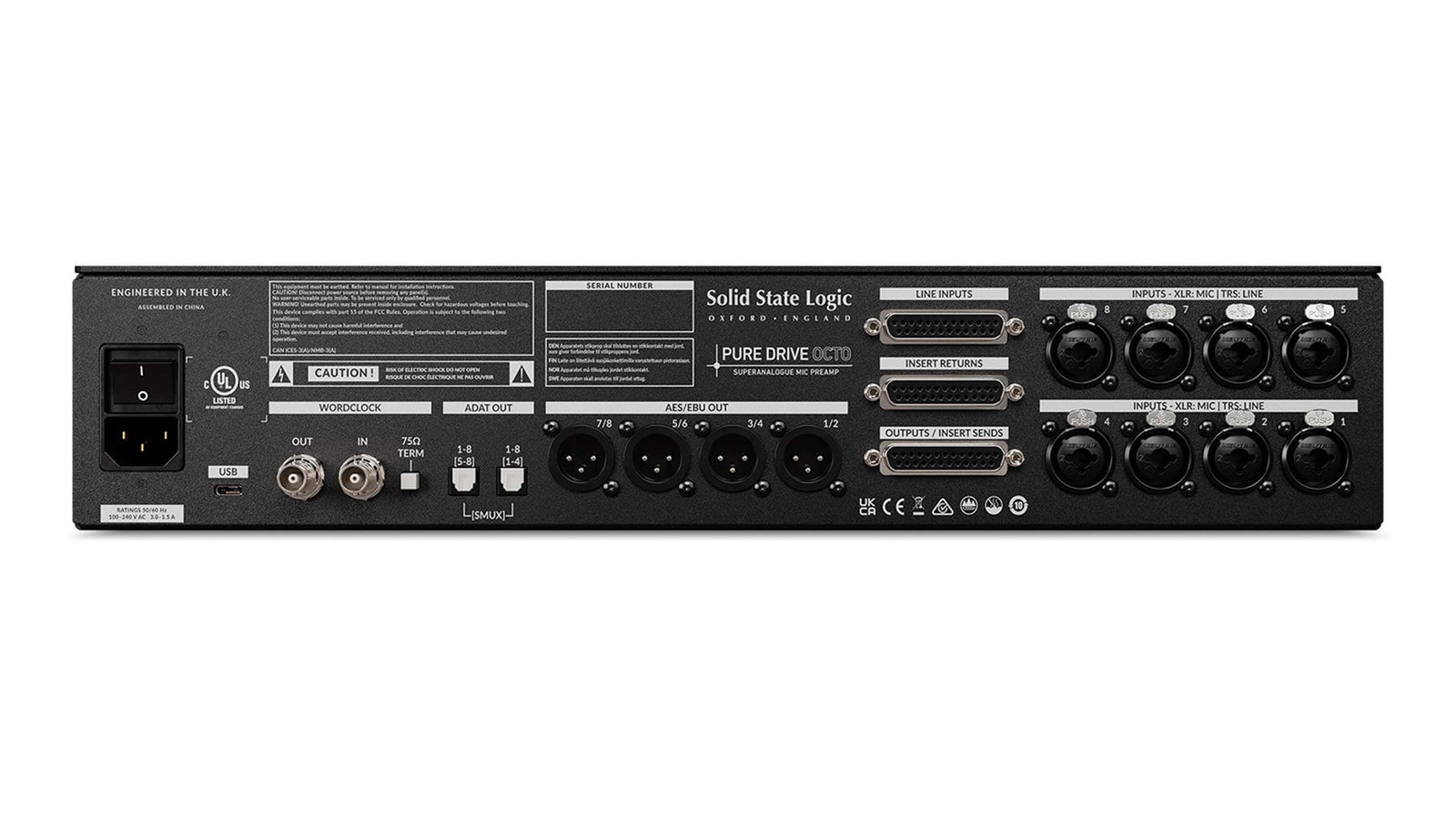

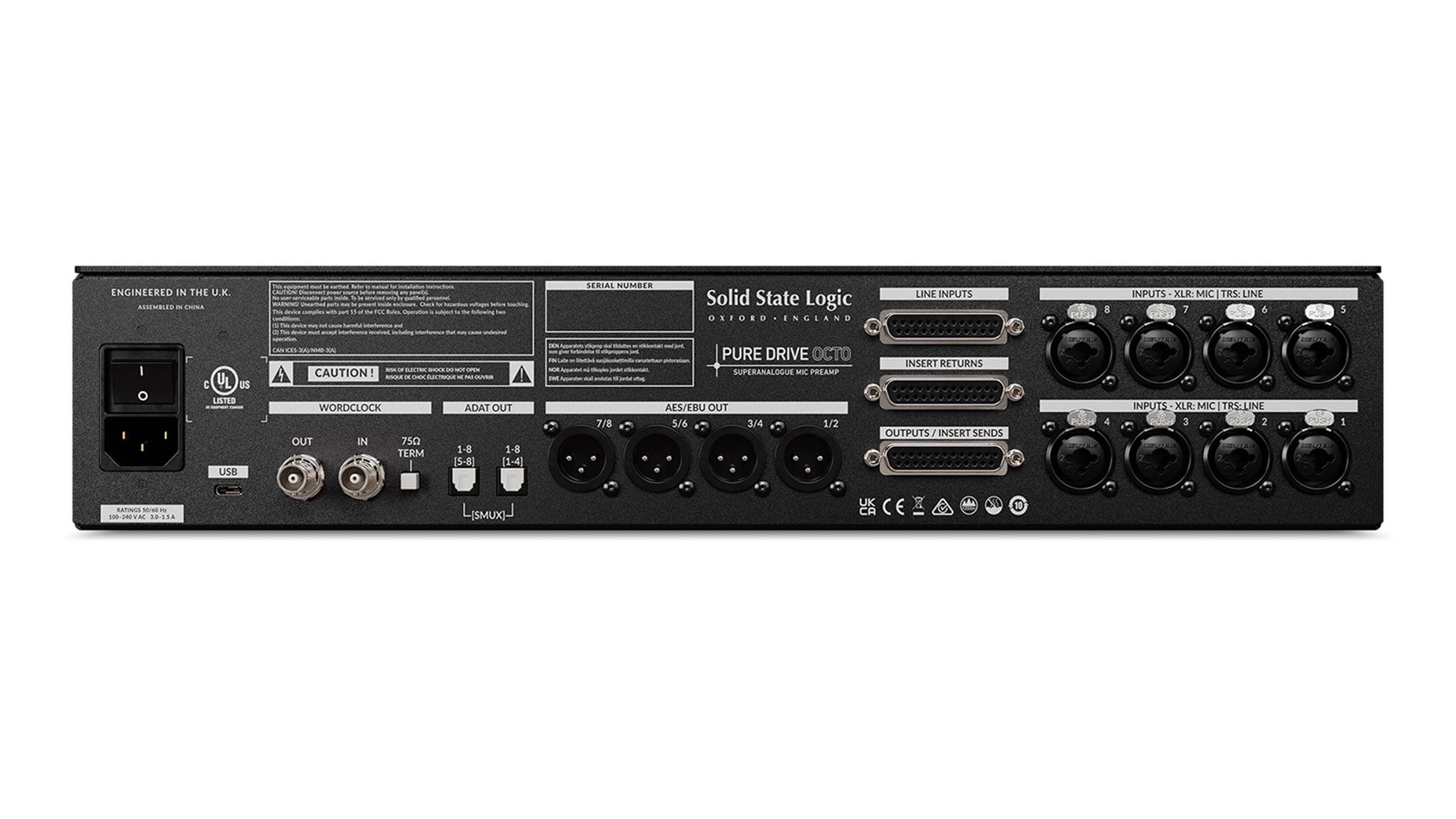

Inputs: Mic via XLR, Line via TRS jack or dedicated D-Sub
Instrument inputs: 4 front-panel unbalanced Hi-Z / DI inputs with automatic input detection
Analogue outputs: Balanced analogue outputs with insert send capability
Insert returns / ADC inputs: +24 dBu professional line-level insert returns
Digital connectivity: ADAT, AES/EBU, and USB audio connectivity
Routing flexibility: ADAT and AES outputs switchable between A/D converter and DAW USB returns
USB interface mode: 8-input / 24-output USB audio interface at 44.1 / 48 kHz
Conversion: Up to 192 kHz sample rate with 32-bit A/D conversion
Operating level: Professional +24 dBu = 0 dBFS
Clocking: Auto-ranging Word Clock input and output
Control design: Digitally controlled analogue circuitry with stepped pots for precision recall
Power management: Selectable Auto-Sleep mode
Form factor: 19-inch rackmount, 2U height
Product Weight: Approximately 13.7 lbs
Product Dimensions (L × W × H): 13.3" × 19" × 3.5"
