Description

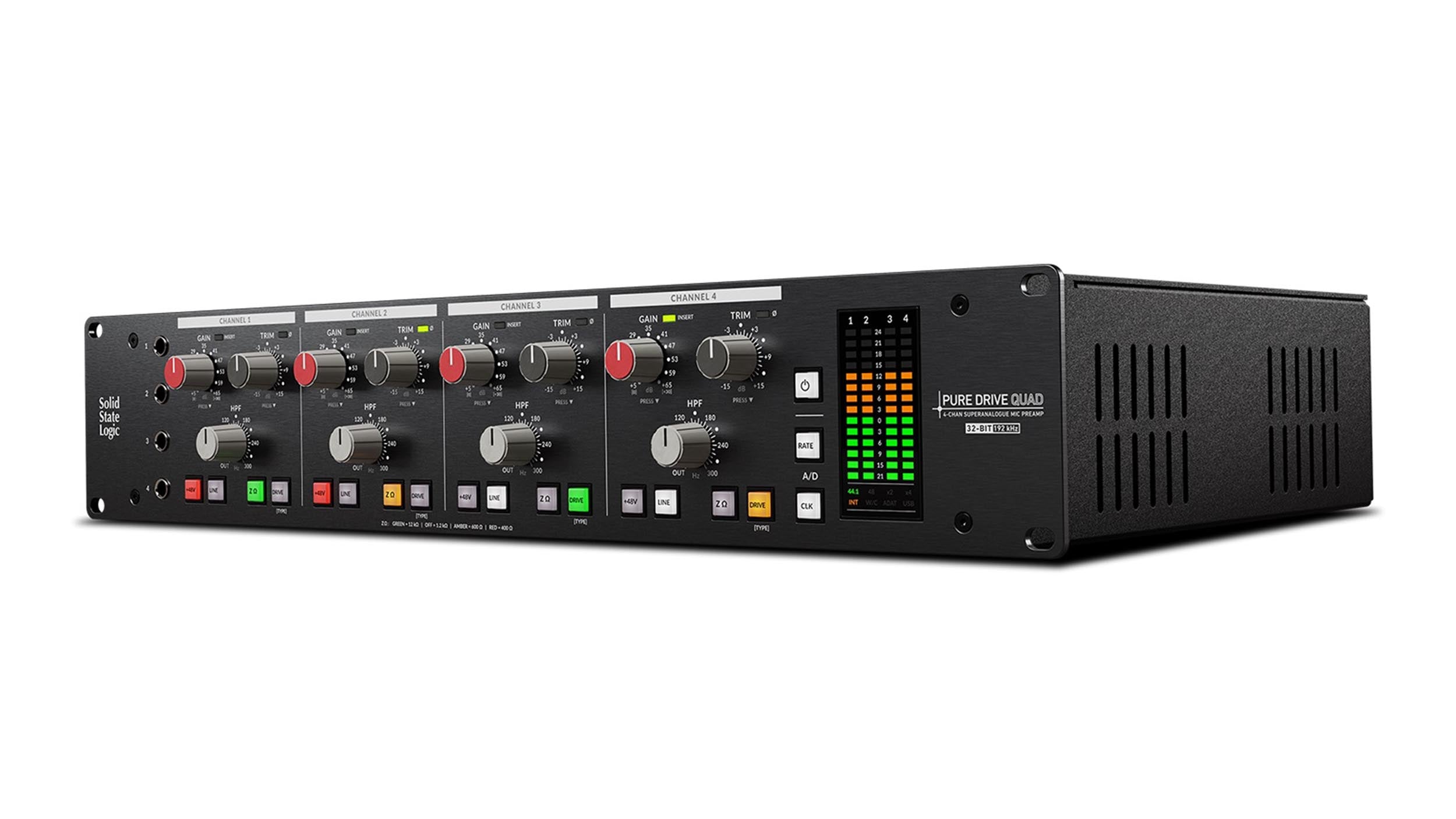

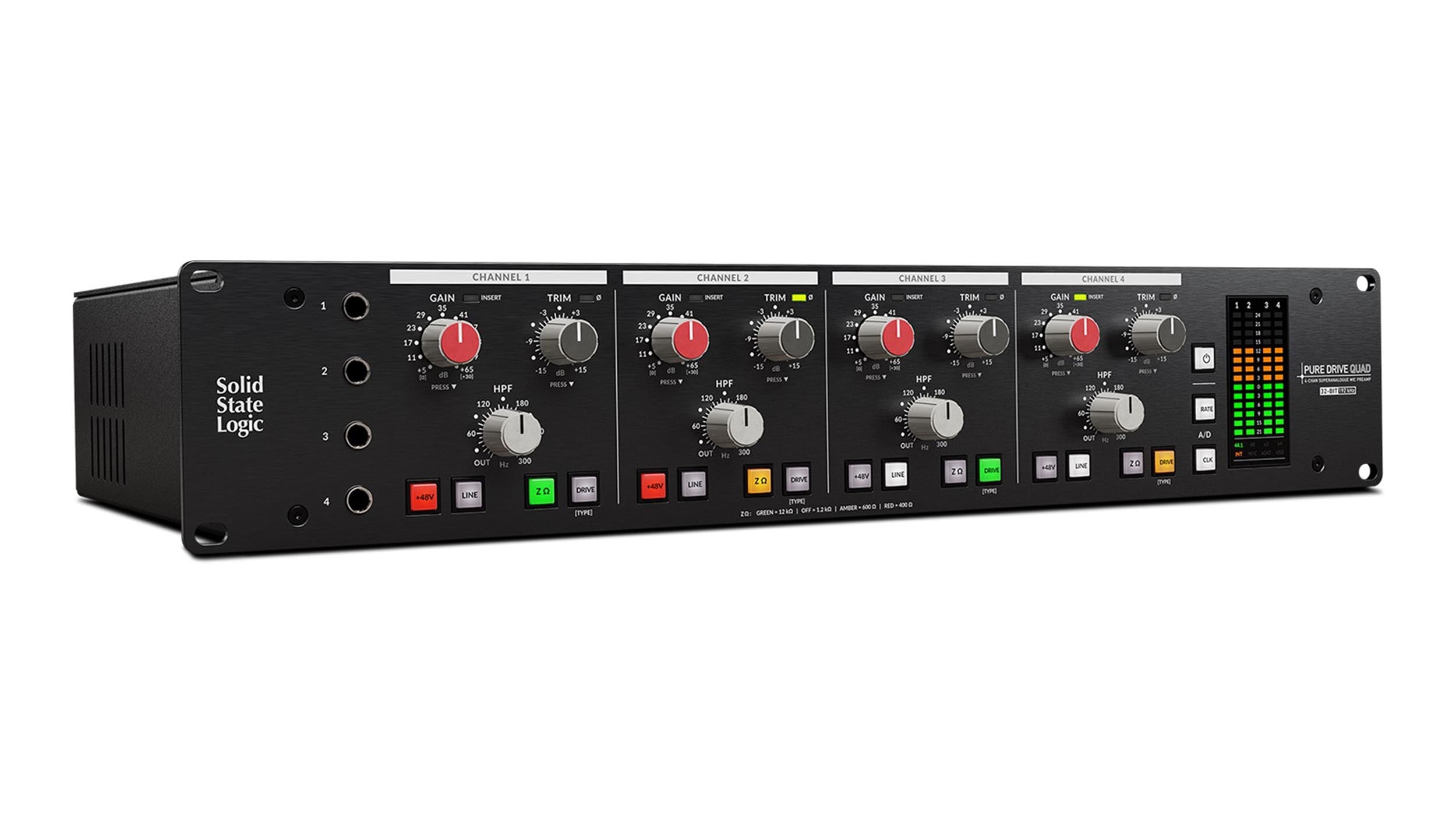

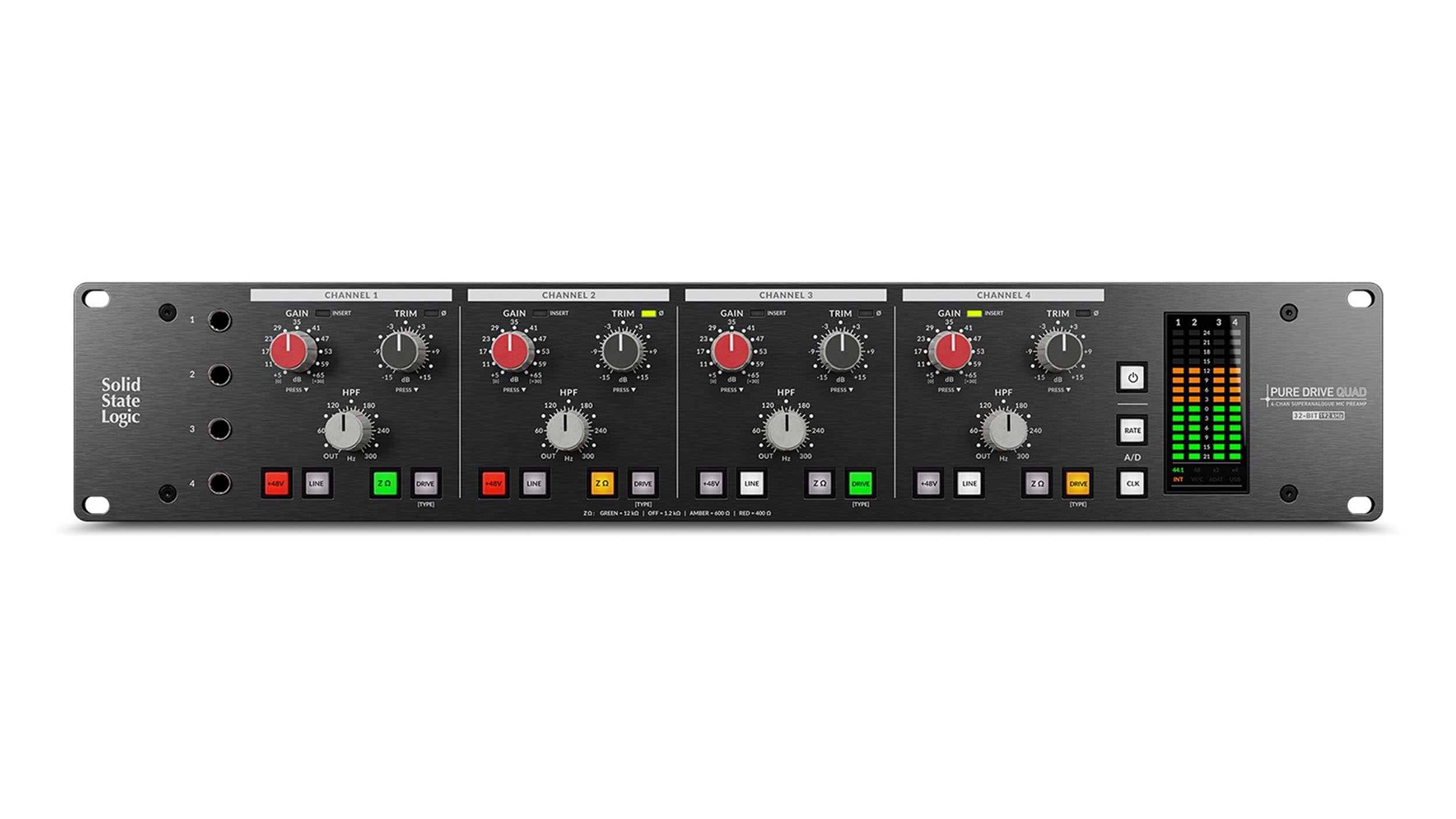

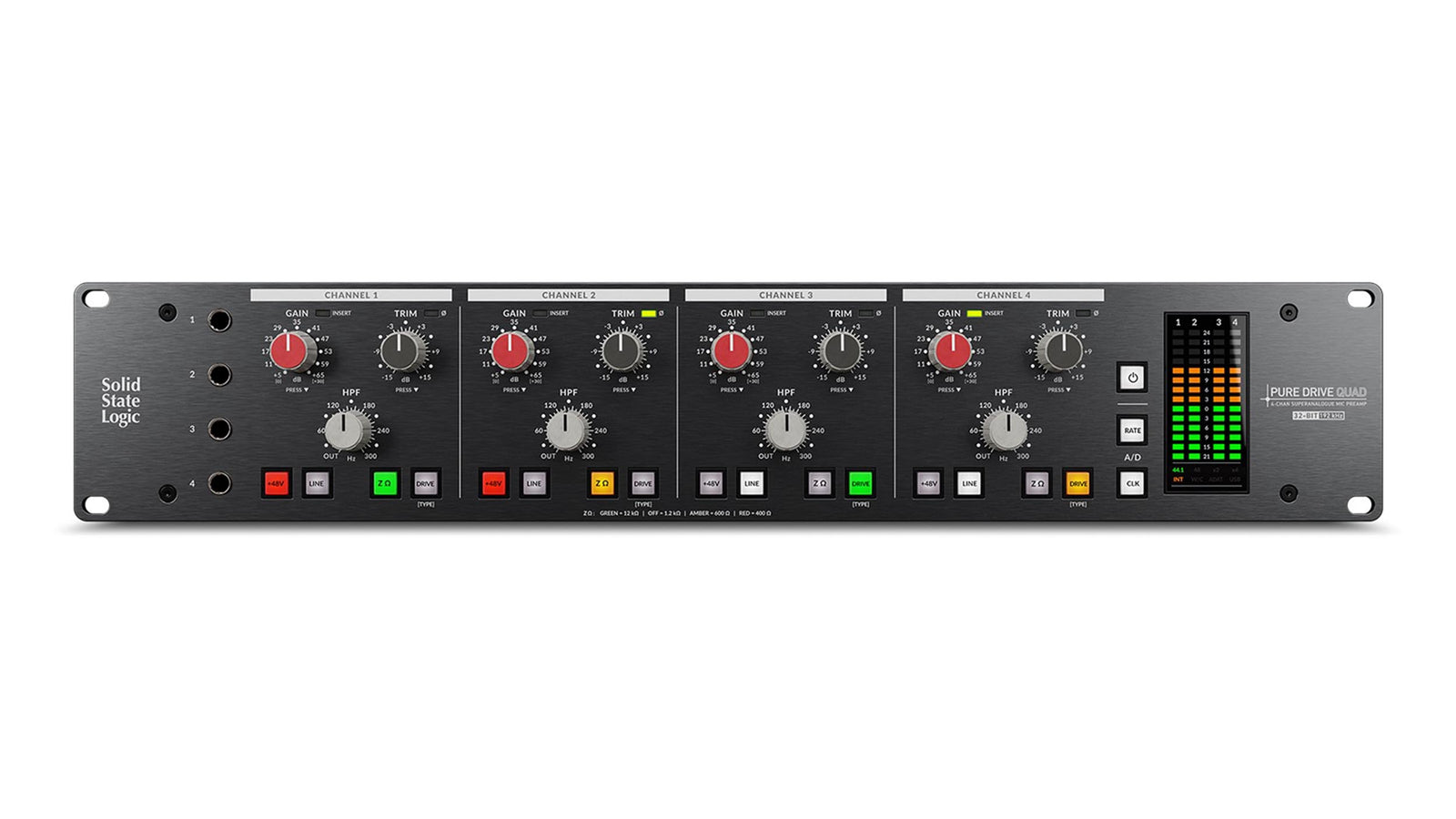

The Solid State Logic PURE DRIVE QUAD brings Solid State Logic’s acclaimed PureDrive microphone preamp technology-first introduced in the ORIGIN console-into a powerful 4-channel rackmount unit. Designed for modern recording environments, it delivers the unmistakable clarity, punch, and musicality that define SSL’s SuperAnalogue sound.
Three Distinct Drive Characters:
Each microphone preamp can be independently switched between Clean, Classic Drive, and Asymmetric Drive modes. Clean mode offers ultra-transparent, low-noise capture, Classic Drive recreates the harmonically rich character of the ORIGIN console, while Asymmetric Drive enhances even-order harmonics for added weight, color, and softened transients.
Precision Analogue Engineering:
PURE DRIVE QUAD uses digitally controlled analogue circuitry with stepped controls to ensure perfect channel matching, long-term reliability, and precise recall. Independent Gain and Trim controls allow creative saturation while maintaining accurate output levels, supported by phantom power, polarity inversion, and a 3rd-order high-pass filter on every channel.
Flexible Studio Connectivity:
The unit supports microphone, line, and instrument inputs, with front-panel Hi-Z DI connections and multiple impedance options for creative tone shaping. Balanced analogue outputs, insert routing, and +24 dBu professional operating levels make PURE DRIVE QUAD ideal for both tracking and hybrid analogue workflows.
Advanced Digital Integration:
PURE DRIVE QUAD features high-resolution A-D conversion up to 192 kHz / 32-bit, with ADAT, AES, and USB connectivity. USB soundcard mode enables extensive I/O routing, while word clock support and selectable auto-sleep mode ensure seamless integration into modern studio systems, making it a highly capable and future-ready mic preamp solution.
Product Specifications:
Type: 4-channel high-performance PureDrive microphone preamplifier rack unit
Mic preamps: 4 × SSL SuperAnalogue PureDrive mic preamps with three drive modes Clean, Classic Drive, Asymmetric Drive
Drive modes: Clean, Classic Drive, Asymmetric Drive per channel
Gain control: Stepped gain control up to +65 dB
Trim control: 31-step trim control with precise 1 dB increments
Phantom power: +48 V phantom power independently switchable per channel
Polarity: Independent polarity invert per channel
High-pass filter: 3rd-order high-pass filter per channel
Mic/Line input switching: Mic via XLR, Line via TRS jack or dedicated D-Sub
Hi-Z/DI inputs: 4 front-panel unbalanced Hi-Z / DI inputs with automatic input detection
Mic preamp impedance options: 4 selectable mic input impedance options
Balanced analogue outputs: 4 analogue outputs with insert send capability
Insert returns / ADC inputs: +24 dBu professional line-level insert returns

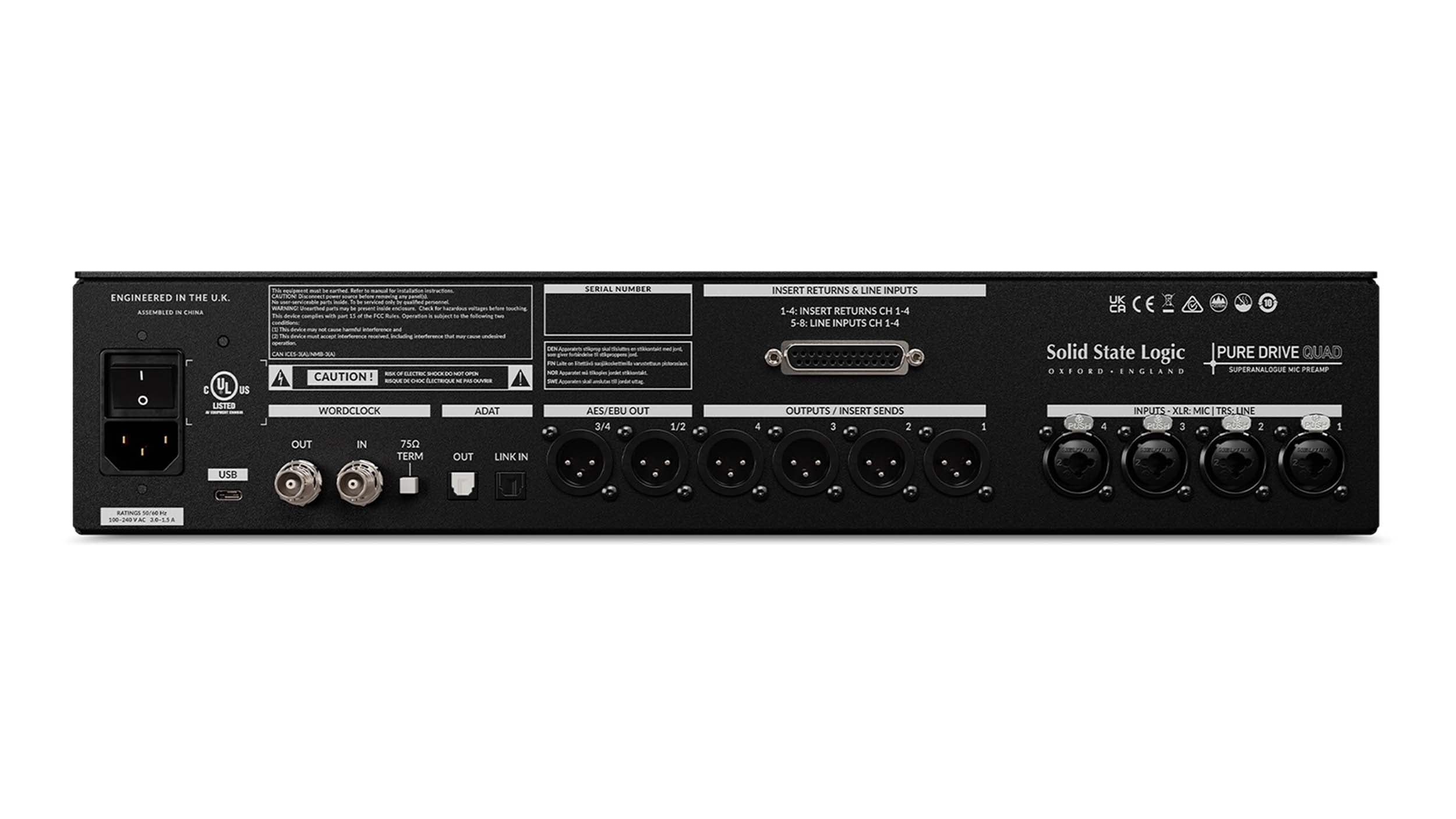

Digital connectivity: ADAT optical, AES/EBU, USB audio connectivity
USB soundcard I/O: 12 in / 12 out at 44.1/48 kHz, 4 analogues + 8 ADAT in via Link In, 4 AES + 8 ADAT outs
Auto-Sleep mode: Selectable auto-sleep for power savings
Wordclock: Auto-ranging Wordclock input and output
A/D conversion: Up to 192 kHz sample rate with 32-bit conversion and professional +24 dBu operating level
Form factor: 19-inch rackmount, 2U height
Additional I/O: USB-C port for computer connectivity
Input impedance detail: 400 Ω, 600 Ω, 1.2 kΩ, 12 kΩ options
Maximum input level: +24 dBu
Maximum output level: +24 dBu
Power: Auto-ranging 100–240 VAC
Operating power: < 27 Watts
Standby power: < 4.8 Watts
Product Weight: 13 lbs
Product Dimensions (L × W × H): 13.3" × 19" × 3.5"
