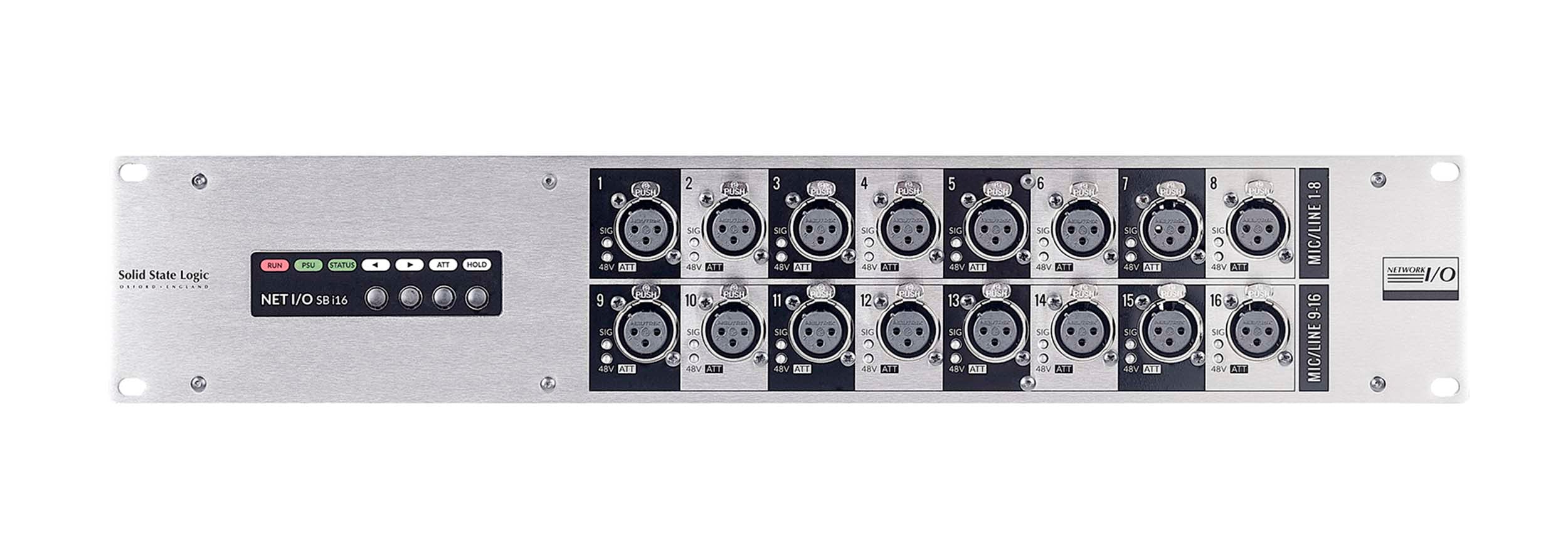

SSL Solid State Logic SBI16 Network I/O Stagebox w/ 16 Mic/Line Inputs

The Solid State Logic SB i16 is a high-performance 2RU audio interface designed for setups requiring a larger number of mic inputs. It offers sixteen mic/line inputs, providing expanded connectivity for more complex live or studio environments. Like other models in the range, it features redundant RJ45 Dante network connections and network extension ports, ensuring reliable digital audio transmission. Additional GPIO connectivity and redundant power supplies further enhance operational security and system stability.

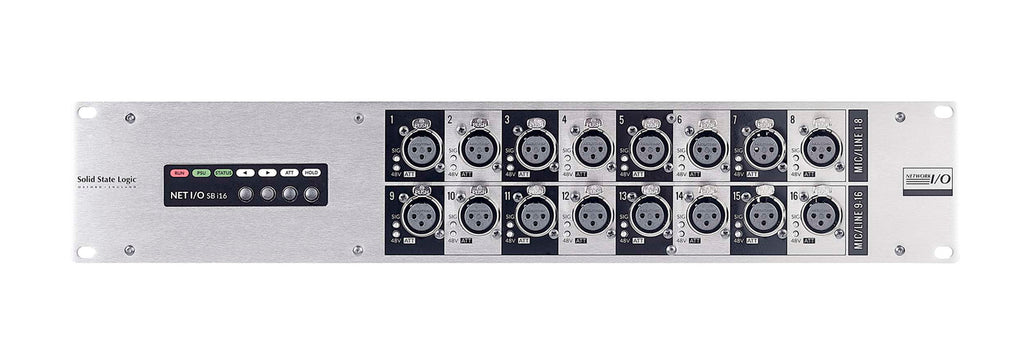

The front panel delivers clear, intuitive feedback for each channel with individual signal present, phantom power, and local attention LEDs. This allows engineers to monitor input status at a glance and make quick adjustments when needed. The unit also incorporates built-in limiters to protect inputs from overload, along with SSL’s innovative AutoPad system. AutoPad automatically applies the correct pad based on gain settings, ensuring the full mic gain range is available at all times without manual intervention.

For ease of setup, the SB i16 includes an Audition feature that automatically reduces gain when checking microphone levels. This simplifies pre-show mic checks and ensures accurate input levels for operators of any experience level. Combining extensive input capacity, intelligent gain management, and reliable network connectivity, the SB i16 provides a robust and flexible solution for professional audio applications.

Product Specifications:

Mic/line inputs: 16 mic/line inputs

Dante network: Redundant RJ45 Dante primary and secondary network connections

Network extension: Redundant network extension ports

GPIO: GPIO connectivity for tally and control

Power supplies: Redundant power supplies

Front panel LEDs: Individual signal present, phantom power, and local attention LEDs

Limiter: Inbuilt limiters on inputs

AutoPad: SSL AutoPad system automatically applies a pad according to gain setting

Audition feature: Automatic gain reduction when checking mic levels

Compatible control: Remote controllable via SSL Live consoles, System T broadcast consoles, and SSL Network I/O Controller

application

AoIP support: Interface for Dante and AES67 audio over IP networks

SuperAnalogue technology: Studio‑grade SuperAnalogue mic preamps

Gain range: +5 to 79 dB

Maximum input level: +28 dBu (pad inserted)

Frequency response: ±0.25 dB (20 Hz – 20 kHz)

Equivalent input noise: < -123 dB

Usable dynamic range: > 114 dB

Input impedance: 1.5 kΩ / 14 kΩ selectable

CMRR: > 55 dB (typically > 65 dB), > 80 dB (typically > 90 dB)

Crosstalk: < -85 dB (typically < -95 dB)

THD+N: < 0.005 % (< 0.0015 % at 1 kHz)

Phantom power: +48 V ±4 V per channel

Pad (mic input): 20 dB selectable

Operating levels: +24, +22, +20, +18, +15 dBu

Sample rates: 48 or 96 kHz

Resolution: 24‑bit

Power consumption: < 100 W

Product Weight: 15.4 lbs

Product Dimensions (L × W × H): 12" × 19" × 3.5"

Width Excluding Rack Ears: 17.25 in

Width Including Rack Ears: 19 in

Shipping Weight: 18.7 lbs
