Soundcraft EPM6 6 Mono + 2 Stereo Channel Recording & Live Sound Audio

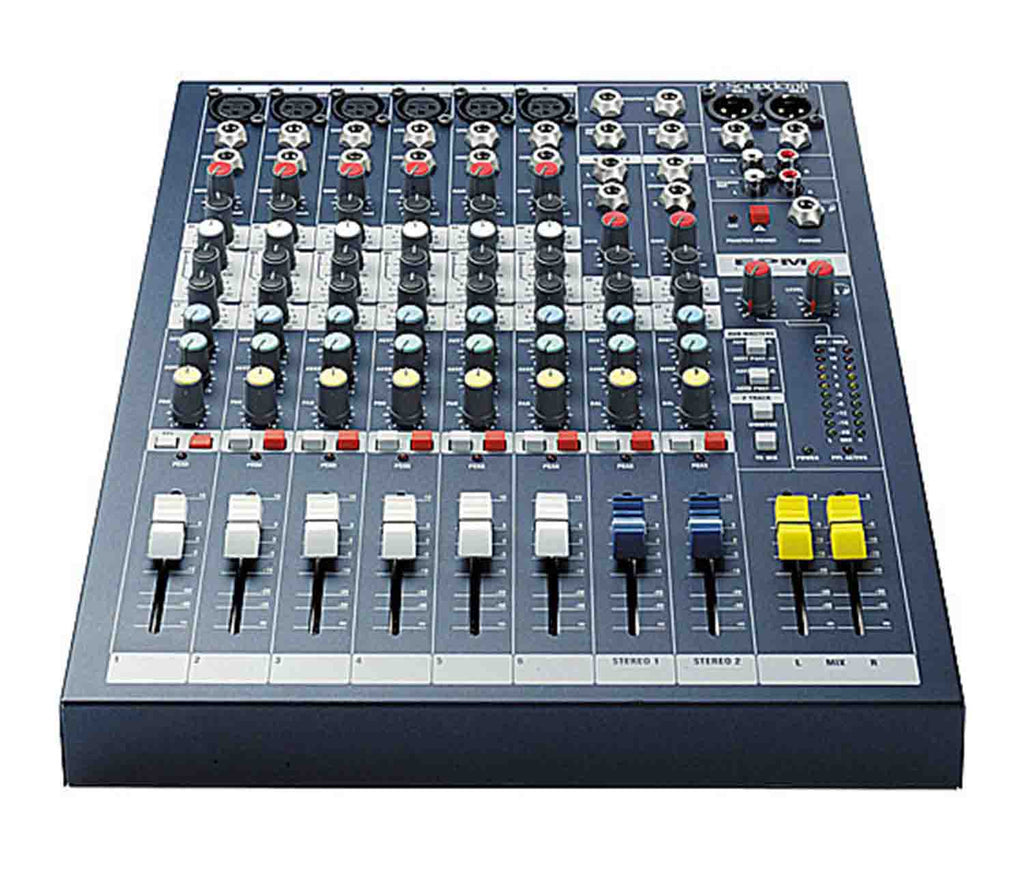

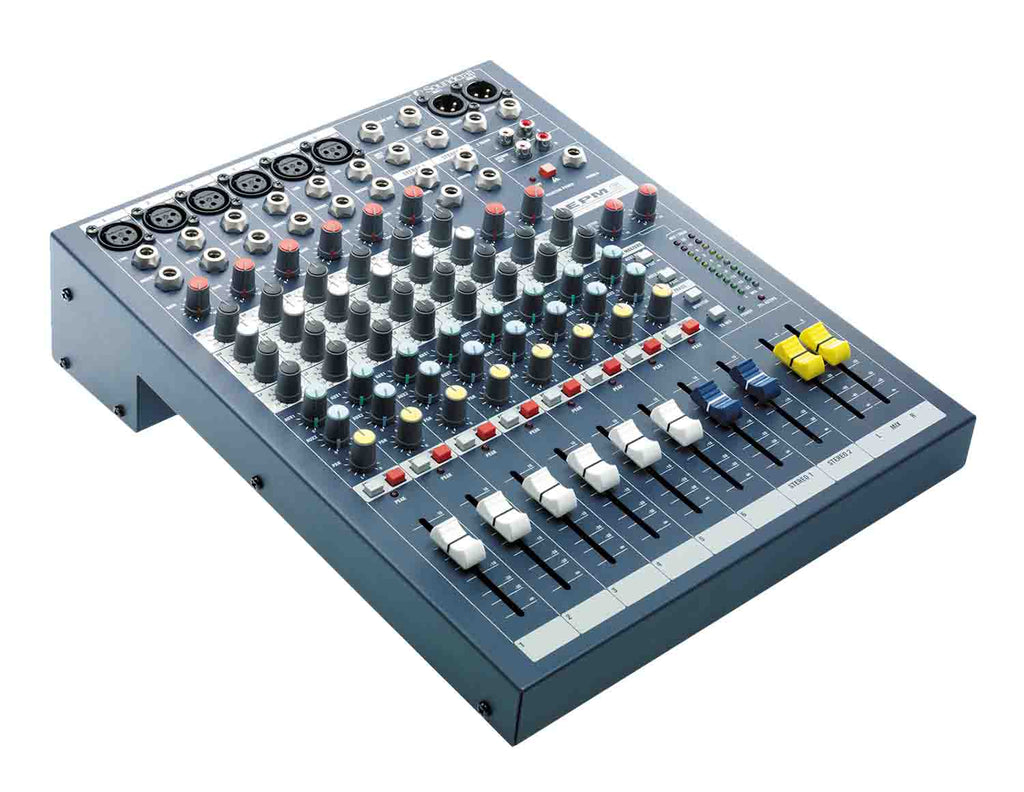

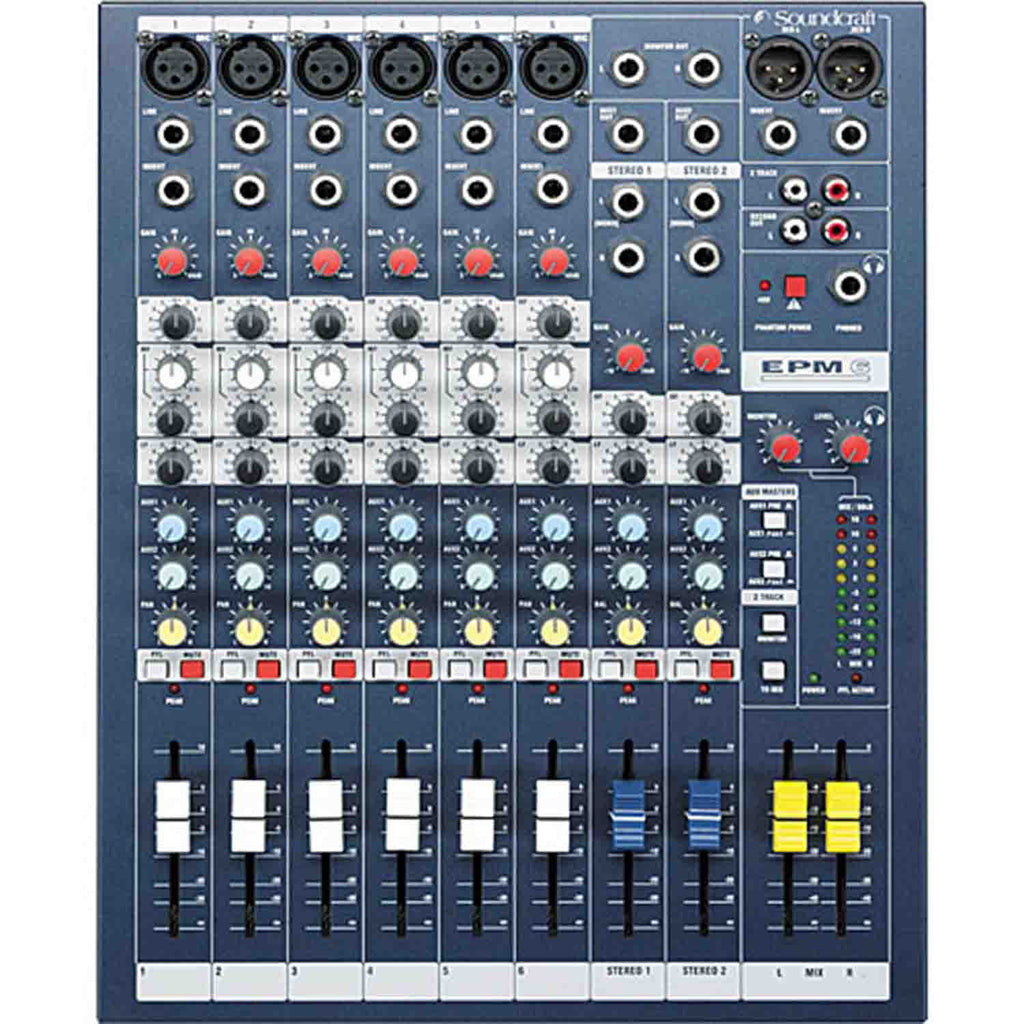

The Soundcraft EPM6, 6 Mono + 2 Stereo Channel Recording & Live Sound Audio Console. The emphasis with the Soundcraft EPM is very firmly on quality build and audio performance, with an easy-to-understand control surface uncluttered by unnecessary facilities, and Soundcraft have brought new technologies and ideas to this very cost-effective range. Surface mount technology is used throughout, using close-tolerance components for high accuracy and repeatable settings for EQ and gain controls. The highly-transparent GB30 Mic amp (designed by Graham Blyth for the company’s 30th anniversary, and also used on the larger LX7ii and GB Series consoles) features high-resolution adjustment over a wide gain range of 55dB, and provides a stunning +22dB headroom through the console. True professional 48-volt phantom power caters for condenser microphones of all types. The EPM 6 features 6 mono mic inputs, 2 configurable auxiliary buses, RCA phono stereo playback inputs and record outputs, 3-band EQ with a swept mid-on mono inputs, and TRS insert sockets and inserts on all mono inputs and mix output.

Product Specifications:

Type: Analog

Channels: 8 (6 Mono 2 Stereo)

Inputs - Mic Preamps: 6 x XLR

Phantom Power: Yes, Global

Inputs - Line: 10 x 1/4"

Inputs - Other: 6 x 1/4" (Insert)

Outputs - Main: 2 x XLR

Outputs - Direct: 2 x 1/4"

Outputs - Other: 2 x 1/4" (Monitor), 2 x stereo RCA

Aux Sends: 2 x 1/4"

Headphones: 1 x 1/4"

EQ Bands: 3-band, Sweepable Mid

Rackmountable: Yes

Power Source: Standard IEC AC cable

Height: 3.56"

Width: 11"

Depth: 14.25"

Weight: 11.02 lbs.
