Soundcraft Ui12, 12-Input Remote-Controlled Digital Mixer

The Soundcraft Ui12 is a 12-Input Remote-Controlled Digital Mixer. The Ui Series mixers feature cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously. In addition, the Ui12 and Ui16 each feature built-in HARMAN signal processing from dbx, DigiTech and Lexicon, including dbx AFS2, DigiTech Amp Modeling, and more. Both models feature fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate on input channels.

Both mixers offer 31-band graphic EQ, noise gate, and compressor on all outputs, plus a real-time frequency analyzer (RTA) on inputs and outputs. Built-in are three dedicated Lexicon FX busses: Reverb, Delay, and Chorus. In addition, mixer controls include Subgroups, Mute groups, and View groups, among others. The Ui Series mixers feature full Show/Snapshot recall ability with channel recall safes. while security lockout features allow customization of device access to only specific functions and mixes if needed. Both mixers also offer independent network interfaces on board for simultaneous control by Wi-Fi and Ethernet, plus a floor-ready rugged chassis for live applications.

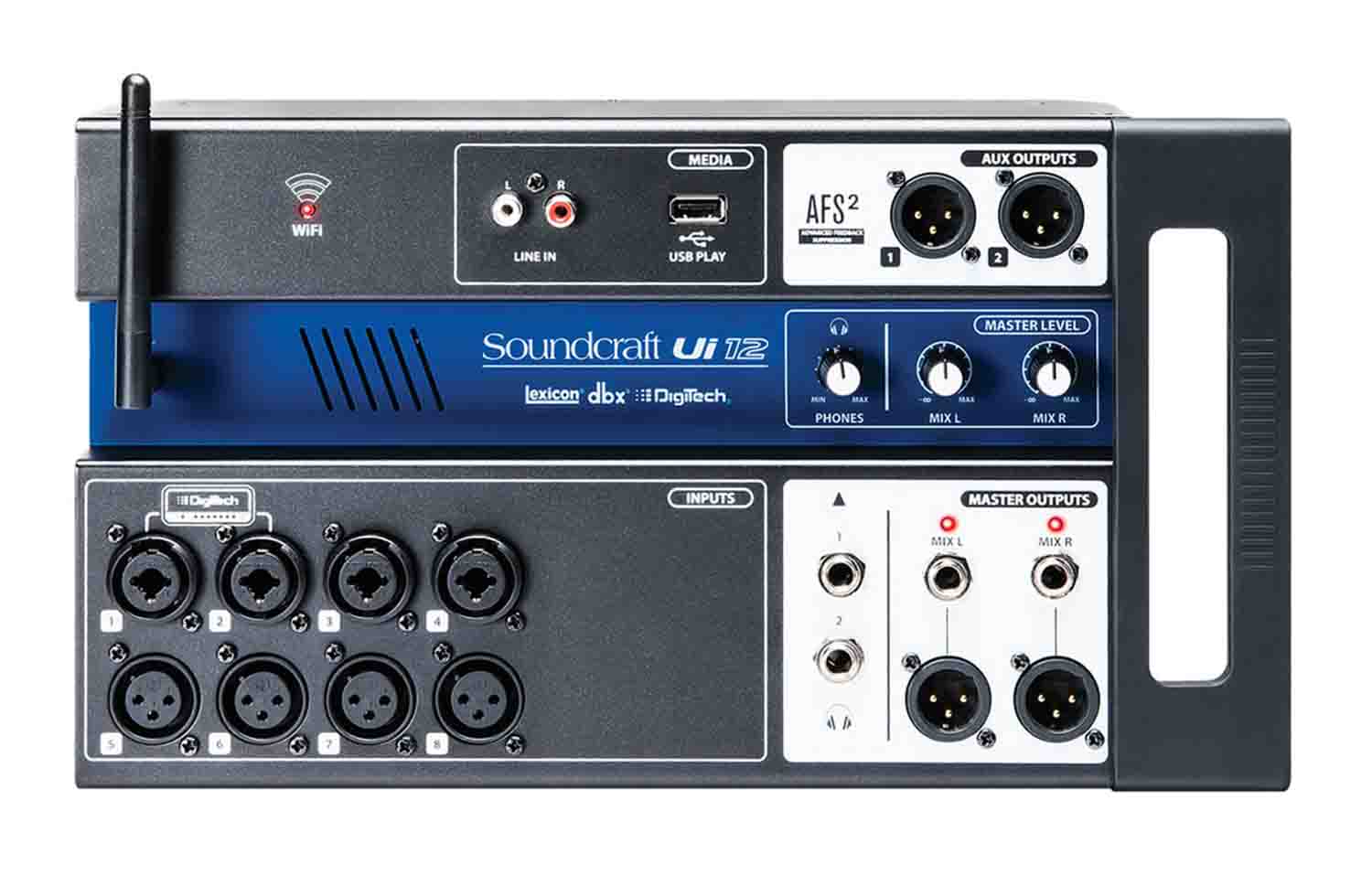

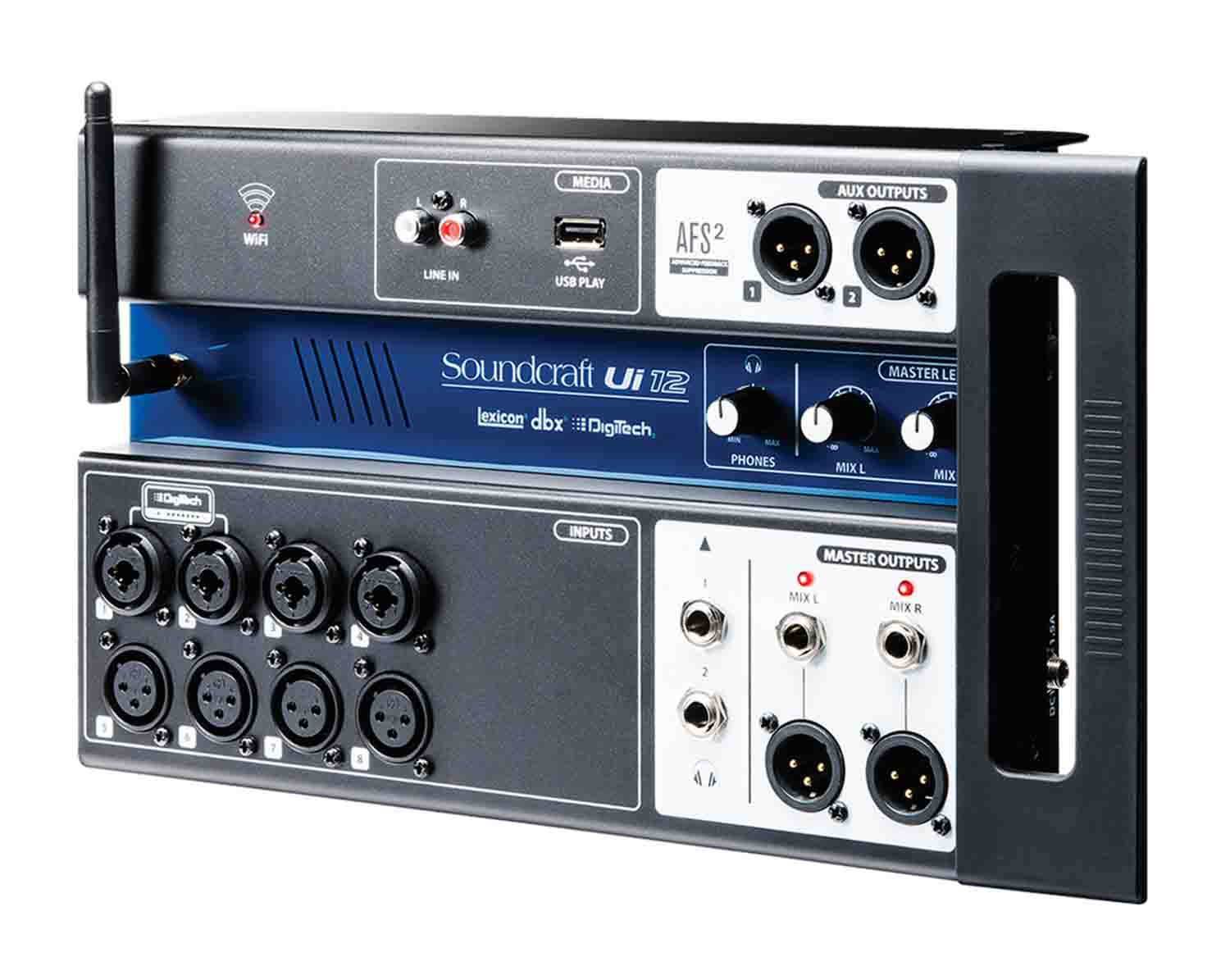

The Ui12 also features four XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi- Z/instrument inputs, as well as a stereo RCA line input. A 2-channel USB media player is included, along with two balanced XLR Aux outputs, two quarter-inch headphone outputs with level control, plus balanced stereo XLR and quarter-inch main outputs. Two-channel USB audio playback is compatible with MP3, WAV, and AIFF formats.

Product Specifications:

Type: Digital

Channels: 12

Inputs - Mic Preamps: 4 x XLR-1/4" combo, 4 x XLR

Inputs - Other: 1 x Stereo (RCA)

Outputs - Main: 2 x XLR, 2 x 1/4"

Outputs - Other: 2 x XLR (aux)

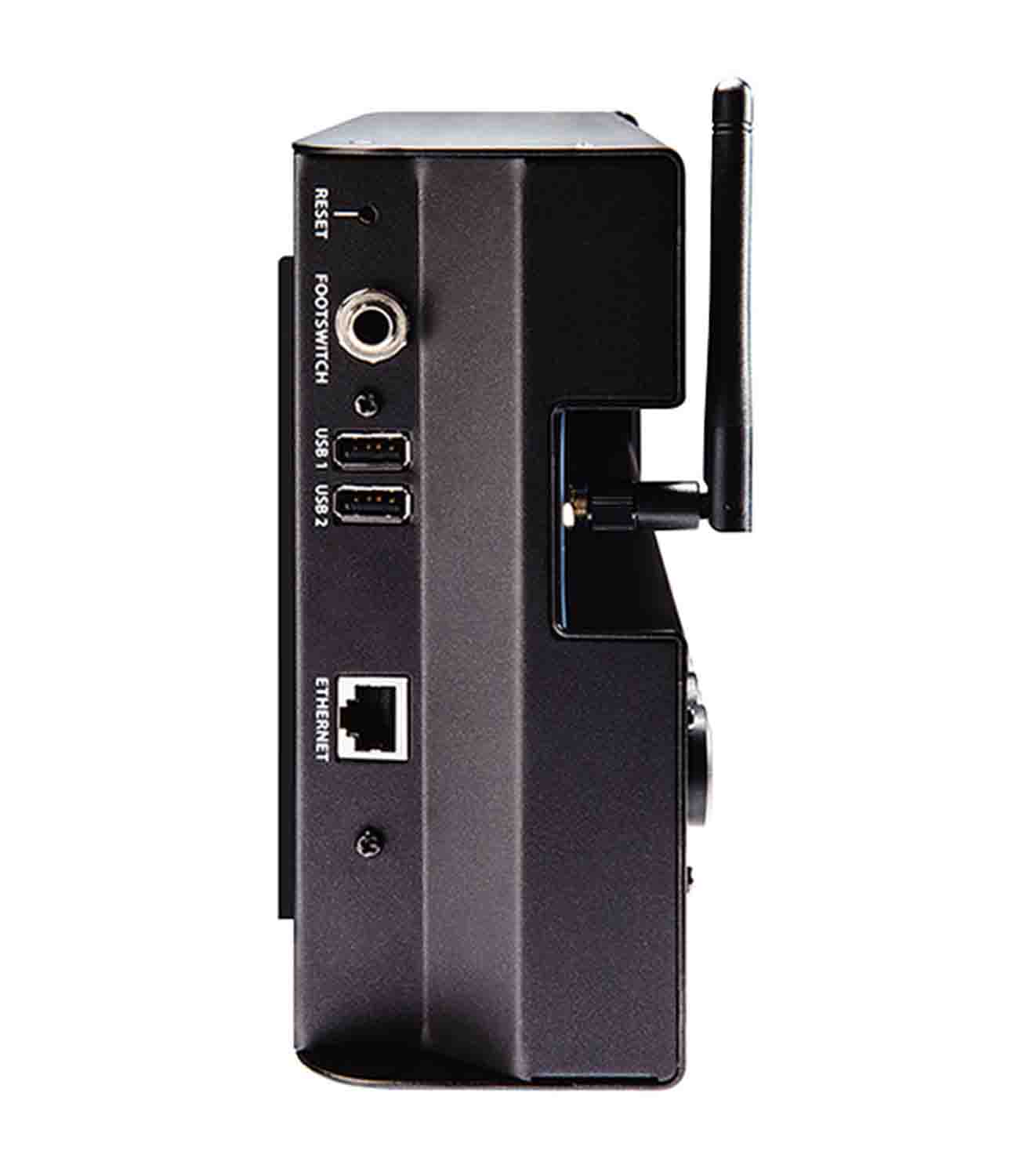

Data I/O: Ethernet

USB: 21 x Type A

Computer Connectivity: Ethernet, Wi-Fi

Headphones: 2 x 1/4"

EQ Bands: 4-band Parametric

Effects: Yes

Rackmountable: No

Height: 7"

Depth: 3.3"

Width: 12.6"

Weight: 5 lbs.
