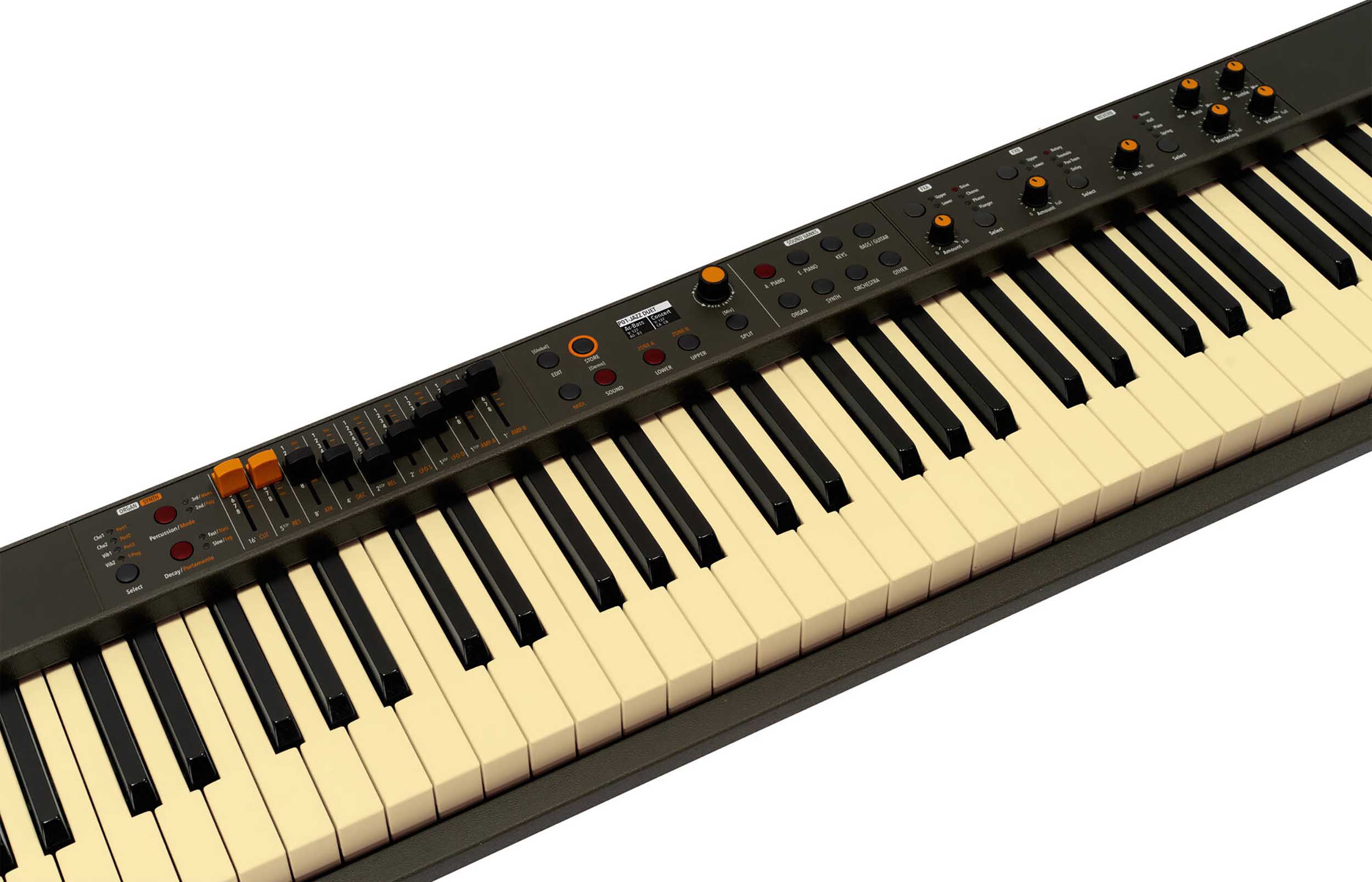

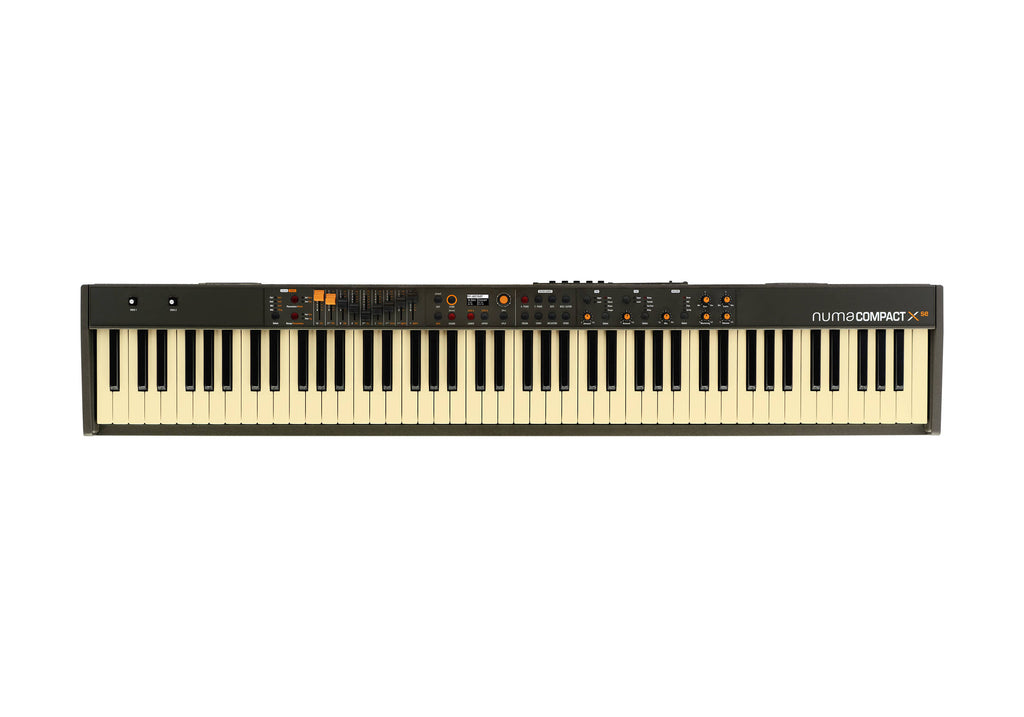

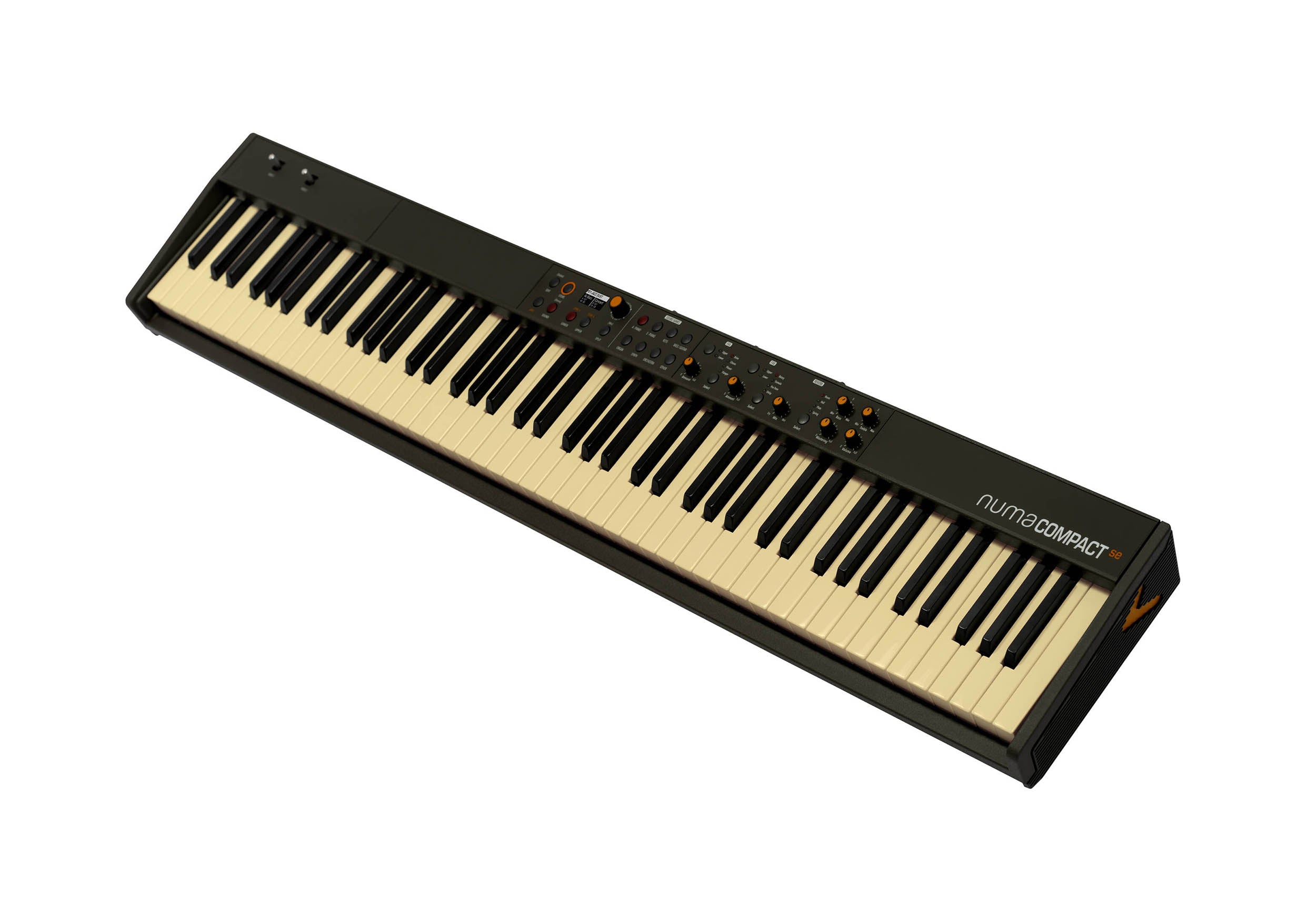

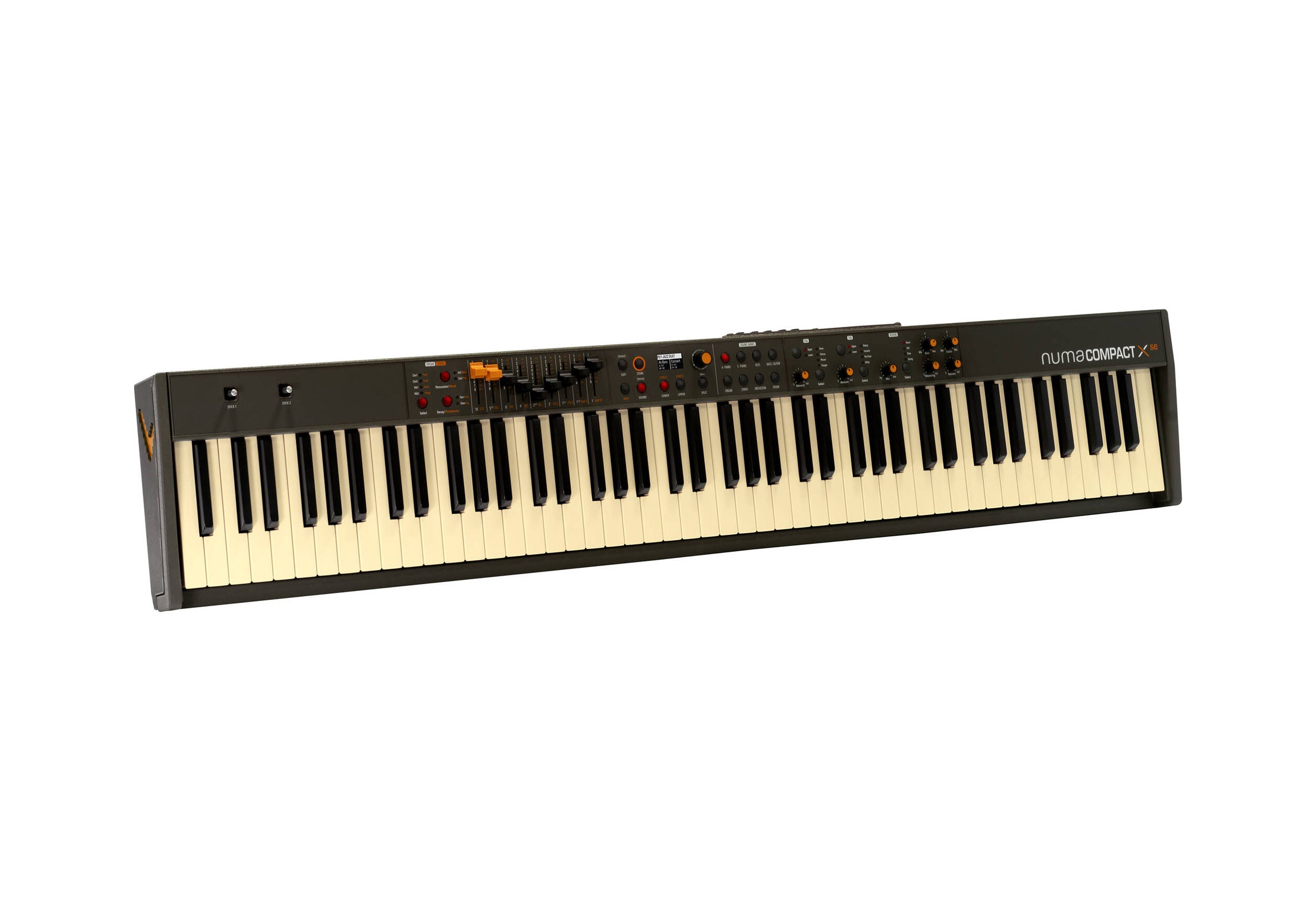

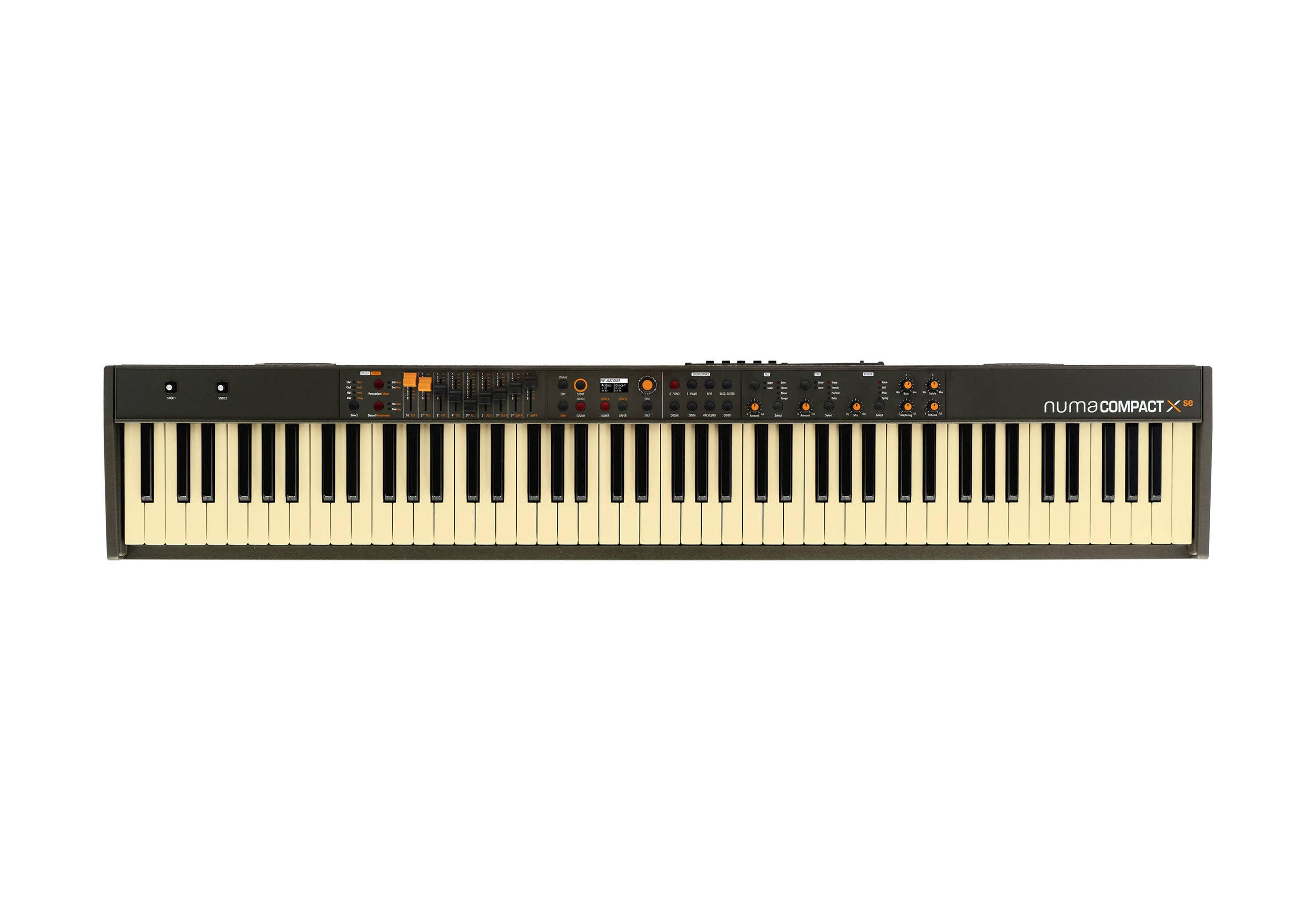

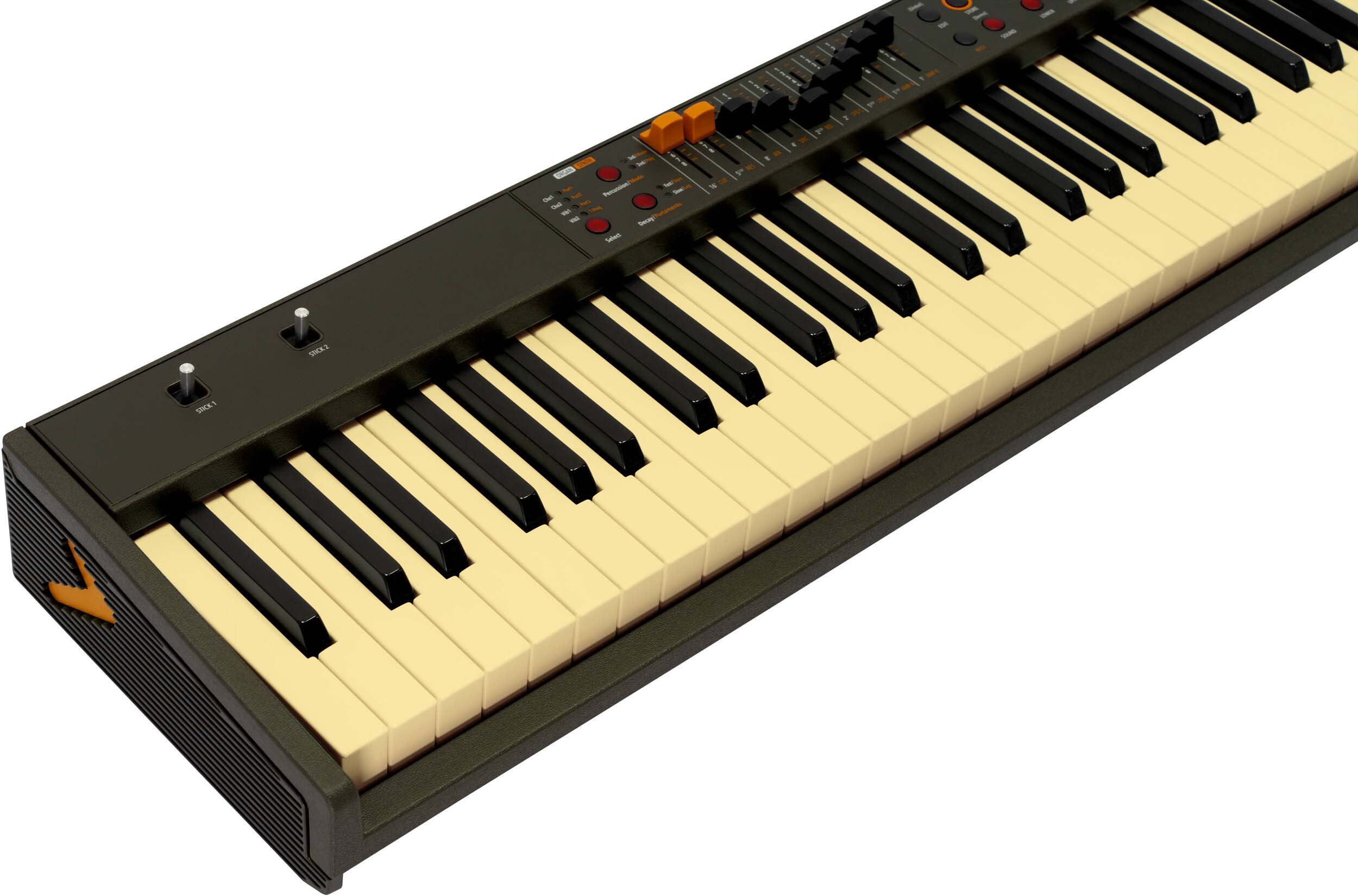

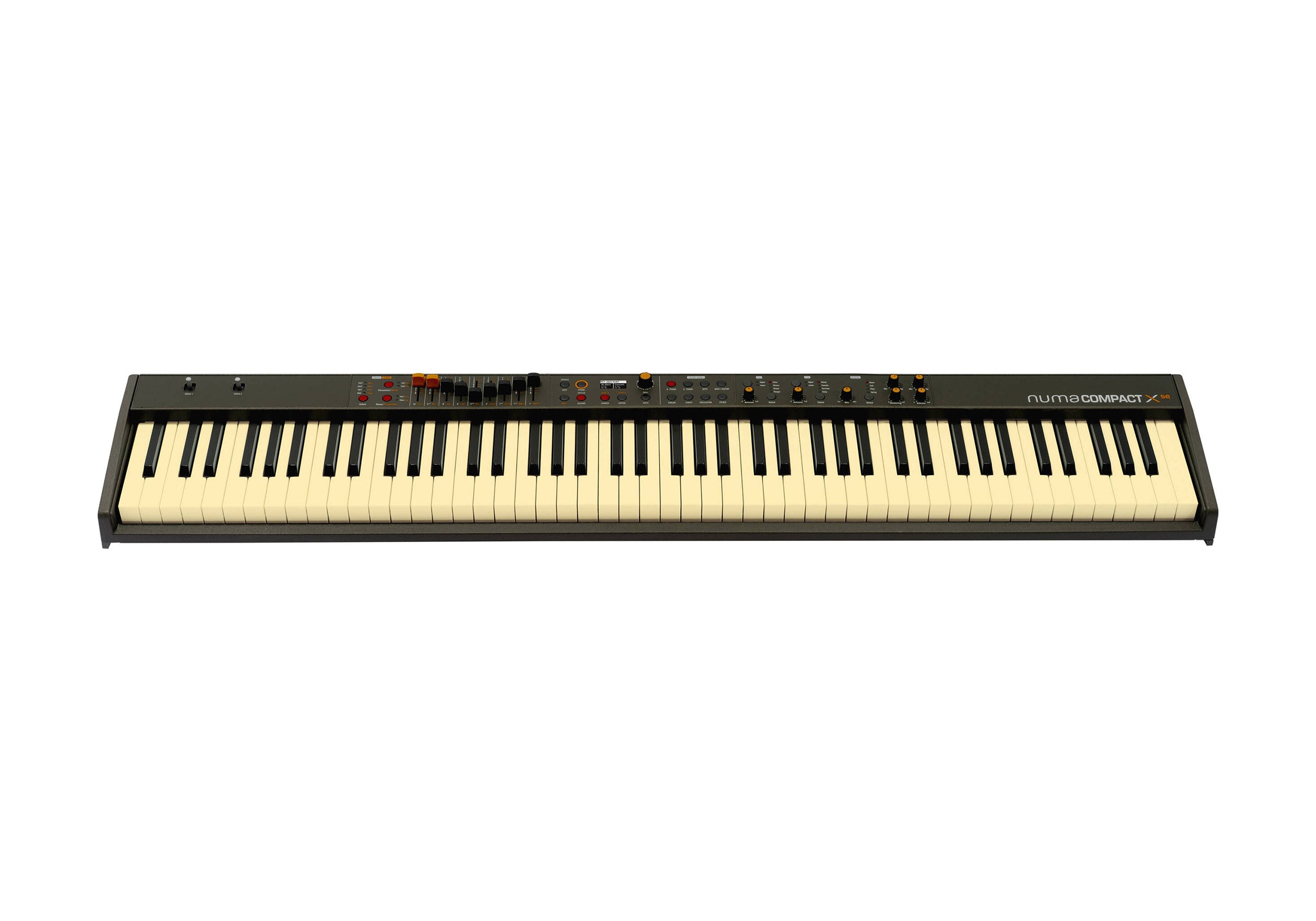

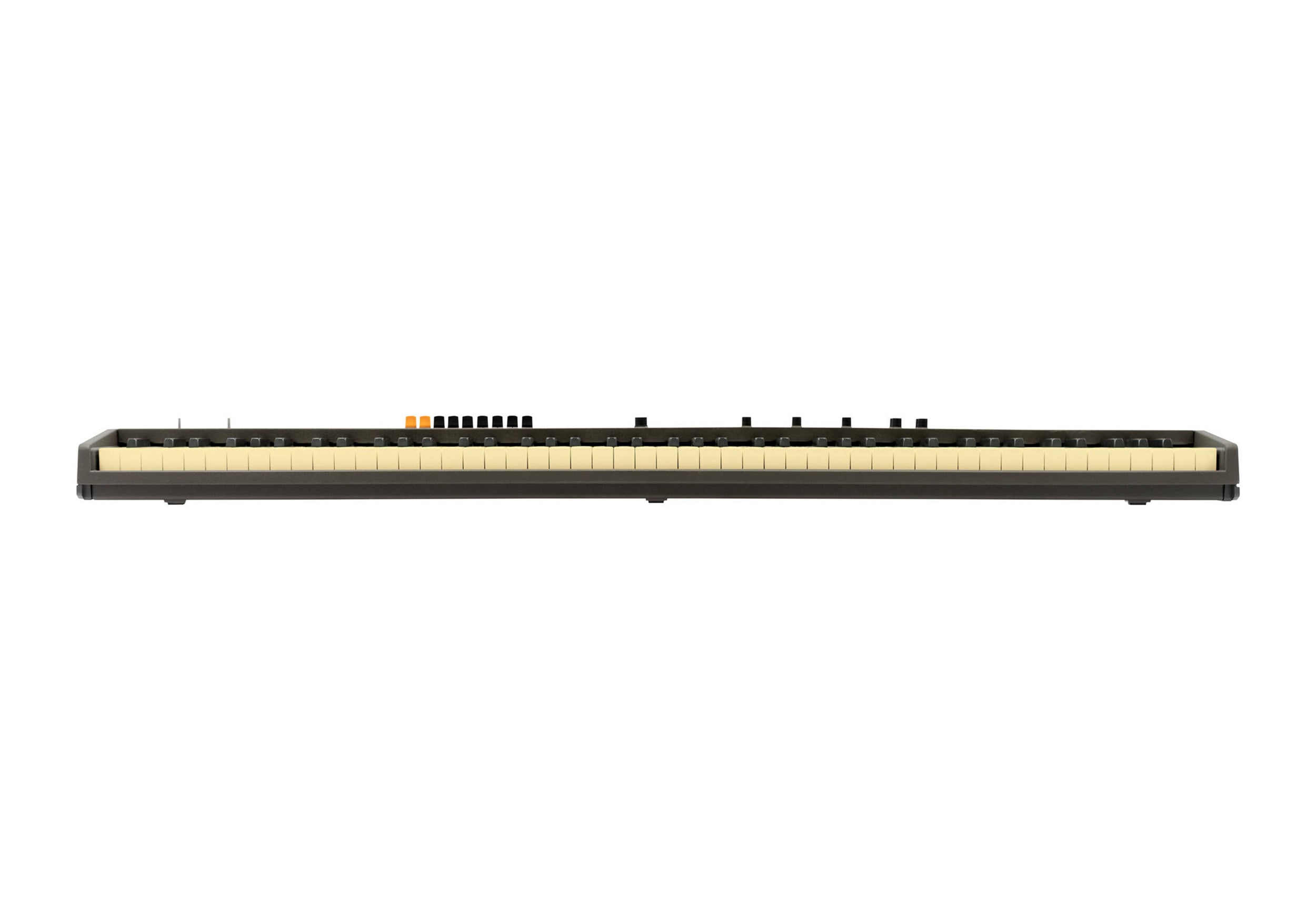

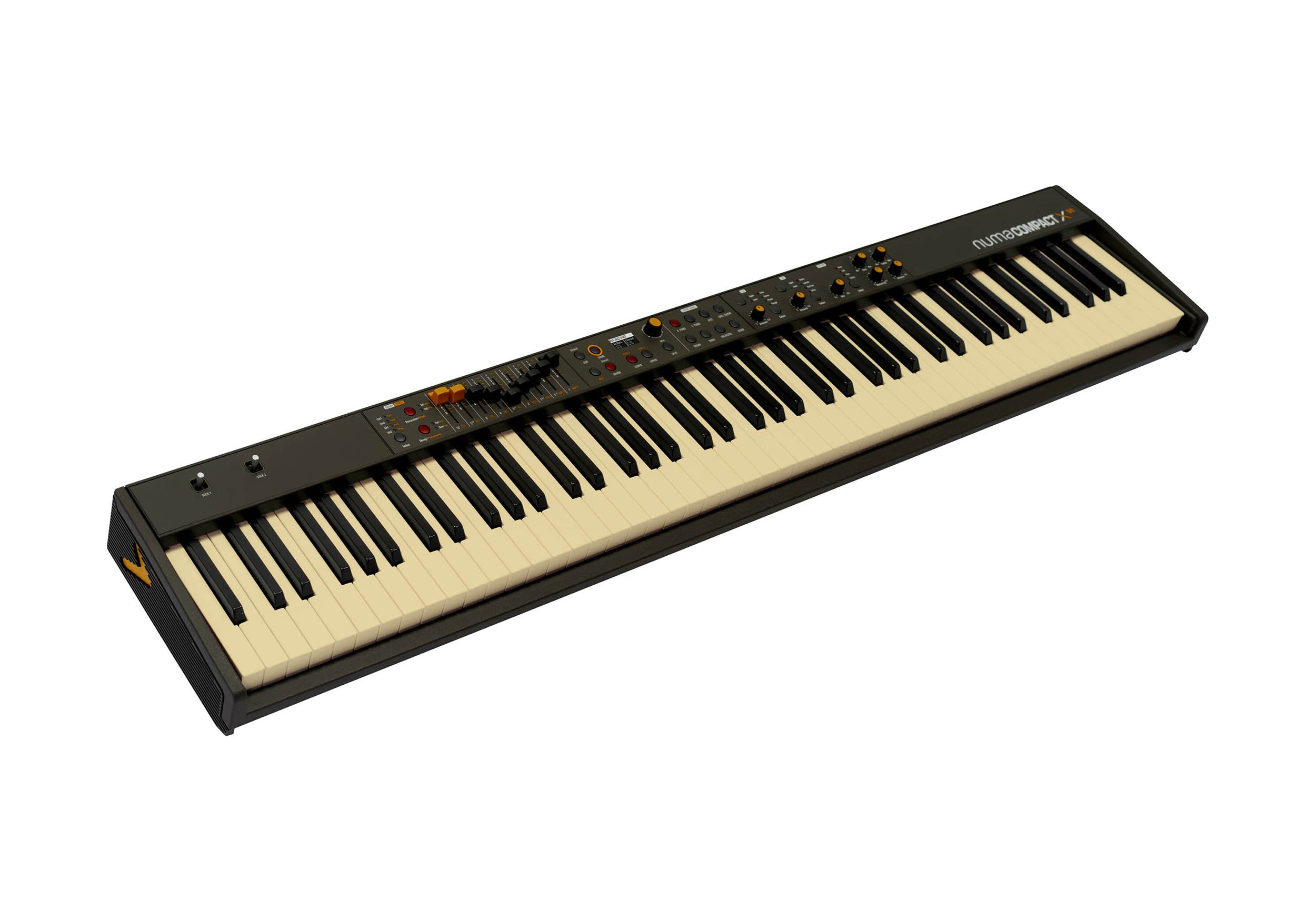

Studiologic NUMA-COMPACT-X-SE Digital Stage Piano - 88 Keys

The Studiologic NUMA-COMPACT-X-SE Digital Stage Piano - 88 Keys is combining an exquisite collection of realistic acoustic/electric stage pianos, tonewheel organ with nine drawbars, virtual synth machine, and USB/MIDI controller, into a lightweight and slim cabinet only 9" deep and weighing just 15 lb. It features an 88-key semi weighted keyboard with a dual-switch detection system, which together with aftertouch, easily accessible sliders, buttons, and knobs, and two programmable joysticks, give you total control over your musical performance.

For pure sonic enjoyment, the Numa Compact X SE's sound engine is capable of 200-note polyphony. It offers two independent sections (Lower and Upper) with over 148 sounds organized in 8 sound banks—assignable to any portion of the keyboard in Layer or Split mode. Sounds are further enhanced by two effects processors for a total of six independent effects at once. Two assignable MIDI zones allow you to access multiple sounds simultaneously and control external devices via MIDI. With its two built-in speakers and 20W internal amplifier, the instrument can double as a home digital piano or a stage piano, ideal for playing live gigs without a PA system or practicing while on the road.

Product Specifications:

Keys: 88

Keybed: TP/9 PIANO semi-weighted Action

Detection System: Dual switch detection

Aftertouch: Yes

Key Surface: Ivory look

Touch:

Response: Soft, Medium, Hard, Fixed (programmable)

Sound Generation:

Factory Sounds: 148

Categories: 12 Acoustic Pianos, 12 Electric Pianos, 12 Keyboards, 16 Basses & Guitars, 24 Organs, 40 Synthesizers, 16 Orchestrals, 16 Others

Max Polyphony: 200 voices

Technology: TrS (True Sound) Stereo multi-samples

Additional Sounds: Downloadable

Acoustic Engine:

Features: Strings and Duplex Resonance, Damper noise, Hammer noise

Electric Engine:

Controls: Tine dedicated controls

Sounds: Tine sounds for EP, Wurly and FM emulations

Noise: Damper noise

Organ Engine:

Model: Integrated tone wheel organ model

Controls: Real time control by drawbars and dedicated buttons¹

Synth Engine:

Generator: Integrated waveform generator

Controls: Real time control by sliders and dedicated buttons¹

Effects / Processing:

Simultaneous Effects: Up to 6 (2 FX on Lower + 2 FX on Upper + Reverb + String’s resonance)

FX1: Drive, Chorus, Phaser, Flanger

FX2: Rotary, Tremolo, Pan Trem, Delay

Reverb: Room, Hall, Plate, Spring

Notes: Dedicated effects for acoustic piano, electric piano, organ, and synth sounds

MIDI:

Zones: 2 Programmable (A/B)

Functions: Program Change, Bank Select (LSB, MSB), MIDI Channel, Volume, Split assign, Transpose, Octave

Assignments: Pedals 1–2 assign, sticks 1–2 assign

Assignable Controls: 9 Sliders¹

Speaker System:

Amplifier: 10 + 10 W built-in digital amplifier

Speakers: 2 Elliptical full-range speakers²

Controls / UI:

Display: OLED 128 x 64 dots

Encoder: With push function

Potentiometers: 7

Buttons: 23

Drawbars / Sliders: 9¹

Sticks:

Stick 1: Pitch

Stick 2: Mod + FX Control

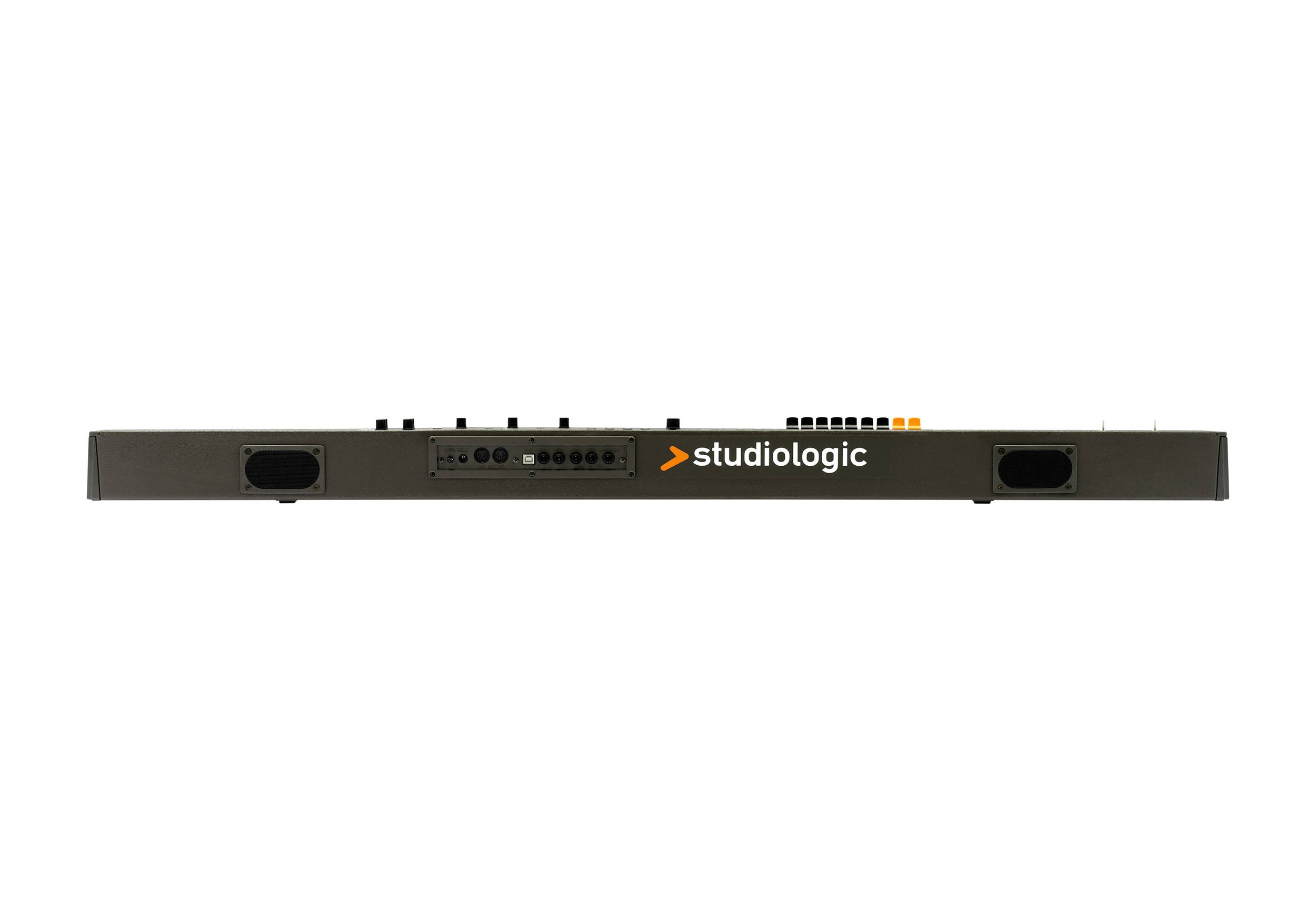

Connections:

Audio Out: 2x 6.3 mm mono jack (L+R)

Headphones: 6.3 mm TRS jack (programmable as Aux out)

Pedals: Expression, Universal

MIDI: In, Out

USB: Audio, MIDI, Power², Numa Manager

Power Supply:

DC IN: 12V

Adapter: Input 100–240V / Output 12V–2.5A

Package Contents:

Numa Compact SE / Numa Compact X SE

USB cable

Power adapter

Compatible Accessories:

PS/100³, PS/150³, PS/250³

VFP1/10³, VFP1/15³, VFP1/25³

SLP3-D

VP/27

FP/50

Softcase Size A

Dimensions and Weight:

Width: 127 cm / 50"

Depth: 23 cm / 9"

Height: 10 cm / 4"

Weight: 7.1 kg / 15.6 lbs

Shipping Weight: 17 lbs.

Shipping Dimensions: 11 x 52 x 6"
