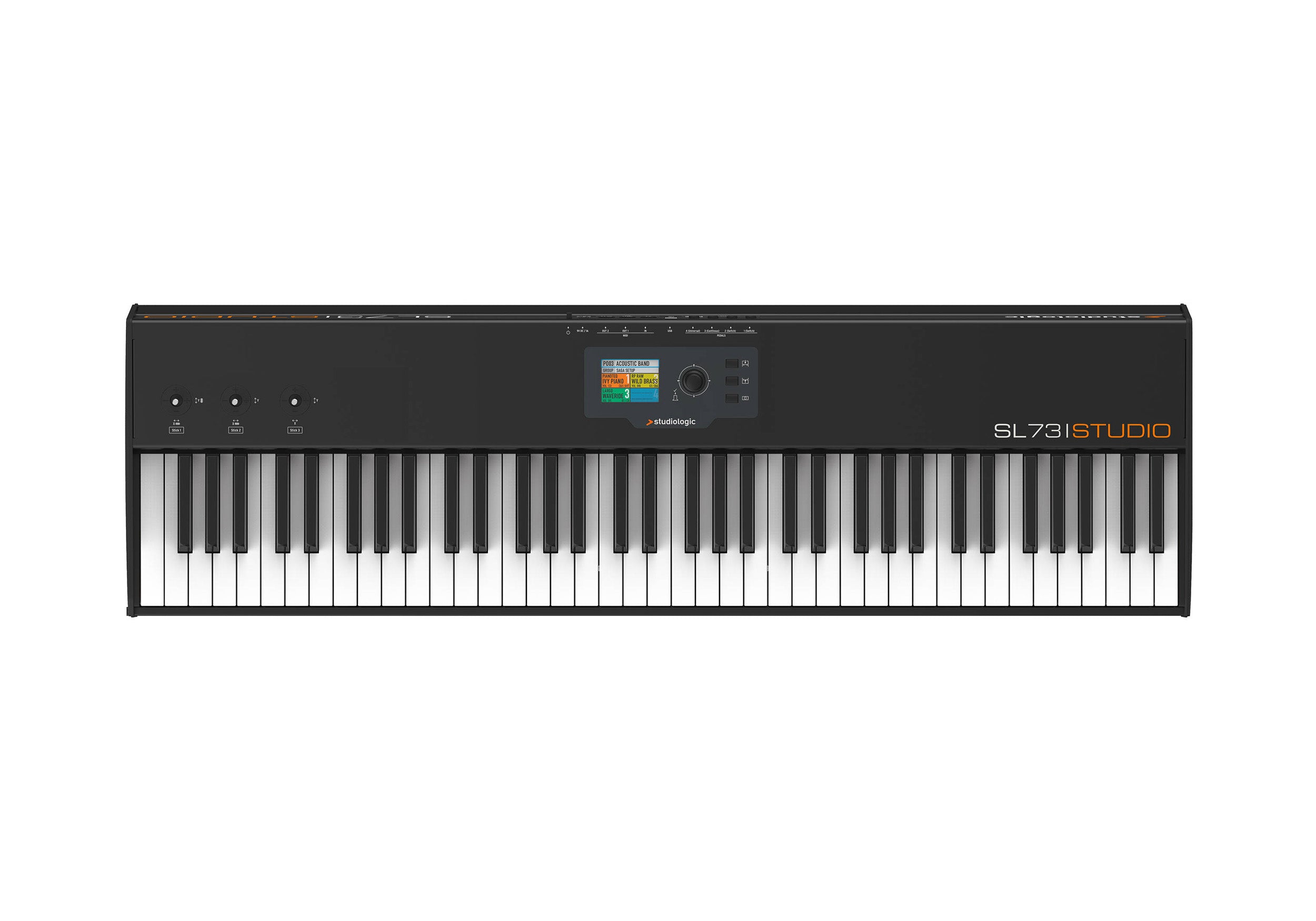

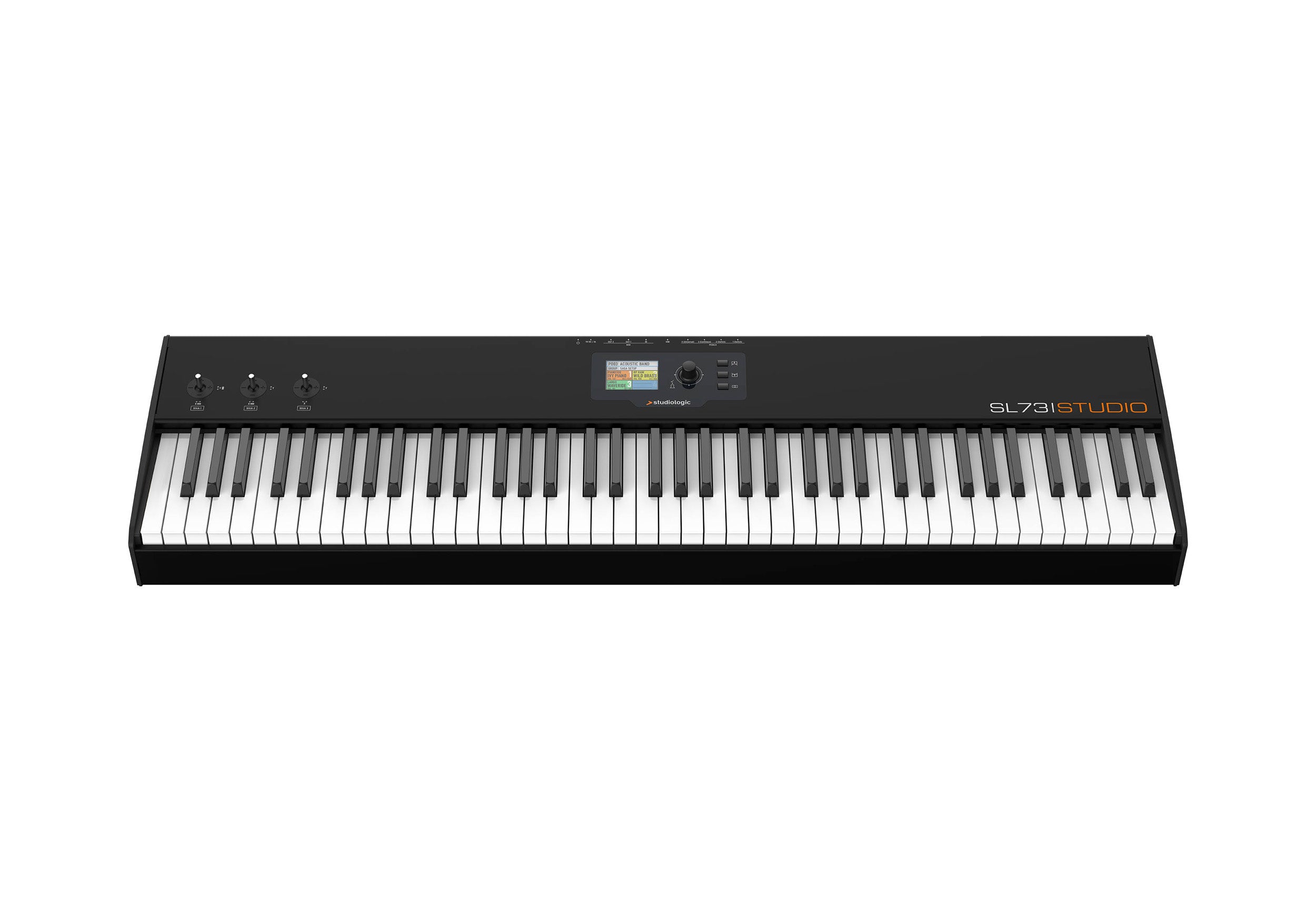

Studiologic SL-73-STUDIO USB/MIDI Keyboard Controller with TP/100LR Premium Hammer Action - 73 Key

The Studiologic SL-73 Studio USB/MIDI Keyboard Controller delivers a true piano-like playing experience in a sleek, compact design. It features the premium Fatar TP/100LR fully weighted hammer-action keybed with a triple-switch detection system and aftertouch for exceptional touch sensitivity and expressive control. Perfect for both stage and studio use, the SL-73 Studio provides pianists and producers with a highly responsive instrument that combines authentic feel, advanced technology, and reliable performance in one elegant controlles.

The Power of Simplicity

The SL Keyboards redefine what a high-end keyboard controller can be — combining advanced performance features with intuitive design to deliver a seamless, expressive playing experience.

True Innovation

More than 30 years’ experience in exclusive keybeds meets an all-new, powerful, operating system. Perfect for you to control your hardware and virtual instruments. All provided in a powerful new refreshing way. Working together with musicians we have created a user interface which is perfect for quick navigation and setup, but also gives you excellent in-depth control. The SL is ready to be at the very heart of your system.

The Lightness of The Authentic Touch

The SL88 and 73 Studio adopts the latest hammer action keybed technology from FATAR giving the best piano touch feeling. TP/100LR is remarkably lighter than any other. Each of the keys provides 3 contacts for superior performance. With the respect of the full weighted touch of the real piano action, the new design guarantees a very fluent and authentic feel. The results of this combination are simply amazing.

Form Follows Performance

With its compact profile, the SL is an extremely portable professional controller. Thanks to a perfect integration with the keyboard, it weighs less than 14 Kg for the 88 Studio version and less than 12 Kg for the 73 version. Even with its high-end graded hammer action/wooden keyboard, the SL88 Grand weighs less than 21 Kg. The SL is studio and stage ready with a rugged full metal casing. Sculptured endcaps made of a highly resistant synthetic material help to shield the premium keybed perfectly and provide a safe grip when handling and transporting.

Total Access with Total Ease

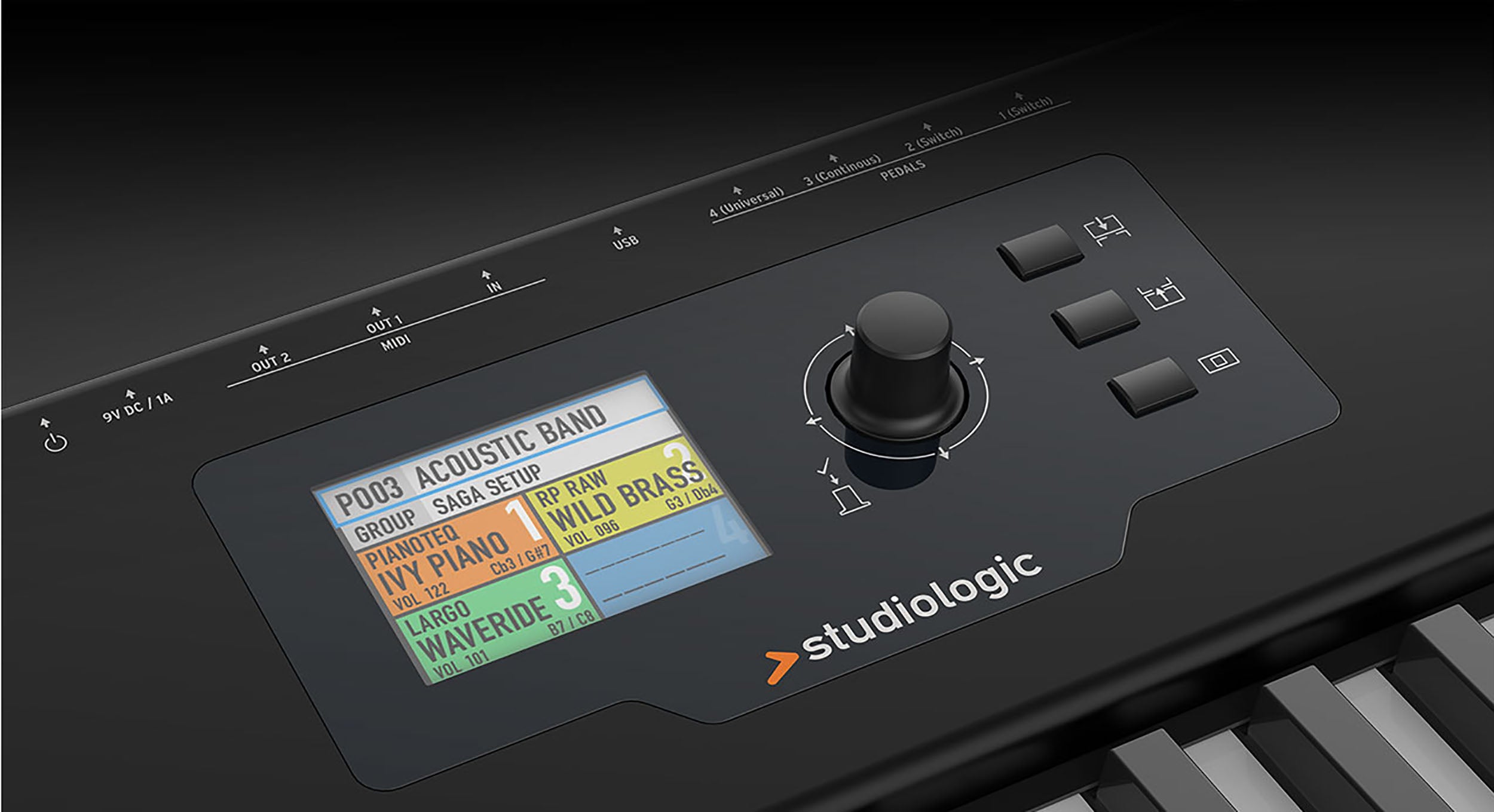

Located in the center of the instrument is a razor-sharp TFT color display. In combination with the high quality six-way controller knob, you can navigate through all SL functions fast and with ease. Functions such as switching through the four zones are achieved by moving the controller, and then by clicking and turning the same knob again, you can select and adjust the desired parameter. Simple, intuitive and fast! Additionally, the three pushbuttons to the right of the control knob bring you back to the top-level from any location in the system with just one push.

Real-Time Control

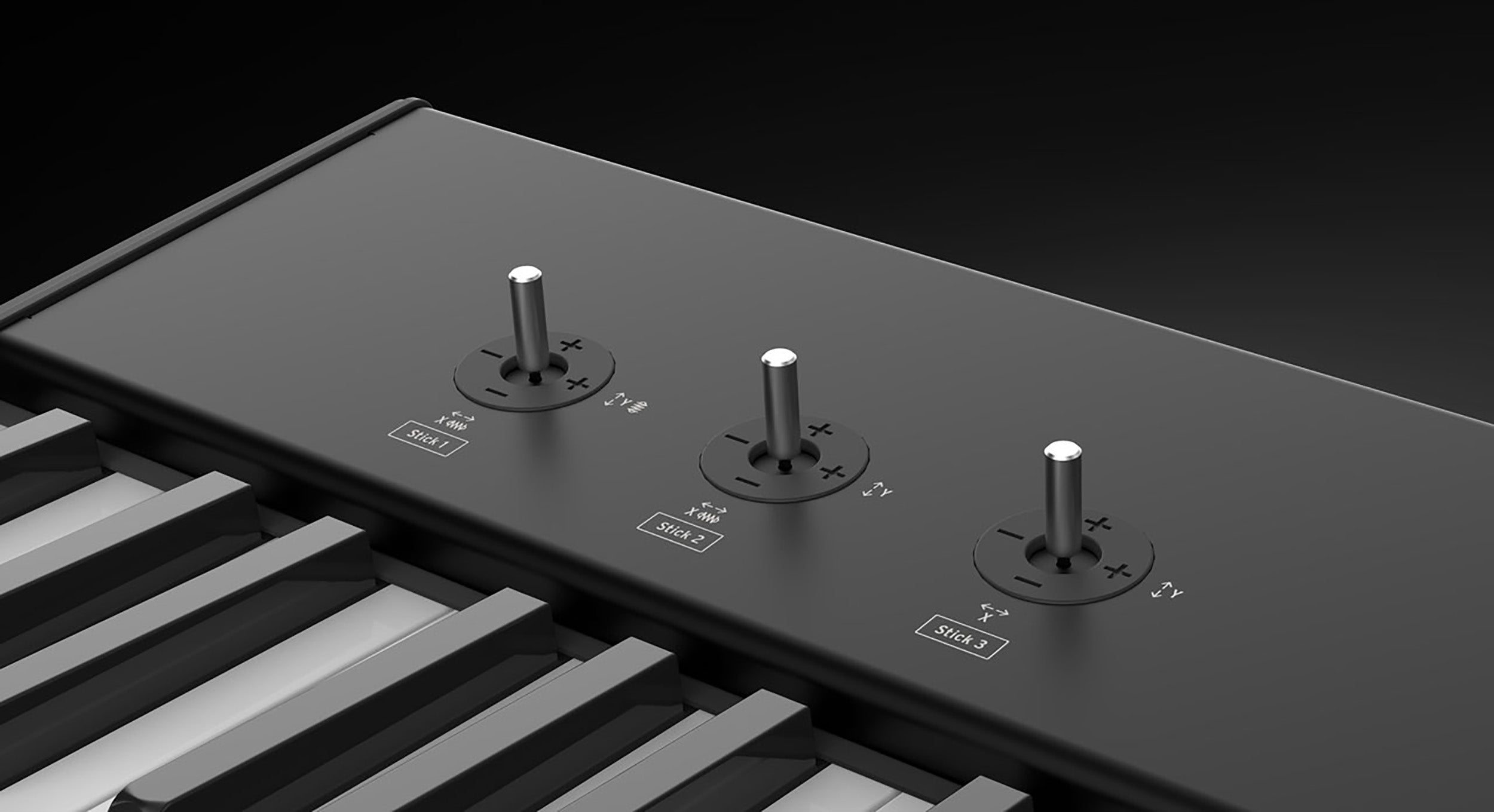

The SL offers three X/Y stick controllers, not just for performance but also for direct control and manipulation of any desired sound parameter. Stick one is spring-loaded for both X/Y directions. The typical use for this stick is pitch and modulation control. Stick 2 is spring-loaded in X direction only. Stick 3 is free in X and Y directions, ideal for panning, cross fading and parameter control. All sticks feature an elegant, aluminum control shaft which feels perfectly balanced and expressive between your fingertips.

Magnetic Rail System

With the innovative Magnetic Rail System at the rear of the SL, you can easily adapt a note stand or an extension plate to hold your written notes, music, laptop or tablet. It works as brilliantly easy as it looks. Just click the brackets into the backrail to match the position you need for your accessory items.

Product Specifications:

Keyboard Keys: 73-Key

Keybed: TP/100LR Premium Hammer Action

Detection System: Triple switch detection

Aftertouch: Yes

Touch:

Response: Soft, Medium, Hard, Fixed (programmable)

User Velocity Curves: 6 editable

Controls / UI:

Programmable Sticks: 3

Navigation: Rotating encoder with navigation controls

Function Buttons: 3

Display:

Type: Color graphic LCD (TFT)

Resolution: 320 x 240

Connections:

Pedals: 2 switch, 1 continuous, 1 universal

MIDI: In, Out1, Out2

USB: USB to Host, MIDI, USB powered

Power Supply:

DC IN: 9V

Adapter: Input 100–240V / Output 9V–1A

Package Contents:

Studiologic PS100 switch pedal

Power adapter

Compatible Accessories:

Softcase SIZE B, SIZE C

Magnetic Music Stand TYPE A

Magnetic Computer Plate TYPE A

Compatible Pedals:

PS/100, PS/150, PS/250

VFP1/10, VFP1/15, VFP1/25

VFP2/10, VFP2/15

SLP3-D

VP/25, VP/27

FP/50

Dimensions and Weight:

Width: 104 cm / 41"

Depth: 31 cm / 12.2"

Height: 12.5 cm / 4.9"

Weight: 11.5 kg / 25.3 lbs

Shipping Weight: 27 lbs.

Shipping Dimensions: 15 x 44 x 6"inches
