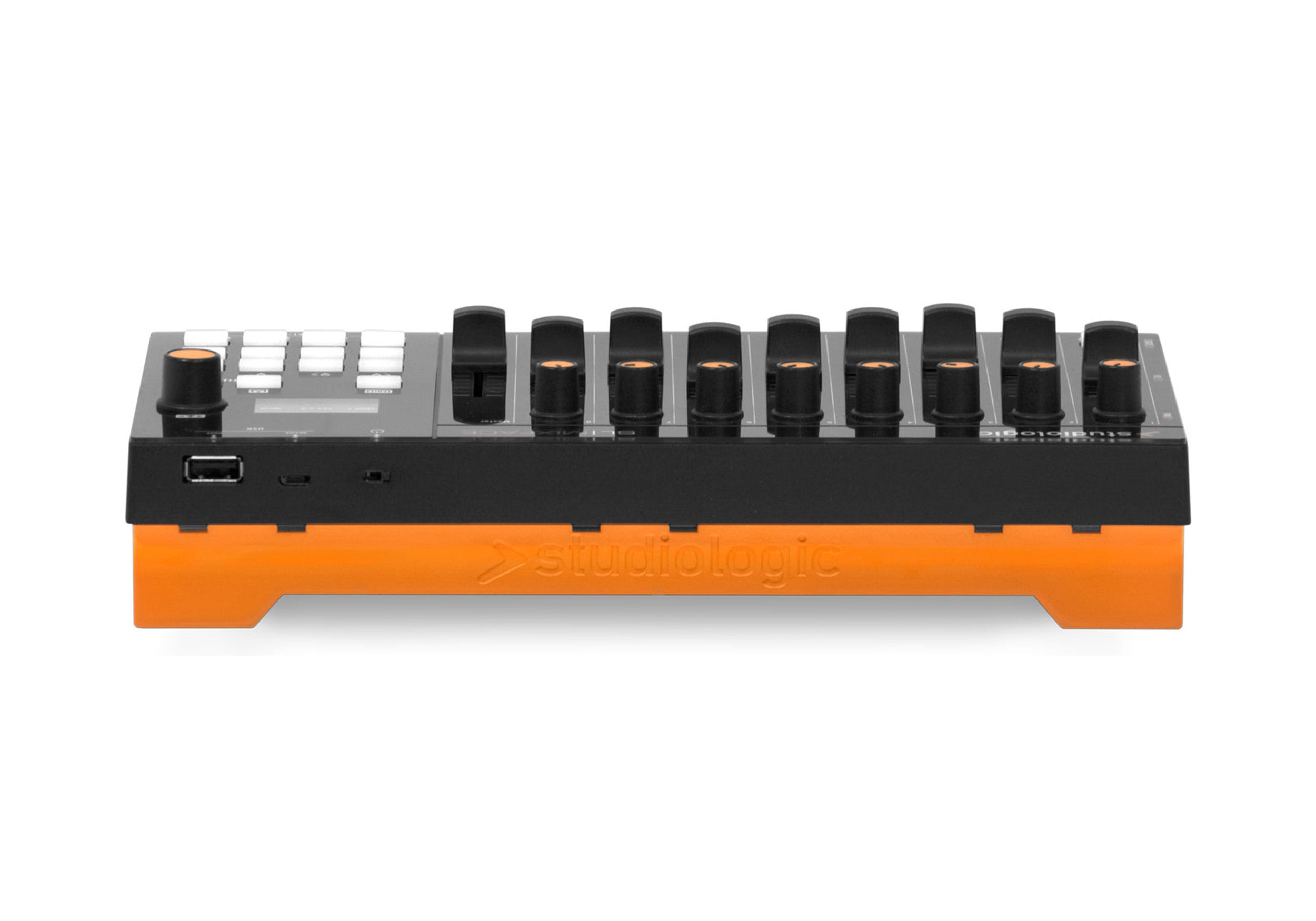

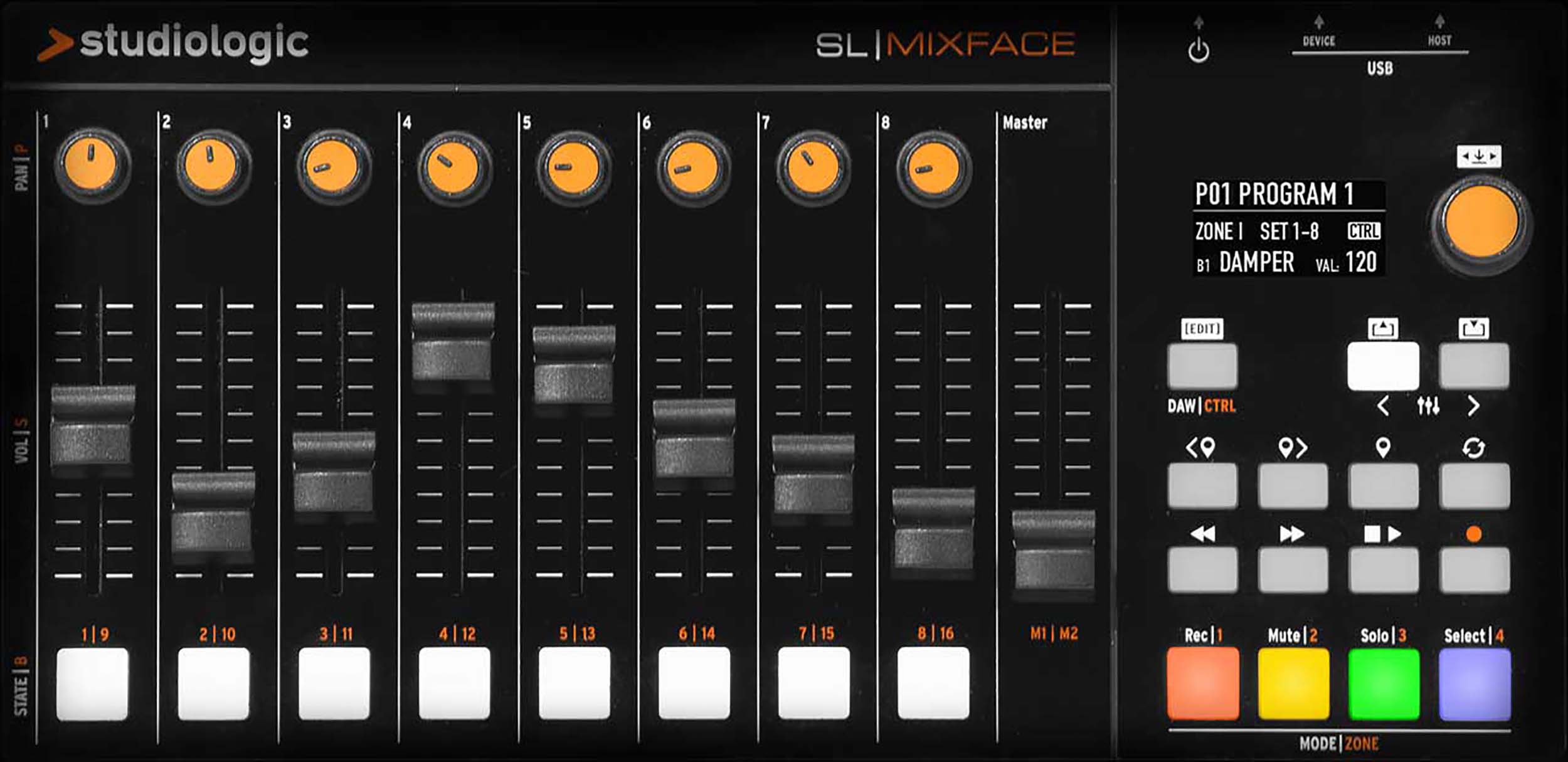

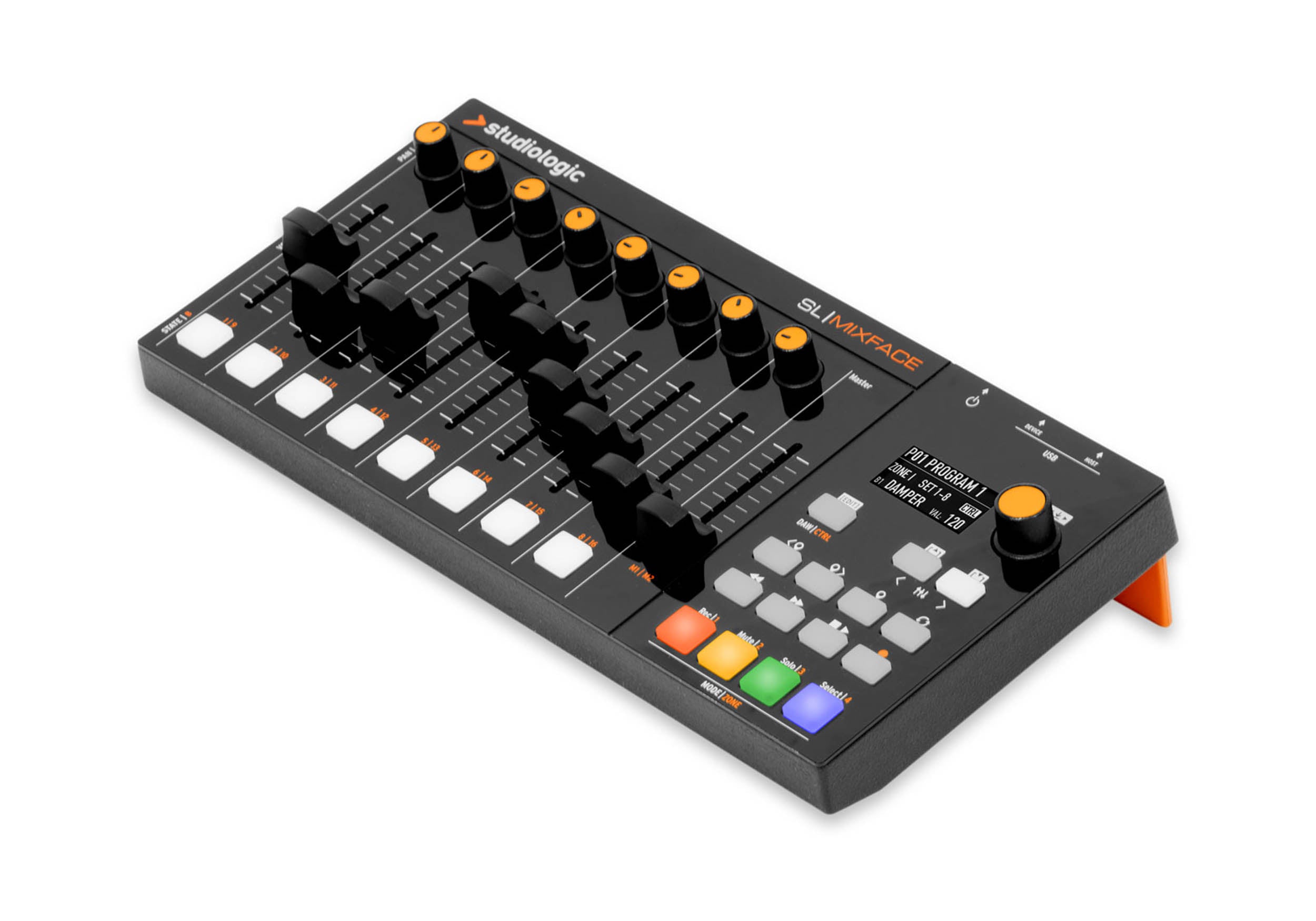

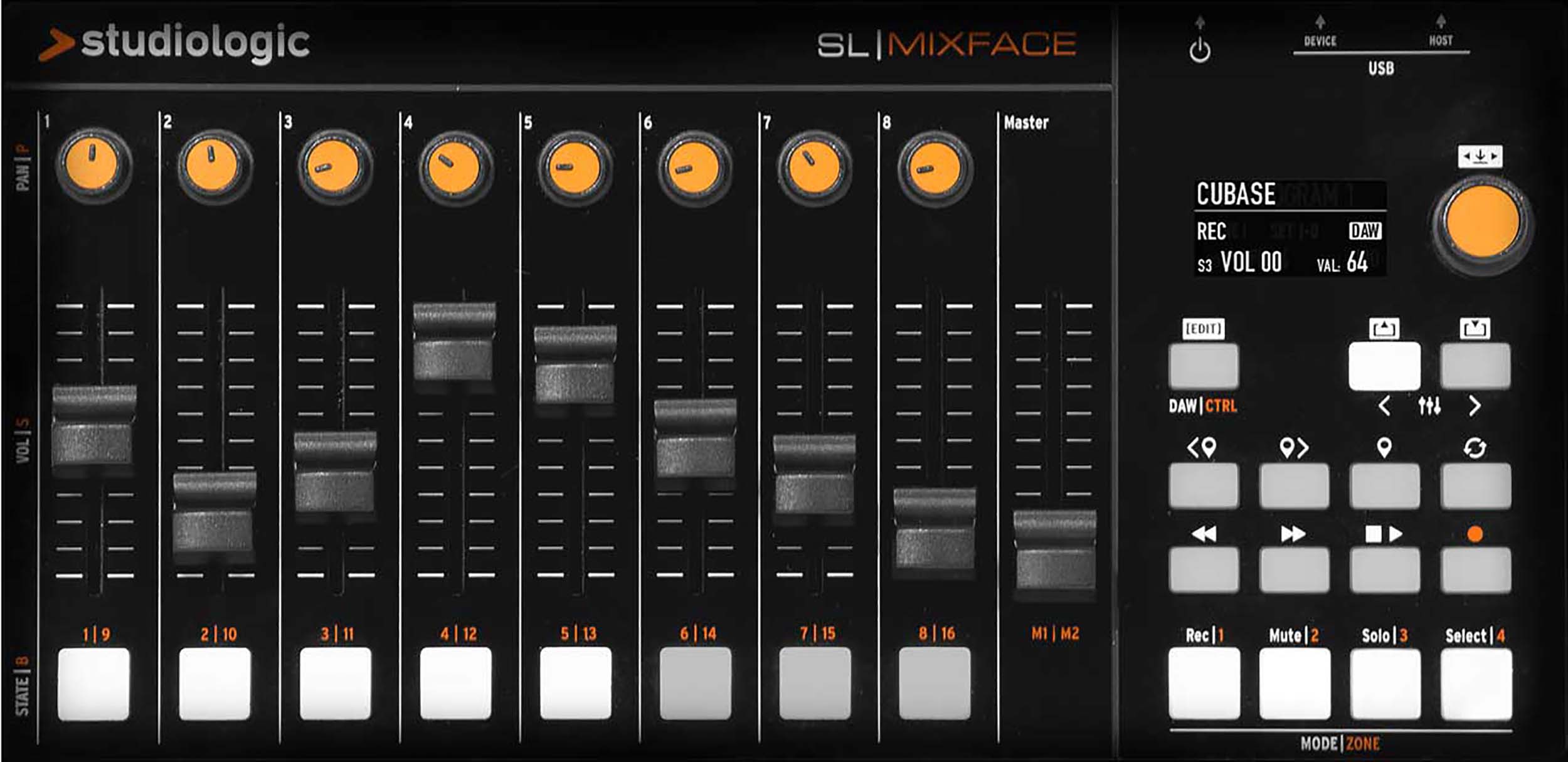

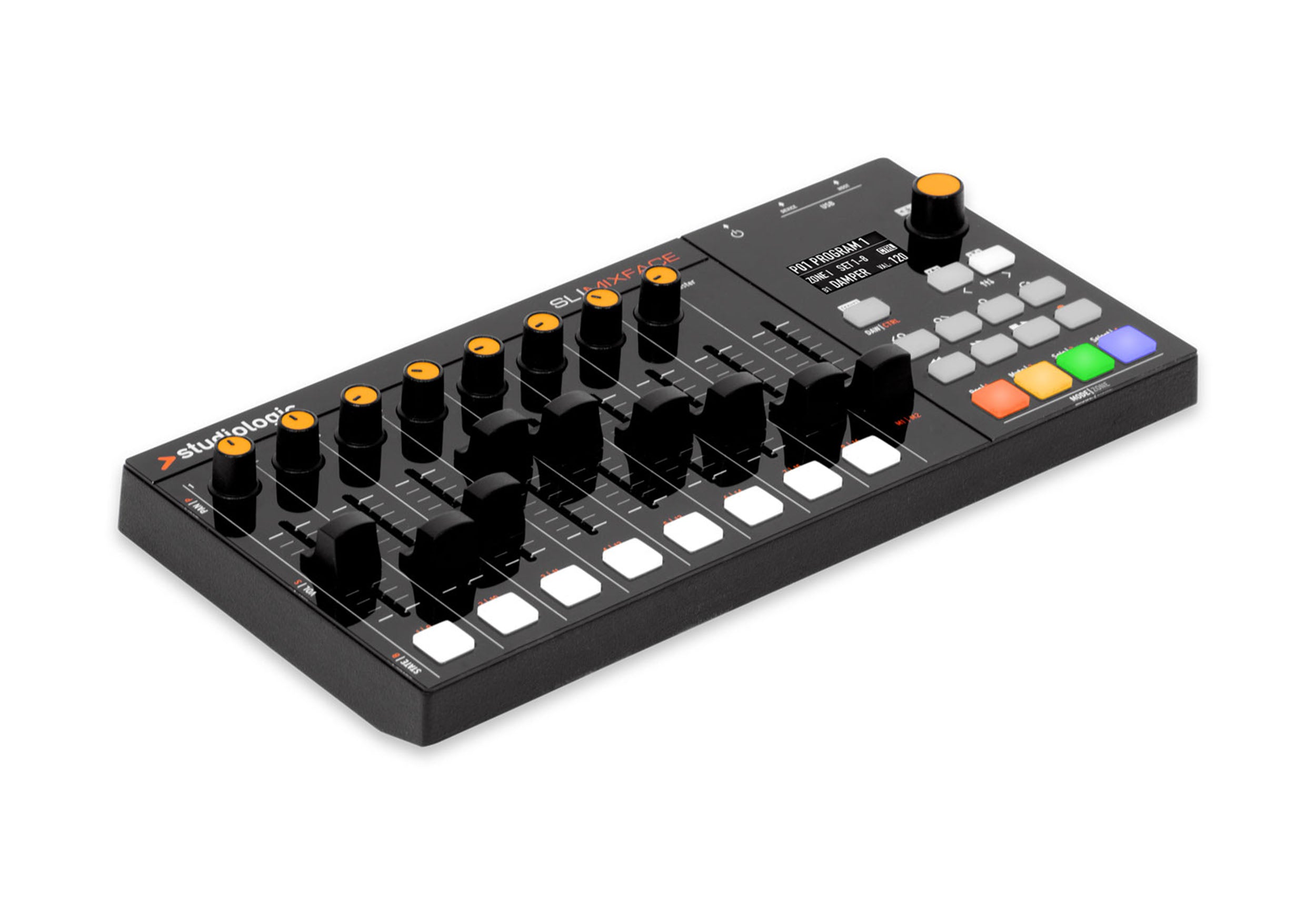

Studiologic SL-MIXFACE Control Surface Mixer for DAWs

The Studiologic SL-MIXFACE Control Surface Mixer for DAWs is a complete controller device which combines style and simplicity with a powerful engine. Designed for mobility, you can bring it everywhere and use it in total freedom thanks to its hosting capability and auto-mapping of the main DAW apps. Through its connectivity and the integrated batteries, it's a perfect portable device, which with a simple gesture becomes the best desk companion. Press a button and switch the control from the DAW environment to your favorite instrument and vice versa. All the Transport functions are always ready to go, while you can edit any sound parameter of the instrument or mix the tracks of your song.

Connectivity

The SL MIXFACE is able to host any compatible keyboards turning it into a full 4 layers MIDI controller via USB. Thanks to its connectivity ports it communicates with the computer as device by using Bluetooth and USB at the same time.

Extended Capability

The SL MIXFACE perfectly matches the SL controller line expanding its control capability. Thanks to the magnetic system it sticks on it becoming a natural physical controls extinction. Simply plug MIXFACE to an SL keyboard and it gets the control of the 4 layers on the fly.

Product Specifications:

General:

OLED display: 128 x 64 dots

Navigation: Encoder

Controls: 8 Knobs, 9 Sliders, 8 Buttons

DAW:

Functions: Rec, Mute, Solo, Select

Track Controls: 3 Controls for each Track (Knob, Slider, Button)

Master Slider: Yes

Transport:

Controls: Play/Stop, Record, Next Track, Previous Track, Set Marker, Next Marker, Previous Marker, Cycle

Supported DAWs:

Ableton Live

Apple GarageBand¹²³

Apple Logic Pro¹²

Avid Pro Tools²

Cockos Reaper

Motu Digital Performer

Presonus Studio One

Propellerhead Reason¹

Steinberg Cubase⁴

Steinberg Nuendo

Controller:

User Presets: 12

Integration: With SL Controllers

Zones: 4

Controls for Zones:

Sets: 16 Sets (Knob + Slider + Button)

Master Sliders: 2

Connections:

USB Device: Type micro-B

USB Host: Type A

Bluetooth: 4.2 Low Energy

Power and Battery:

Power: USB powered (when connected via USB)

Battery: Three AAA batteries⁵ (when connected wirelessly)

Size and Weight:

Width: 26.2 cm / 10.3"

Depth: 13 cm / 5.1"

Height: 3.6 cm / 1.4" – 5.6 cm / 2.2" (raised)

Weight: 570 g / 1.25 lbs (without batteries)

Package Contents:

SL Mixface

Micro-USB Cable

Anti-slip Desktop Pad

Dimensions and Weight:

Width: 26.2 cm / 10.3"

Depth: 13 cm / 5.1"

Height: 3.6 cm / 1.4" – 5.6 cm / 2.2" (raised)

Weight: 570 g / 1.25 lbs (without batteries)

Shipping Weight: 2 lbs.

Shipping Dimensions: 13.2 x 6.3 x 2.2"inche
