Description

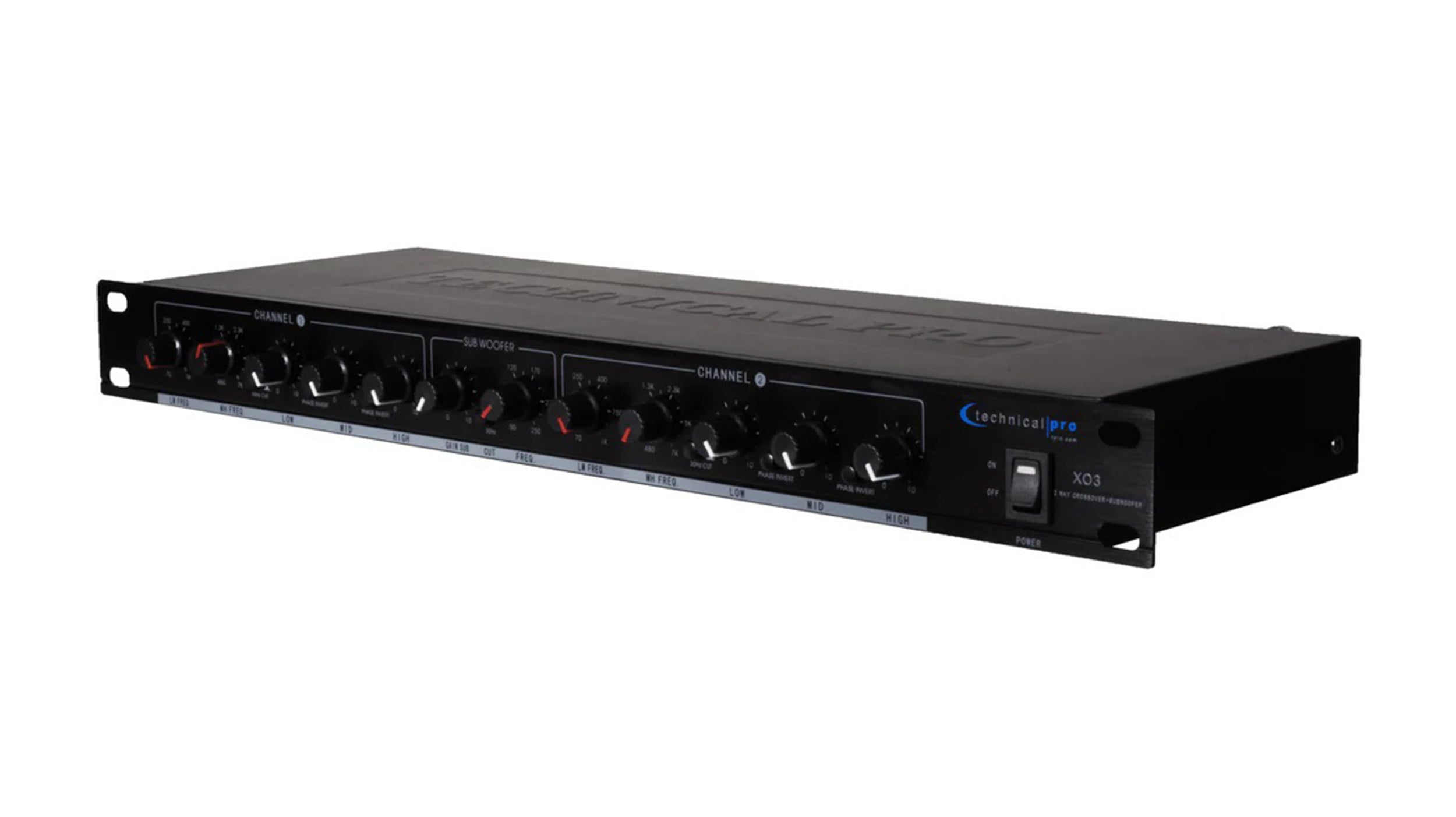

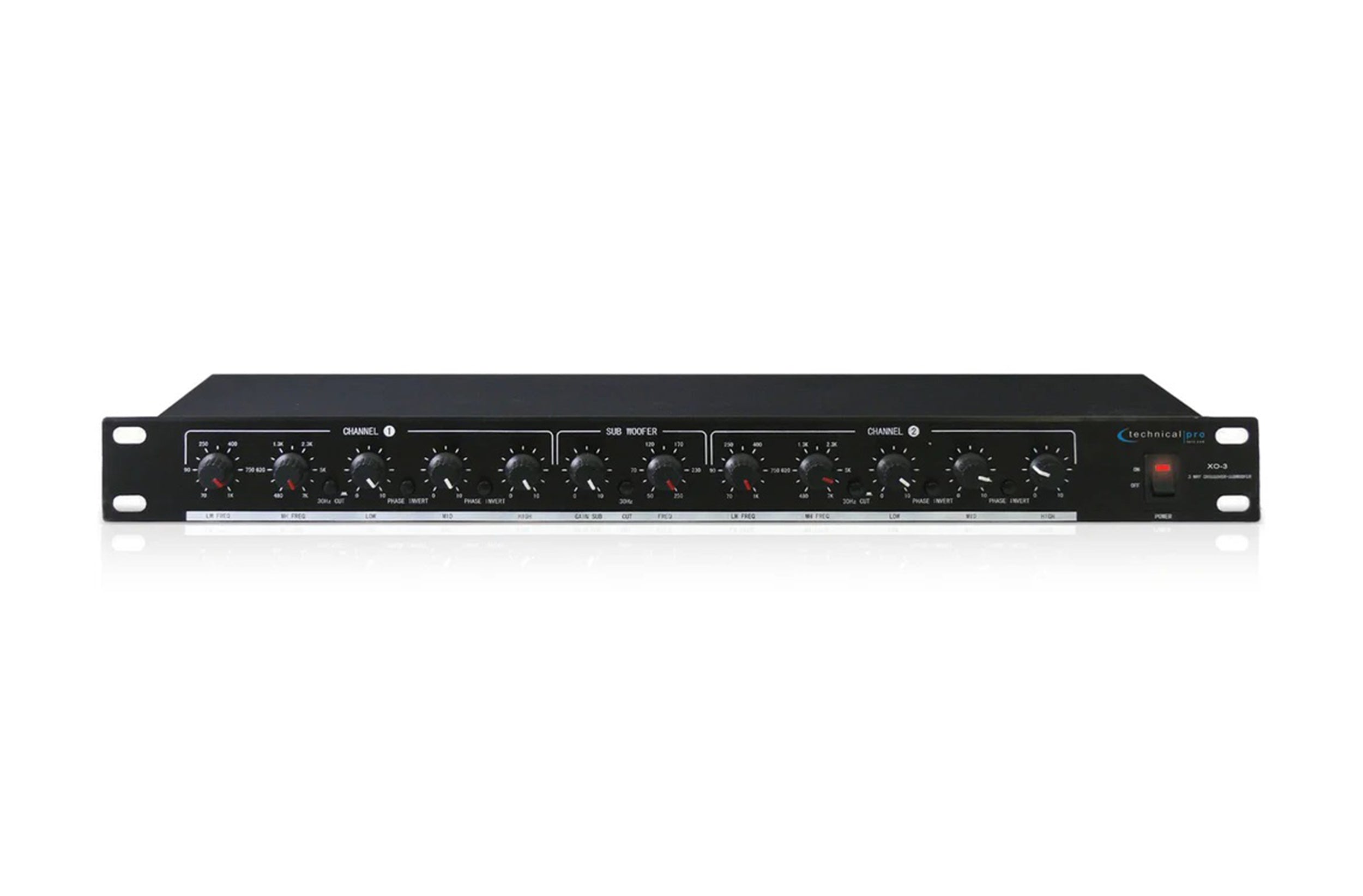

The Technical Pro XO3, 3 Way Crossover with Subwoofer Output - 20Hz-25kHz±1dB is a professional 3-Way Crossover with subwoofer output. If you are designing a sound stage, setting up your studio or even setting up an indoor or outdoor venue such as a conference room or even your yard or deck, properly sending your sound to the correct speakers is a must do. The XO3 is your answer in setting up a professionally distributed sound system and speaker set up.
The XO3 is an audio crossover. Audio crossovers are a class of electronic filter used in audio applications. Most individual loudspeaker drivers are incapable of covering the entire audio spectrum from low frequencies (think subwoofers) to high frequencies (think tweeters) with acceptable relative volume and lack of distortion. Therefore, most hi-fi speaker systems use a combination of multiple loudspeakers or drivers, each catering to a different frequency band. Crossovers split the audio signal into separate frequency bands that can be separately routed to your amplifiers and then loudspeakers which are optimized for those bands. Connect your speaker set up to this system and you will be able to control the frequency bands going to specific speakers. You will be able to control the frequency output you want for each type of speaker. You will also be able to send your sub-frequencies to a subwoofer loudspeaker.

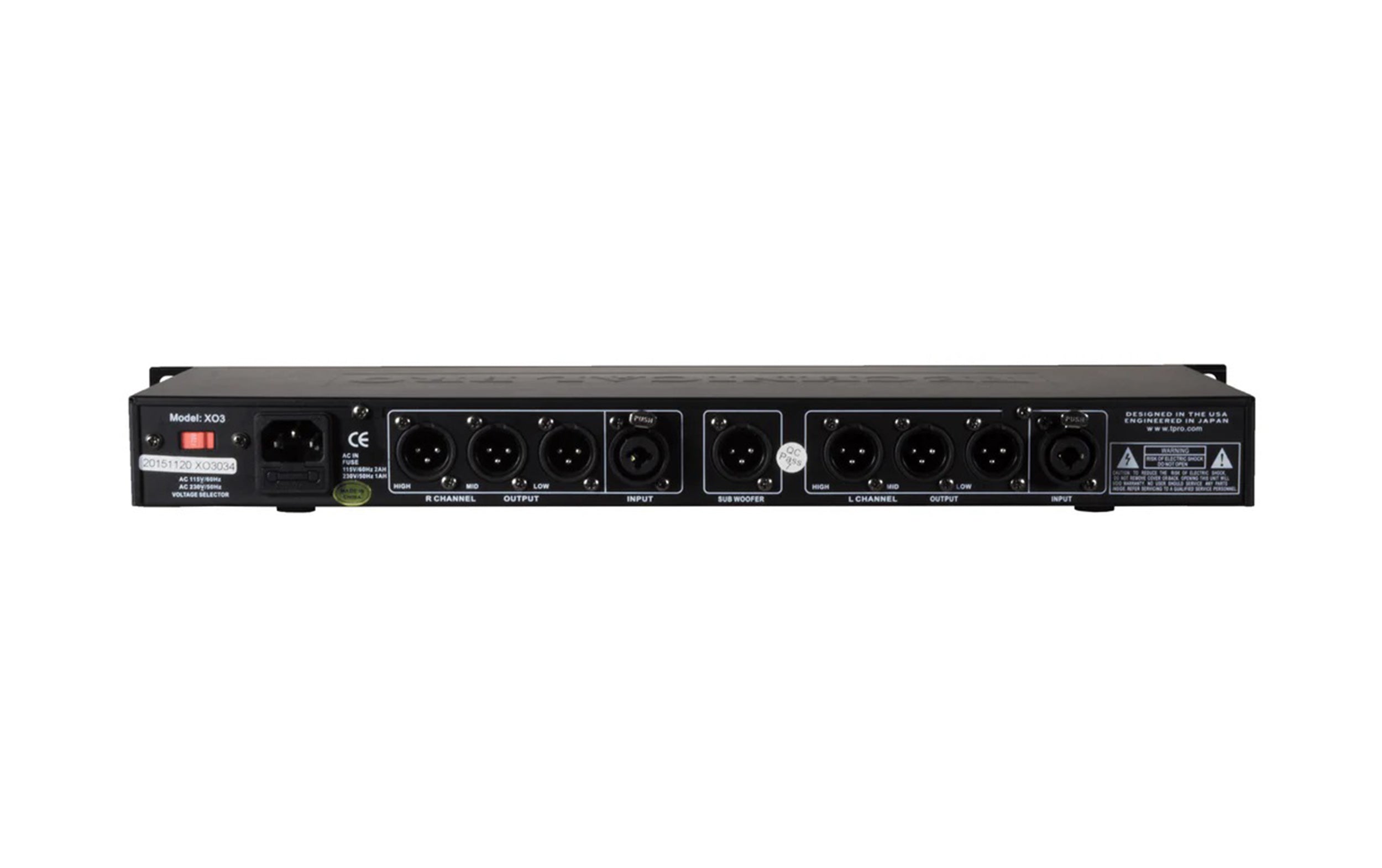

The inputs are balanced XLR and 1/4” jacks and the outputs are balanced XLR. Connect your sound source to the XO3 input and then output to your amplifiers to then power your speakers. The controls will allow you to split your bands and send the low frequencies to your subwoofer speakers, mid-range frequencies to the horn drivers and mid-range speaker boxes and the high frequencies to your tweeters. Properly channeling the correct frequency to the correct speakers is the correct way of designing sound and speaker fields. Professional sounding design is a must in today’s music and audio world and the XO3 is your answer...and a cost that won’t break the bank!
Technical Pro’s groundbreaking new approach to industrial design incorporates advanced technology and striking good looks with rugged construction and a long list of features, providing years of audio enjoyment.
Product Specifications:
Voltage: 110/220v
Frequency Response: 20Hz-25kHz±1dB
Inputs: Balanced XLR, 1/4" (6.35mm)
Outputs: Balanced XLR
Signal to Noise Ratio: >95dB
Impedance: Input -100 Kohms, Output -220 ohms
Crossover: Sub: 50-250Hz; Lo/Mid 70-1000Hz; Mid/Hi 480-7000Hz
Low Cut Filter: 30Hz / -=3deB, 12dB/Octave
Dimensions: 5.75" L x 19" W x 1.75" H
Weight 5.5 lbs
