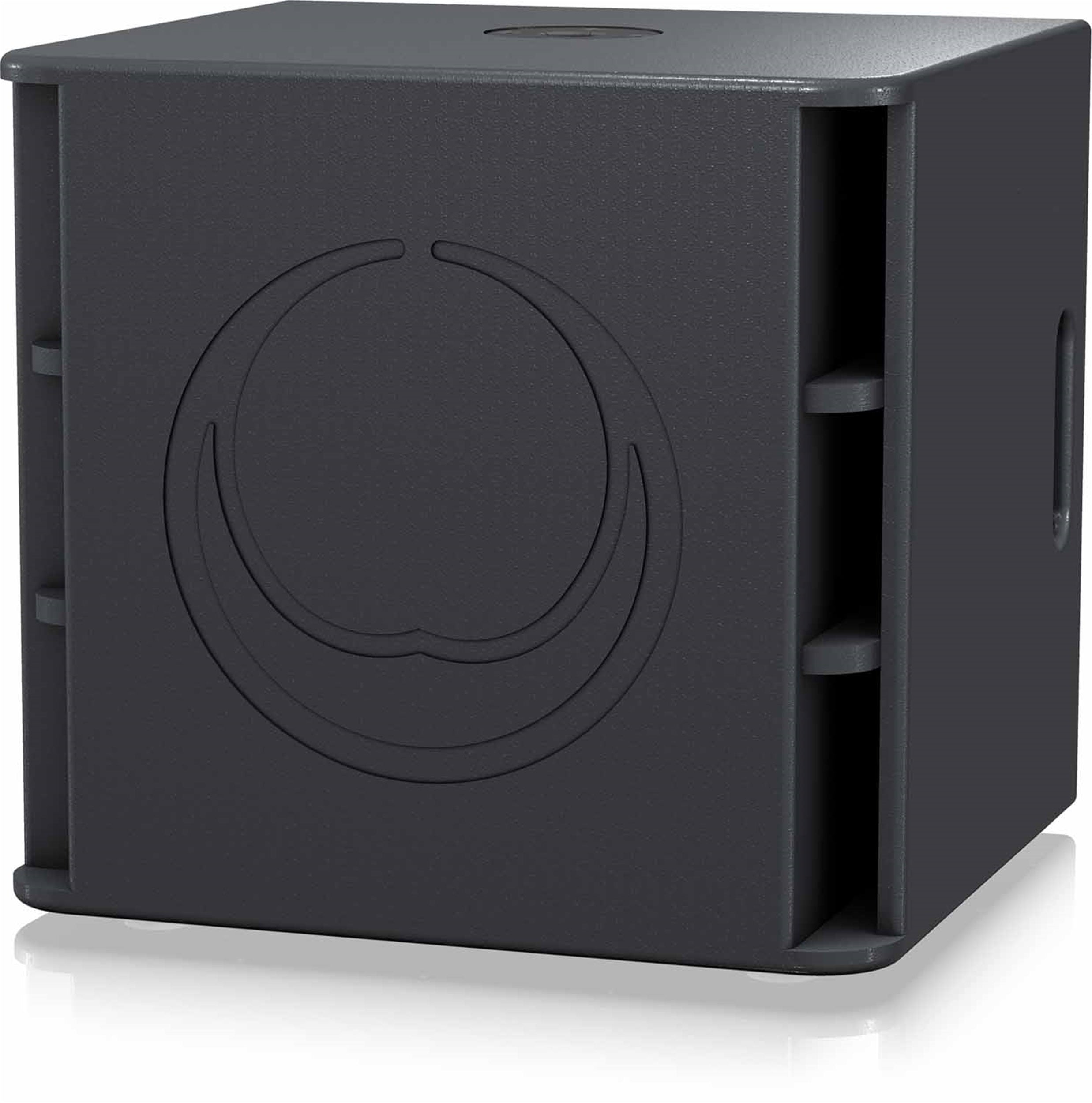

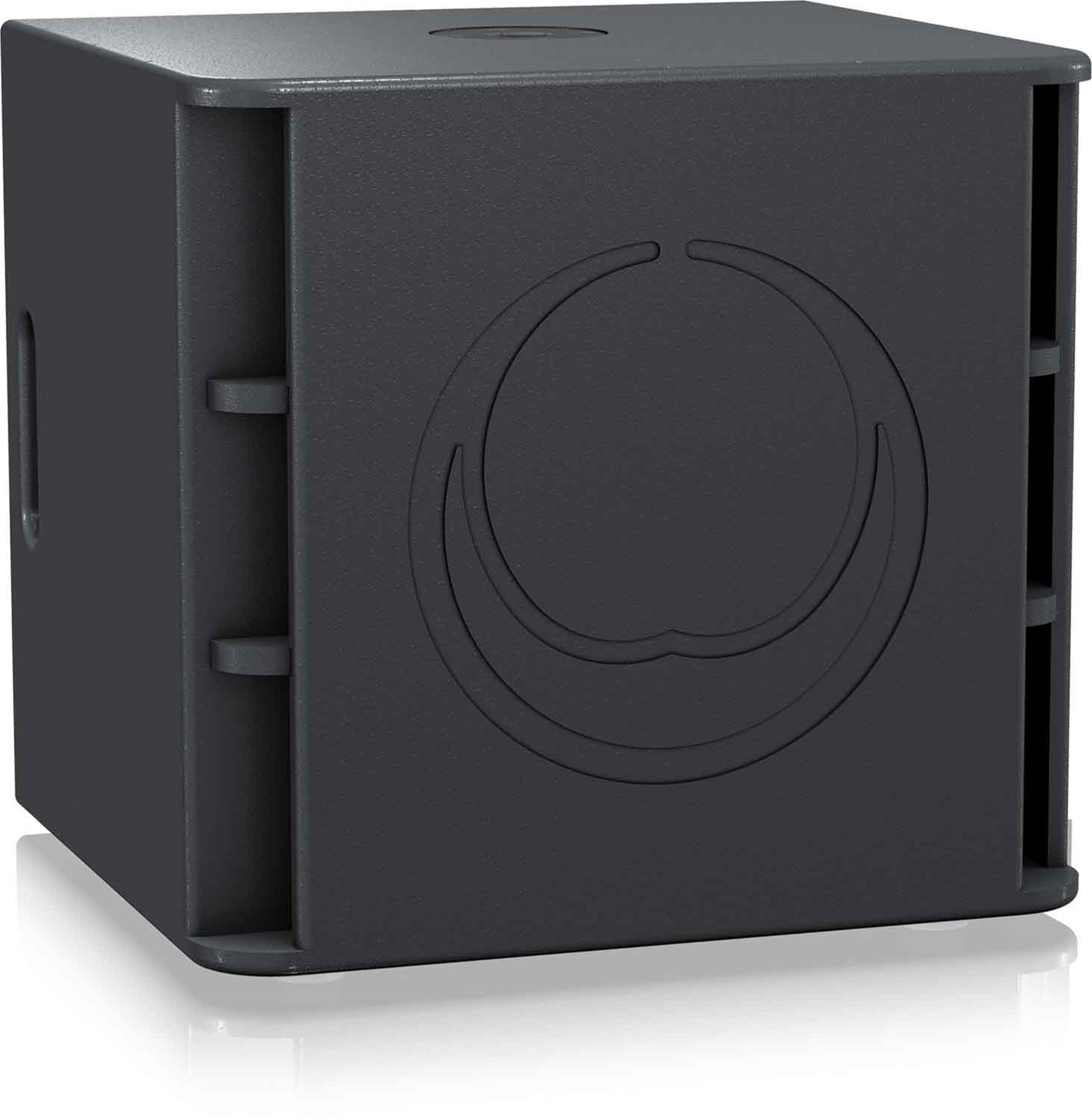

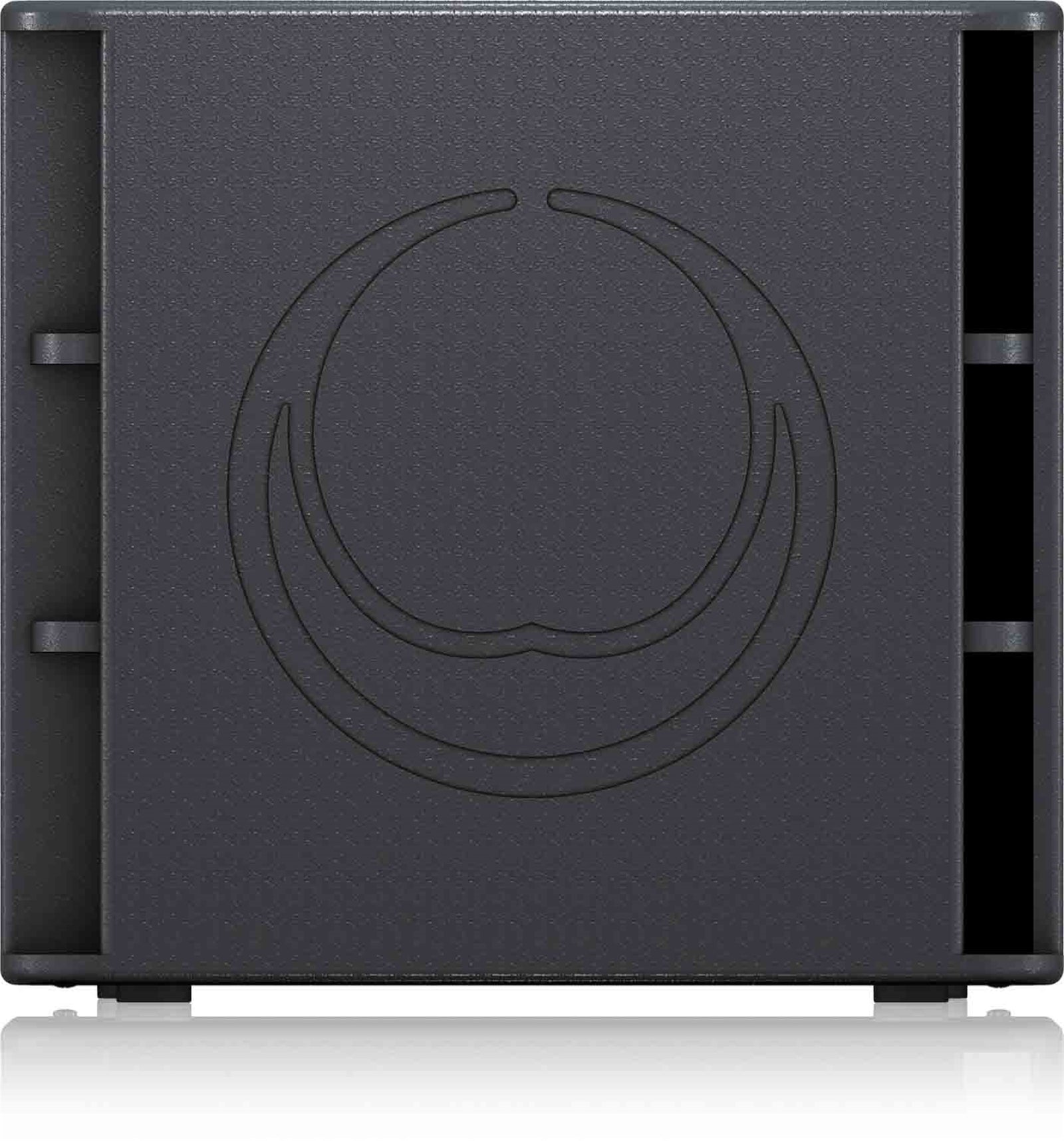

Turbosound M15B 2200-Watt 15" Powered Subwoofer with Klark Teknik Technology

The Turbosound MILAN M15B 2,200-Watt  is a powered portable band pass 15" subwoofer that is designed for the maximum bass extension for both portable and permanent install applications. M15B’s discrete inputs are equipped with balanced, combination ¼ " jack/XLR connectors and a shared Level control, making them ideal for a wide range of music sources, from mixing consoles, low impedance microphones, guitars, and keyboards.

Bandpass Enclosure Design

Bandpass enclosures are extremely efficient, creating maximum bass output within a specific frequency range by increasing the acoustic load presented to the driver. The low distortion bandpass design utilized in the M15B reinforces the bass musical instrument frequencies, and steep cut-off slopes ensure an effective acoustic transition for use with MILAN Series full-range loudspeakers. A typical application could consist of an M15B providing the low-frequency bass extension for one, or two MILAN Series top cabinets.

Class-D - Massive Power, Perfect Sound

Thanks to our revolutionary Class-D amplifier technology, we are able to provide 2,200 Watts of output power with incredible sonic performance in an easy-to-use, ultra-portable, and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology makes it possible to design and build extremely powerful products that are significantly lighter in weight than their traditional counterparts while using less energy and protecting the environment. The lightweight Switch Mode Power Supply, coupled with the industry-leading KLARK TEKNIK Digital Signal Processing (DSP) module, provides dynamic equalization and sophisticated limiting functions, ensuring optimal performance and long-term reliability.

Custom-Engineered Drivers

Powerful, high-efficiency Class-D amplifiers and Switch Mode Power Supply technology coupled with state-of-the-art DSP functionality sounds very impressive – but what about the part of the system you actually hear? We are known internationally for making some of the best-sounding speaker systems in the world, so we take our drivers (woofers and tweeters) very seriously. Our LF and HF drivers are designed specifically for each application – it is what sets us apart from the competition. When you buy a TURBOSOUND loudspeaker, you can rest assured the high-excursion 15" LF driver inside has been engineered to perform flawlessly in conjunction with every other element for truly professional results. The MILAN M15B outputs massive quantities of tight and articulate bass – and works seamlessly with all MILAN Series loudspeakers.

Integrated Control Center

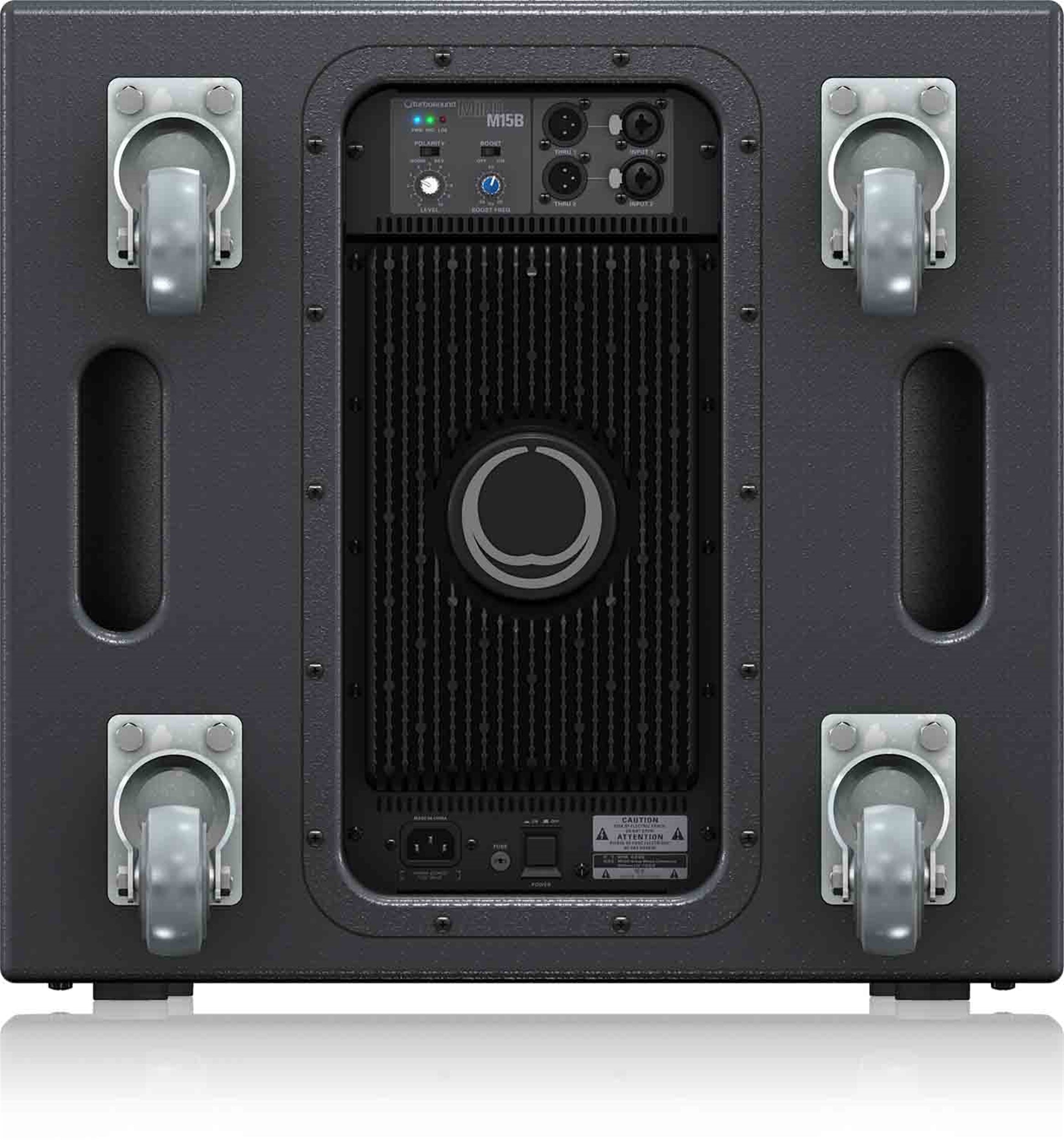

The onboard control panel features a subwoofer Level control, a polarity switch for proper phasing with your loudspeakers, and a switchable Boost filter (set at 100 Hz), which ensures correct integration with your system. An additional filter allows the selection of Speech (for enhanced voice intelligibility), or Music for the broader frequency range required for the high-fidelity reproduction of musical content. Convenient XLR Thru connectors send both input signals to your powered full-range loudspeakers, or to additional powered subwoofers.

Built for Durability and Versatility

The M15B’s enclosure consists of solid birch plywood with a hard-wearing semi matt black paint finish and is ribbed internally to eliminate resonances and to minimize vibration. Plated steel castors with rubber tyres are provided for easy transport, and the standard pole-mount socket allows powered loudspeakers to be mounted, either vertically or raised higher and angled down to optimize audience coverage. Mains power is connected via a non-locking IEC socket with an integrated fuse holder. The illuminated front badge can be operated in one of three modes: permanently on; permanently off; or to indicate the action of limiting.

Rock-Solid Performance

Designed to provide exceptional performance for traveling musicians, houses of worship, banquet facilities, night clubs – and a host of other venues, the 2,200-Watt MILAN M15B puts touring grade sound quality into a scalable loudspeaker system that is supremely portable and versatile. See your authorized dealer, or place your M15B order online today – and let your audience enjoy the TURBOSOUND difference!

Product Specifications:

Controls: Level, Polarity, Boost, Boost Frequency

Frequency Range: 45 Hz–100 Hz ±3 dB, 35 Hz–150 Hz -10 dB

Dispersion @-6 dB pts: N/A

Max SPL (peak): 34 dB (half space)

Equalization: N/A

Boost Frequency: +6 dB @ 40 Hz–90 Hz, Q=1

Construction: Birch plywood, screwed and glued

Dimensions (H x W x D): 495 x 530 x 480 mm, (19.5 x 20.9 x 18.9")

Net weight: 37 kg (81.4 lbs)
