Description

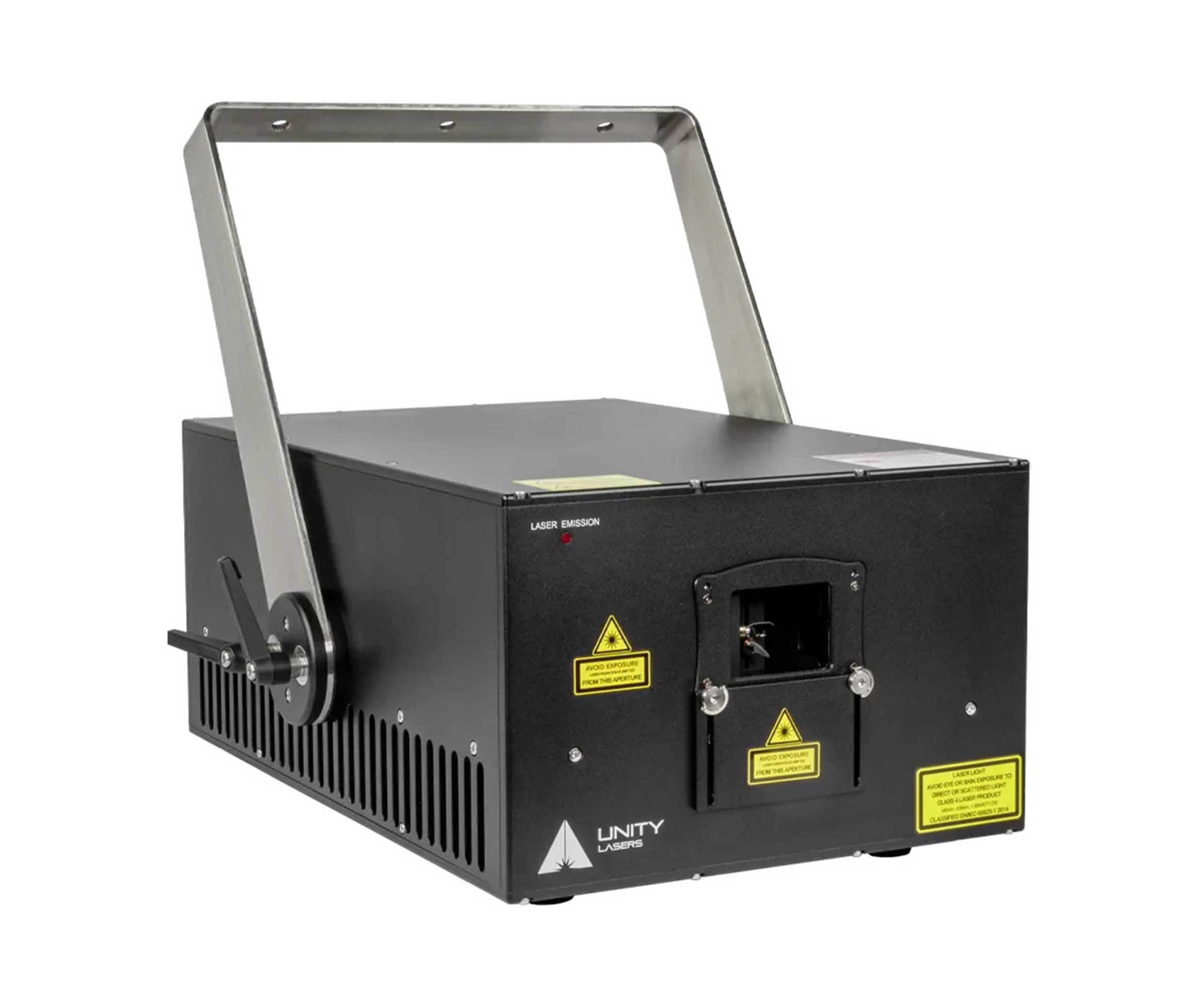

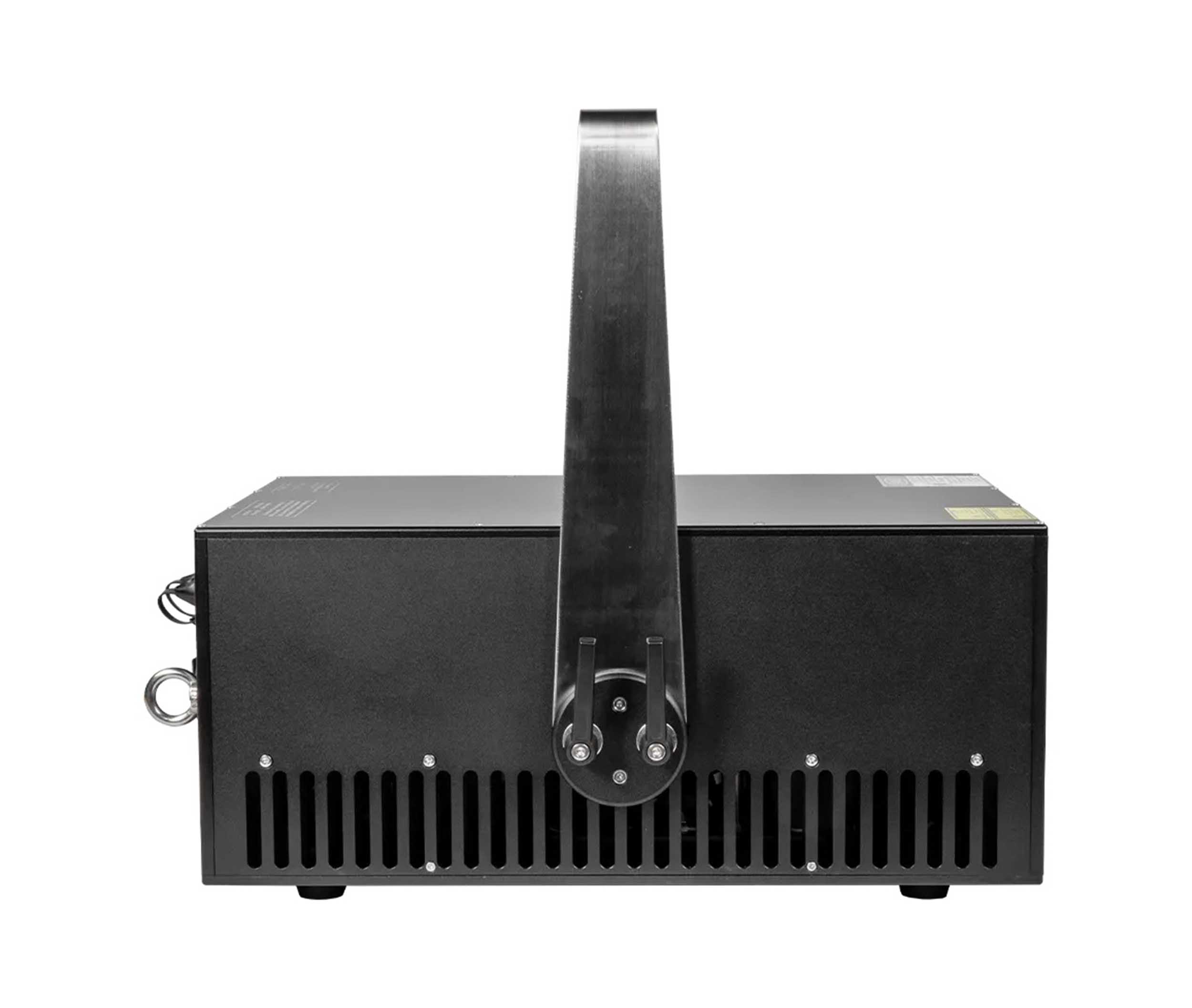

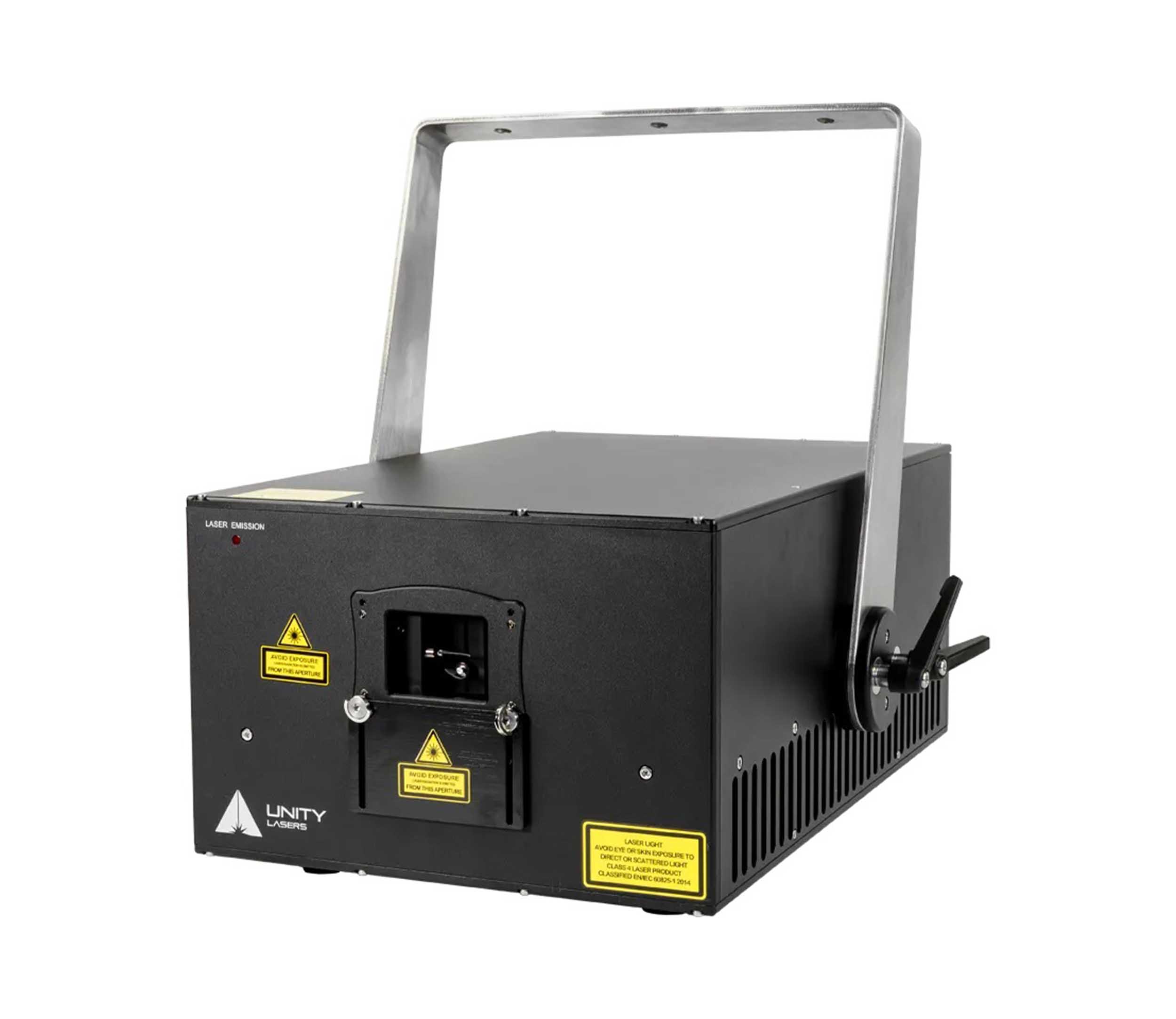

The RAW 30 FB4 (IP65) is a higher-power, pure diode RGB lasers, featuring a rock-solid new IP65 weatherproof housing. As an emerging professional, it equips you with the tools you need, to take on large arena, stadium, and outdoor shows. Ideal for events up to 30,000 people, these systems are fully capable of all atmospheric effects, as well as text, graphics, logos, and mapping.
RAW 30 FB4 (IP65) lasers integrate our industry leading FB4 control hardware with an integrated network switch, providing you the same control infrastructure the professional’s use. Additionally, you receive a FREE copy of our powerful Quick Show software and MoboLaser app (for Apple and Android) to design, create, and control with. Using RAW 30 FB4 (IP65), you can make any type of laser display you can imagine (beam shows, graphics, text, logos, or mapping sequences) and control your show content however you desire – be it from a lighting console, PC, or in stand-alone “auto” mode. Patch into other lighting networks as well, for seamless control of your lasers, lighting, and other effects. RAW 30 FB4 (IP65) is the tool you need as an emerging professional, to take on those larger shows, events, and venues to help grow your laser and lighting business.
Additionally, the lasers support all major lighting protocols (DMX, ArtNet, sACN, timecode, and more) so you can easily integrate into any advanced multimedia show workflow. The RAW FB4 (IP65) lasers include a FREE copy of our Quick Show software as well, so you can design, create, and program your laser shows, however you desire. You can then playback your created content from a lighting console (triggering your effects) or live (with MIDI) or from a timeline using a PC.
Finally, as the lasers include a FREE copy of Quick Show, you can also control them from a mobile application (Apple or Android) using the new MoboLaser app that is included.
Multiple lasers can also easily be connected (over ethernet, ArtNet, or DMX) so you can run synchronized multi-projector shows easily. Additionally, the lasers feature an integrated network switch, for faster deployment of multiple laser systems.

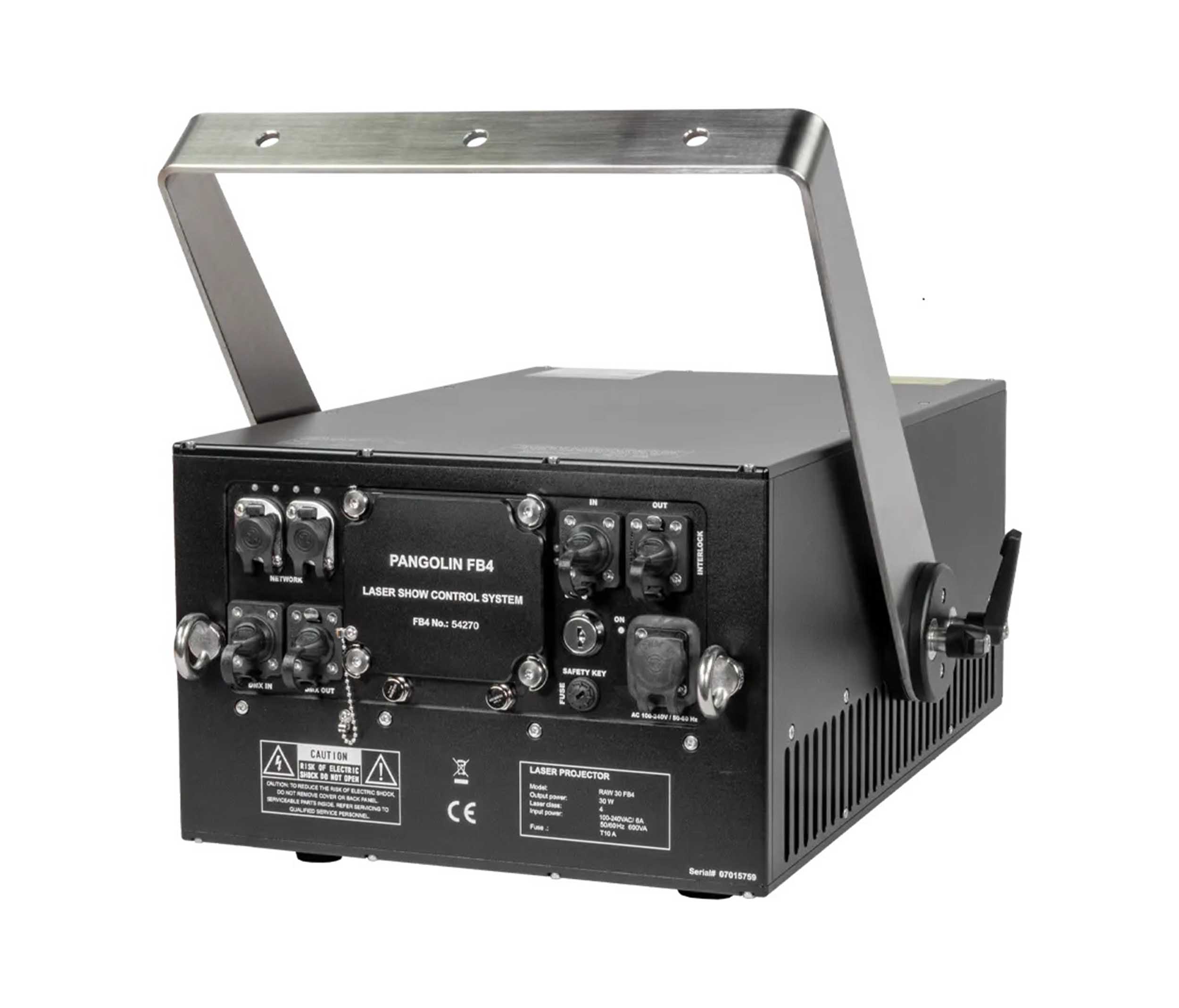

These lasers feature a true IP65 weatherproof housings, for use in any environment. All systems are pure diode-based with a balanced white output, and feature true analog modulation for smooth fade-in, and fade-out effects. And we equip the RAW FB4 IP65 lasers with the very latest in laser safety features (including e-stop and interlock with manual reset, emission delay, mechanical shutter, and masking plate). Convenient external adjustments are also provided natively on the lasers through the FB4 digital display, offering tools to adjust size, position, rotation, colors, geometric correction, and more. Additionally, the lasers feature ethernet in/out, DMX in/out, as well as Estop in/out.
Product Specifications:
Product Name: Unity RAW 30 FB4 (IP65)
Type of Laser: Full-color, Semiconductor diode laser system
Guaranteed Optical Output: >30W
Suitable For: Stadium sized venues (up to 30,000 people), large outdoor shows. Beam show, text, graphic, and mapping capable
Control Signal: Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android]
Scanning System: 35,000 points per second @ 8°
Scan Angle: 50°
Safety: Fully complies with the latest EN 60825-1 and FDA regulations
Weight: 30kg
R | G | B [mW]: 8,000 | 10,000 | 12,000
R | G | B [Wavelength]: 638nm | 520nm | 450nm
Beam Size [mm]: 6 x 6.5
Beam Divergence: <1.1mrad [Full Angle]
Modulation: Analog, up to 100kHz
Power Requirements: 100-230V/50-60Hz
Consumption: Max. 800W
Operation Temperature: (-10 °C)-45 °C
Ingress Rating: IP65
Laser Safety Features:
Keyed Interlock
Emission Delay
Magnetic Interlock
Scan-Fail Safety
Mechanical Shutter
Adjustable Aperture Masking Plate.
Dimensions [mm]:
Depth: 468
Width: 308
Height: 218
