Universal Audio 4710D-U Microphone Preamp and Compressor

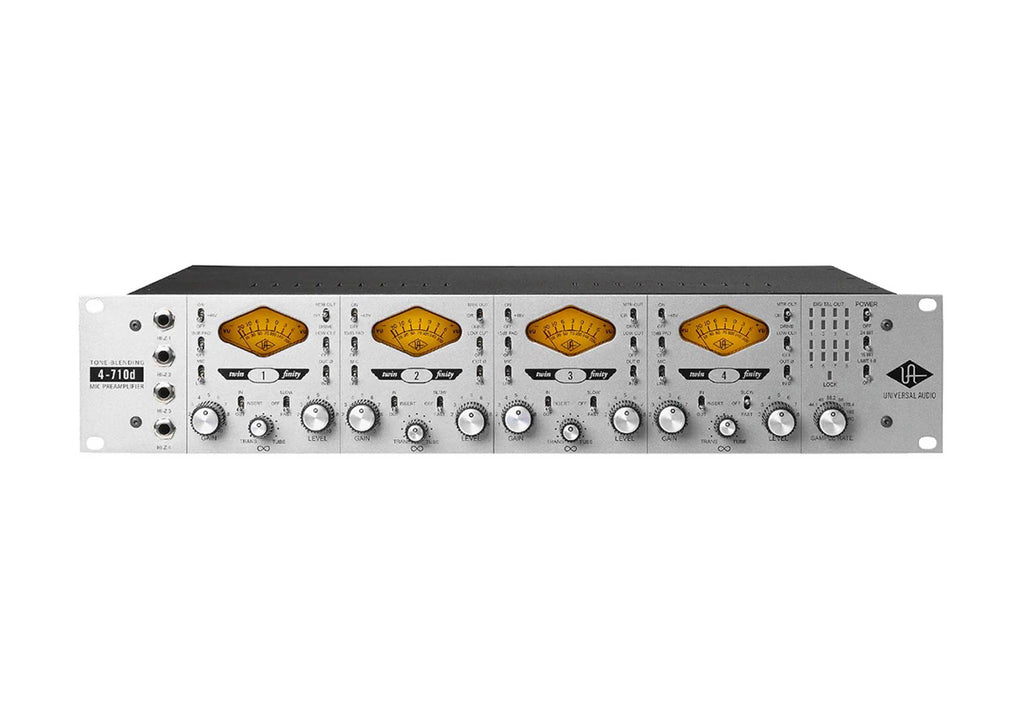

The Universal Audio 4-710D combines four award-winning 710 Twin-Finity microphone preamps into a single professional 2U rackmount unit. Each channel features unique tube and solid-state tone blending, allowing engineers to dial in anything from pristine clarity to rich analog warmth.

In addition to its flexible preamp design, the 4-710d includes integrated 1176-style compression on every channel. Dual gain stages, high-impedance instrument inputs, phantom power, phase inversion, and low-cut filtering provide complete control over vocals, instruments, and line-level sources.

The unit also functions as a premium A/D converter with support for up to 24-bit/192kHz recording. Featuring ADAT optical and AES/EBU digital outputs, the 4-710d easily integrates with modern recording systems while expanding studio input capabilities with professional Universal Audio sound.

Product Specifications:

Preamp Type: Hybrid Tube/FET.

Number of Channels: 4.

Phantom Power: Yes.

Compressor: 1176-Style Compression on Each Channel.

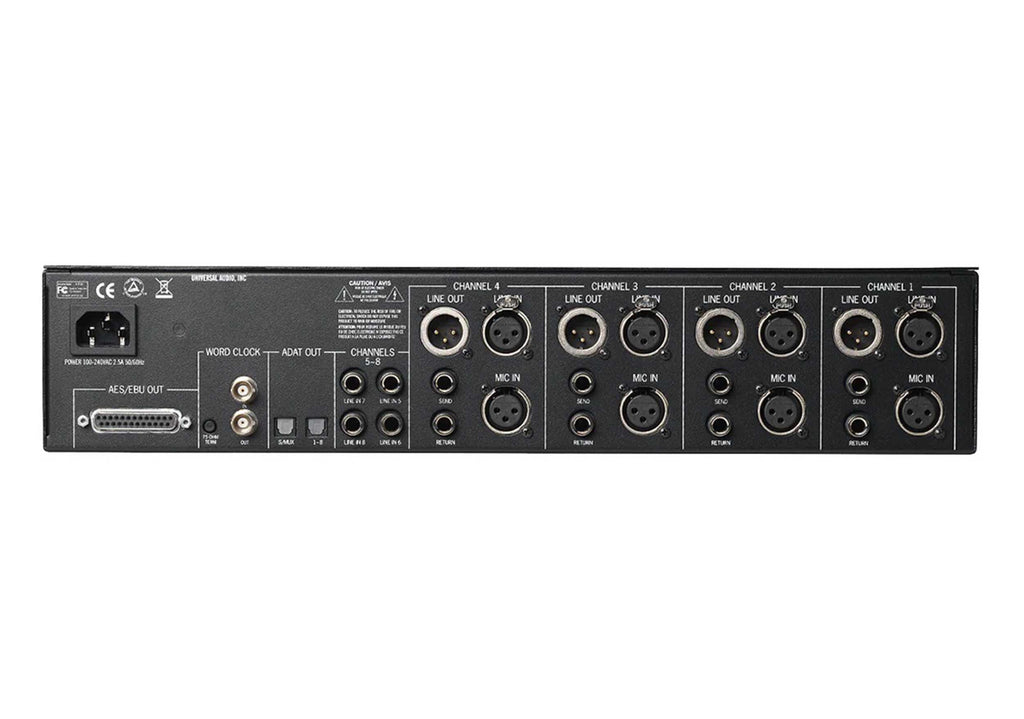

Analog Inputs: 4 x XLR (Mic), 4 x 1/4" (Line), 4 x 1/4" (Hi-Z), 4 x 1/4" (Line CH 5–8).

Analog Outputs: 4 x XLR.

Digital Outputs: 1 x DB-25 (AES/EBU), 2 x Optical (ADAT).

Clock I/O: 2 x Word Clock.

Frequency Response: 20Hz–20kHz.

A/D Conversion: 24-bit / 192kHz.

Tone Control: Variable Tube/Solid-State Blend.

Gain Range: 70dB+.

DI Input: Discrete JFET Ultra Hi-Z.

Filters: 75Hz Low-Cut Filter.

Additional Functions: Pad (15dB), Phase Invert.

Rack Spaces: 2U.

Application: Studio Recording, Vocals, Instruments.

Shipping Weight: 15 lbs.

Shipping Dimensions (L x W x H): 18” x 21” x 8”
