Description

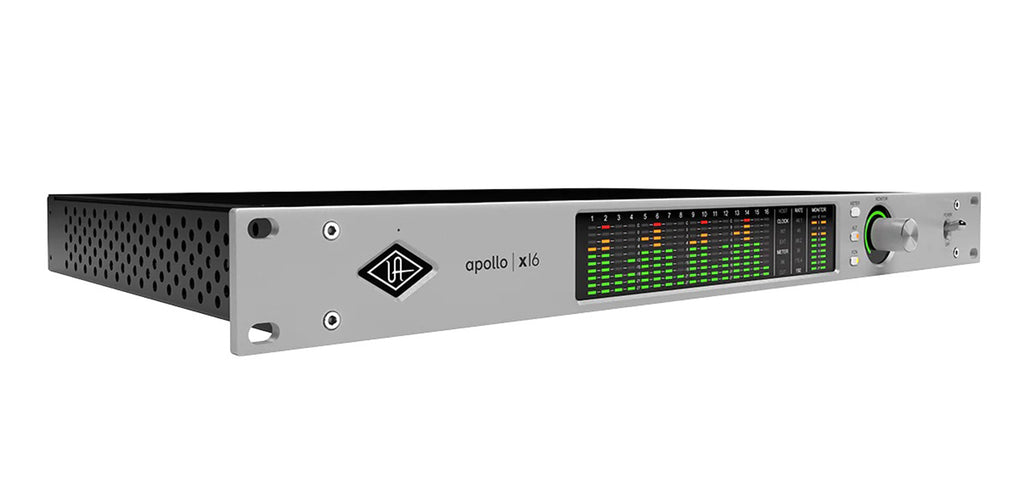

The Universal Audio Apollo x16 Gen 2 is a flagship 18x20 Thunderbolt 3 audio interface designed for professional recording studios, post-production facilities, and immersive audio environments. Featuring HEXA Core DSP processing and Elite-Class Gen 2 AD/DA conversion, it delivers pristine sound quality, ultra-low latency monitoring, and seamless integration with industry-standard DAWs.
Equipped with 16 channels of premium analog I/O, stereo AES connectivity, and word clock synchronization, the Apollo x16 Gen 2 easily integrates with high-end consoles, outboard processors, and large-format studio setups. The included Ultimate+ Bundle provides access to over 120 legendary UAD plug-ins, instruments, channel strips, EQs, compressors, reverbs, and mastering tools.
Built for modern production workflows, the Apollo x16 Gen 2 supports immersive audio formats up to 9.1.6, Apollo Monitor Correction powered by Sonarworks, Bass Management for subwoofer integration, and the updated UAD Console application. Its expandable architecture allows multiple Apollo units to be linked together, making it an ideal solution for growing professional studios.
Product Specifications:
Channels of I/O: 18 Inputs / 20 Outputs
Maximum Sample Rate: 192 kHz / 24-Bit
Built-In DSP: HEXA Core DSP Processing
Host Connection: Thunderbolt 3 via USB-C

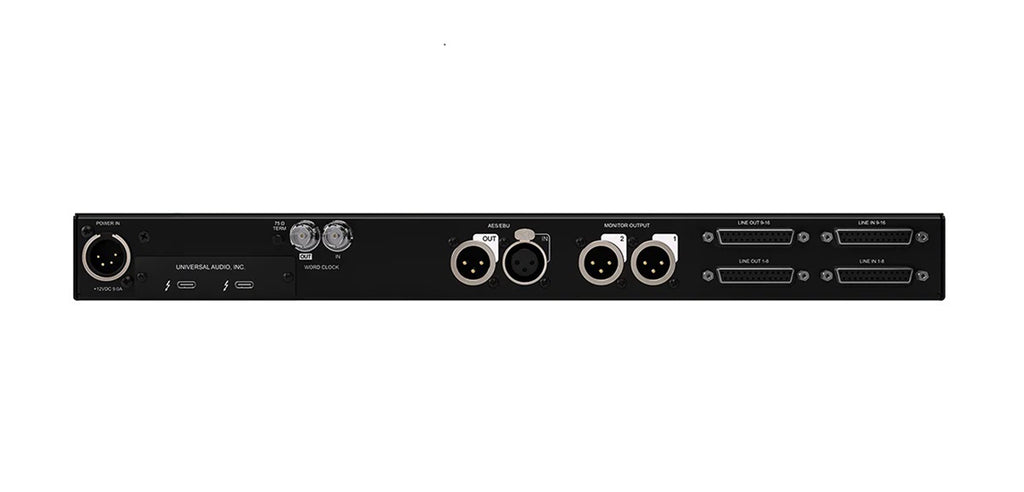

Analog Inputs: 2 × DB-25 Balanced Line Inputs (16 Channels)
Analog Outputs: 2 × DB-25 Balanced Line Outputs (16 Channels)
Monitor Outputs: 2 × XLR Balanced Outputs
Digital I/O: AES3 Stereo Input and Output (XLR)
Word Clock: BNC Input and 3.5 mm Output
Dynamic Range (Monitor Outputs): 133 dBA
THD+N (Monitor Outputs): -129 dB / 0.000037%
Maximum Input Level: +24 dBu
Latency: 1.1 ms at 96 kHz
Frequency Response: 20 Hz – 20 kHz (±0.02 dB to ±0.04 dB)
Sync Sources: AES3, Internal, Word Clock
Supported Sample Rates: Up to 192 kHz
Bit Depth: 24-Bit
Compatibility: Windows and macOS
Rackmount Size: 1U
AC Input: 100 to 240 VAC, 50/60 Hz
Power Consumption: 30 W Typical / 72 W Maximum
Operating Temperature: 32°F to 104°F (0°C to 40°C)

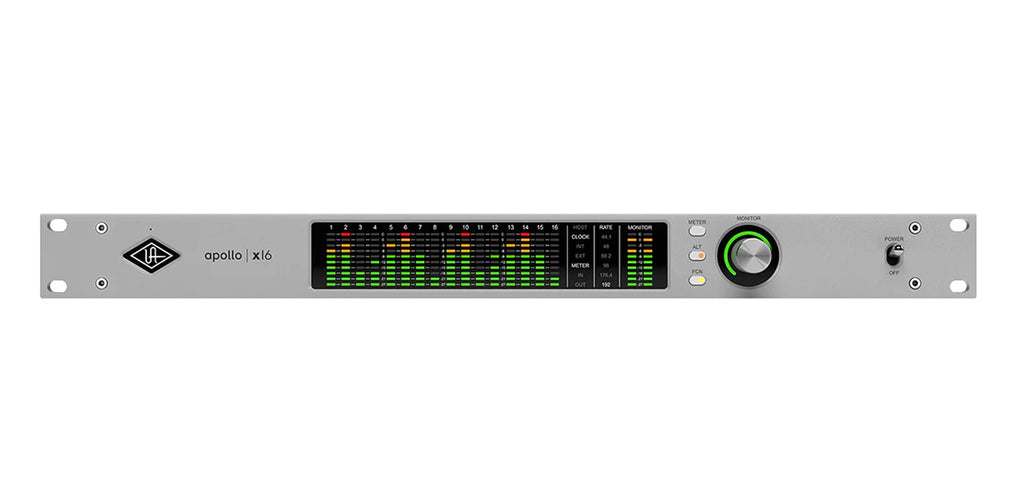

Display: 18-Channel Color Multi-Segment LED Meter
Built-In Microphone: Yes
Network Connectivity: No
Product Weight: 14 lbs.
Product Dimensions (L x W x H): 21 " x 14 " x 5 "
