Description

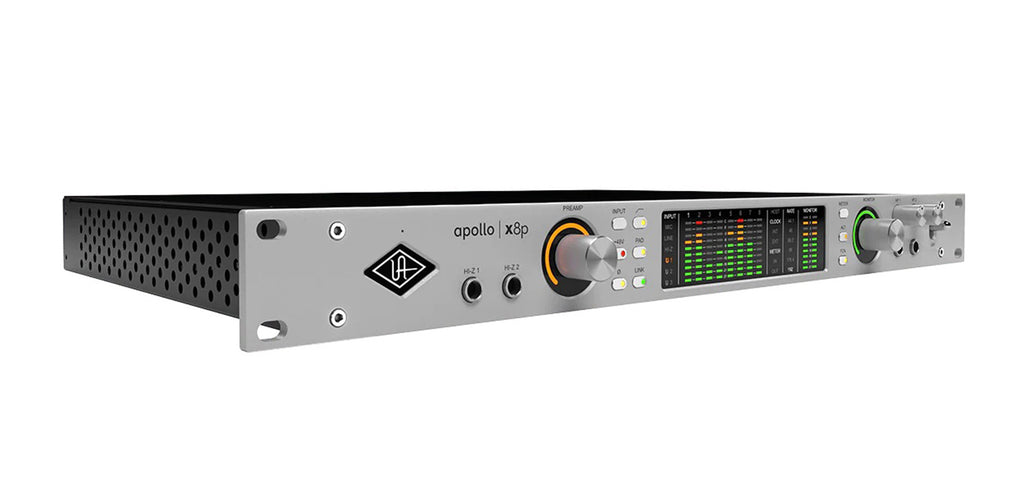

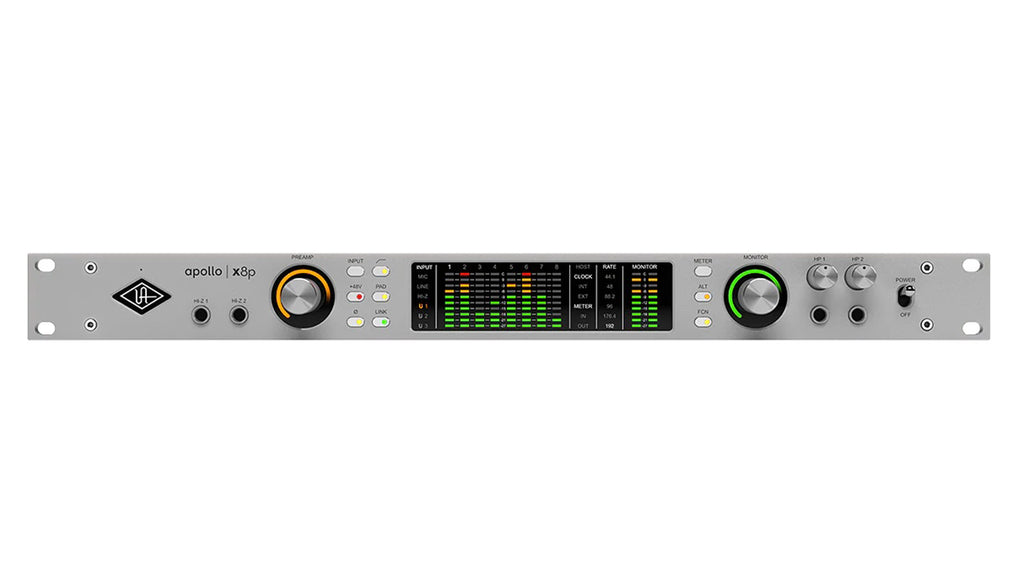

The Universal Audio Apollo x8p Gen 2 is a premium 16x22 Thunderbolt 3 audio interface designed for producers, engineers, and studios handling large recording sessions. Equipped with eight Unison microphone preamps, HEXA Core DSP processing, and Elite-Class Gen 2 converters, it delivers professional-grade recording quality, near-zero-latency monitoring, and the authentic sound of legendary analog gear.

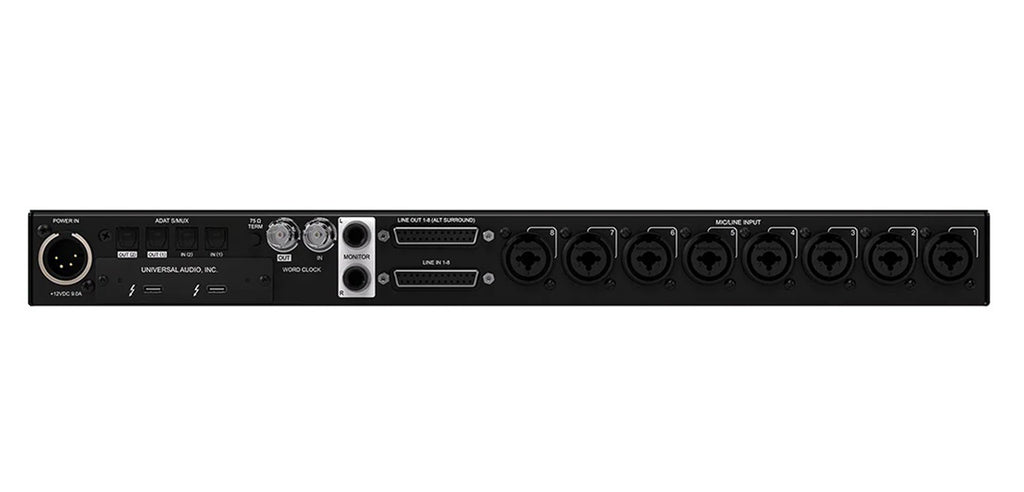

Built to integrate seamlessly into modern studio environments, the Apollo x8p Gen 2 offers extensive analog and digital connectivity, including eight mic/line inputs, Hi-Z instrument inputs, ADAT, S/PDIF, and word clock I/O. Advanced Gen 2 enhancements such as Auto-Gain, Bass Management, and Apollo Monitor Correction powered by Sonarworks help streamline workflows and improve monitoring accuracy.
The included Studio+ Bundle provides over 50 premium UAD plug-ins and virtual instruments, featuring renowned compressors, EQs, reverbs, channel strips, and synths. With support for surround audio up to 7.1 and expandable Thunderbolt connectivity for larger systems, the Apollo x8p Gen 2 serves as a powerful centerpiece for professional recording and production.
Product Specifications:
Audio Interface Type: Thunderbolt 3 Rackmount Audio Interface
Channels of I/O: 16 Inputs / 22 Outputs
DSP Processing: HEXA Core UAD DSP
Audio Resolution: 24-Bit / 192 kHz
Microphone Inputs: 8 x Unison Mic/Line Inputs
Instrument Inputs: 2 x Hi-Z Inputs
Line Inputs: 8-Channel DB-25 Line Input
Line Outputs: 8-Channel DB-25 Line Output
Monitor Outputs: 2 x 1/4" TRS Monitor Outputs
Headphone Outputs: 2 x 1/4" TRS Headphone Outputs
Digital Audio I/O: Dual ADAT / S/PDIF Optical I/O
Word Clock: BNC Input and Output
Host Connection: USB-C (Thunderbolt 3)
Phantom Power: 48V Switchable
Gain Range: +10 dB to +65 dB
Mic Pad: -20 dB Per Channel
Built-In Talkback Mic: Yes
Display: 10-Segment Color LED Metering
Dynamic Range: Up to 130 dBA
Latency: 1.1 ms @ 96 kHz
Room Correction: Sonarworks Apollo Monitor Correction
Bass Management: Yes
Surround Audio Support: Up to 7.1
Sync Sources: ADAT, S/PDIF, Word Clock, Internal
Compatibility: macOS and Windows
Rack Size: 1U
Power Supply: 12 VDC, 6A External Adapter
AC Input: 100–240 VAC, 50/60 Hz
Power Consumption: 30W Typical / 72W Maximum
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Product Weight: 14 lbs.
Product Dimensions (L x W x H): 21 " x 14 " x 5 "
