Description

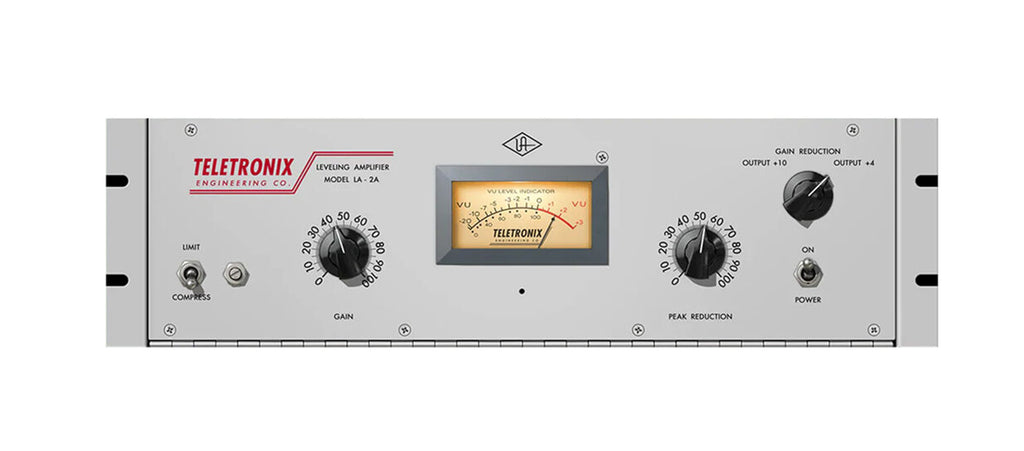

The Universal Audio LA-2A Classic Leveling Amplifier is a legendary optical tube compressor renowned for its smooth, musical compression and natural gain reduction. Favored by engineers for decades, it delivers warm analog character that enhances vocals, bass, guitars, and a wide range of instruments.
Built around the original Teletronix design, the LA-2A uses an electro-optical gain reduction system and tube amplification stages to create transparent yet rich compression. Its simple two-knob operation makes it easy to achieve professional results while preserving the dynamics and emotion of a performance.
Handcrafted by Universal Audio, the LA-2A continues the legacy of one of the most celebrated compressors in recording history. Whether used during tracking, mixing, or mastering, it provides the smooth leveling and timeless tone heard on countless classic recordings.
Product Specifications:
Product Name: Teletronix LA-2A Classic Leveling Amplifier
Type: Tube Optical Compressor / Leveling Amplifier
Channels: Mono, Line Level
Gain Reduction: 0 to 40 dB
Frequency Response: +0/-1 dB, 30 Hz to 15 kHz
Gain: 40 dB ±1 dB
Input Impedance: 50, 150, 250, 600 ohms
Output Load Impedance: 50, 150, 250, 600 ohms
Maximum Input Level: +16 dB
Output Level: +10 dBm Nominal, +16 dBm Maximum
Distortion: Less than 0.5% THD (0.25% Typical)
Noise: 70 dB Below +10 dBm Output Level
Attack Time: 10 ms
Release Time: 0.06 sec (50% Release), 0.5 to 5 sec (Complete Release)
Metering: dB Gain Reduction and dB Output
External Connections: Jones Barrier Terminals and XLR Connectors
Stereo Linking: Balanced Stereo Interconnection
Power Requirements: 35 Watts, 120/240 V AC, 50/60 Hz
Mounting Format: 19" Rackmount Chassis, 3U
Maximum Operating Temperature: 160°F (71°C)
