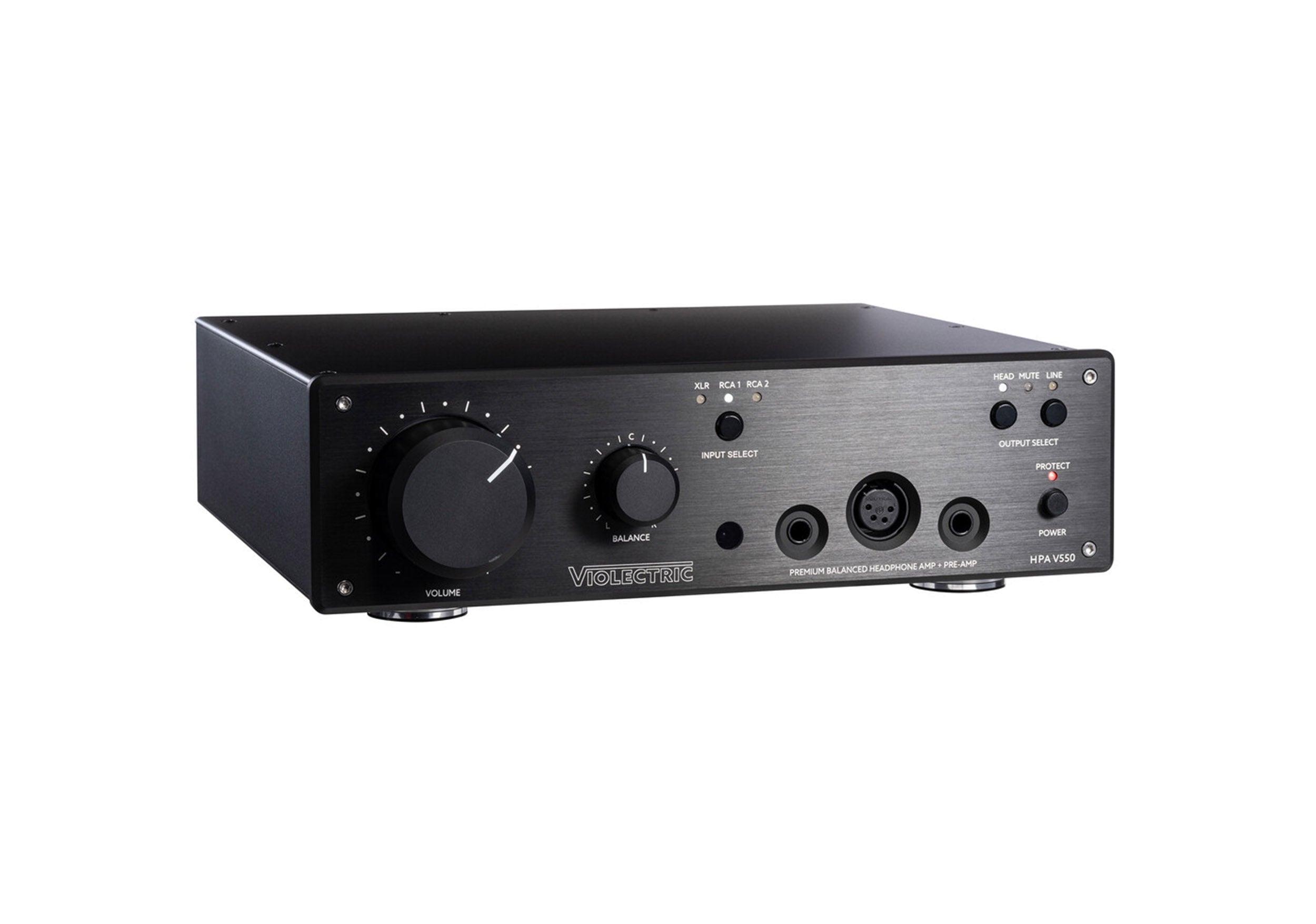

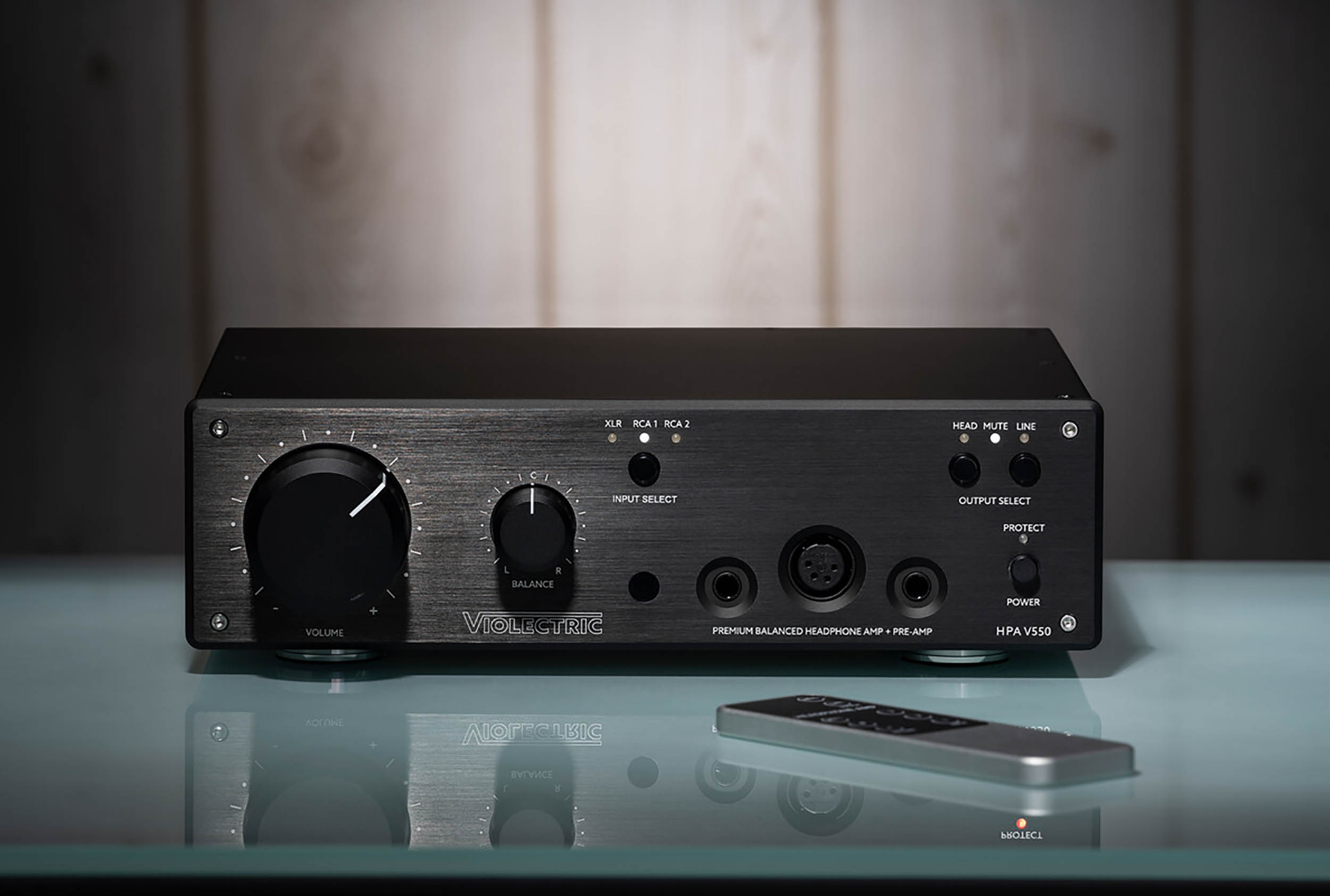

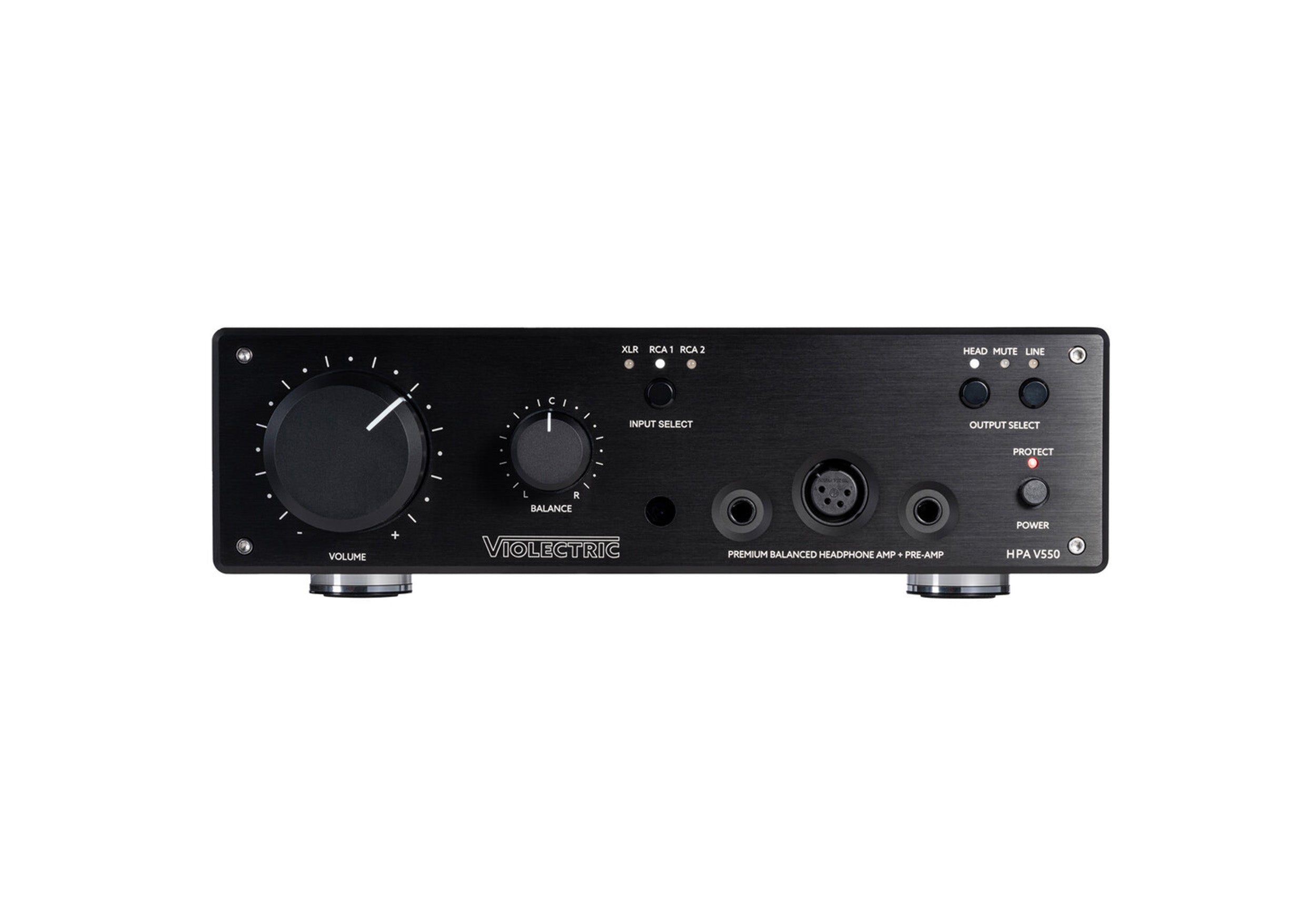

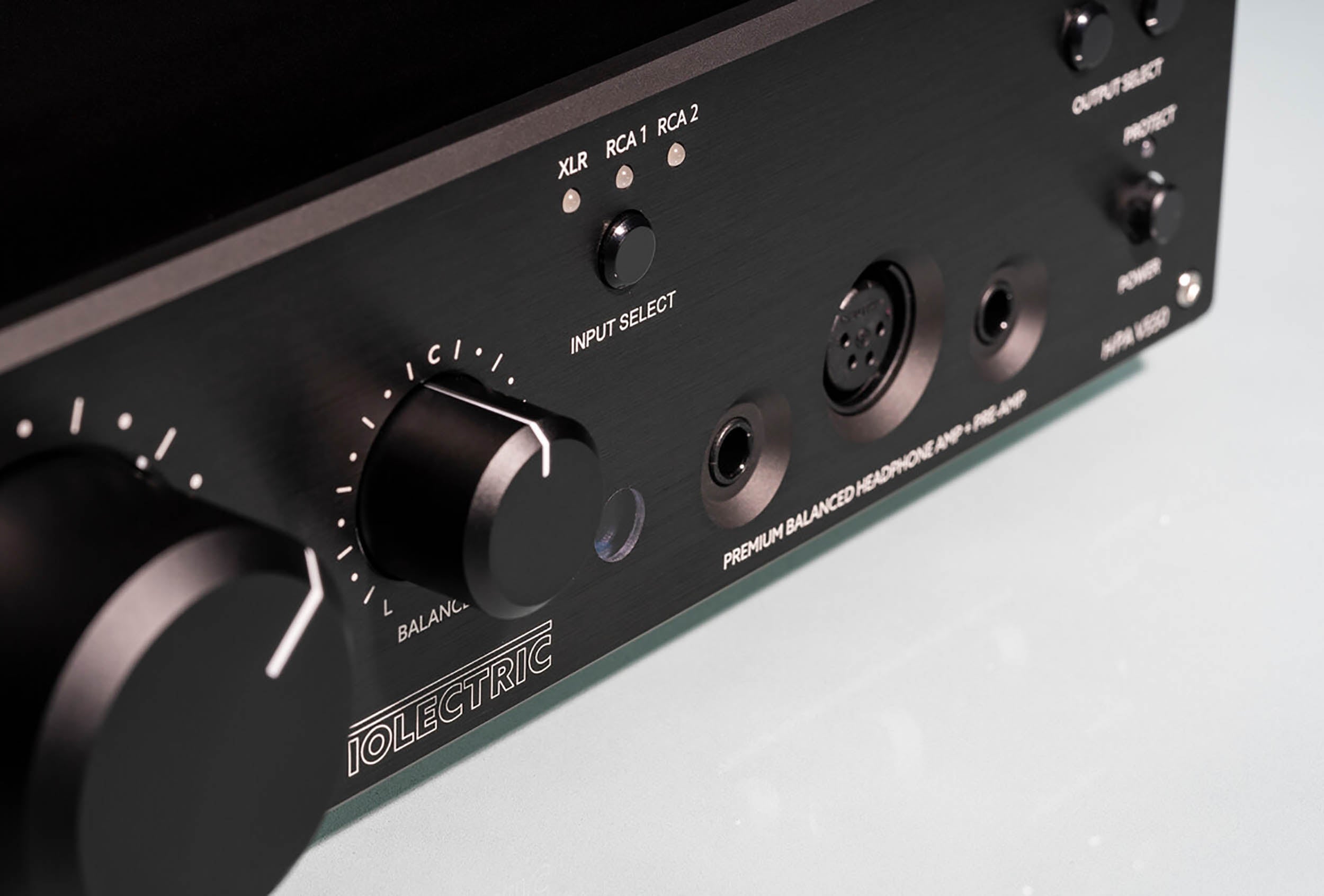

Violectric HPA-V550 Powerful Balanced Headphone Amplifier

The Violectric HPA-V550 Powerful Balanced Headphone Amplifier with a perfect preamplifier and a wide range of functions. The HPA V550 offers outstanding technical values, excellent sound and workmanship in the best manufacturing quality.

The pre-gain circuit allows the amplifier to be adapted to the requirements of the headphones being used. Even critical designs such as magnetostats can be easily operated via the balanced and the two unbalanced headphone connections. Up to three analog stereo sources can be connected via one XLR and two RCA connections. The HPA V550 also offers one balanced and one unbalanced output. High-quality ALPS RK27 potentiometers are used for the volume and balance controls.

Balanced Headphone Outputs

When listening to music via loudspeakers, you are part of the auditorium. When listening via “normal” headphones, you take the place of the conductor. When listening with “balanced” headphones, you are part of the orchestra.

If headphones are operated symmetrically, the channel separation is increased even further. Balanced headphones usually have a 4-pin XLR connection or a Pentaconn plug. True balanced operation requires a great deal of effort in the form of four built-in power amplifiers.

PRE-GAIN

The headphone amplifier is positioned between the music source and the headphones. The source can be of varying power and the headphones of varying sensitivity. The Lake People PRE-GAIN serves to compensate for these differences and to optimize the headphone amplifier for every conceivable combination. This results in minimal noise, the lowest distortion factor and the best channel balance.

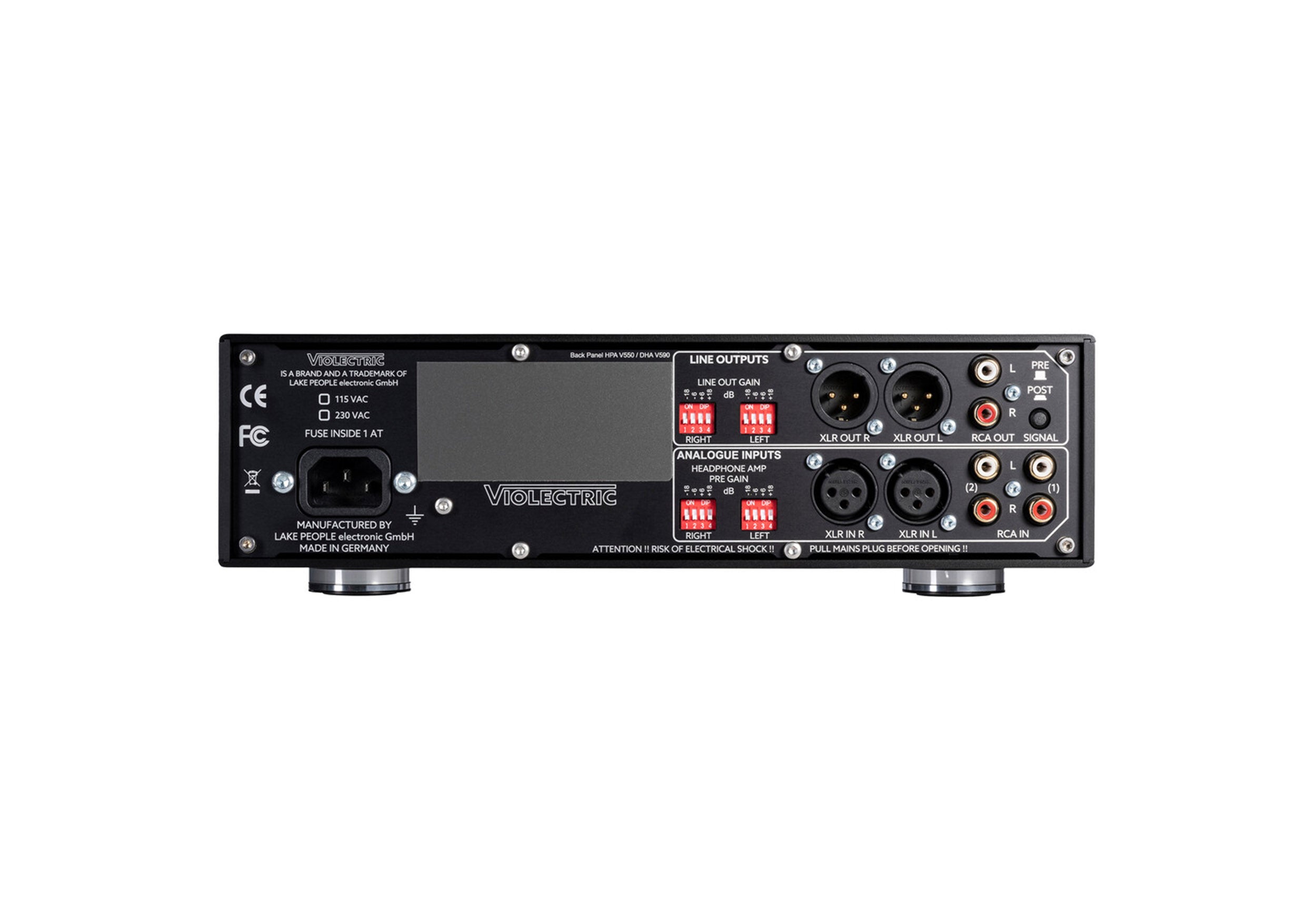

The PRE-GAIN adjustment is located on the rear of the Violectric HPA V340 and can be set individually in 7 stages (-18, -12, -6, 0, +6, +12, +18 dB)

Perfect Headphone Protection

Various circuits protect the headphones from unclear operating states, DC voltage, excessive operating temperature and overload.

Delayed ON, Instant OFF

Every headphone amplifier causes interference when it is switched on and off. This interference can damage the connected headphones. The headphones are connected to the amplifier with a delay via relays and the associated electronics and disconnected again immediately after switching off. In this way, the headphones themselves are protected from the device electronics as long as no clearly defined conditions are to be expected.

DC Monitoring

The outputs are monitored for harmful DC voltage. As soon as a predefined value is exceeded, the headphones are switched off.

Overload Monitoring

The power consumption is constantly measured during operation. If predefined parameters are exceeded, the headphones are switched off.

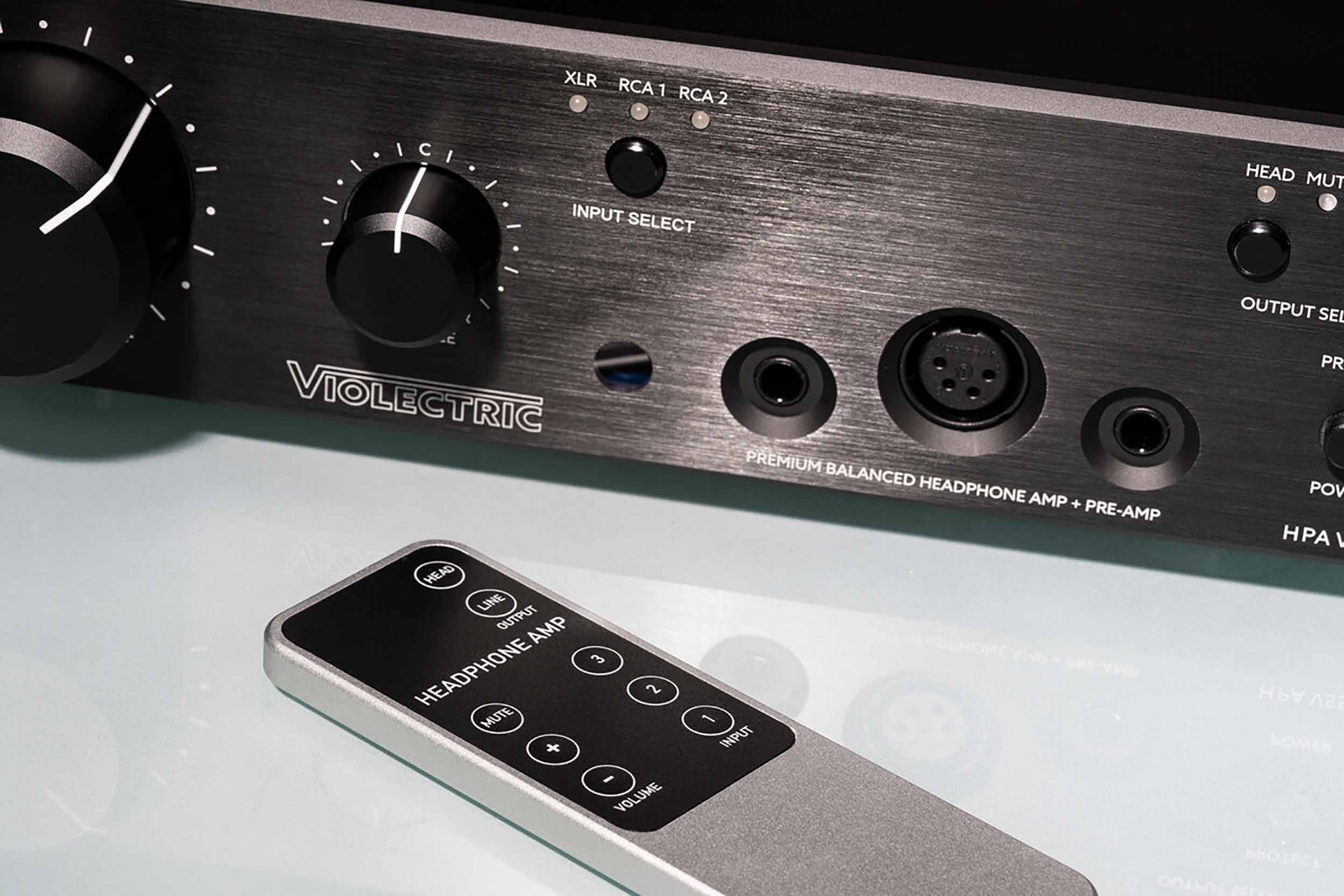

Remote Control

Control the Violectric HPA V550 remotely with its beautifully designed remote control milled from a solid piece of metal. Infrared gives you access to the most important functions of the device:

Volume

Mute

Input selection (XLR / RCA1 / RCA2)

Output selection (headphones / LineOut

Violectric's Unique Technology

Lowest noise - thanks to very low internal amplification. This means that the amplifier's own noise is inaudible.

High output voltage - due to an internal 50-volt operating voltage. Therefore, ideally suited for high-impedance headphones.

High output power - thanks to powerful amplifiers that can deliver far more power than even the most demanding headphones require. Therefore, ideally suited for headphones with low impedances and magnetostats.

High damping factor - due to the lowest output impedance. Therefore, ideally suited to drive even the most difficult headphones without interference. The advantage for an uncompromising frequency response.

Violectric - The Brand for Music Lovers

Violectric brings decades of expertise and the uncompromising quality standards of professional Lake People products to the world of hi-fi - with passion! Music lovers all over the world rave about the seamless integration into their systems: from a convenient and versatile input section to precisely adjustable gain control and digital interfaces with first-class converter technology at broadcast level - no wish remains unfulfilled here.

The entire Violectric portfolio impresses with intuitive operability that is otherwise only known from professional audio technology. And there are no compromises when it comes to quality: Every single component is carefully selected to guarantee maximum sound fidelity.

However, Violectric not only stands for outstanding technology, but also for timeless elegance. The products are integrated into an elegant, high-quality housing and fit perfectly into any sophisticated hi-fi setup. For audiophile perfectionists who don't want to compromise, the Niimbus series offers the ultimate - both visually and technically at the very highest level.

Product Specifications:

Number of Headphone Channels: Single Channel

Recommended Headphone Impedance: 16 to 600 Ohms

Headphone Output Power:

6400 mW into 50 Ohms (Max)

735 mW into 600 Ohms (Rated)

EQ: No

Display: No

Connectivity:

Analog Audio I/O:

2x XLR 3-Pin Balanced Line Input (1 Stereo Pair, Rear Panel)

4x RCA Coaxial Unbalanced Line Input (2 Stereo Pair, Rear Panel)

2x XLR 3-Pin Balanced Line Output (1 Stereo Pair, Rear Panel)

2x RCA Coaxial Unbalanced Line Output (1 Stereo Pair, Rear Panel)

1x XLR 4-Pin Balanced Stereo Headphone Output (Front Panel)

2x 1/4"" TRS Unbalanced Stereo Headphone Output (Front Panel)

Digital Audio I/O: No

Network I/O: No

USB I/O: No

Performance:

Frequency Response: 5 Hz to 250 kHz -0.5 dB

Gain/Trim Range: 0 dB +6 dB

Maximum Input Level: +21 dBu

Maximum Output Level: +21 dBu

Dynamic Range: > 131 dBA

Impedance: Outputs: < 1 Ohm

Line Inputs: 10 Kilohms

THD+N:

< -102 dB / < 0.0008% (At 1 kHz, 2 x 10V, 100R = 1W)

< -100 dB / < 0.001% (At 1 kHz, 2 x 4V, 32R = 0.5W)

Noise: < -103 dBu (A-Weighted)

Crosstalk:

-105 dB (At 1 kHz)

-100 dB (At 15 kHz)

Channel Balance: 6 dB

Damping Factor:

320 at 50 Ohms (Unbalanced)

160 at 50 Ohms (Balanced)

Power Requirements: AC Input

Ground Lift: Yes

AC/DC Power Adapter: No

Power Consumption: 50 VA

Dimensions: 11.4 x 10 x 3.1" / 29 x 25.4 x 8 cm (with Feet)
