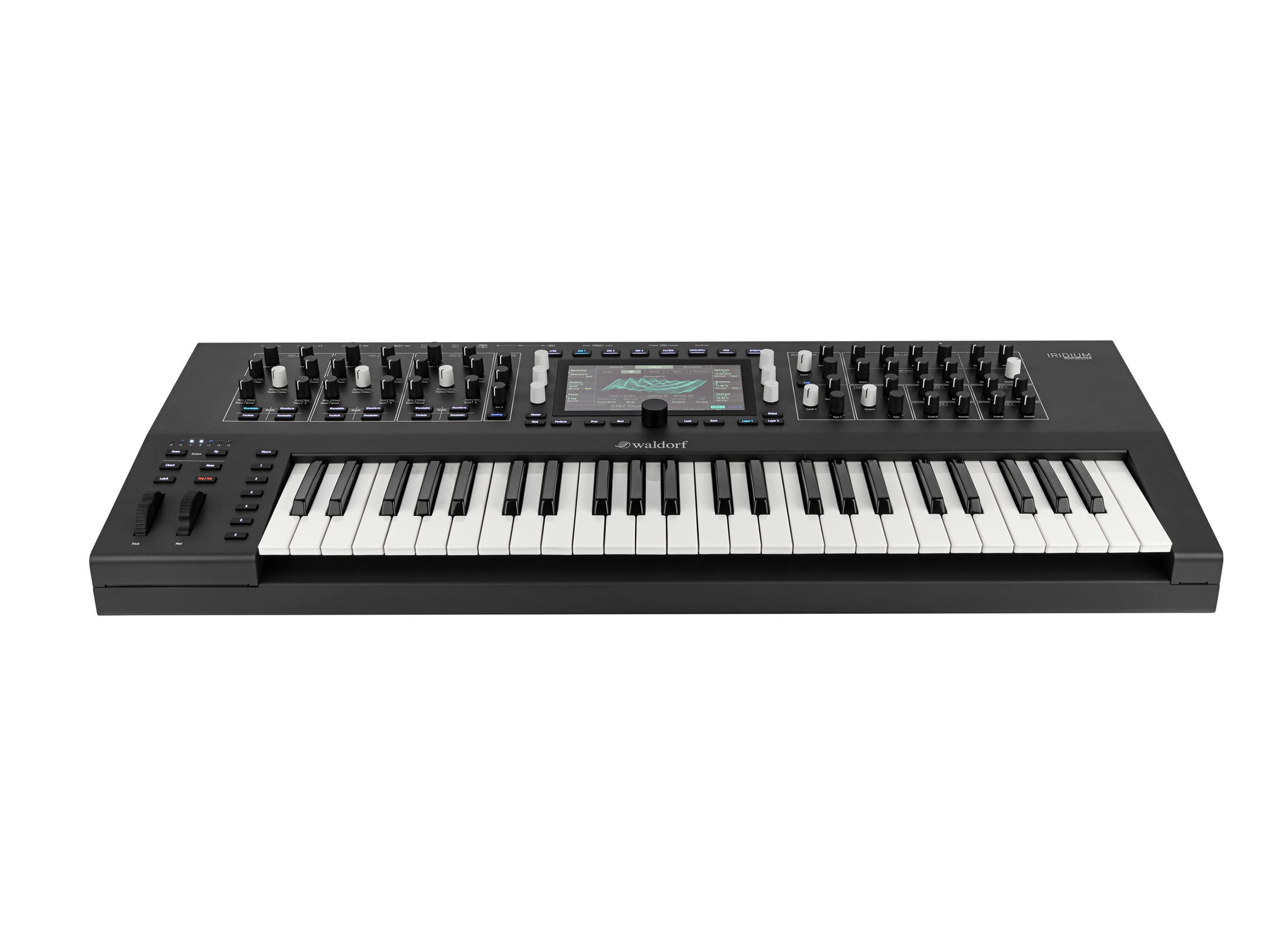

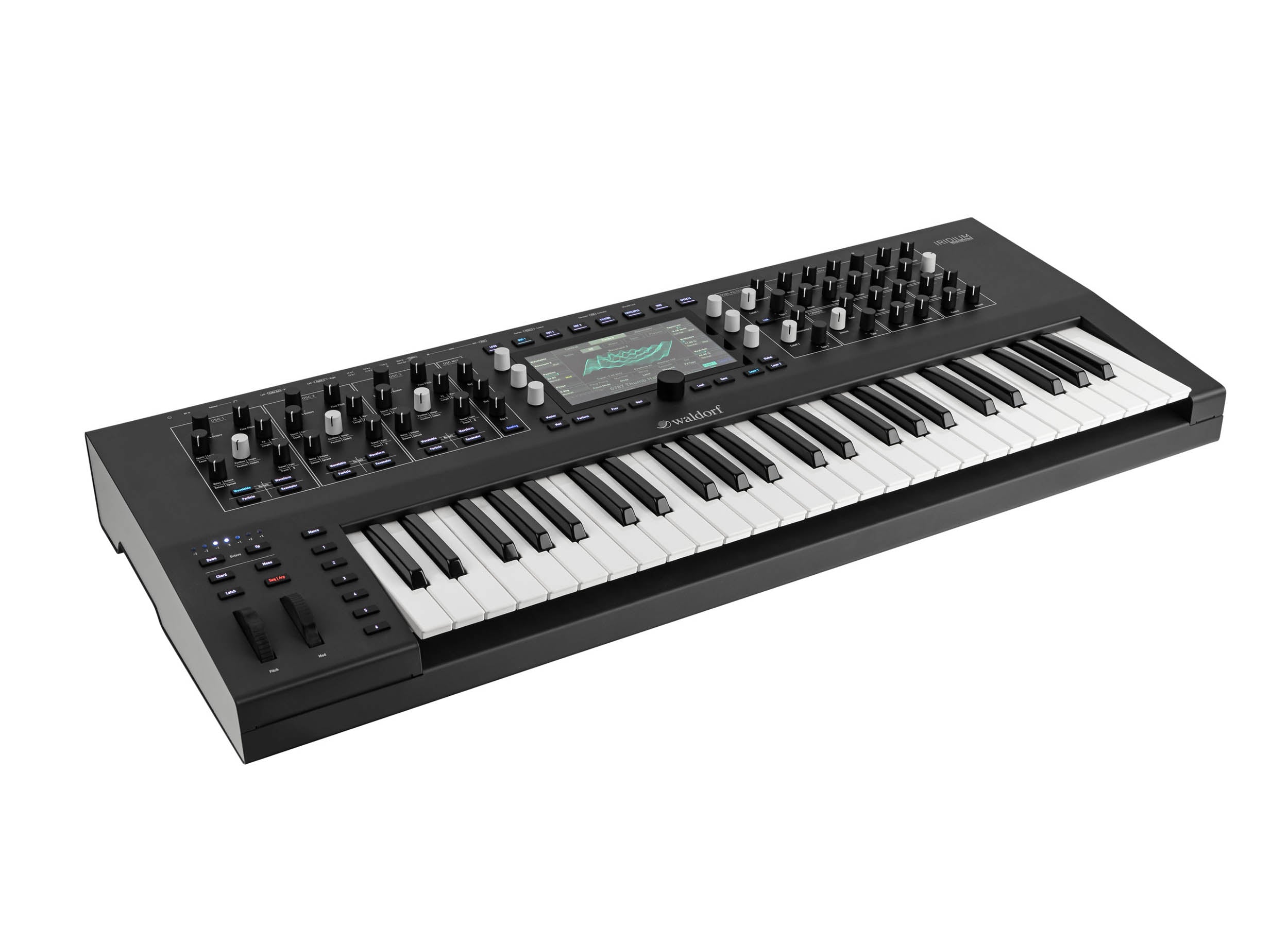

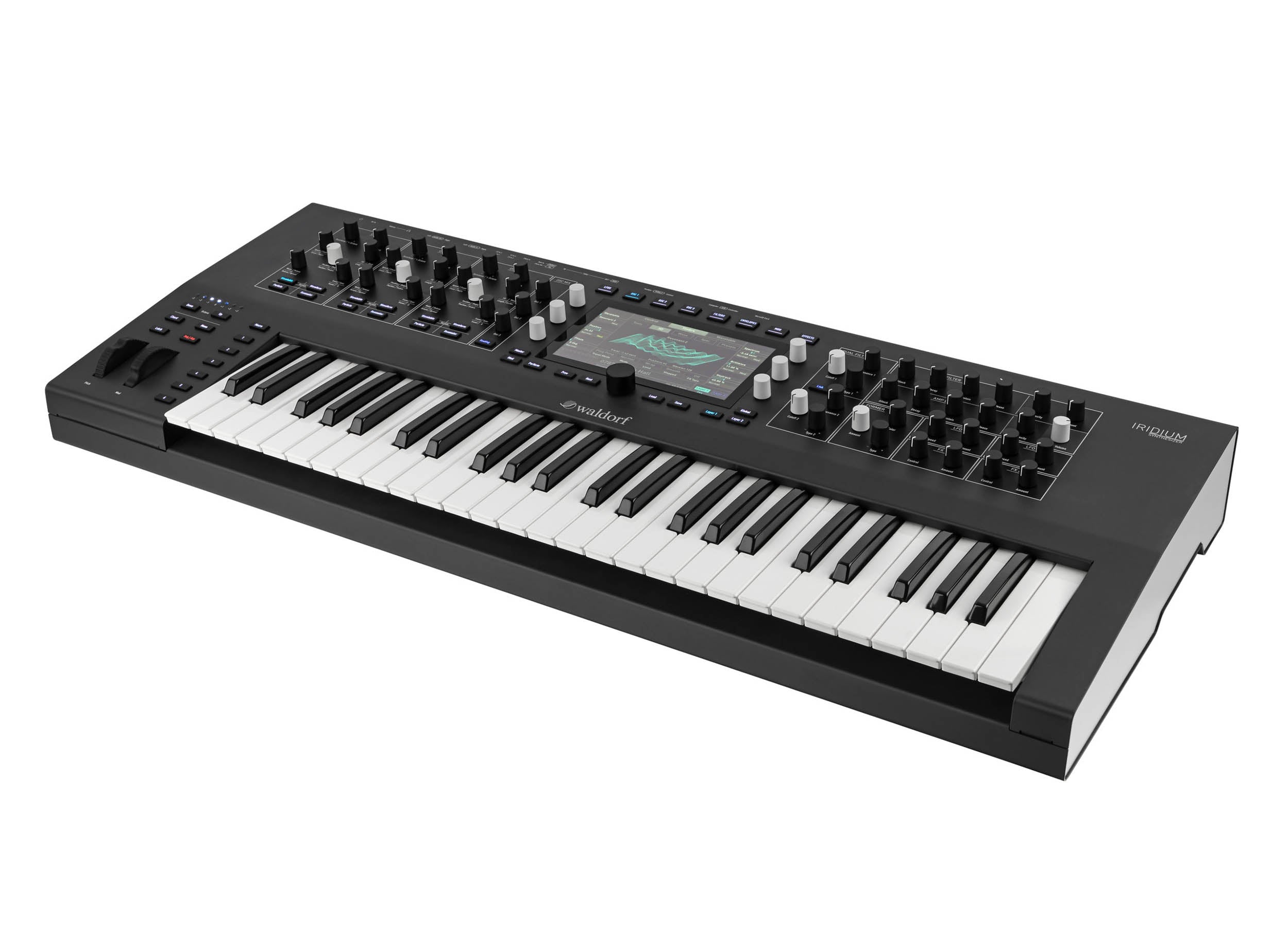

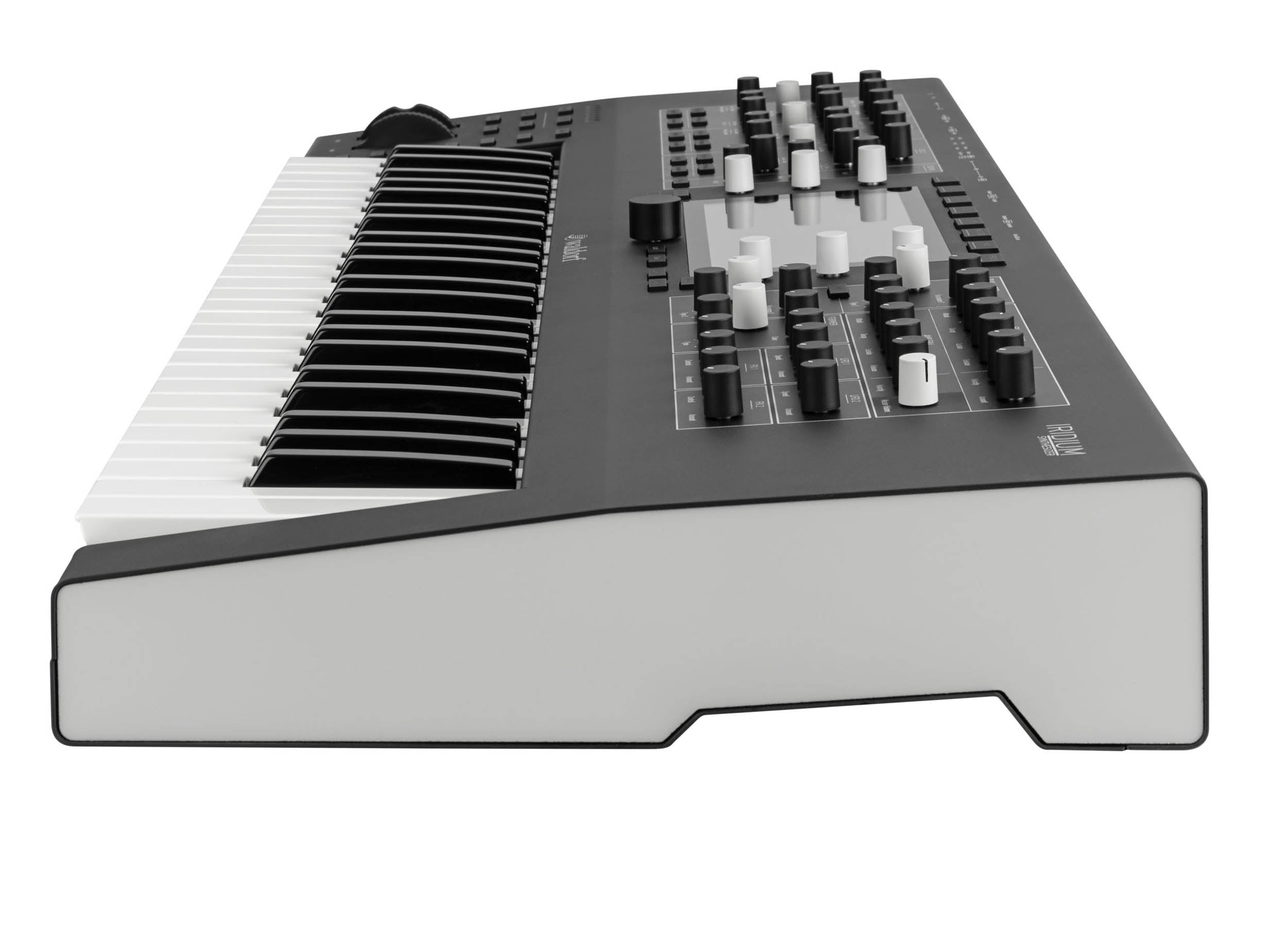

Waldorf IRIDIUM KEYBOARD 16 Voice Digital Synthesizer

The Waldorf IRIDIUM KEYBOARD 16 Voice Digital Synthesizer takes the high class synthesis power of the Iridium desktop and expands it into a performance-ready instrument. It introduces a world-first 49-key FATAR TP/8SK semi-weighted polyphonic aftertouch keyboard, allowing expressive control where every note responds individually to pressure. Combined with a powerful Mod Matrix with 40 modulation slots and full MPE (MIDI Polyphonic Expression) support, the Iridium Keyboard behaves more like an acoustic instrument, giving musicians true polyphonic expression and spontaneous sound control.

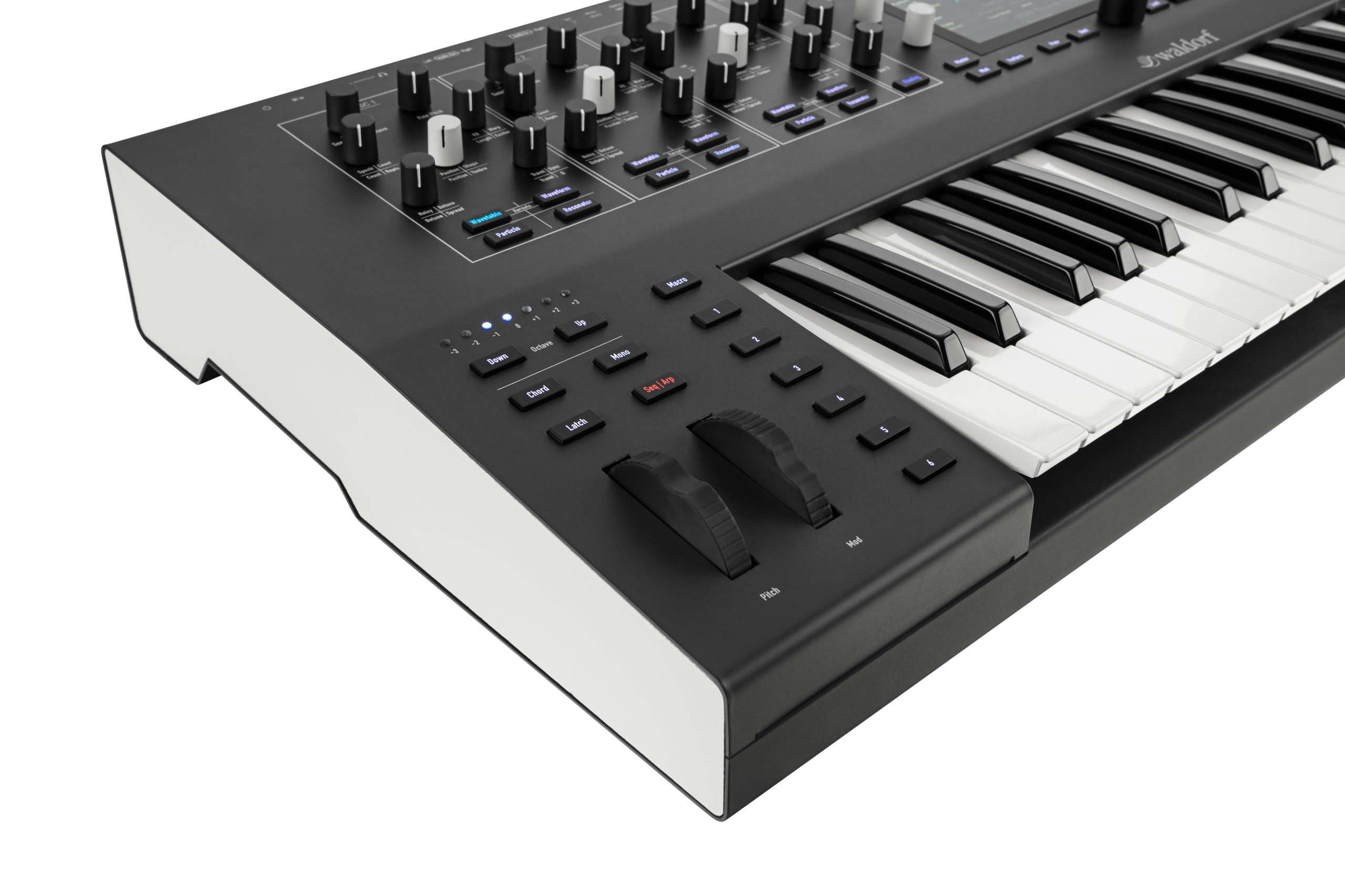

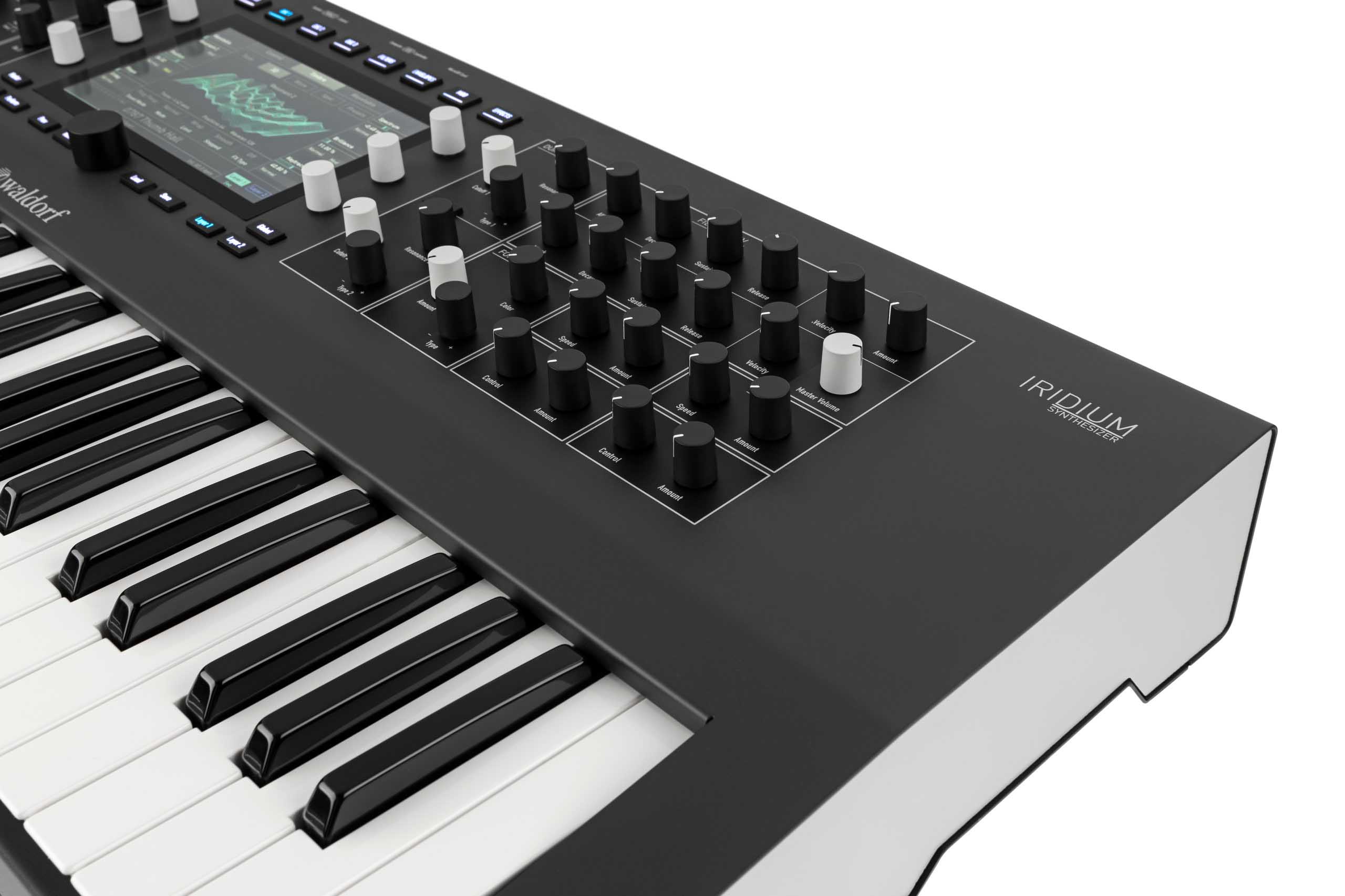

Its expanded front panel offers a one-knob-per-function workflow, making programming and sound design intuitive. Six freely programmable Macro buttons, alongside pitch and modulation wheels, deliver additional real-time control. The highly responsive touchscreen provides visual feedback for oscillators, filters, modulation, and effects, blending hands-on control with interactive navigation. Sounds are fully compatible and interchangeable with Waldorf’s flagship Quantum synthesizer, ensuring seamless integration across your setup.

At its core, the Iridium Keyboard features five synthesis models across three oscillators: Wavetable, Waveform (virtual analog), Particle (sampling and granular), Resonator, and Kernels, opening limitless sonic possibilities from classic analog warmth to cutting-edge textures. Three true stereo path digital filters per voice, multiple envelopes and LFOs, and an expansive modulation engine provide endless sound design depth.

Designed with Axel Hartmann’s signature industrial aesthetic, the Iridium Keyboard connects effortlessly to modern studios and modular setups. It includes CV inputs, Gate and Trigger connections, USB and DIN MIDI, clock sync, audio I/O, sustain/control pedal inputs, and more. With 1,680 factory sounds crafted by renowned designers like Howard Scarr, Richard Devine, Kurt Ader, and BT, this instrument is ready for both performance and production.

The Waldorf Iridium Keyboard proudly continues the legacy of the legendary PPG Wave synthesizers, offering advanced synthesis, expressive playability, and world-class design in one powerful instrument.

Product Specifications:

Number of Keys: 49

Type of Keys: Weighted Fatar TP8 Keybed

Aftertouch: Polyphonic Aftertouch

Velocity Sensitive: Yes

Other Controllers: Pitchbend, Mod wheel

Polyphony: 16 Notes, Dual Timbral

Number of Presets: 1680 x Factory, 7000 x User

LFO: 6 x LFO (polyphonic/global mode)

Arpeggiator: Yes

Sequencer: 32 step

Sampling: Up to 32-bit/192kHz

Audio Recording: Real time

Audio Playback: WAV, AIFF/AIFC

Storage: MicroSD card slot

Audio Inputs: 2 x 1/4" (L, R)

Audio Outputs: 2 x 1/4" (L, R)

Headphones: 1 x 1/4"

USB: 1 x Type B (computer), 1 x Type A (controller)

MIDI I/O: In/Out/Thru/USB

Pedal Inputs: 1 x 1/4" (sustain), 1 x 1/4" (control)

Other I/O: 4 CV in, Clock in/out, Gate in, Start in

Mod Matrix: 40 slot

Features: Keyboard Split/Layer mode

Power Source: 12V DC power supply (included)

Waveforms: Sawtooth, Sine, Triangle, Square, Pink Noise, White Noise

Filter: 3 x Stereo Filters per Voice ; Nave, Largo, PPG, Quantum, StateVariable models

Effects Types: Phaser, Chorus, Flanger, Delay, Reverb, EQ, Drive, Compressor, Modulation

Oscillators: 3 x VCO, 5 x Modes (wavetable, waveform, particle, resonator, kernels)

Product Weight: 26.45 lbs.

Shipping weight: 32 lbs.

Shipping Dimensions: 37 x 20 x 8”
