Waldorf Kyra Virtual Analog Synthesizer - White

The Waldorf Kyra Virtual Analog Synthesizer - White is a powerful FPGA-based synthesizer capable of producing a wide range of complex virtual-analog sounds simultaneously, making it well suited for the professional and semi professional user in both live and studio environments.

At the heart of Kyra beats a Field Programmable Gate Array (FPGA), a high-tech processing chip that harnesses the raw power of a high-end desktop computer, allowing it to produce a true wall of sound with a massive sound pallet of oscillators, filters, FX, and more. The 128-voice instrument features eight independent parts with up to 32 notes per part. Additionally, each part has its own independent effects chain with 9 FX including a 3-band shelving EQ with sweepable mid, formant filter, distortion unit, input limiter, 6-stage phaser, digital delay line, chorus/flanger/comb unit, reverb, and a final output limiter. All effects are available for all parts at the same time, and they're all oversampled and full stereo.

The oscillator section features per voice: two pulse, two saw, two noise, and two waves with your choice of any of 4069 wavetables, plus a sub oscillator with several waveforms, hard sync, hypersaw mode, FM, ring mod, and a Dual Mode, which layers two of the same sounds for detuning and provides a true stereo signal path with dual filters and stereo LFO's. The dual multimode filter offers 12/24 dB per octave selections of high-pass, low-pass, and band-pass. For modulation, the Kyra includes 3 envelope generators, 3 LFOs (with 128 shapes), and a 6-slot Mod Matrix with multiple destinations per slot. Each part also includes its own arpeggiator with 128 preset patterns that are saved to each patch basis.

Despite all this power, the Kyra is simple to program with most functions being 1-to-1 on the front panel with very little menu diving. The vast patch memory provides over 3000 slots to save your creations and recall them quickly. The audio engine uses a 32-bit Velvet Sound DAC with eight 1/4" TRS balanced outputs grouped in stereo pairs. What's more, Kyra offers rock-solid USB 2.0 high-speed audio and MIDI implementation that can stream all 8 of Kyra's Parts as studio-quality 24-bit / 96 kHz audio to a DAW. Kyra can also accept a single return audio stream from a DAW setups so that your final playback can be via Kyra, which allows you to use the unit as your audio interface. The sturdy metal enclosure with wooden end checks is roadworthy with an aesthetic appeal. The Waldorf Kyra includes a power supply.

Product Description:

Item Type: Desktop Synth Module

Sound Generation: Analog Modeling

Keyboard: No

Touch Sensitivity: Yes

Expression Controls: No

Number of Pads: No

Display: LED

Number of Song Presets: No

Maximum Polyphony: 128 Voice

Multitimbrality: 8-Part

Built-In Effects: Delay Distortion/Drive, EQ, Reverb

Built-In Speaker: No

Oscillators:

2 (Wavetable)

2 (PWM)

2 (Sawtooth)

2 (Noise)

2 (FM)

Amplifiers: No

Envelopes: 3x Envelope Generator

Filters: Number of Filters: 2 per Voice

LFOs: Number of LFOs: 3

Sequencer: No

Motion Sequencing: Yes

Arpeggiator: 128x Factory

Modes: Up, Down, Random, Chord Mode

Audio I/O:

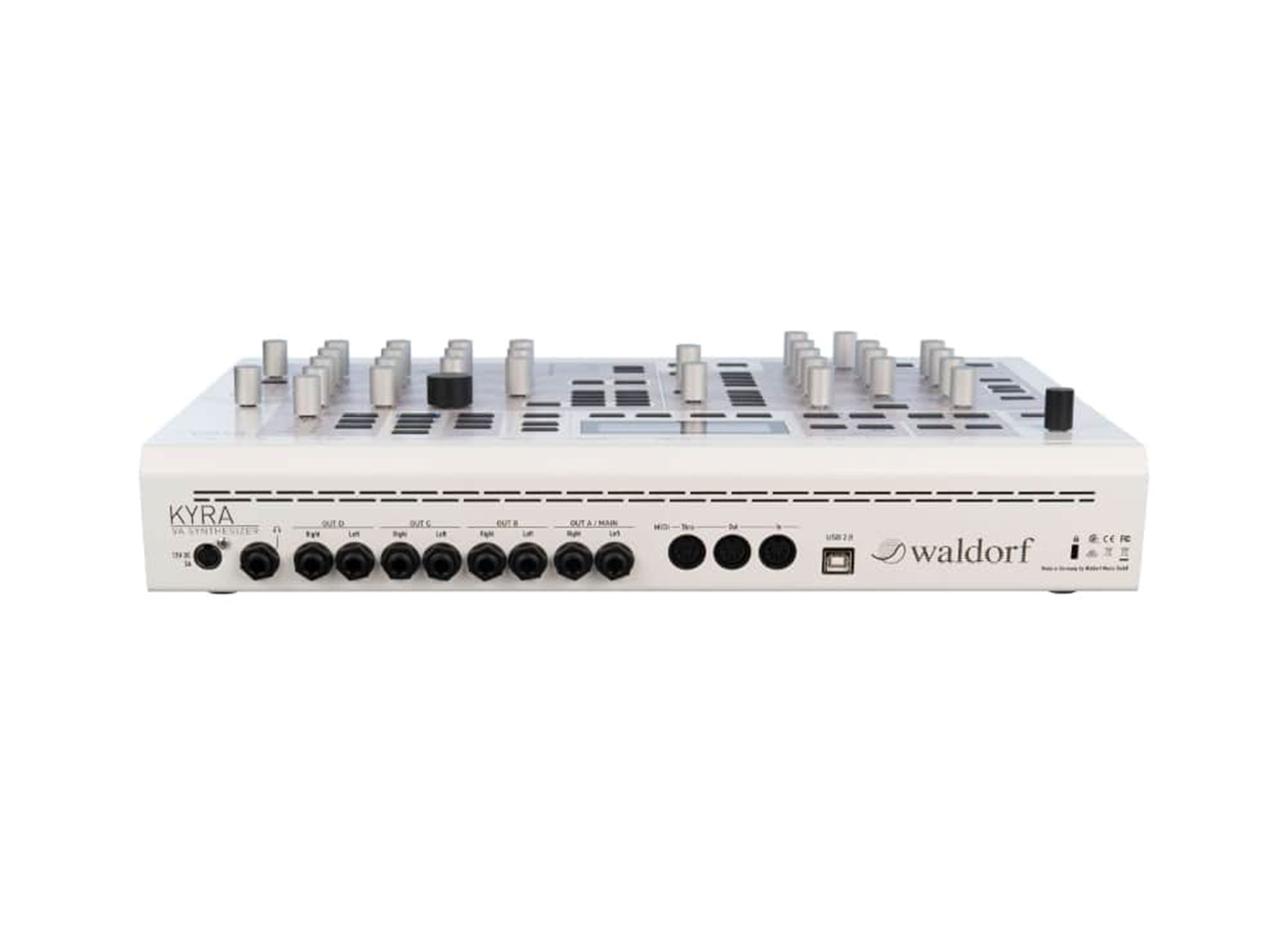

8x 1/4" TRS Stereo Output

1x 1/4" TRS Headphone Output

Pedal Support: No

MIDI I/O:

1x DIN 5-Pin Input

1x DIN 5-Pin Thru

1x DIN 5-Pin Output

CV/Gate I/O: No

Patch Points: No

Sync I/O: No

Network I/O: No

USB I/O: 1x USB-B (Audio, MIDI)

Media/Memory Card Slot: No

Bluetooth: No

OS Compatibility: macOS / Windows

Included Software: No

Mobile App Compatible: No

Performance Functions: Arpeggiator, Octave Shift, Split/Layer, Transpose

Power Requirements: AC/DC Power Adapter (Included)

AC/DC Power Adapter: 12 VDC at 2 A (Included)

Included Accessories: No

Shipping Weight: 16 lbs.

Shipping Dimensions: 22 x 16 x 8"
