Description

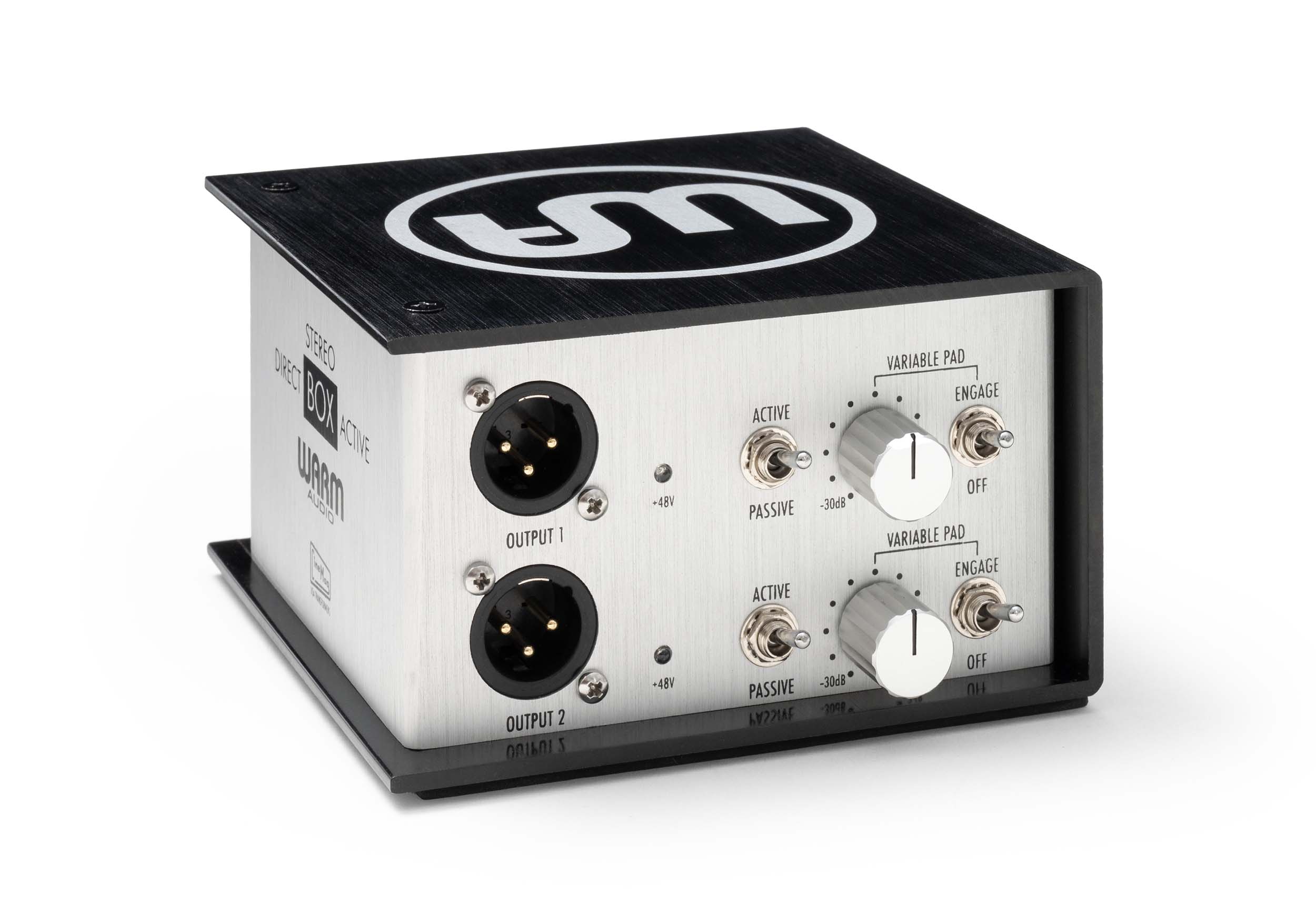

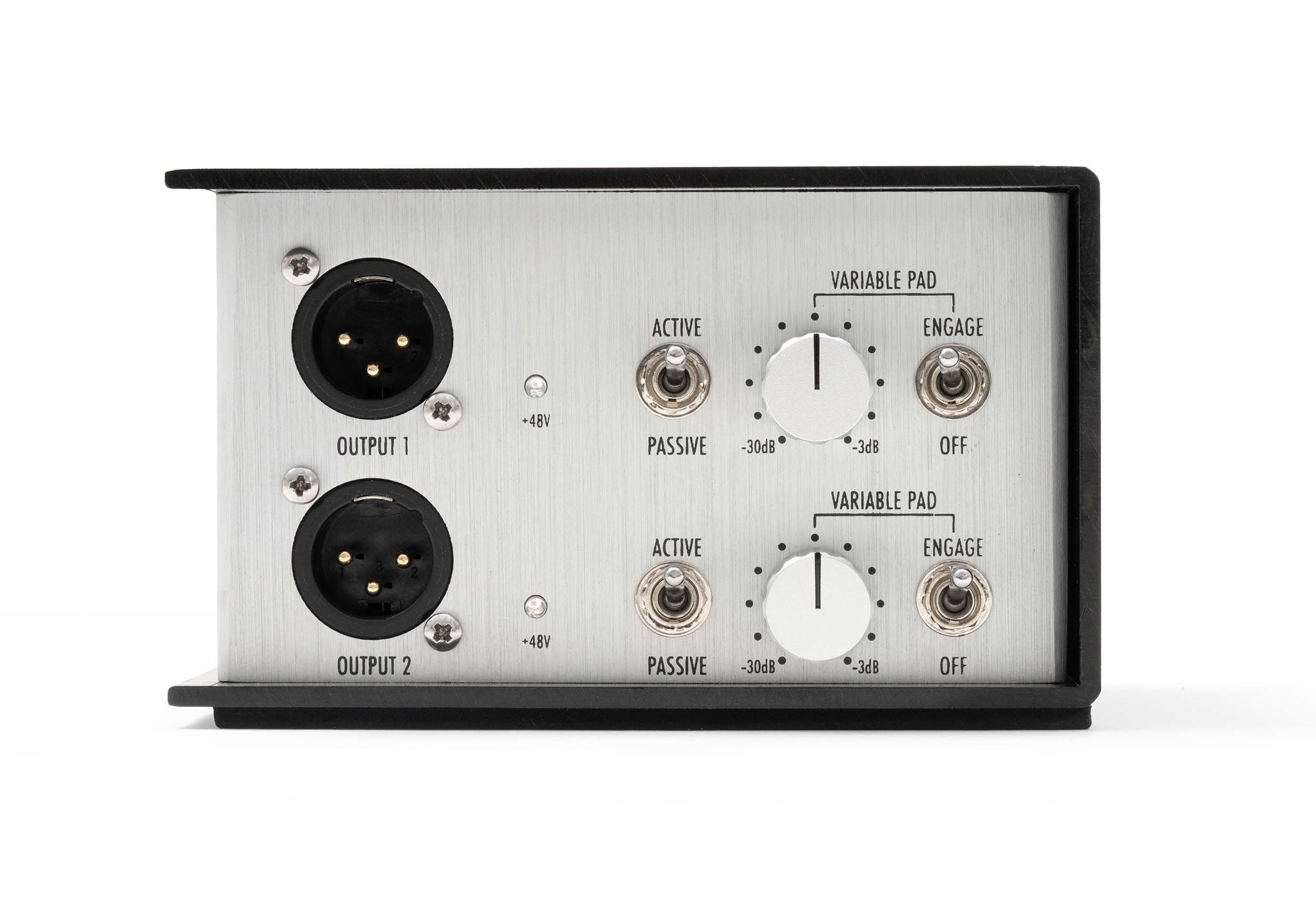

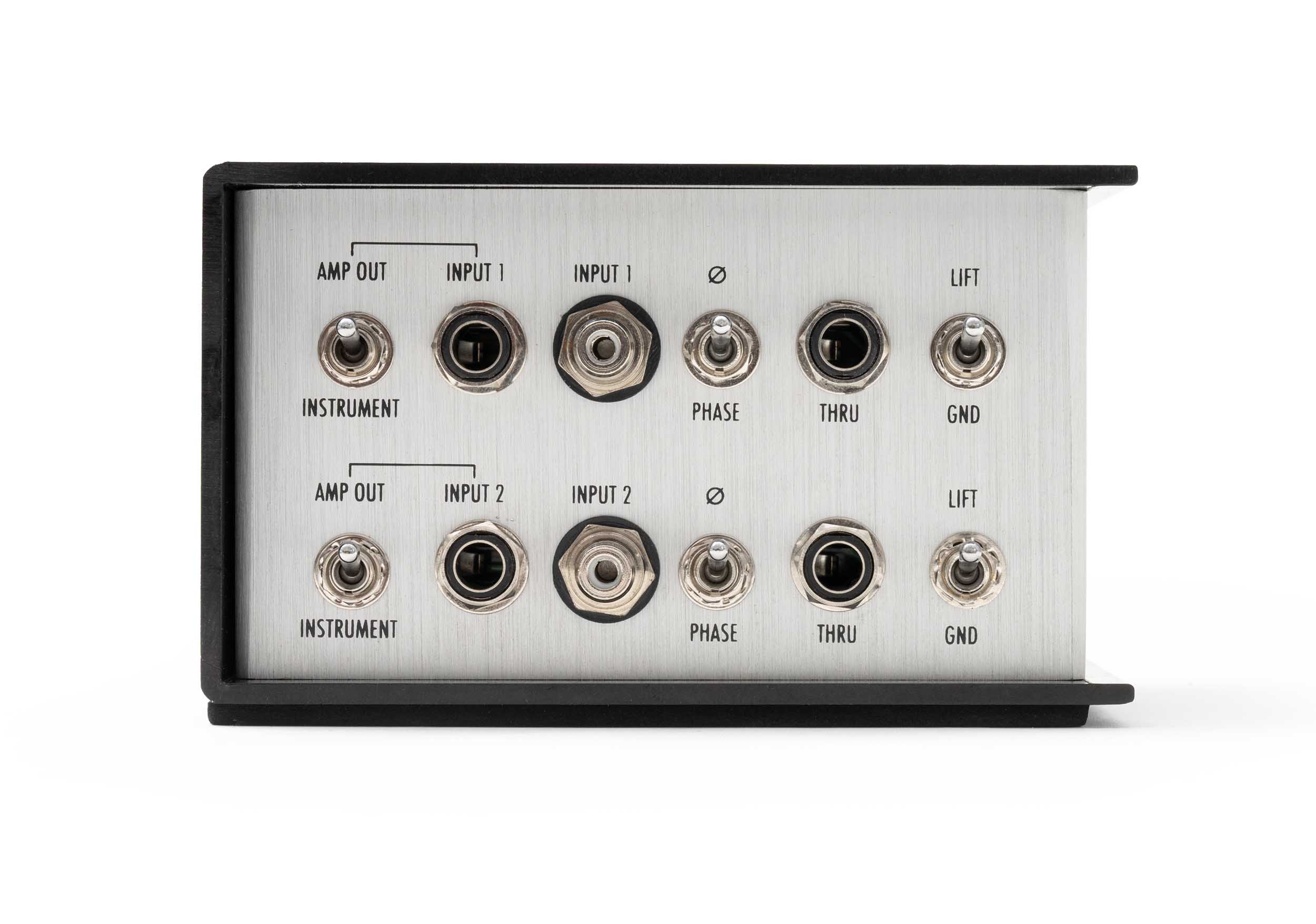

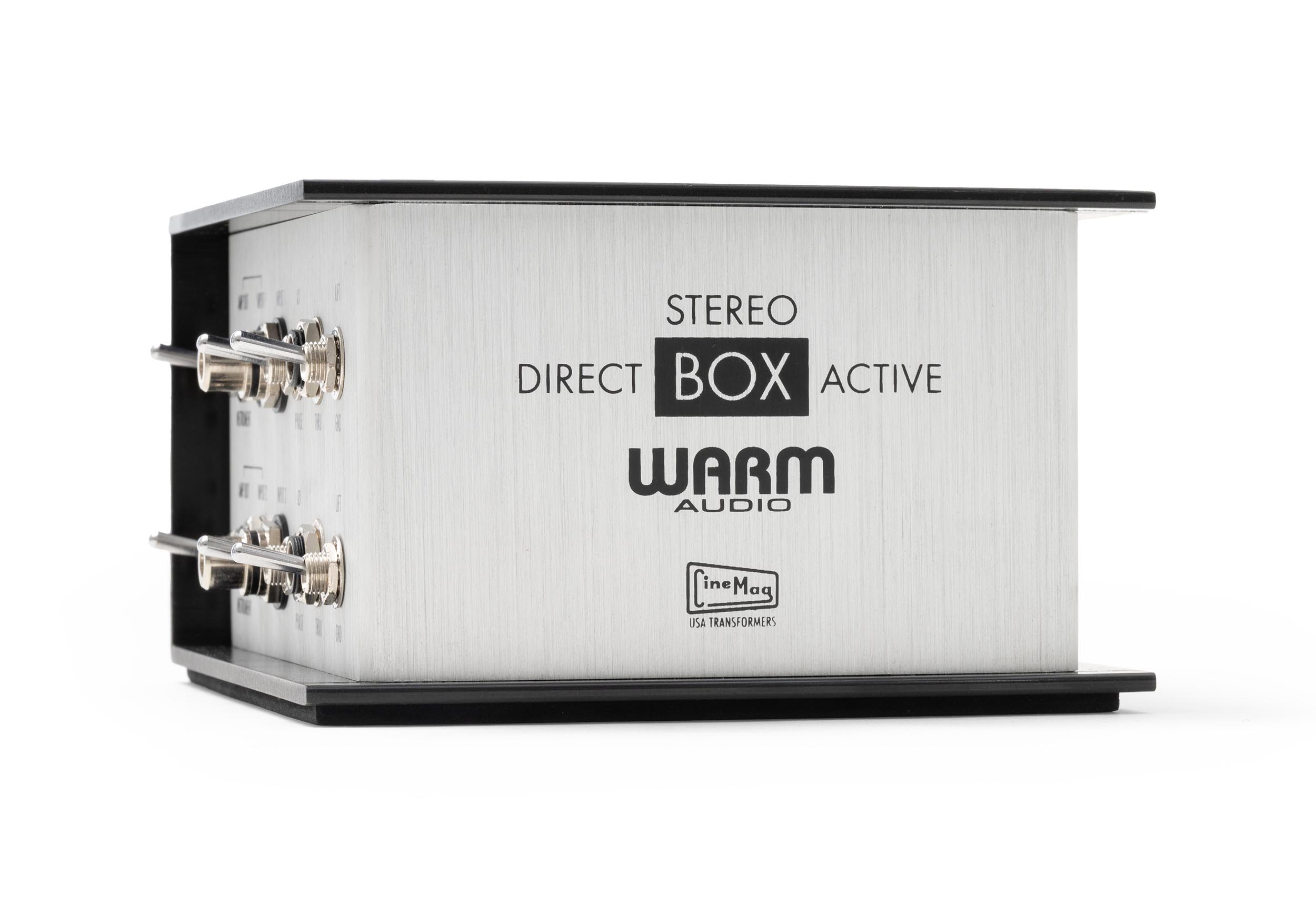

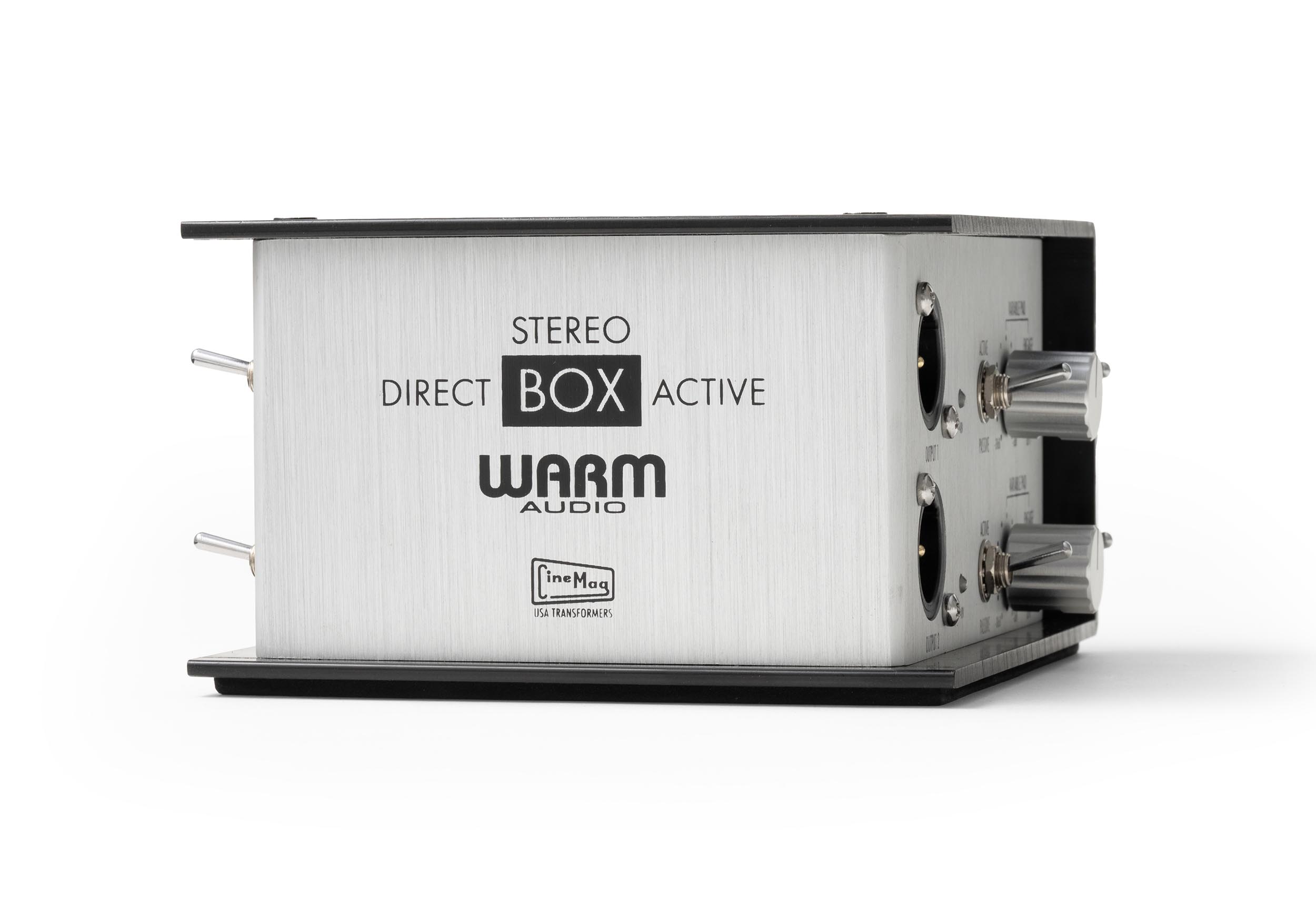

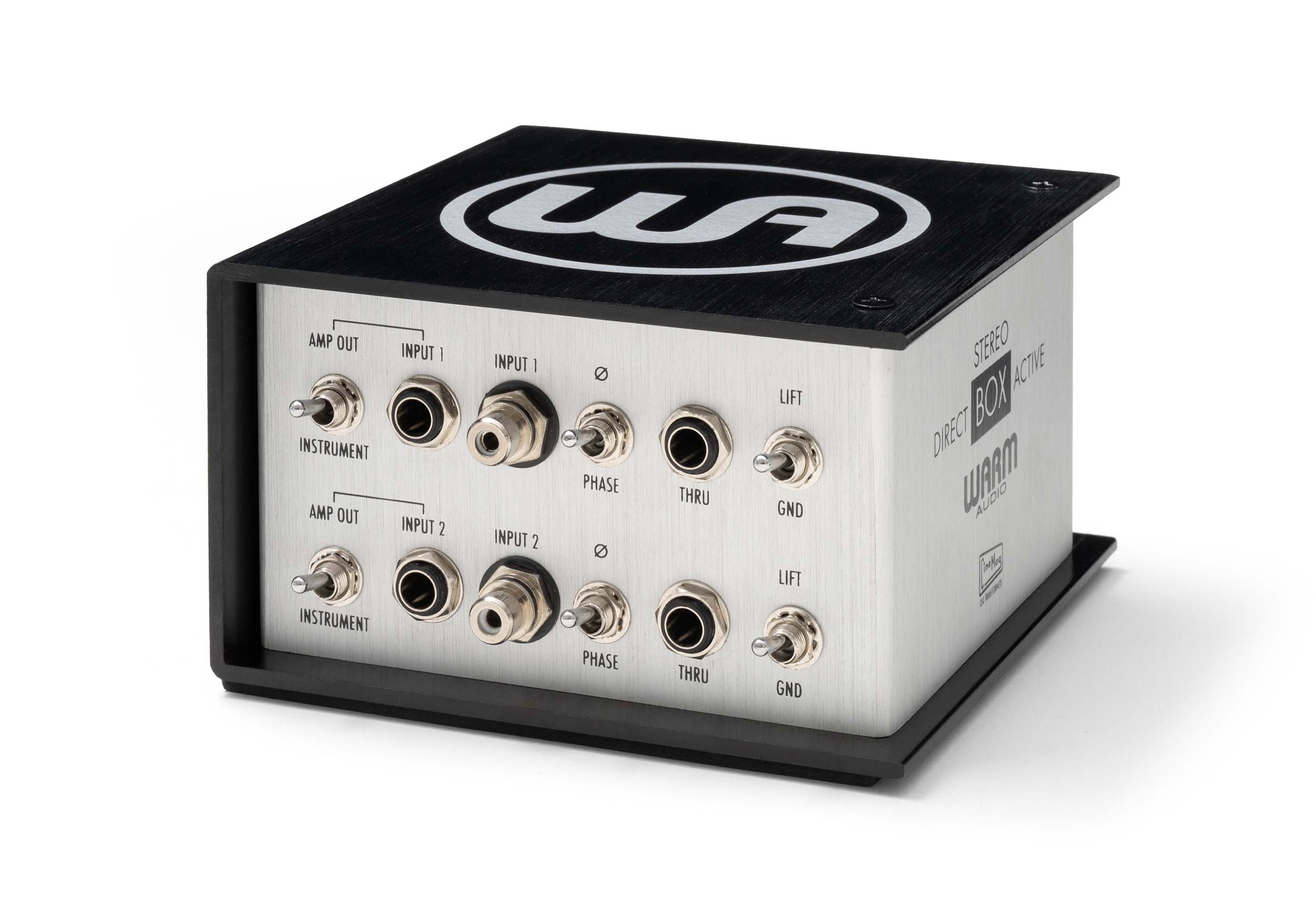

The Warm Audio WA-DI-A2 is a premium active stereo DI box designed to deliver high-quality direct injection for stereo instruments such as keyboards, synthesizers, guitar processors, and complex pedalboard setups. Built for both studio and live applications, it converts instrument-level signals into clean, balanced outputs while preserving the natural tone, dynamics, and character of your source.
Equipped with selectable active circuitry powered via 48V phantom power, the WA-DI-A2 is ideal for handling high-impedance signals and maintaining consistent output levels across long cable runs. Its dual-channel design allows independent control per channel, offering flexibility to manage different signal types or switch to passive mode when needed. A negative pad (3 to -30dB) helps dial in optimal signal levels, while the ground/lift switch effectively eliminates unwanted noise and hum.
At the core of its performance are premium CineMag USA transformers, delivering exceptional clarity, rich low-end response, and smooth high-frequency detail with excellent isolation. Housed in a rugged metal chassis and hand-tested in Austin, Texas, the WA-DI-A2 is built to withstand demanding environments while ensuring reliable, professional-grade performance for any stereo audio setup.
Product Specifications:
Circuit: Transformer-Balanced, Class-A
Function: Converts Instrument Signal to Mic-Level
Mode: Selectable Active/Passive (Active Mode Enabled)
Power: 48V Phantom Power
Input Impedance: 1 MΩ
Output: Balanced Mic Level
Output Impedance: 600 Ohms
Pad: Variable -3dB to -30dB
Frequency Response: 10 Hz – 100 kHz ±0.5 dB
THD: 0.01% (20 Hz – 50 Hz), <0.003% (50 Hz – 20 kHz)
Transformer: Custom-Wound CineMag USA
Components: Class-A with Gold-Plated PCB Traces
Construction: Rugged Aluminum
Product Weight: 1.76 lbs.
Product Dimensions (L x W x H): 5 x 5.5 x 2.8 in
Shipping Weight: 2.26 lbs.
Shipping Dimensions (L x W x H): 7.2 x 4 x 7.3 in
