Warm Audio WA-2A, 2U Tube Optical Compressor

The Warm Audio WA-2A is a faithful recreation of the legendary tube-optical compressor, delivering the smooth, musical compression that has defined countless classic recordings. Known for its natural and forgiving response, the WA-2A excels at controlling dynamics on vocals, bass, and instruments while adding rich analog warmth and character. With its simple yet powerful design, it provides both subtle leveling and heavy compression, making it an essential tool for professional studios and modern production workflows.

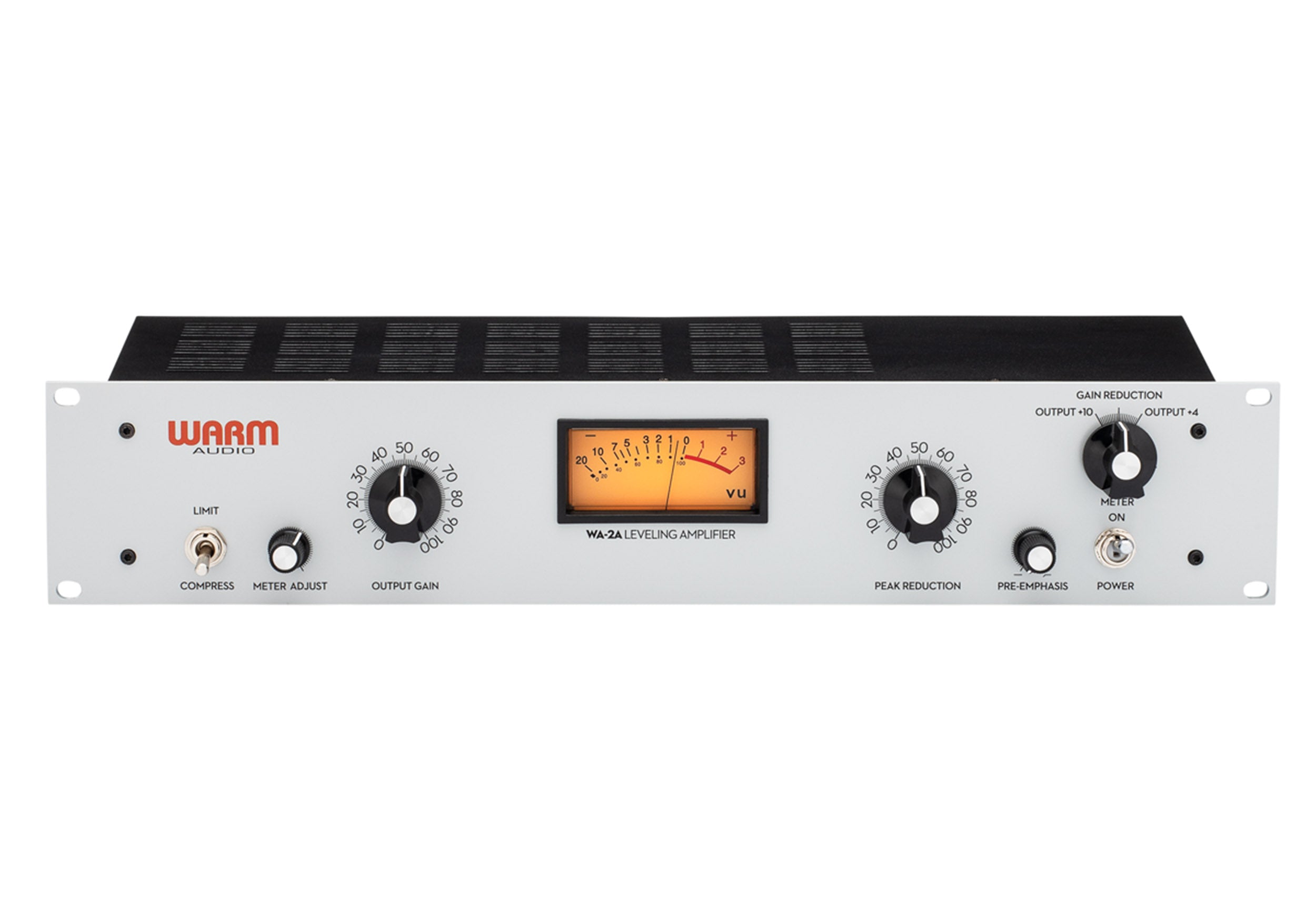

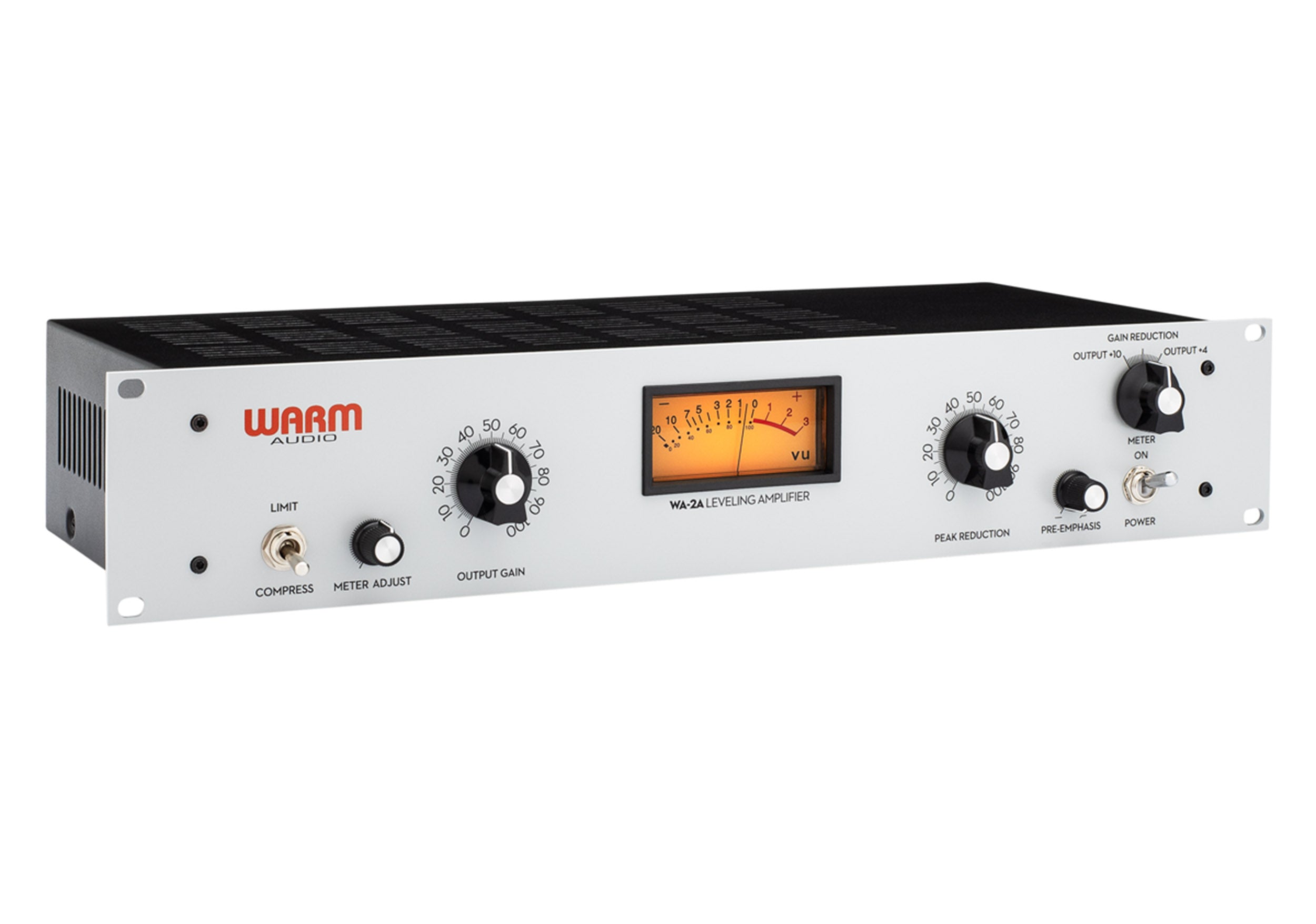

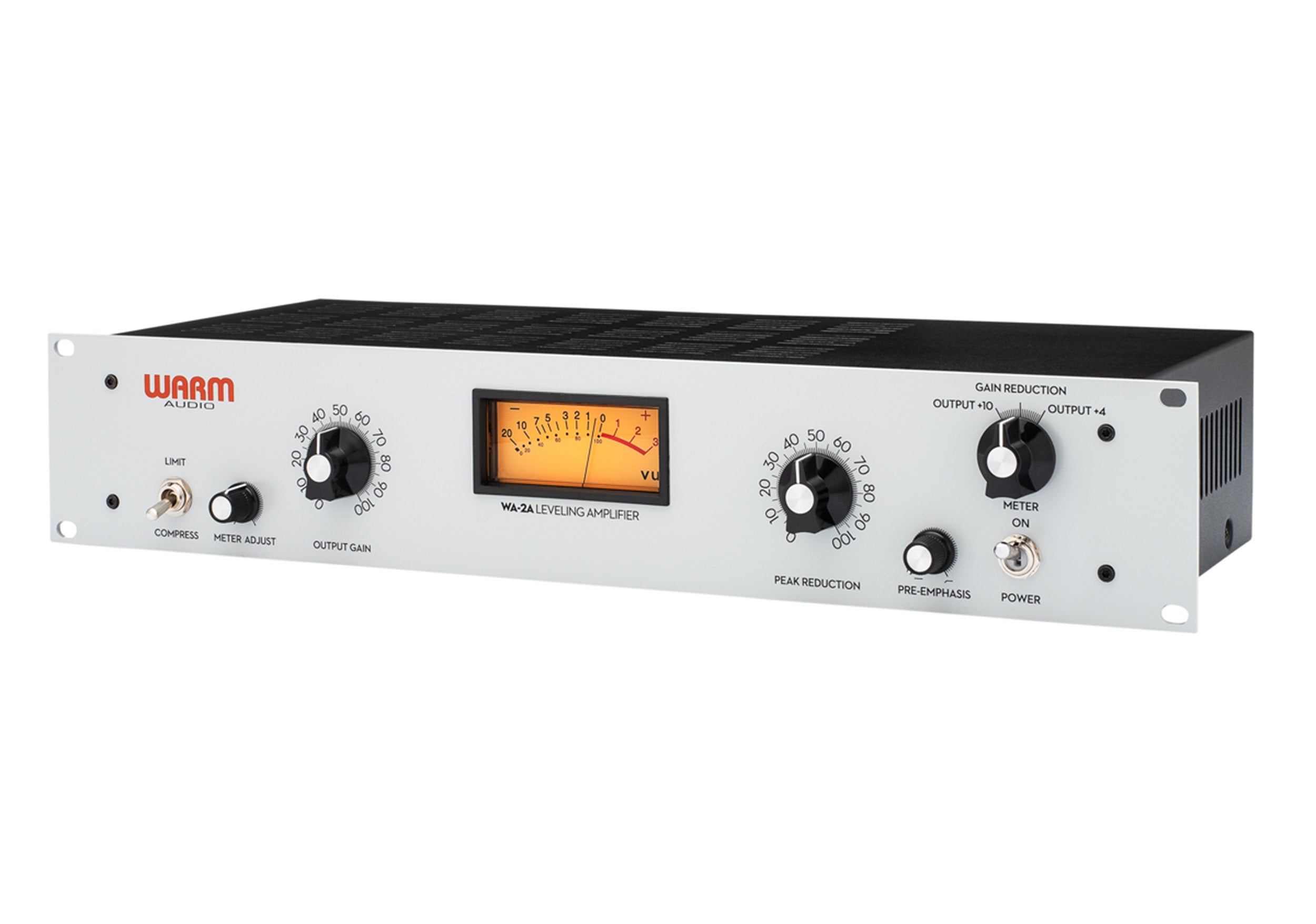

Designed for intuitive operation with deep control, the WA-2A features Peak Reduction and Output Gain controls to easily dial in the desired amount of compression and makeup gain. A Compress/Limit switch allows you to choose between smooth compression or near-limiting behavior for tighter dynamic control. Additional features such as Pre-Emphasis help shape the sidechain response to prevent overreaction to certain frequencies, while the selectable VU meter modes provide clear monitoring of gain reduction and output levels. Though not a true bypass, reducing Peak Reduction to zero allows the signal to pass through the tube circuitry, adding subtle warmth and sheen.

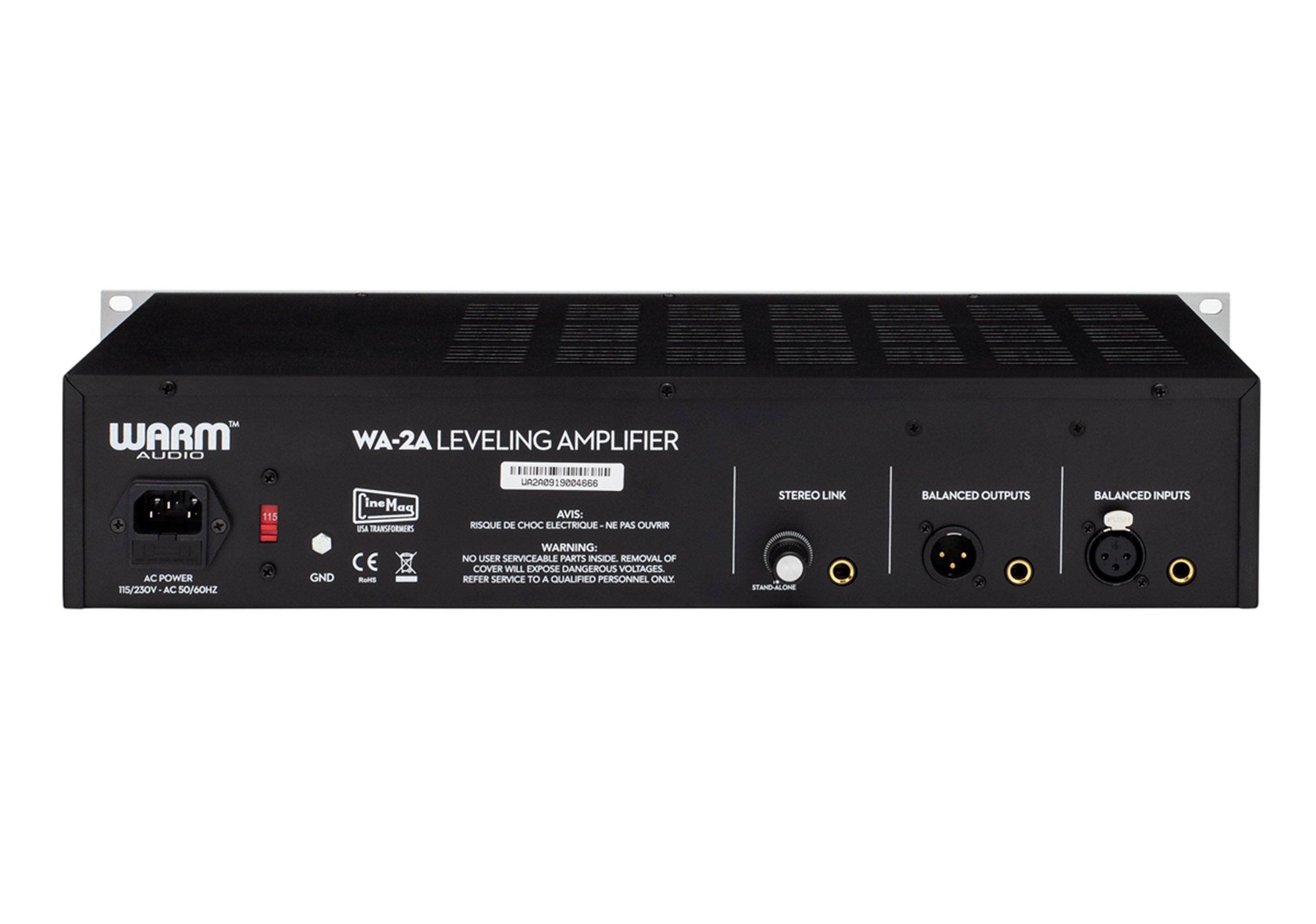

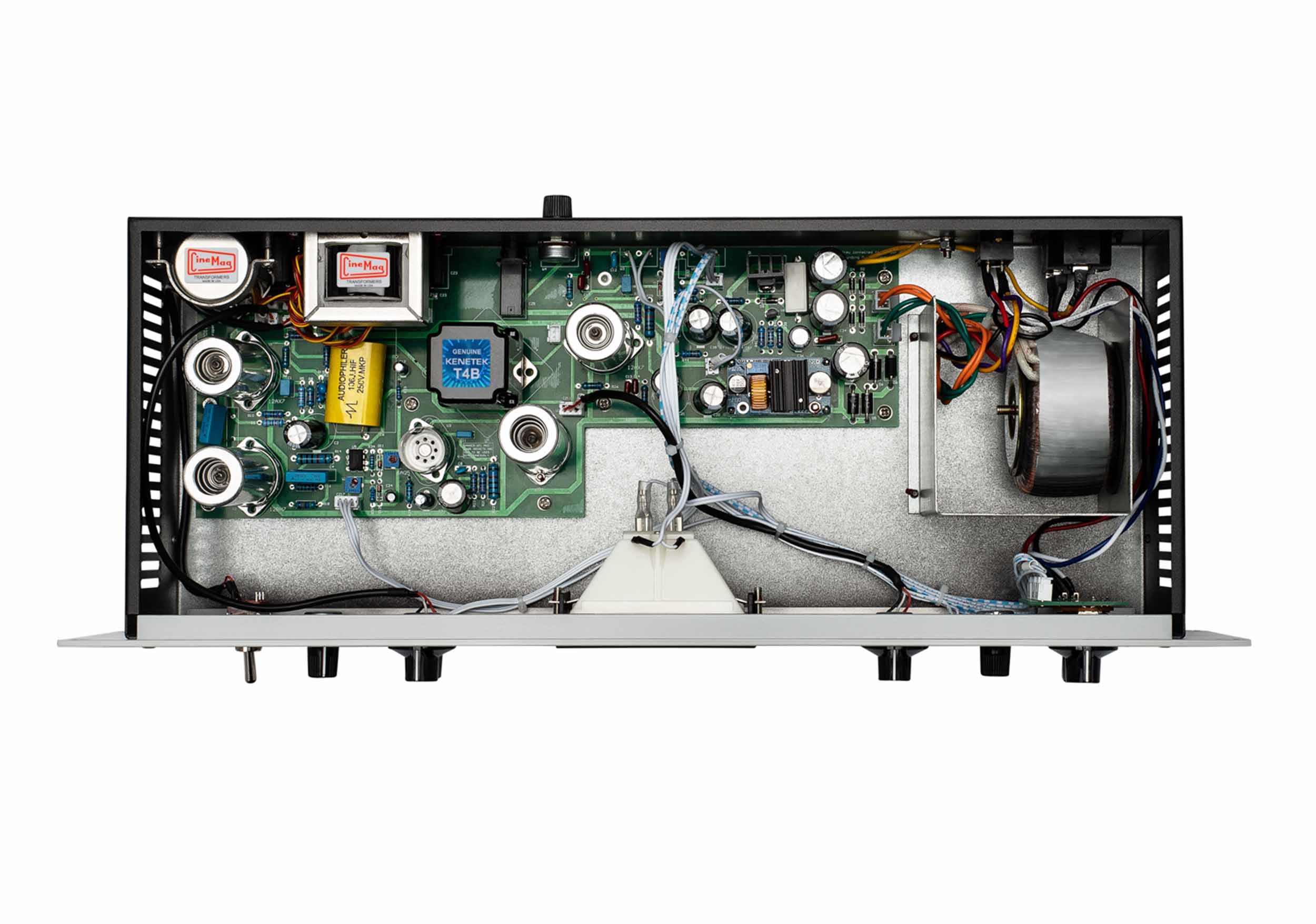

Built with a fully discrete, Class-A all-tube signal path, the WA-2A uses premium components including custom CineMag transformers, a high-quality Kenetek T4B optical attenuator, and a robust tube complement for authentic vintage response. Balanced XLR and TRS I/O ensure seamless studio integration, while stereo link capability allows two units to operate together for accurate stereo compression. Hand-tested for reliability and performance, the WA-2A delivers timeless analog tone with the precision and flexibility required in today’s recording environments.

Product Specifications:

Rack Size: 2U (19” Rackmount)

Input Type: Line Level, Transformer Balanced

Input Impedance: 600 ohms

Input Wiring: Pin 2/Tip (+), Pin 3/Ring (−), Pin 1/Sleeve (Ground)

Output Type: Line Level, Transformer Balanced

Output Impedance: 600 ohms

Output Wiring: Pin 2/Tip (+), Pin 3/Ring (−), Pin 1/Sleeve (Ground)

Frequency Response: ±1 dB, 15 Hz – 20 kHz

Maximum Gain: +40 dB (±1 dB)

Maximum Peak Reduction: -40 dB (±3 dB)

Input Level: +16 dB Maximum

Output Level: +10 dB Nominal, +16 dB Maximum

Distortion: <0.1% THD at ±10 dBm

Noise: -74 dB

Attack Time: 10 ms

Release Time: 0.06 sec (50%), 0.5 – 5 sec (full)

Tubes: 2x 12AX7, 1x 12BH7, 1x 6P1 (compatible with 6AQ5, 6005, 6N1N)

Attenuator: Kenetek T4B Optical Module (socketed, T4A/T4B/T4C compatible)

Power: 115/230V, 50/60 Hz (switchable)

Fuse: 250V, 1A fast-blow

Product Dimensions (L x W x H): 19 x 7 x 3.5 in

Shipping Weight: 11 lbs.

Shipping Dimensions (L x W x H): 23 x 10.5 x 5.5 in
