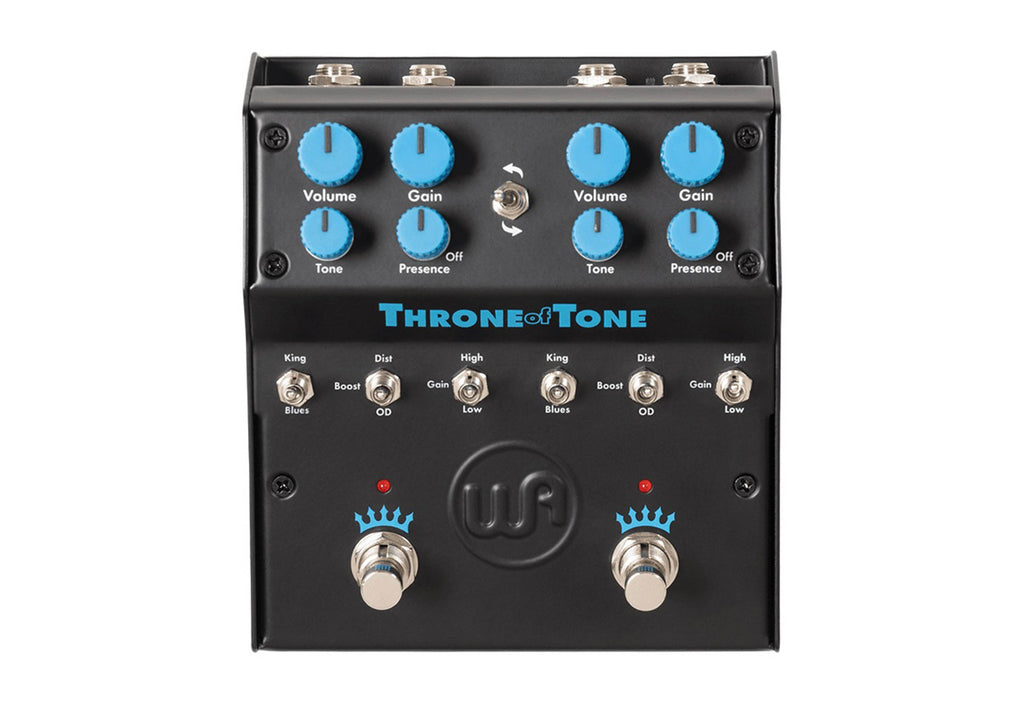

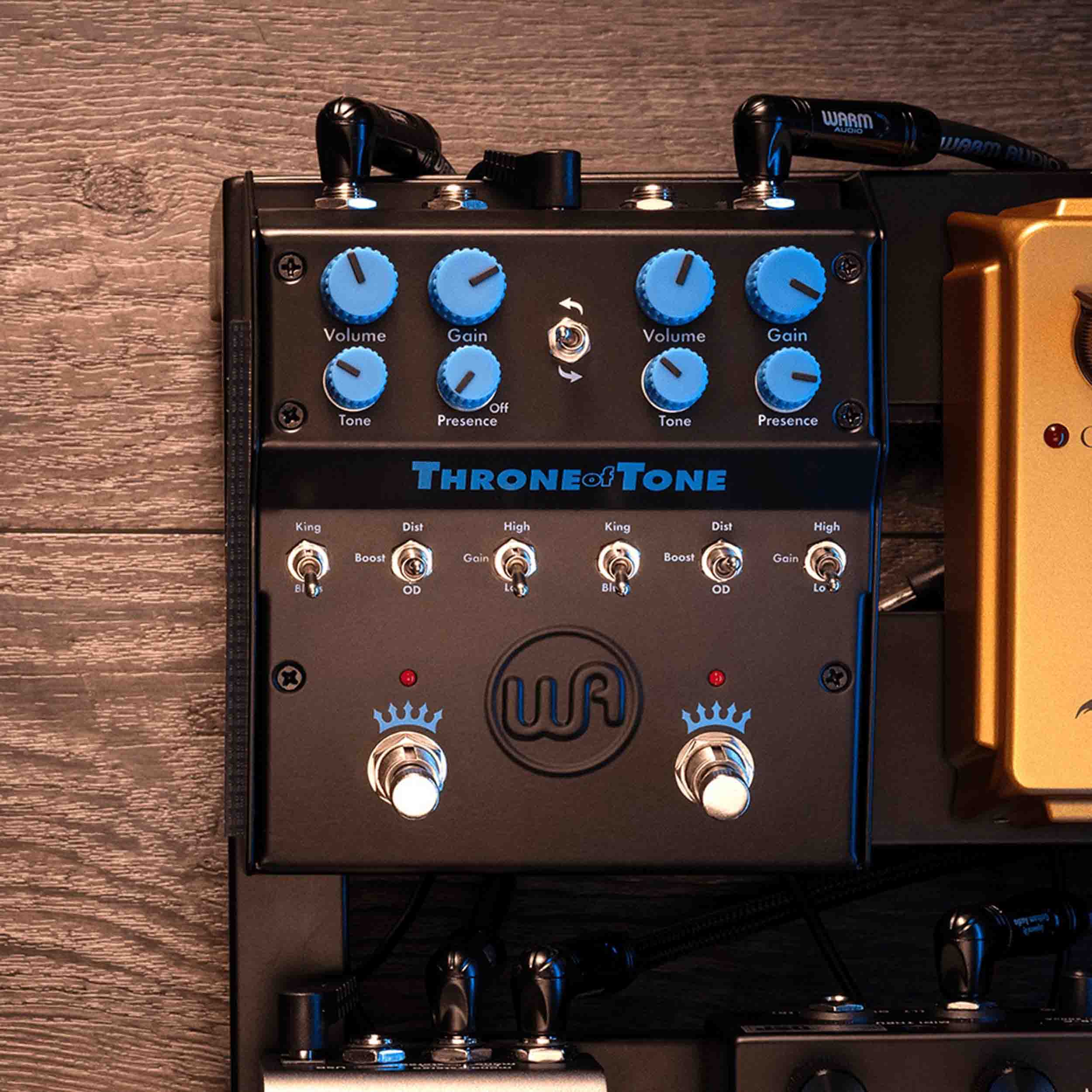

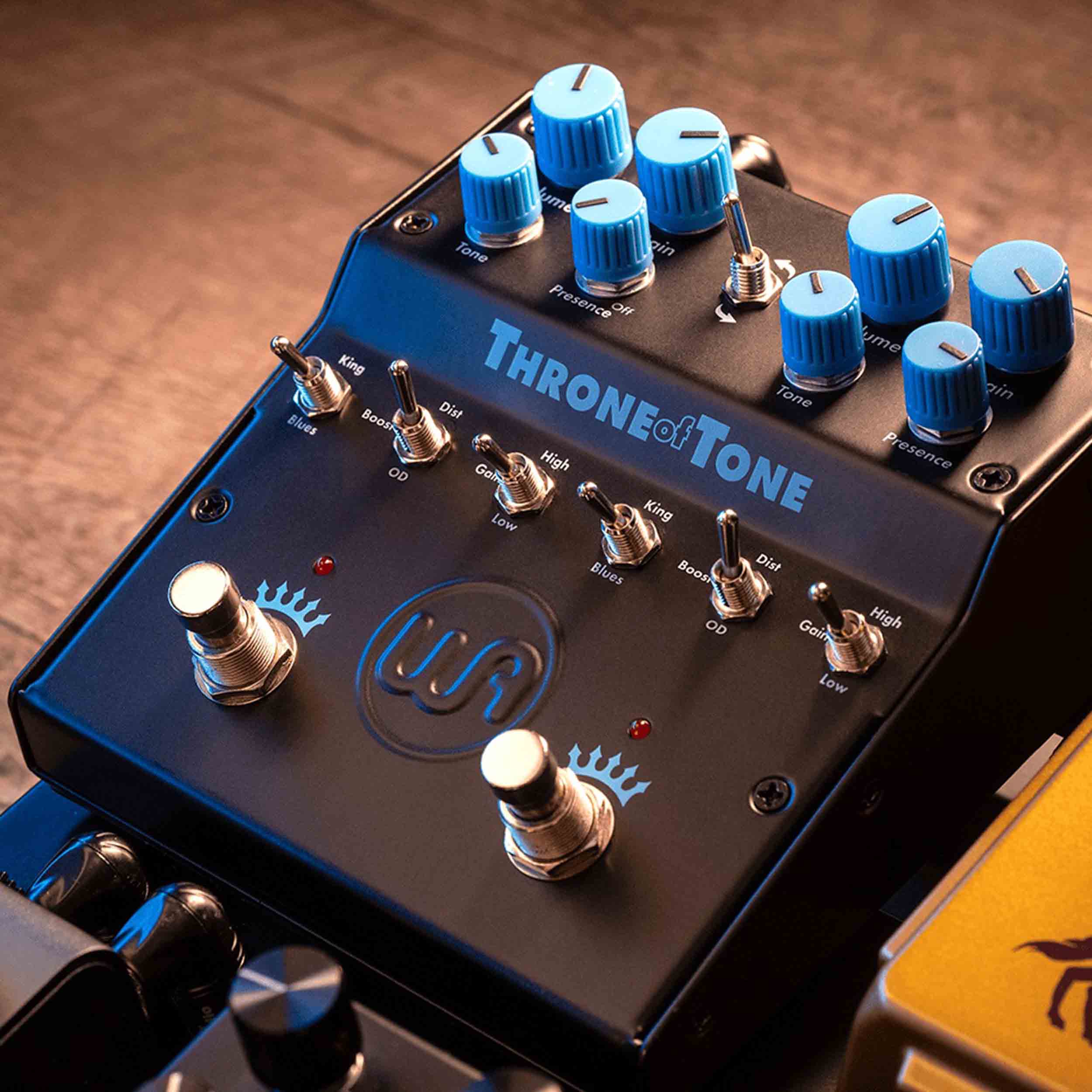

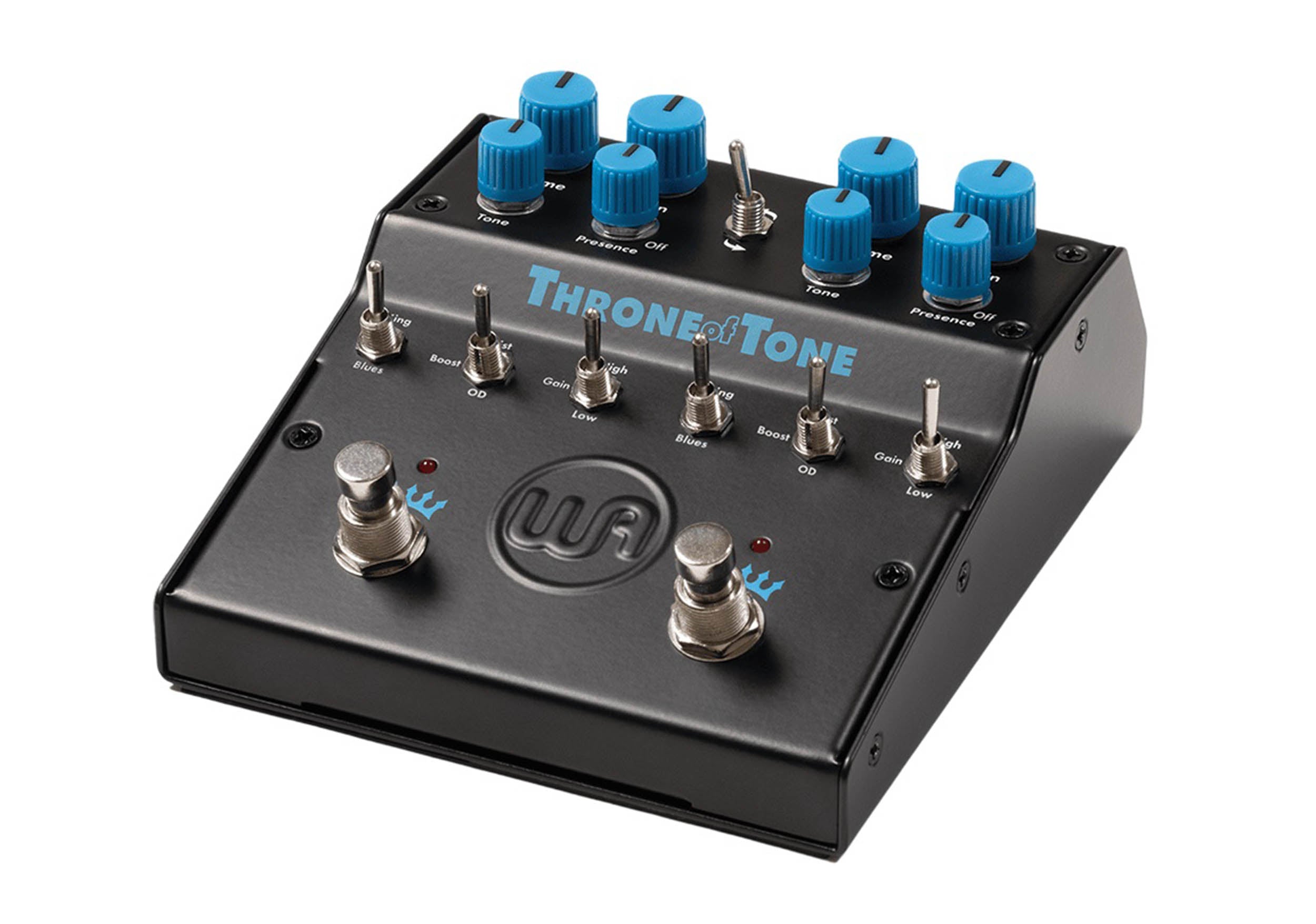

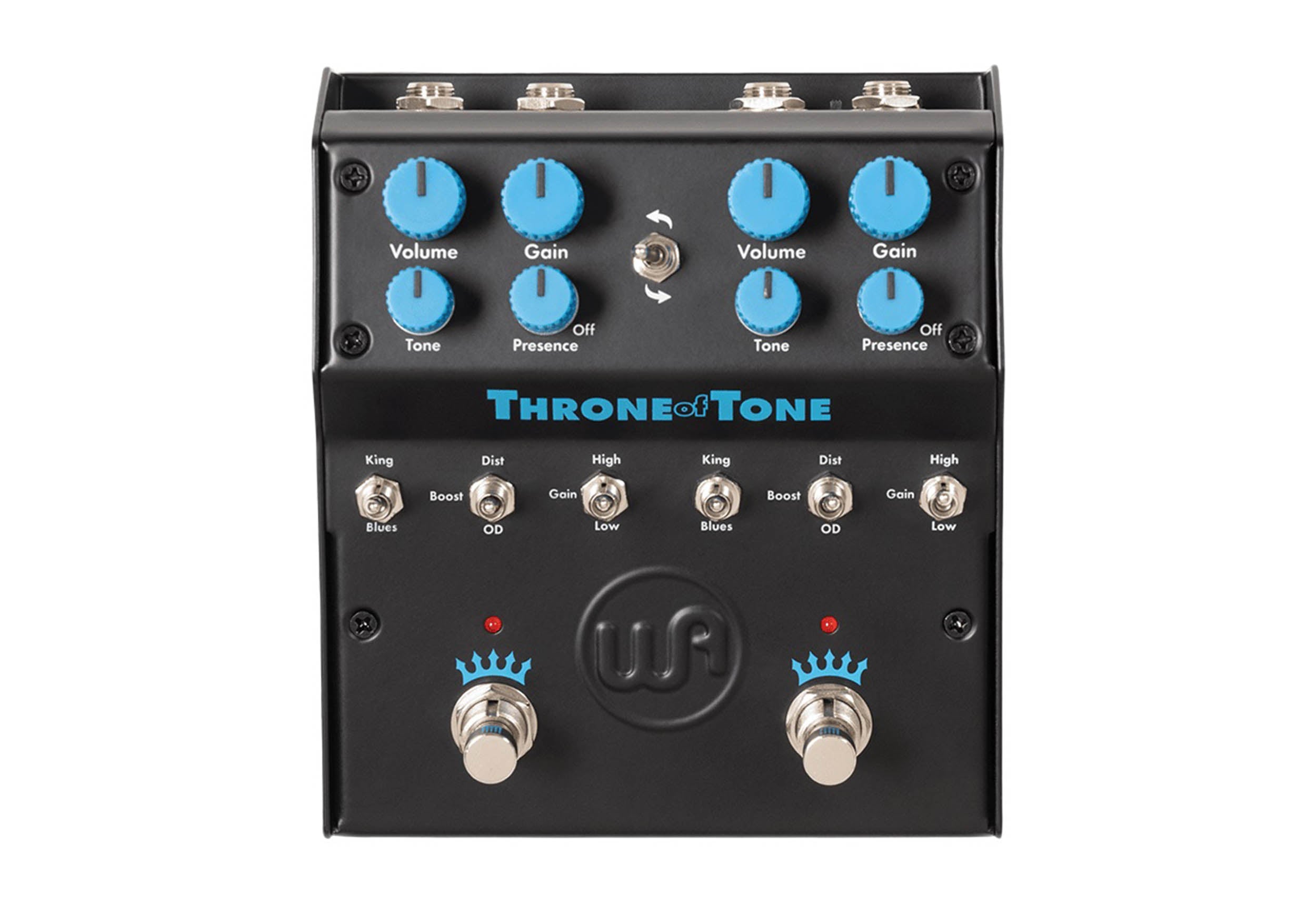

Warm Audio WA-TOT Throne of Tone Overdrive Pedal

The Warm Audio WA-TOT is a versatile dual overdrive pedal that combines two of the most sought-after British amp-inspired blues circuits into one powerful unit. Designed for ultimate tonal flexibility, it delivers everything from subtle edge-of-breakup warmth to saturated distortion and soaring lead tones. With selectable voicings, multiple drive modes, and low/high gain options per side, the WA-TOT captures authentic amp-like response while giving players precise control over their sound.

Equipped with intuitive controls including Volume, Gain, Tone, and Presence, the WA-TOT allows detailed tone shaping at every stage. The Presence control refines high-end clarity while reducing muddiness, and the voicing selector lets you switch between “king” and “blues” modes for distinct tonal characters. The three-mode drive selector—Boost, Overdrive, and Distortion—further expands its range, while the gain level switch provides added saturation or a more dynamic, vintage-style breakup depending on your playing style.

Built with premium all-analog components and hand-tested in Austin, Texas, the WA-TOT ensures reliable performance and rich, musical tone. Additional features like FX order swap, voltage boost (9V to 18V), and send/return jacks offer advanced routing and headroom options for modern pedalboard setups. Whether stacking drives, enhancing an already breaking amp, or crafting a wide palette of tones, the WA-TOT delivers professional-grade performance with classic analog character.

Product Specifications:

Type: Dual Overdrive Guitar Pedal

Circuit Design: Dual mid-gain amp-inspired circuits (British-style)

Controls: Per Side – Volume, Gain, Tone, Presence, Voicing Select, Drive Mode Select, Gain Level Select, On/Off | Global – Voltage Boost, FX Order Swap

Components: 4x ICs (JRC4580, TL072), 24x diodes, dual switch-cap voltage doubler

Power Consumption: 24 mA (standard) / 43 mA (boosted)

Input Impedance: 1M ohms

Output Level: +7.1 dBu @9V / +14.6 dBu @18V

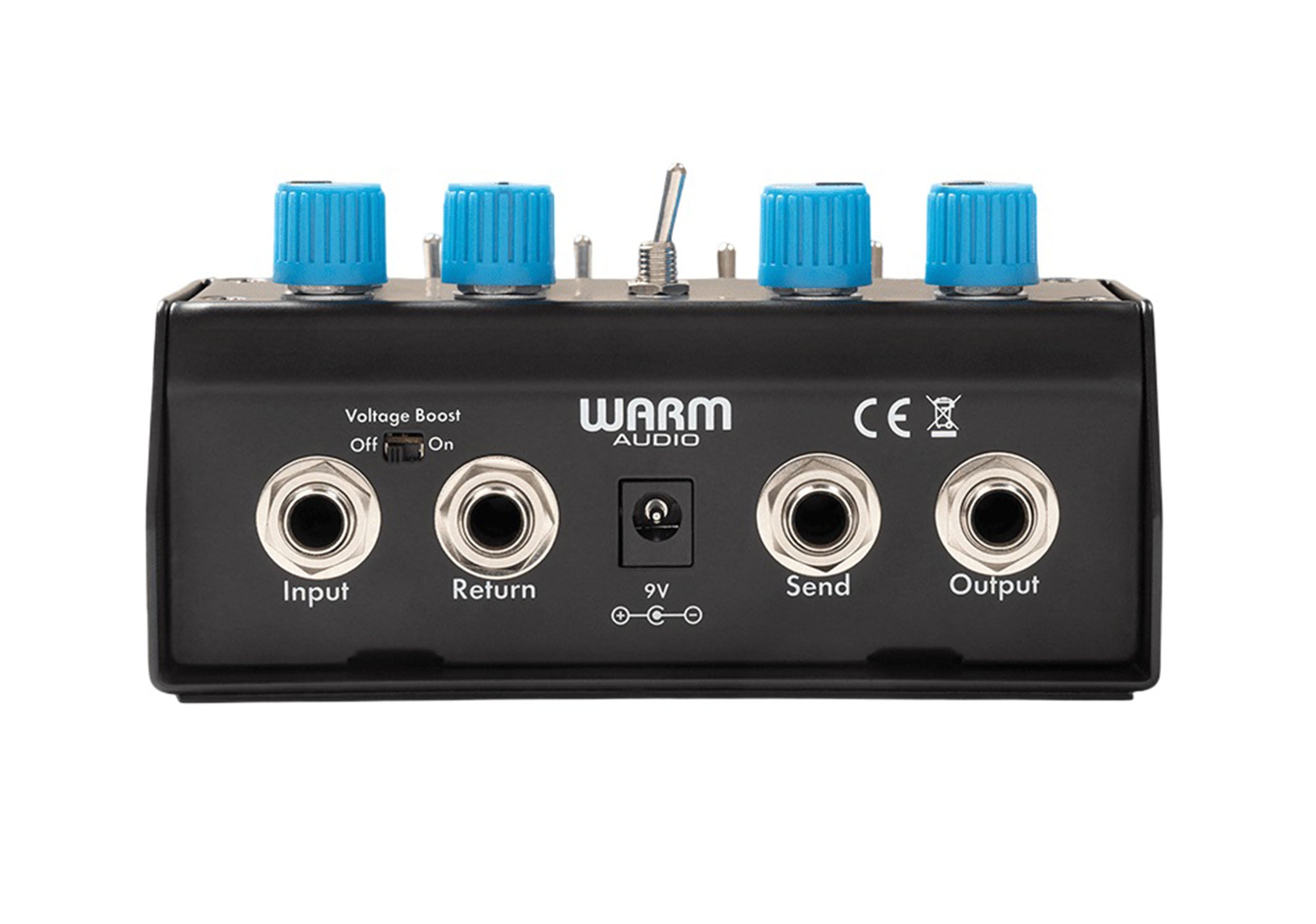

Jacks: 1/4" mono input & output, unbalanced send & return, 9V DC power (center-negative)

Power Supply: 9V DC (center-negative)

Product Weight: 2 lbs.

Product Dimensions (L x W x H): 2.63 x 6.75 x 5 in
