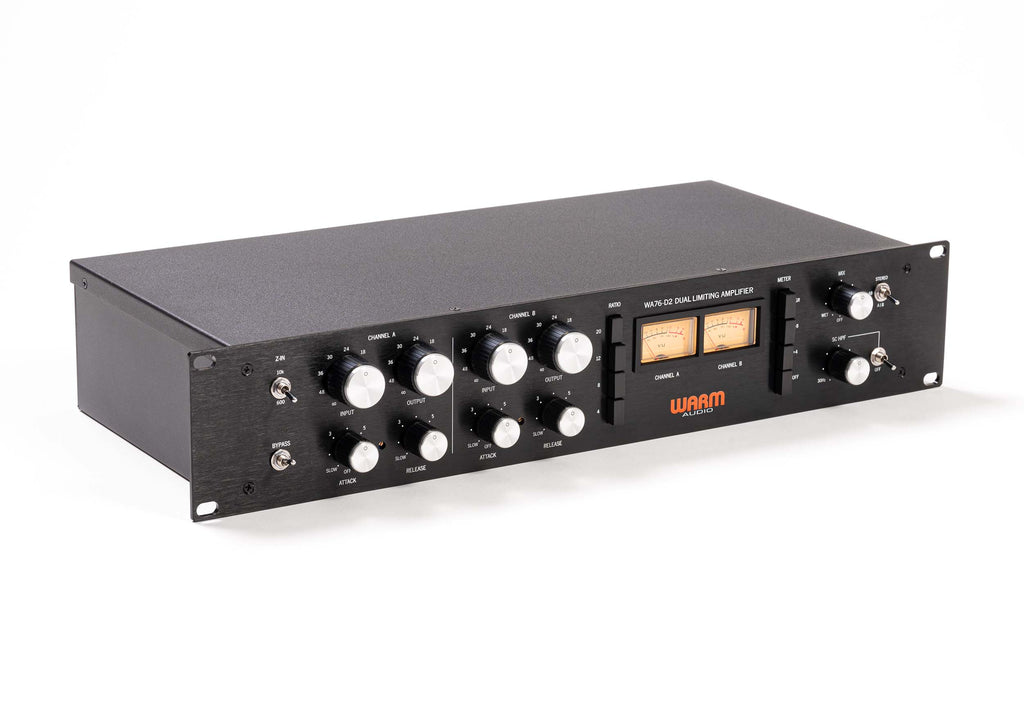

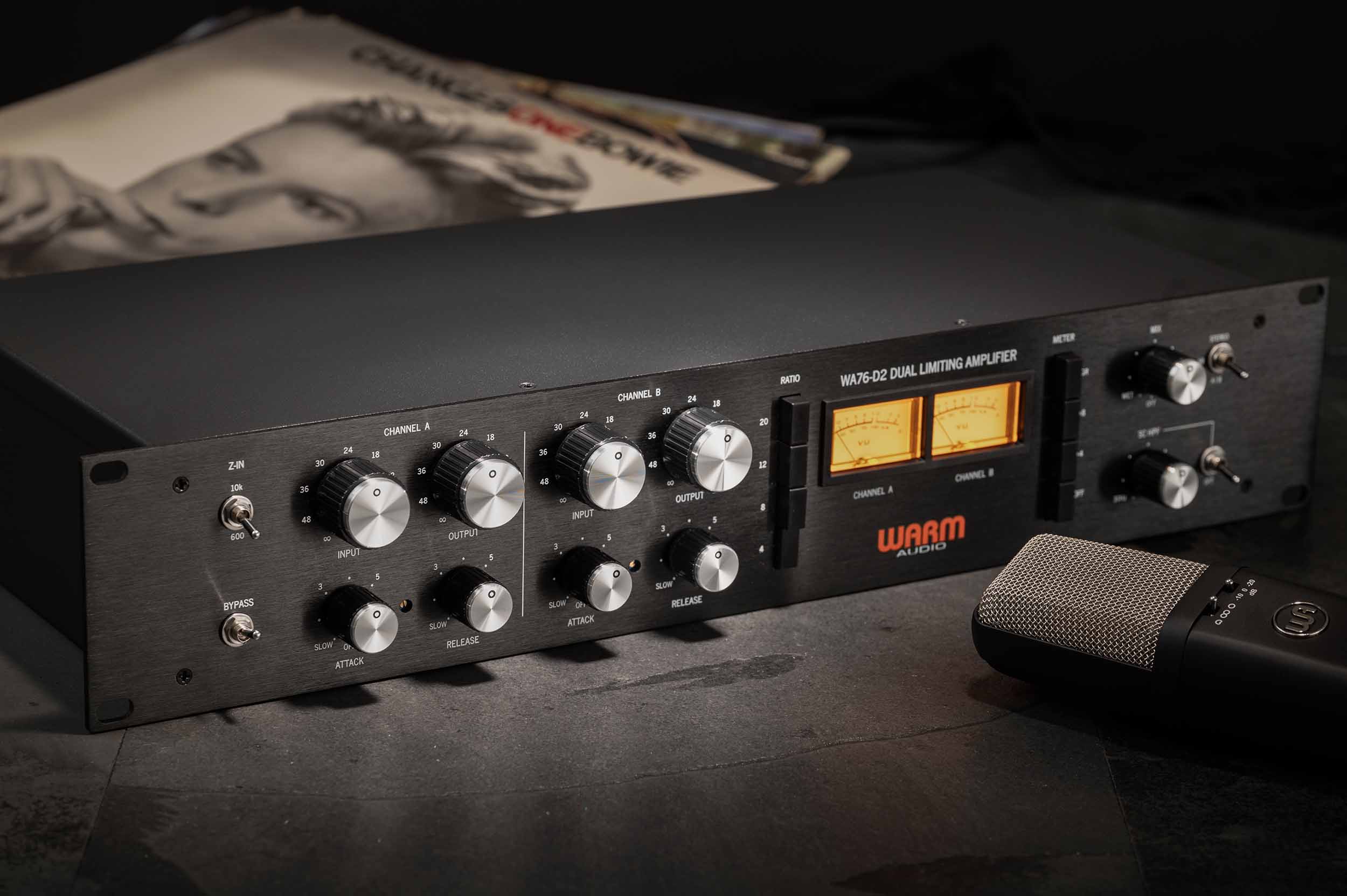

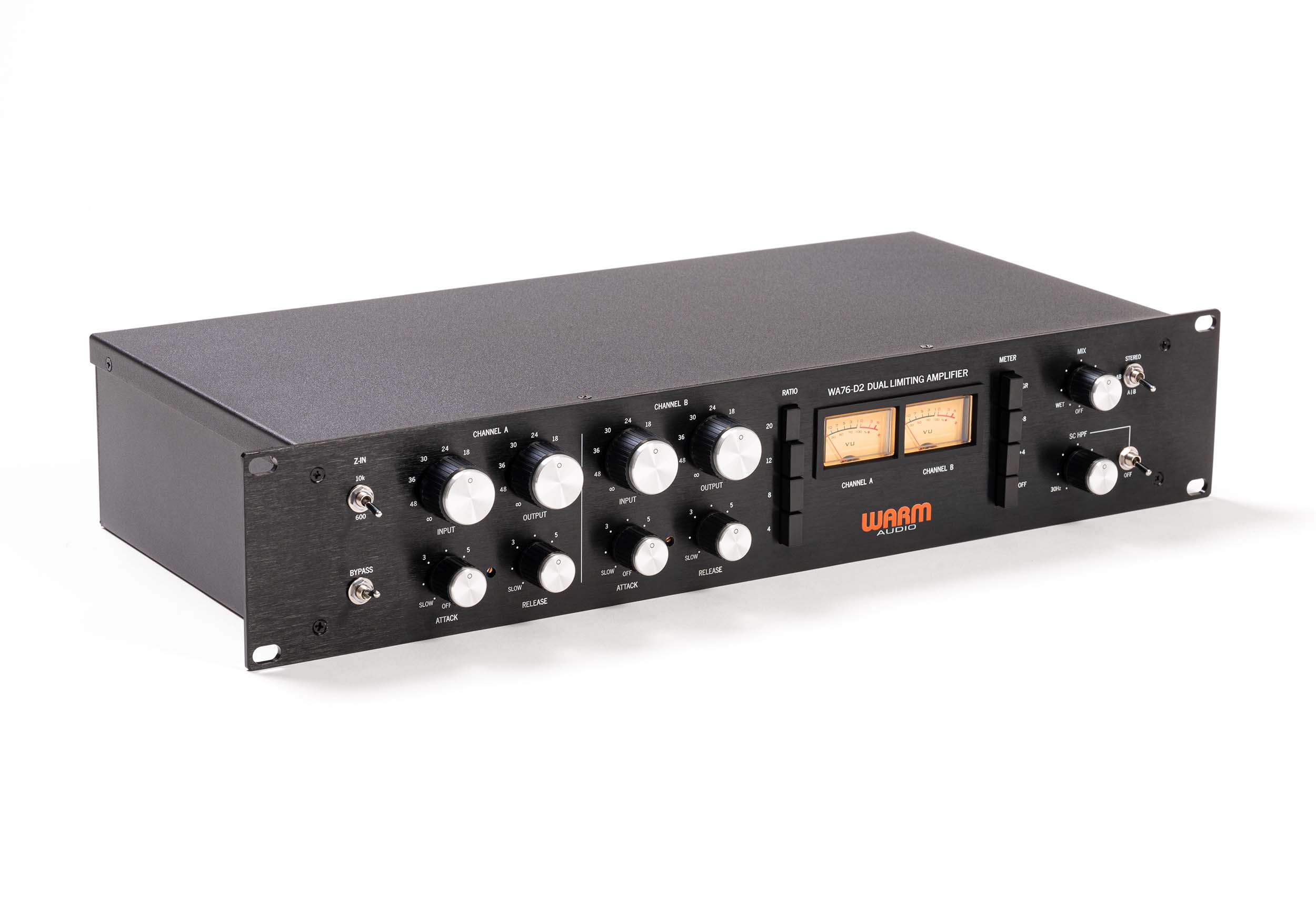

Warm Audio WA76-D2 Dual Channel Clean Gain Discrete FET Compressor

The Warm Audio WA76-D2 is a faithful recreation of the legendary “D-style” dual-channel FET studio compressor, delivering the fast response, low noise performance, and rich analog tone that made the original 76 compressors a studio essential. Designed to blend vintage circuitry with modern workflow enhancements, this two-channel unit provides classic compression character while offering the flexibility required in today’s recording and mixing environments. With generous headroom and ultra-fast dynamic control, the WA76-D2 brings professional studio compression to vocals, drums, guitars, bass, and full mixes with unmistakable analog warmth.

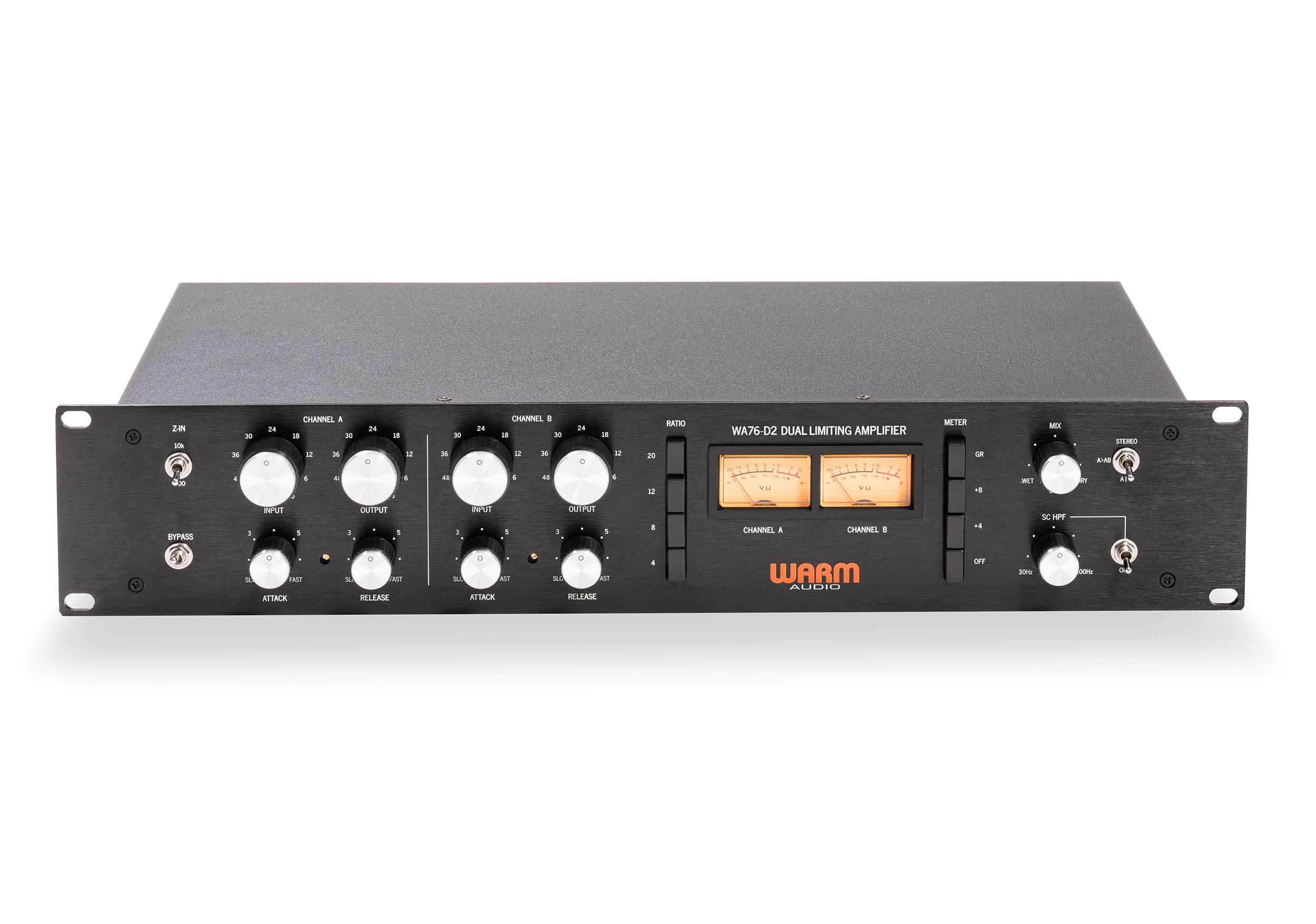

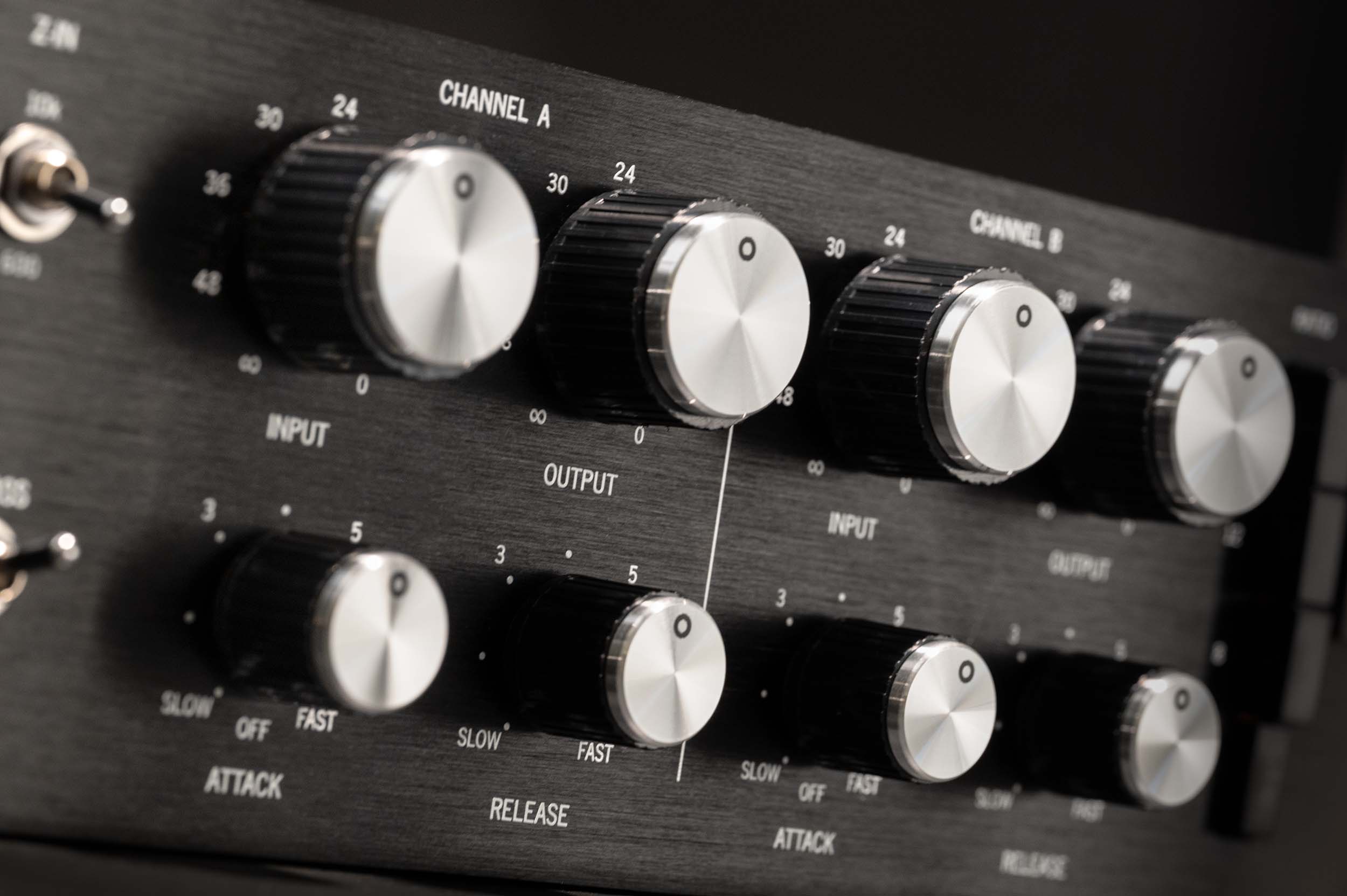

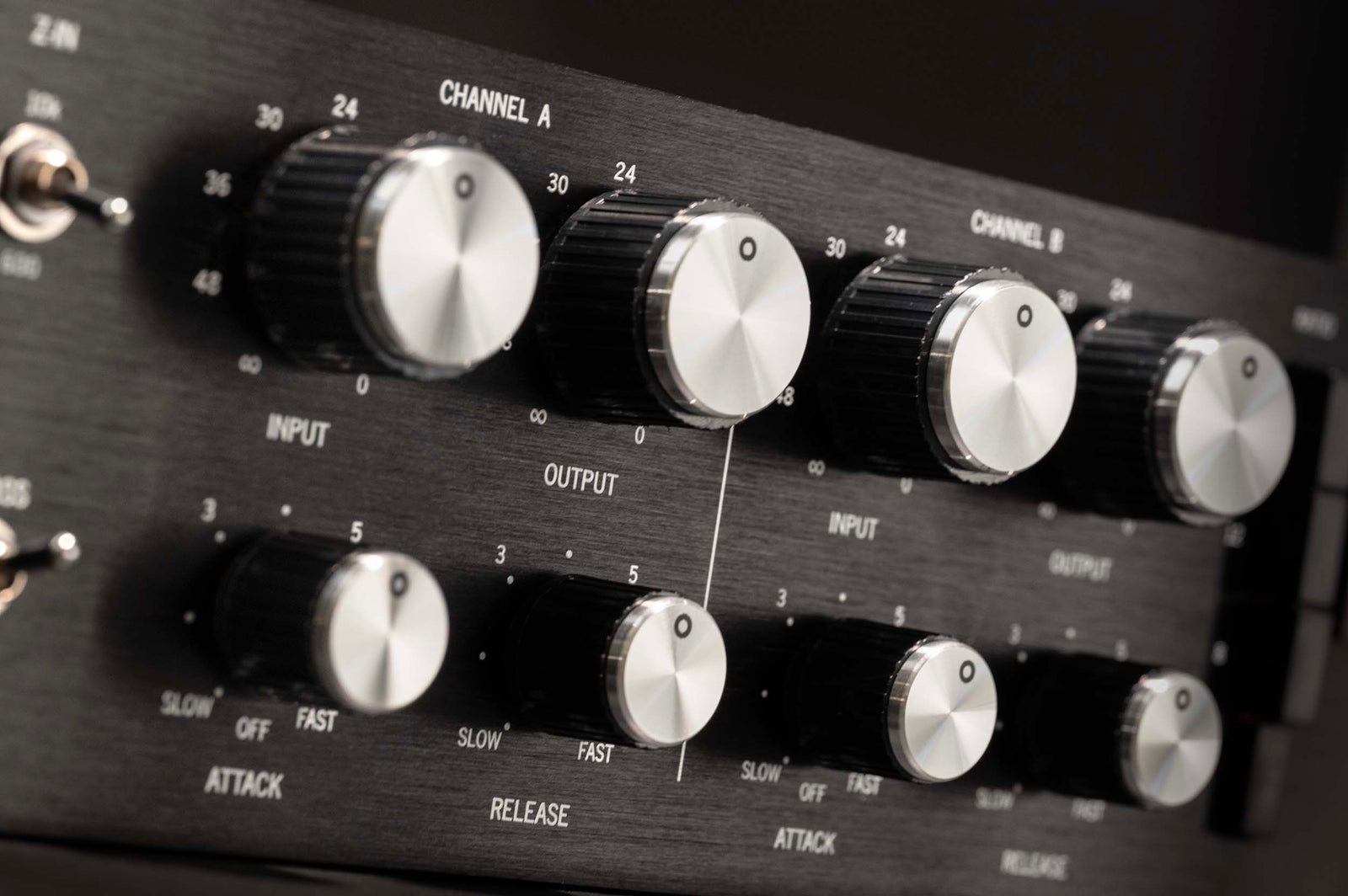

Featuring all the critical 76-style controls-including attack, release, ratio, input, output, and meter display-the WA76-D2 also adds powerful modern features for enhanced versatility. A built-in dry/wet mix enables parallel compression without additional routing, while selectable input impedance, active and true bypass modes, and variable sidechain high-pass filtering allow precise control over low-frequency response and overall dynamics. These additions make the WA76-D2 ideal for both traditional tracking setups and modern hybrid production workflows.

At the heart of the WA76-D2 are custom large-core CineMag input and output transformers built to the same material specifications used in classic vintage designs, ensuring authentic analog coloration and depth. Premium components-including ceramic and electrolytic capacitors, metal film resistors, and a refined preamp stage-deliver accurate D-style circuitry with improved linear response and reduced noise. Hand-tested and inspected in Austin, Texas, the WA76-D2 combines legendary compression tone with modern reliability, making it a powerful centerpiece for professional studios and serious producers alike.

Product Specifications:

Rack Size: 2U 19-inch Rackmount Chassis

Channels: 2

Circuit Design: 100% Analog Discrete

Compressor Style: Vintage “Rev D” FET Recreation

Operating Modes: Stereo Linked, Primary:Secondary, Dual-Mono

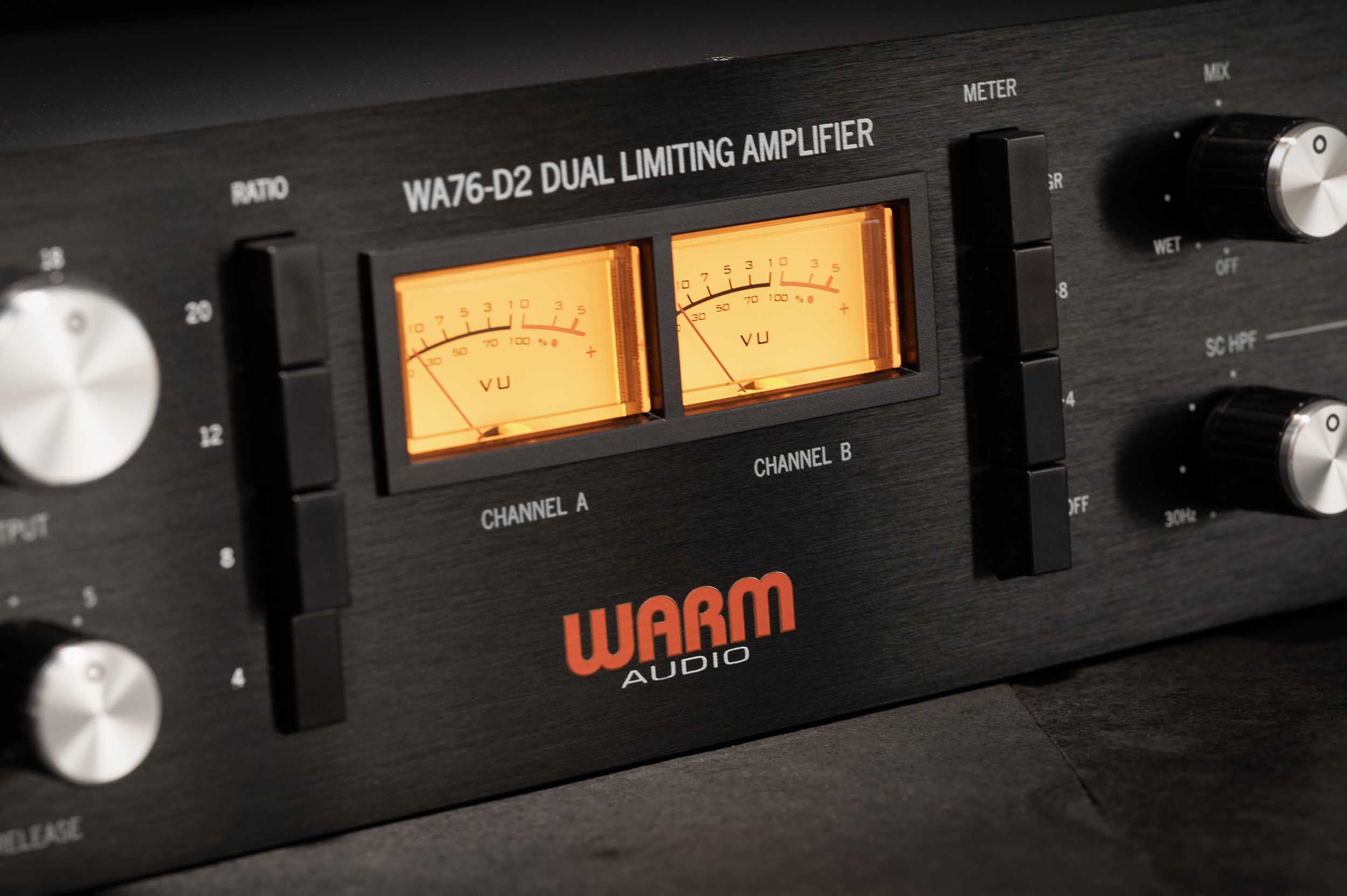

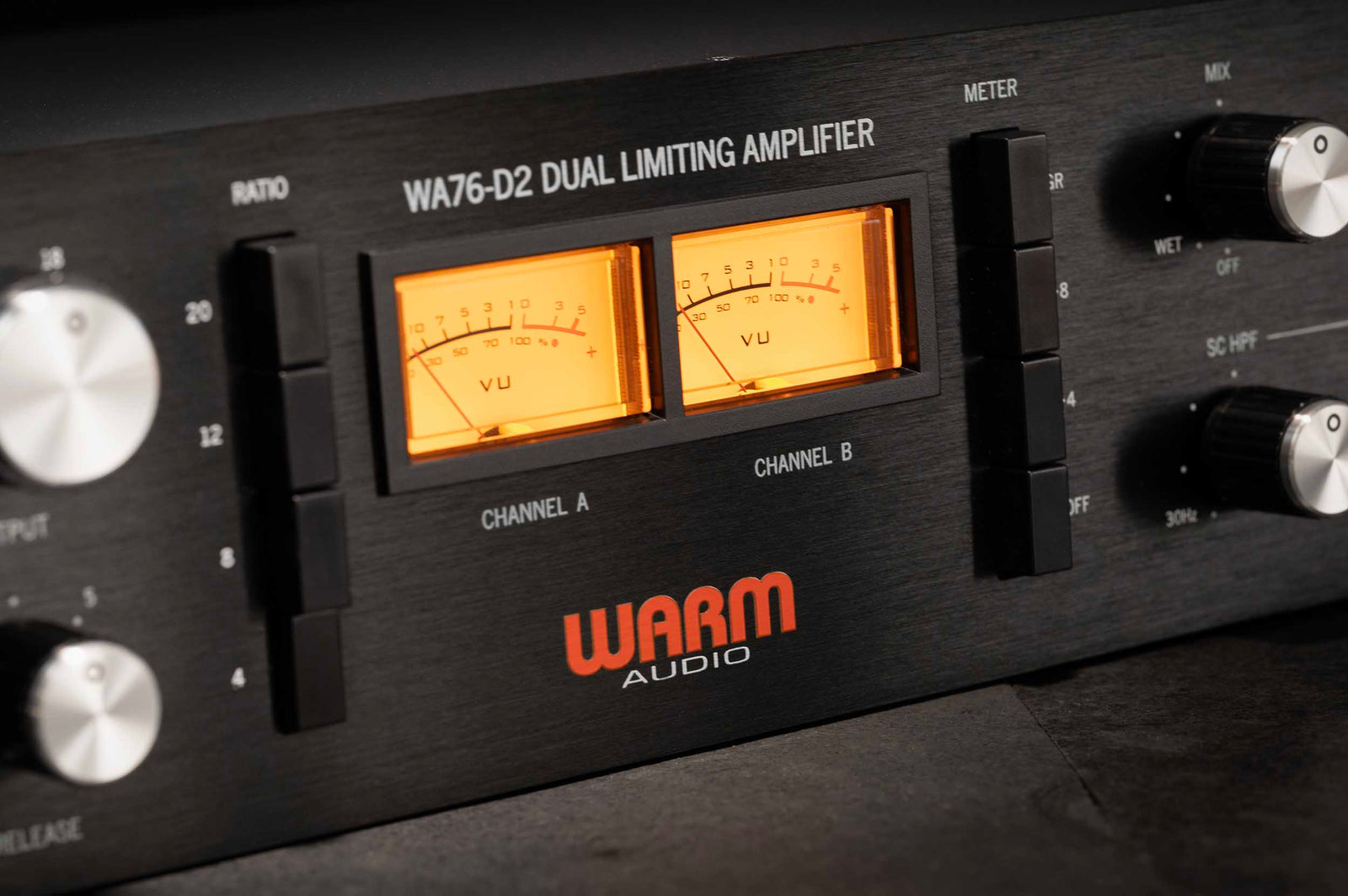

VU Meter Modes: Gain Reduction, +8 dB Output, +4 dB Output, Off

Signal Path: 100% Discrete Audio Path

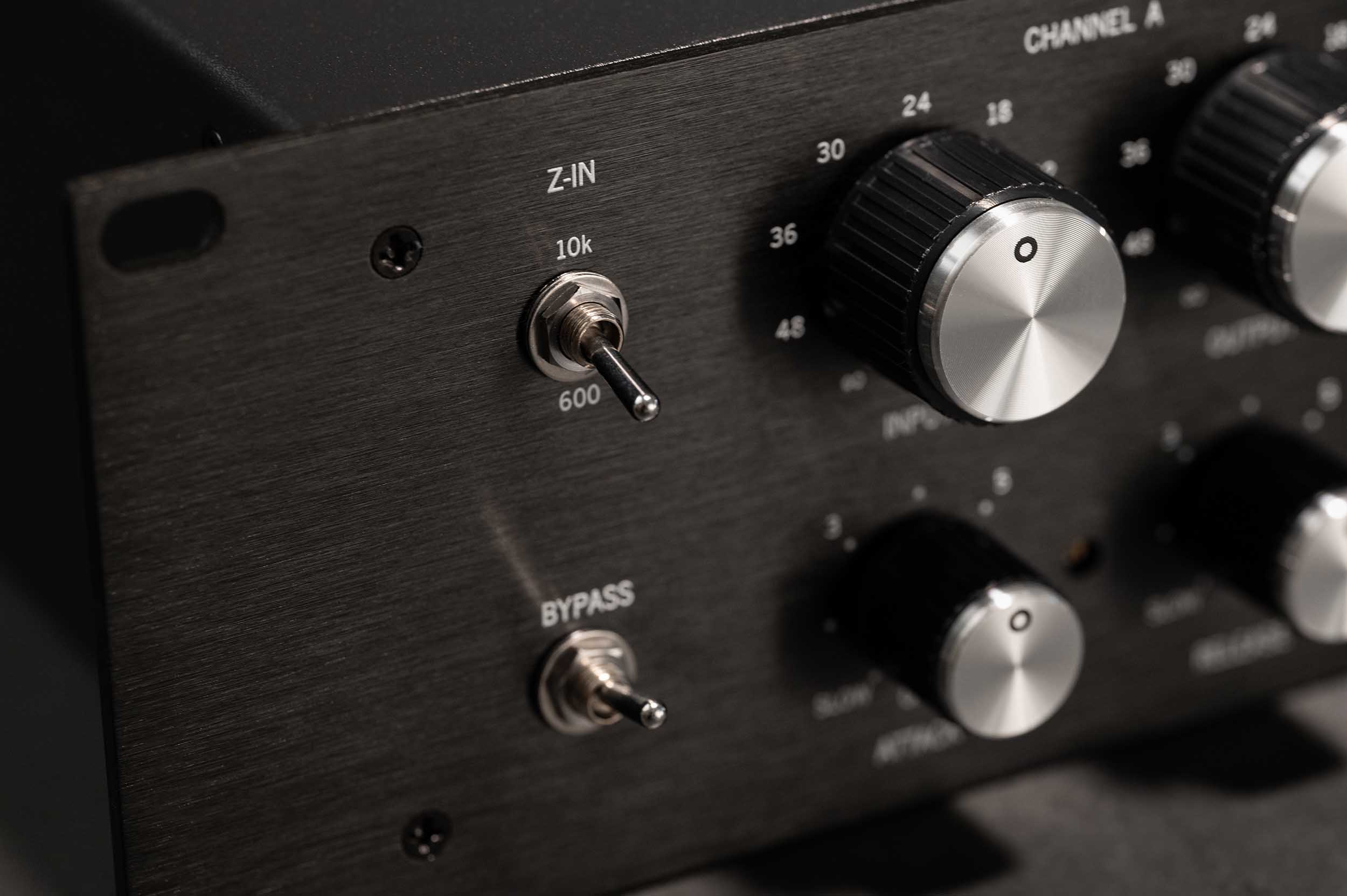

Input Impedance: 600Ω Attenuator (Selectable 10kΩ)

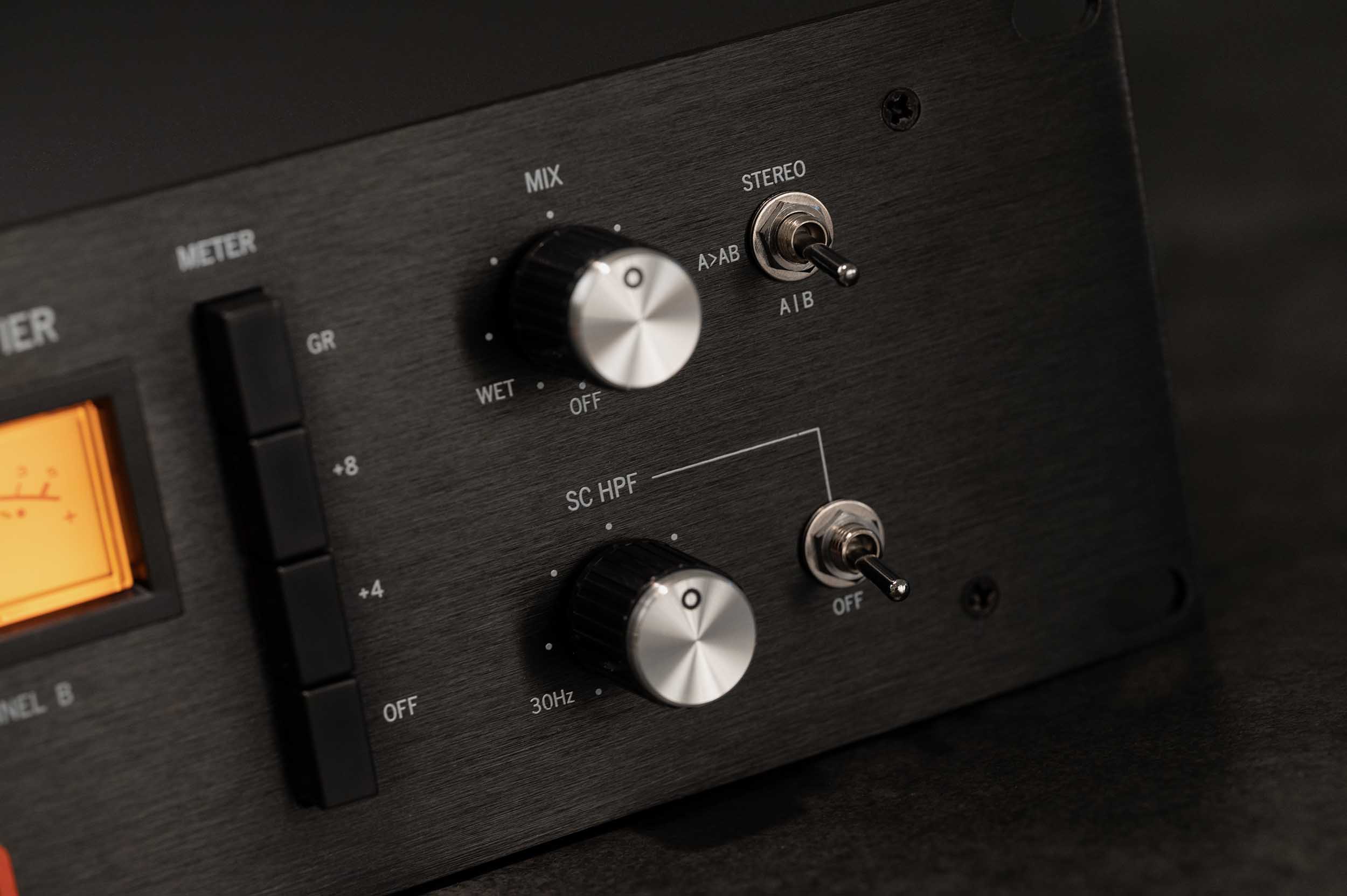

Dry/Wet Control: Yes (Blend Control)

Sidechain Filter: Variable High-Pass Filter (30–300 Hz, 12 dB/Octave)

Bypass Modes: Active Bypass & True Bypass

Attack Time: 20 µs – 800 µs

Release Time: 50 ms – 1.1 sec

Special Mode: All-Buttons-In Compression

Transformers: CineMag USA O-12 Input & 5002 Output

Output Amplifier: Class-A Line-Level

Frequency Response: 20 Hz – 20 kHz (±1 dB)

Total Amplifier Gain: 53 dB

Signal-to-Noise Ratio: 92 dB (A-Weighted)

THD+N: -67 dB (at -6 dBu)

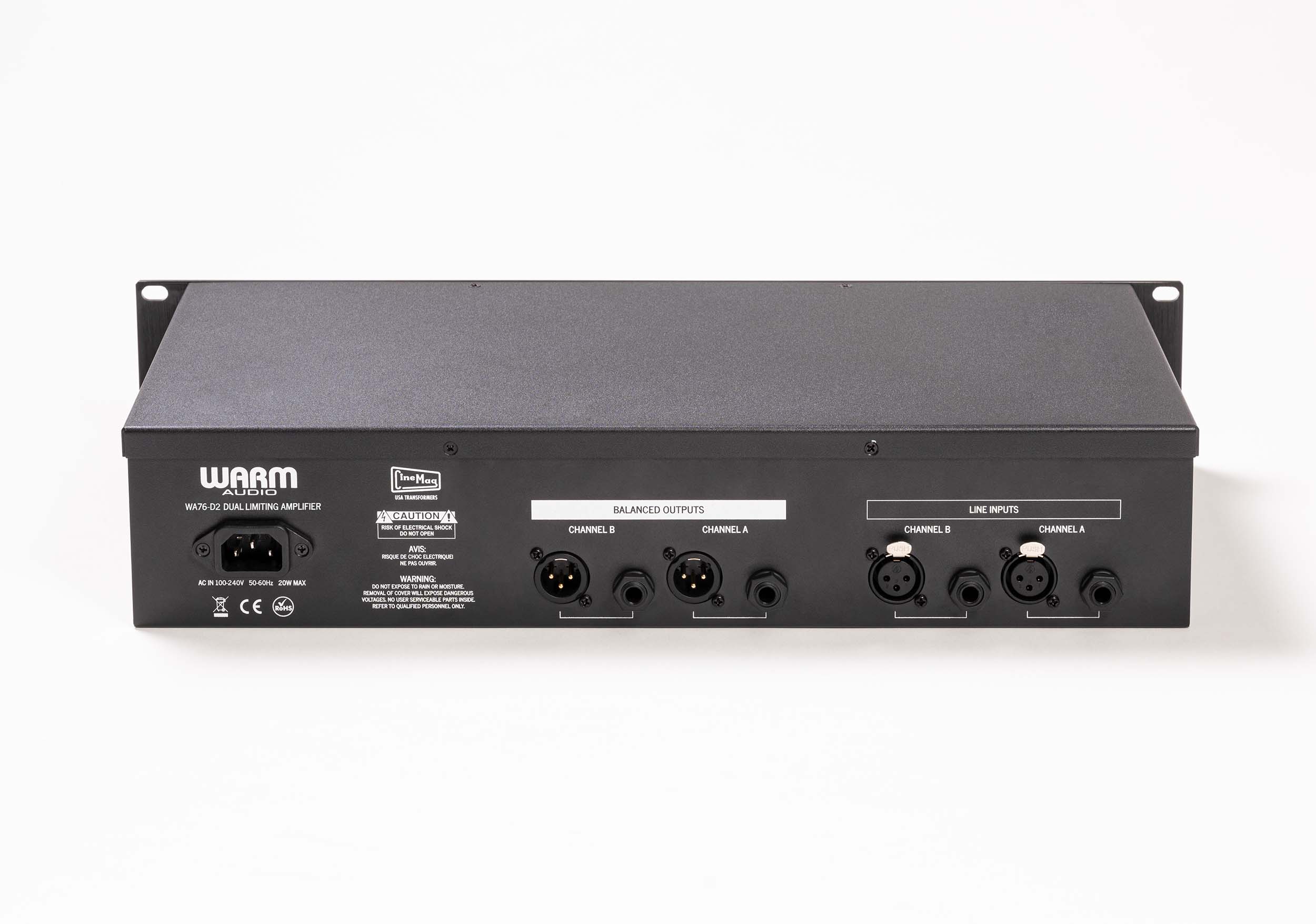

Inputs: Balanced XLR & TRS

Outputs: Balanced XLR & TRS

Power Supply: 100–230V IEC Universal

Product Weight: 10.6 lbs.

Product Dimensions (L x W x H): 19 x 8 x 3.5 in

Shipping Weight: 15.7 lbs.

Shipping Dimensions (L x W x H): 24.5 x 12.8 x 5.5 in
